Best Wheel Loader for Farm

Compact design

Low center of gravity

Small turning radius

Powerful performance

Contact Now E-Mail Telephone WhatsApp

Overview
Technical data
Configurations
Attachments

Product Introduction

For mountain farms in the Alps, the Compact Loader for Mountain Farm with Rock Bucket Attachment is essential for stone clearing and land finishing. The 4WD system enables the loader to move freely on uneven mountain slopes, and the rock bucket's durable steel structure withstands the impact of stones. The bucket's large capacity improves stone collection efficiency, and the precise control system allows for accurate placement of stones. This combination helps optimize farmland use in mountainous areas.

Best Wheel Loader for Farm

Product Specifications

Engine Rated Power (kw/HP)：18.4/25

Operating Weight (kg):2380-2550

Tipping Load with Bucket--Machine Straight (kg):1160-1690

Bucket Pivot Point :980-1440

Learn More

Applications

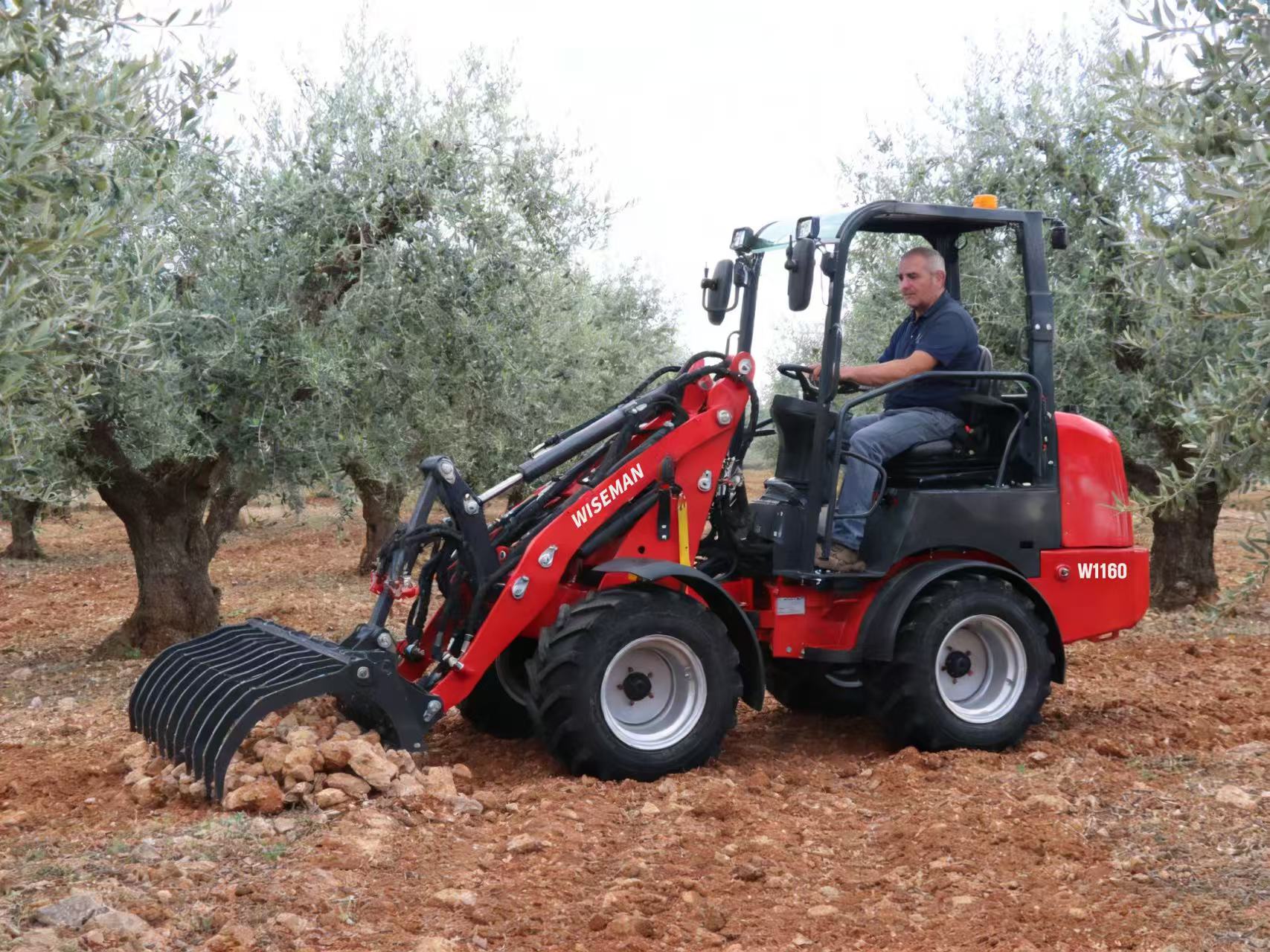

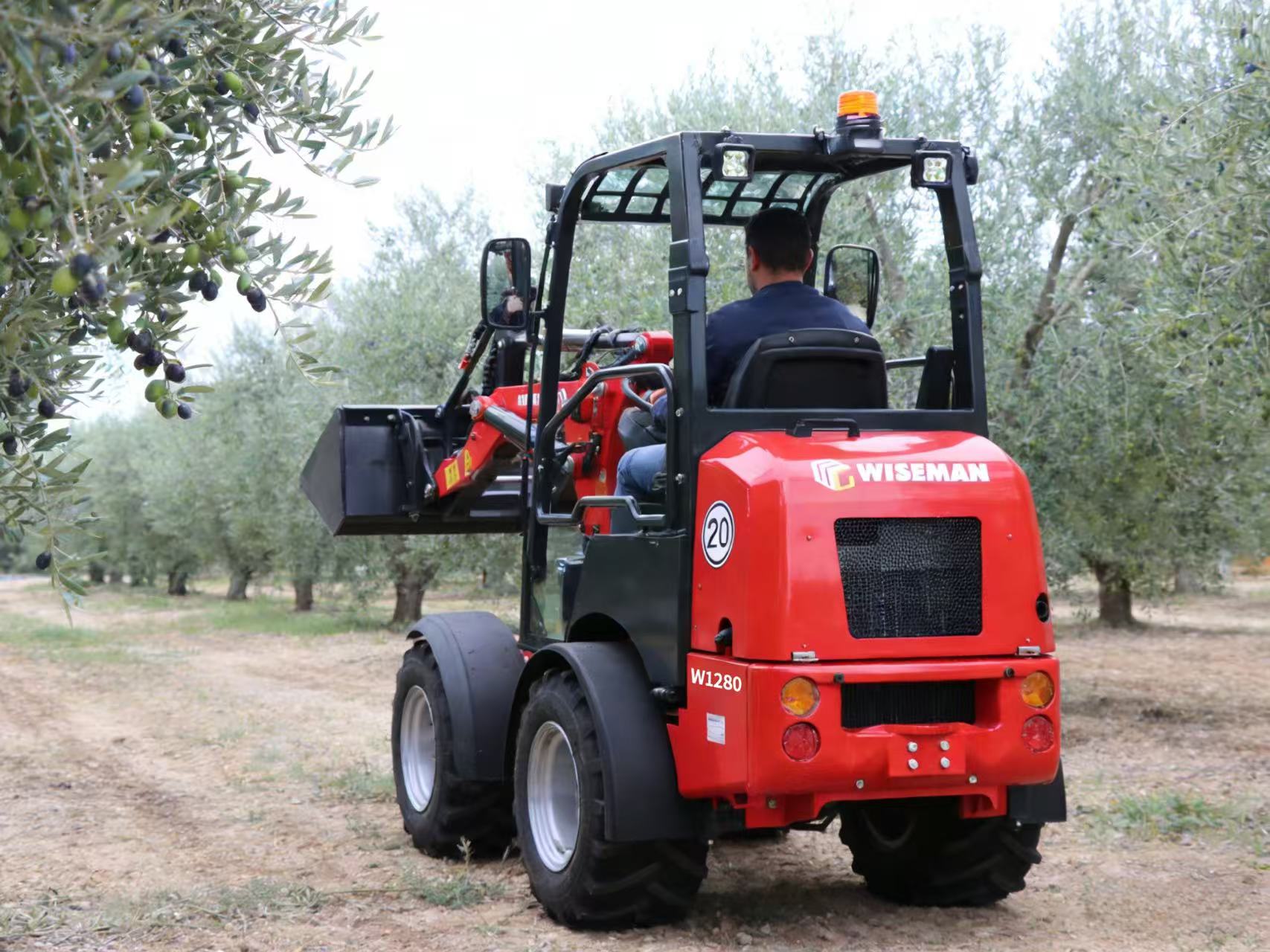

Compact Wheel Loader for Olive Transport in Olive Groves

Agile in narrow olive grove rows, cargo bucket fitted, gentle handling for fresh olives, streamlining harvest-to-processing logistics efficiently.

Best Wheel Loader for Farm

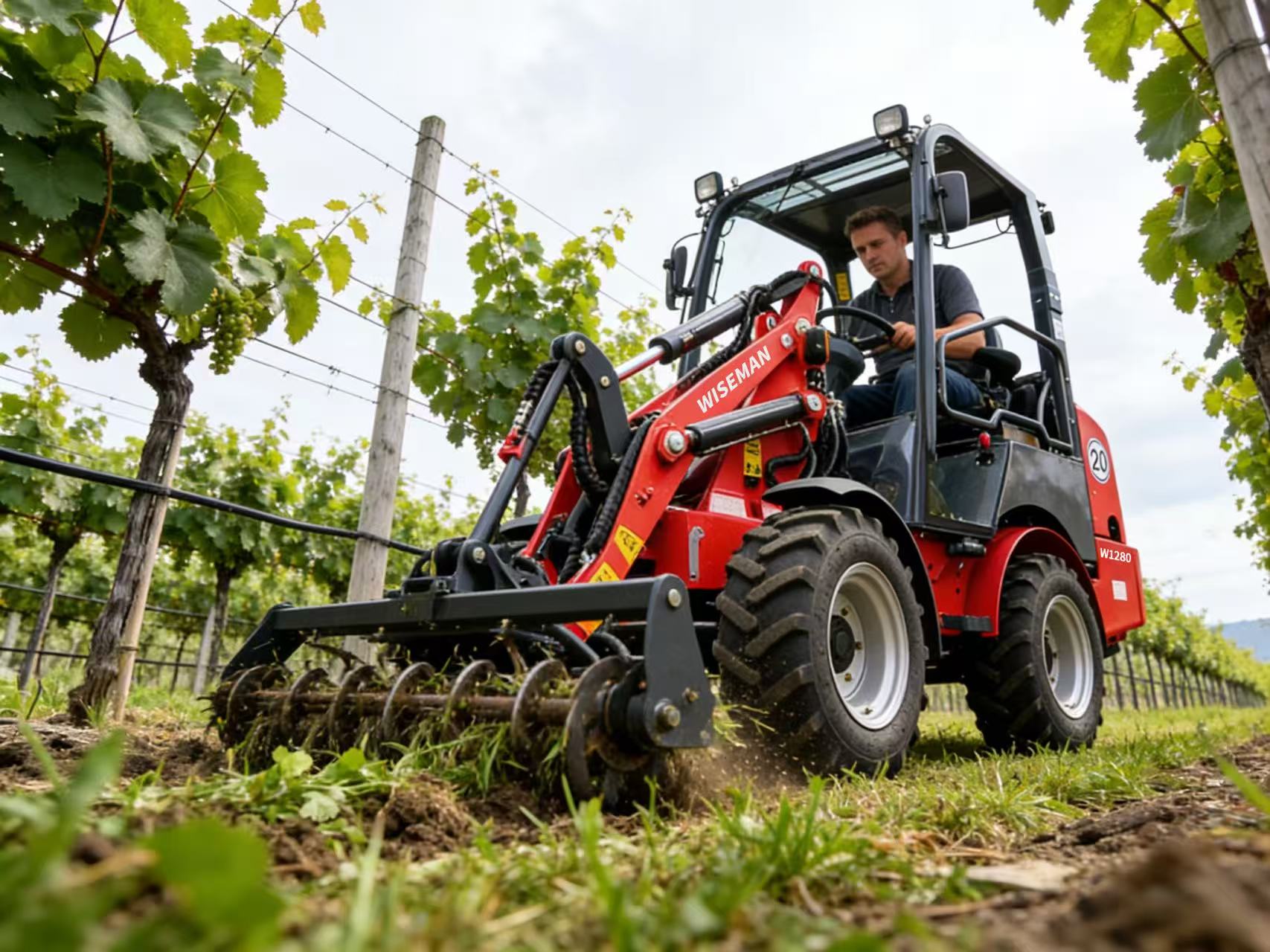

Compact Wheel Loader for Soil Loosening in Vineyards

Agile in narrow vine rows, tiller attachment fitted, root-safe shallow cultivation, boosts soil aeration for grape vine growth.

Best Wheel Loader for Farm

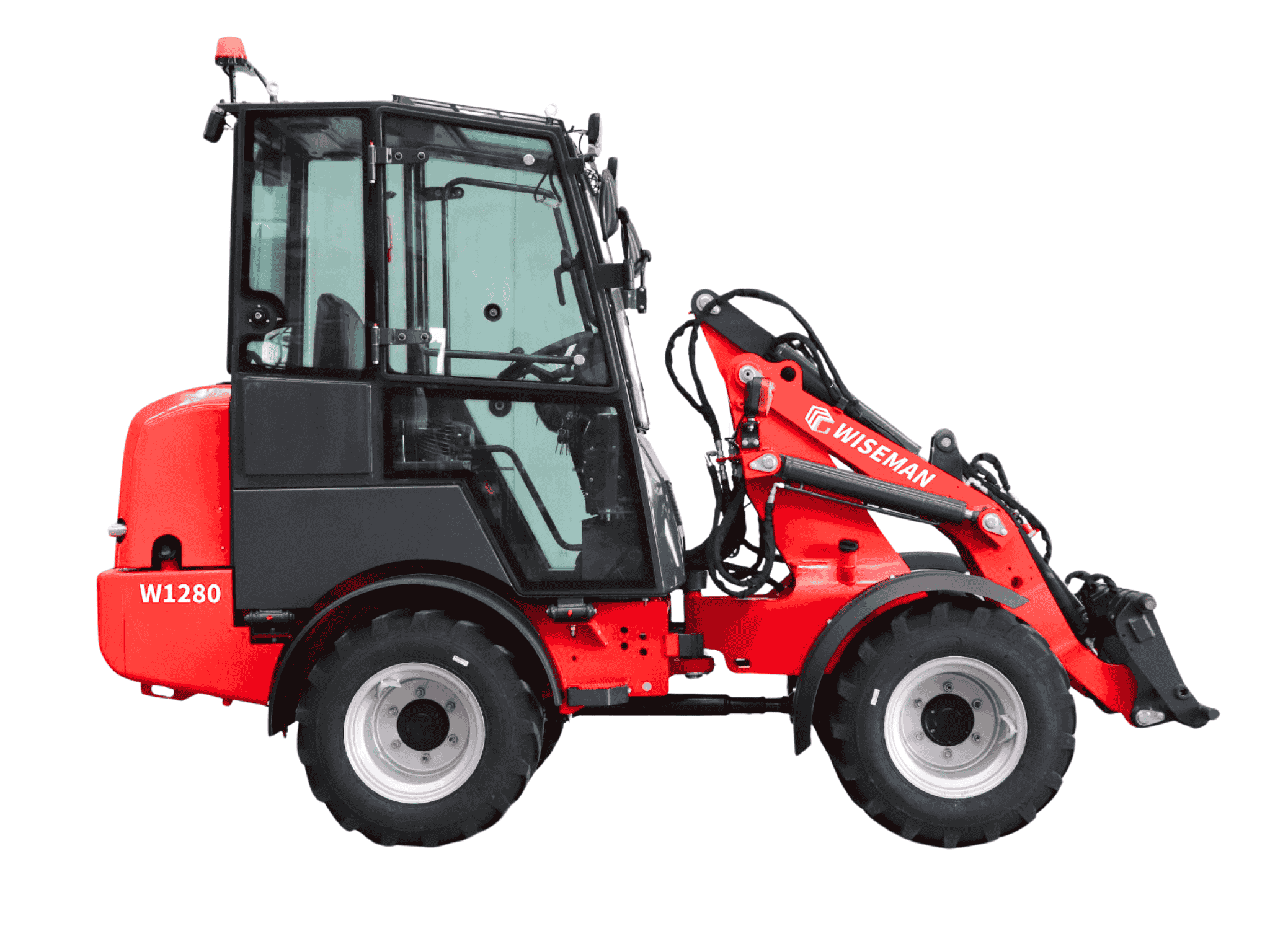

W1280 Technical Data
Engine
Brand/Model	Kubota D1703 or D1505
Type:	3 Cylinders or 4 Cylinders, Water Cooling
Power Output (kw/HP)	18.4/25
Emissios Standard	Euro V/ Tier 4 Final
Driving System
Type of Drive	Hydrostatic
Drive	Universal Joint Shaft
Travel Speed ( km/h)	0-15
Electrical System
Operating Voltage （V)	12
Battery Capacity (Ah)	60
Alternator Rating (Ah)	40
Hydraulic System
Max.Drive Hydraulics Work Pressure (bar)	320
Max. Drive Hydraulics Discharge Volume (l/min)	72
Max. Work Hydraulics Work Pressure	25Mpa
Max. Work Hydraulics Discharge Volume (l/min)	32
Weight
Operating Weight (kg)	2380-2550
Tipping Load with Bucket--Machine Straight, Loading Frame Horizontal (kg)	1160-1690
Tipping Load with Bucket--Machine Pivoted, Loading Frame Horizontal (kg)	980-1440
Tipping Load with Pallet Fork--Machine Straight, Loading Frame Horizontal (kg)	890-1260
Tipping Load with Pallet Fork--Machine Pivoted, Loading Frame Horizontal (kg)	740-1080
Bucket Capacity (m³)	0.28
Brake System
Operating Brake	Transmission Drum Brake
Parking Brake	Operating and Parking Brake in the Drive Train
Tyre Size (standard)	31*15.5-15

	1.Engine: Kubota D1505 or Kubota D1703, Optional: Perkins
	2.Hydraulic System: German Rexroth pump, Rexroth motor, domestic valves; 1 pump + 1 motor, Inching function
	3.Boom Function: Floating function (optional)
	4.Control System: Electronic control levers with integrated forward/reverse buttons 5. (High/Low speed optional)
	5.Brake Inching Function (optional)
	6.Seat Sensor (optional)
	7.Lights: Turn signals, LED work lights
	8.EU-standard Hydraulic Quick Coupler
	9.Tires: 31x15.5-15
	10.Canopy: EPS

1. Lightweight Bucket Square Main Application Scenarios: Shoveling and hauling light materials such as sawdust, hay, and plastic pellets.Core Functions: The bucket’s top rim is parallel to the base for hassle-free operation; extended bottom and elevated sidewalls boost material handling capacity; fitted with a wear-resistant scraper edge.
Parameter	Value Range
Width	870mm-1050mm
Capacity	0.28M3-0.54M3
Weight	110kg-150kg
		2.Lightweight Bucket Round Main Application Scenarios: Scooping and transporting large batches of light materials like silage, straw, and wood chips, ideal for applications requiring reduced material spillage.Core Functions: Reinforced construction designed specifically for light materials; top rim aligns with the base for easy maneuvering; extended base and reinforced curved sidewalls enhance capacity, with overflow prevention to minimize spillage; wear-resistant scraper edge can be replaced when needed.
		Parameter	Value Range
		Width	870mm-1050mm
		Capacity	0.28M3-0.54M3
		Weight	110kg-150kg
3. Earth Bucket Main Application Scenarios: Gripping and transporting loose materials including silage, manure, wood chips, and green refuse.Core Functions: Two cylinders deliver high clamping force; side sections of the bucket are detachable; equipped with a wear-resistant scraper edge.
Parameter	Value Range
Width	920mm-1150mm
Capacity	0.20M3-0.32M3
Weight	135kg--175kg
		4. Grab Bucket With Removable Side Parts Main Application Scenarios: Gripping and conveying loose materials such as silage, manure, wood chips, and green refuse.Core Functions: Strong clamping force provided by two cylinders; side panels of the bucket are removable; comes with a wear-resistant scraper edge.
		Parameter	Value Range
		Width	1150mm-1550mm
		Capacity	0.23M3-0.36M3
		Weight	280kg--320kg
5. Multi-purpose Bucket Main Application Scenarios: Multi-scene operations including site cleaning and material relocation, enabling shoveling, loading, and grabbing (e.g., large stones, underbrush).Core Functions: Adaptable to multi-scene tasks (shoveling, loading, grabbing); openable for emptying to boost dumping height; fitted with a wear-resistant scraper edge and teeth.
Parameter	Value Range
Width	1150mm-1550mm
Capacity	0.23M3-0.36M3
Weight	280kg--320kg
