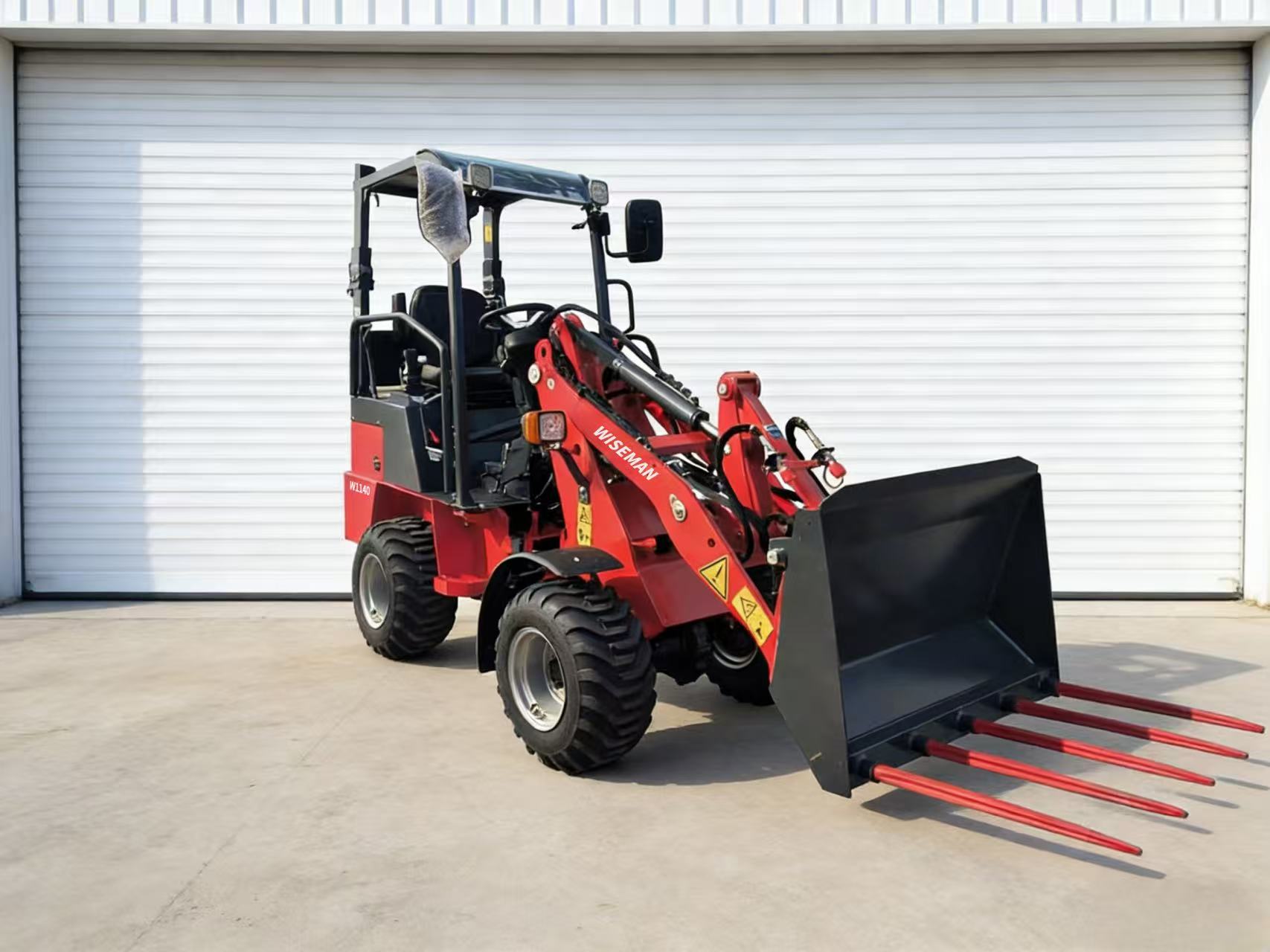

Light Compact Wheel Loader

Space-efficient design

Low center-of-gravity configuration

Compact turning radius

Dynamic performance output

Contact Now E-Mail Telephone WhatsApp

Overview
Technical data
Configurations
Attachments

Product Introduction

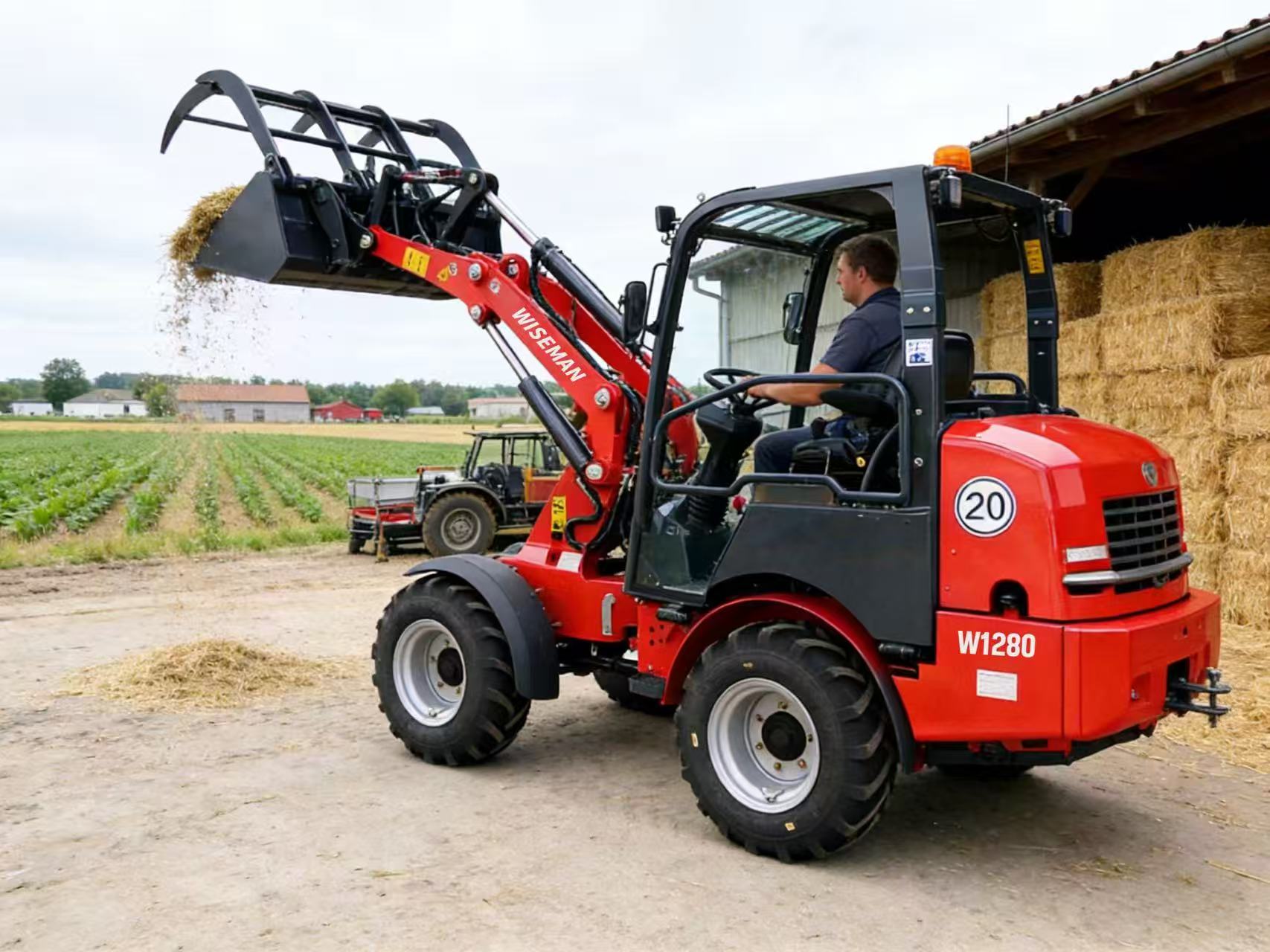

For European family farms, theFarm Compact Wheel Loader with Rake Attachment is a must-have tool for forage sorting and farmland finishing. The low ground pressure tires prevent soil compaction, and the rake's flexible rotation angle covers a wide working area. The loader's compact size allows it to move freely in narrow farm lanes, and the durable rake teeth withstand frequent use. Easy to operate and maintain, this combination helps farmers save time and effort in daily farm management.

Farm Compact Wheel Loader

Product Specifications

Engine Rated Power (kw/HP)：18.4/25

Operating Weight (kg):1720

Tipping Load with Bucket--Machine Straight (kg):650

Bucket Pivot Point :520

Learn More

Applications

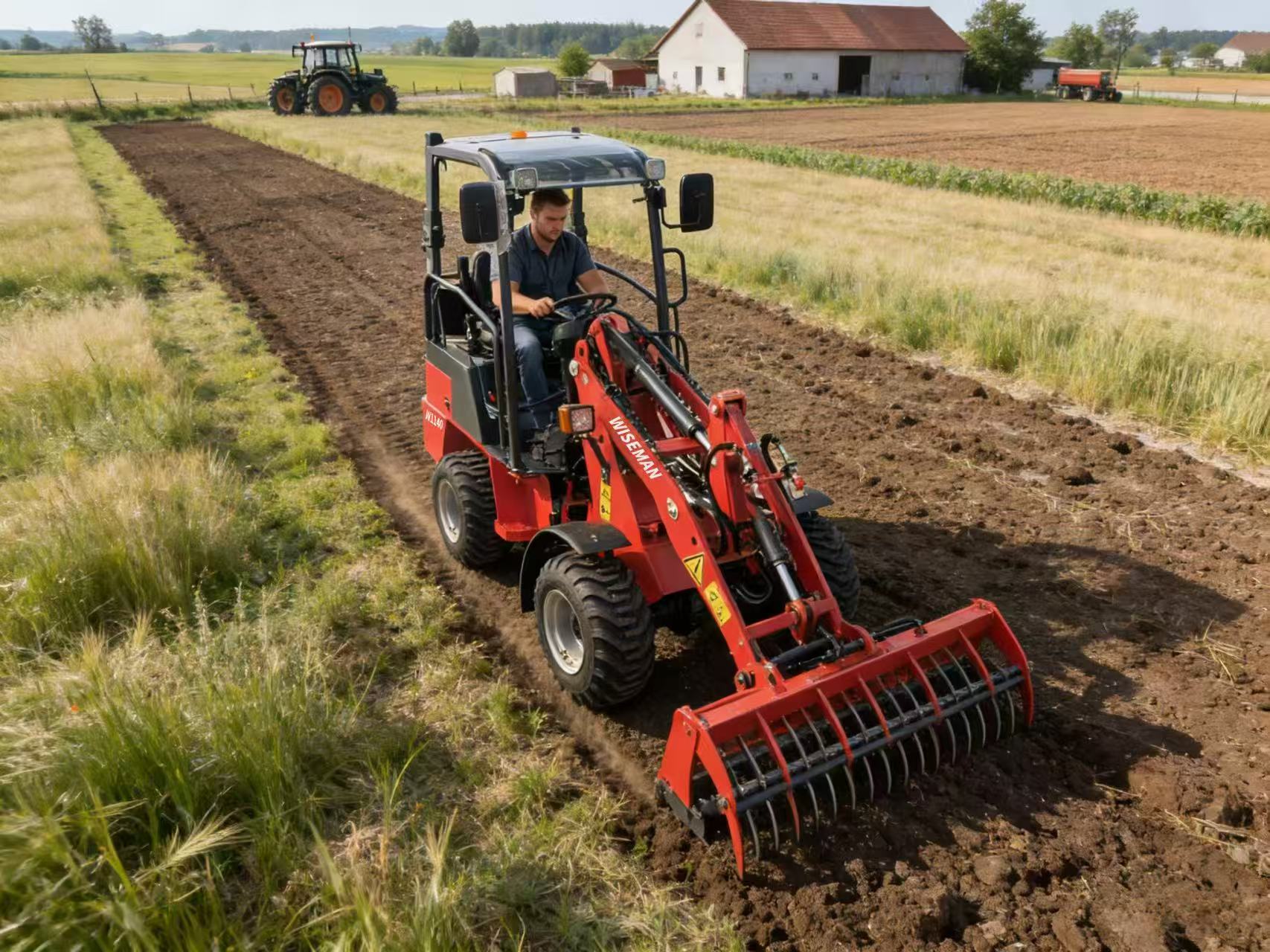

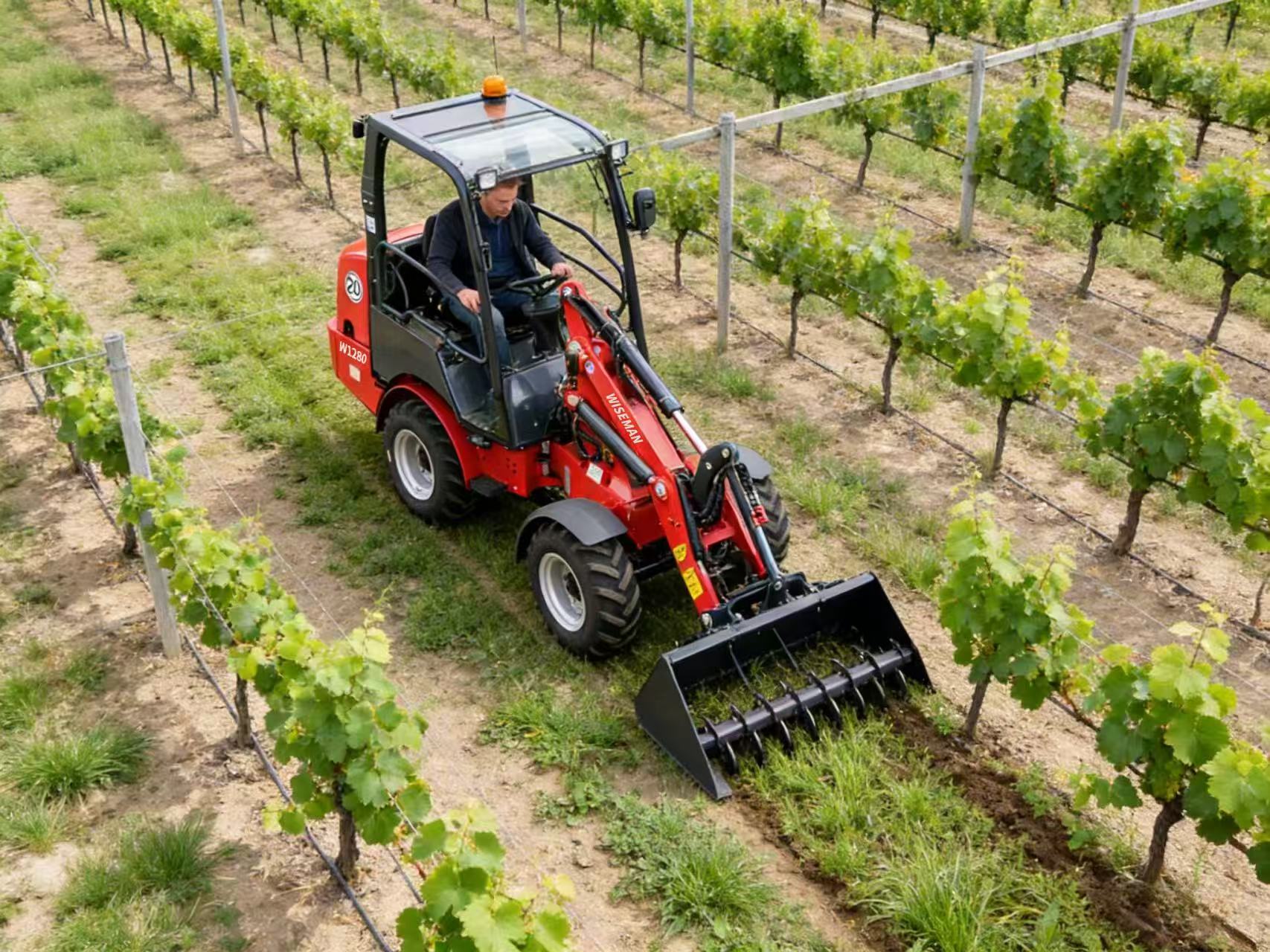

Compact Wheel Loader for Weeding on Farmlands

Agile in farm plots, efficiently clears weeds and unwanted grass for tidy farmland management.

Farm Compact Wheel Loader

Compact Wheel Loader for Farm Grain Handling

Maneuverable in farm yards, efficiently transports grain bulk and sacks for daily farm operations.

Farm Compact Wheel Loader

Technical Data for W1140 Compact Loader
Engine
Brand/Model	Perkins 403J-11 or Kubota D1105
Type:	3 Cylinders, Water Cooling
Power Output	18.4kW(25HP)/2800rpm
Displacement	1.13 L
Emissios Standard：	Euro Stage V
Drive System
Type of Drive	Hydrostatic
Gear Shift	Electric, Continuously Variable Transmissioin (CVT)
Travel Speed	0-12 km/h
Electrical System
Operating Voltage	12V
Battery Capacity	60Ah
Alternator Rating	40Ah
Hydraulic System
Max.Drive Hydraulics Work Pressure	25 Mpa
Max. Drive Hydraulics Discharge Volume	91 L/min
Max. Work Hydraulics Work Pressure	180 bar
Max. Work Hydraulics Discharge Volume	32 l/min
Boom Lifting Time	3.1s
Automatic Levelling Function	yes
Weight
Operating Weight	1720 kg
Tipping Load with Bucket--Machine Straight:	650 kg
Tipping Load with Bucket--Machine Pivoted:	450 kg
Bucket Capacity	0.23 m3
Max.Lifting Force	650 kg
Refilling Capacity
Fuel Tank	26L
Hydulic Oil Tank	40L
Brake System
Operating Brake	Transmission Drum Brake
Parking Brake	Operating and Parking Brake in the Drive Train
Tyre Size	26x12-12AS
Machine Dimension (mm)
Overall Length with Bucket	3640
Overall Length without Bucket	2700
Bucket Pivot Point to the Centre of Axle	520
Wheel Base	1328
Rear Overhang	770
Height to the Top of Canopy	2110
Seat Height	1100
Working Range (mm)
Overall Working Height	3080
Max. Lifting Height	2640
Load-Over Height	2285
Dumping Height	2030
Digging Depth	120
Overall Width	1300
Wheel Track	910
Ground Clearance	180
Max. Turning Radius	2235
Outter Turning Radius	2020
Inner Turning Radius	860
Articulation Angle	51°
Roll Back Angle at Max. Lifting Height	52°
Dumping Angle	35°

	1.Engine: KUBOTA D1105 (Euro 5), Optional: Perkins
	2.Hydraulic System: German Rexroth pump, Gerotor motor, domestic valves; 1 pump + 2 motors, Inching function
	3.Boom Function: Floating function (optional)
	4.Control System: Electronic control levers with integrated forward/reverse buttons 5.(High/Low speed optional)
	6.Brake Inching Function (optional)
	7.Seat Sensor (optional)
	8.Lights: Turn signals, LED work lights
	9.EU-standard Hydraulic Quick Coupler,Quick change, customization supported
	10.Tires: 31.5*15-15.5
	11.Canopy: EPS,detachable, foldable, and closable.

		1. Stone Bucket Main Application Scenarios: Suitable for picking up large stones in fields, construction sites, gardens, etc., particularly for separating stones from loose fine materials (e.g., soil, sand). Core Functions: - Efficient Stone Pickup: Accurately grabs large stones to meet on-site stone cleaning requirements; - Screening & Separation: Built-in sieving function allows loose fine materials to fall directly to the ground, realizing automatic separation of stones and fine particles; - Clear Observation: Enables operators to easily monitor loaded stones, enhancing operational precision.
		Parameter	Value Range
		Width	1090mm
		Capacity	0.22M3
		Weight	112kg
2. Fork and Grab Main Application Scenarios: Cleaning loose animal pens; transporting round/square bales; handling loose materials like green clippings and green waste. Core Functions: Fork-style top structure with one hydraulic cylinder; 5 tines in total (600mm length) for material grabbing and transportation.
Parameter	Value Range
Width	860mm-930mm
Length of Tines	600mm-800mm
Weight	155kg--185kg
		3. Pallet Fork Main Application Scenarios: Transporting various palletized goods (e.g., boxed, bagged products). Core Functions: Unobstructed view of loaded materials; equipped with 2 hooks and adjustable tine spacing.
		Parameter	Value Range
		Length	1000mm
		Max.Load Capacity	2000kg
		Weight	160 kg - 210 kg
4. Fold-down Pallet Fork Main Application Scenarios: Road travel (folded tines minimize space usage); transporting various palletized goods. Core Functions: Tines can be folded; clear visibility of loaded materials; 2 hooks included; adjustable tine spacing.
Parameter	Value Range
Length	1000 mm
Max.Load Capacity	2000 kg
Weight	190 kg
		5. Load Hooks Main Application Scenarios: Safe lifting and precise positioning of heavy loads (e.g., metal components, equipment parts). Core Functions: Facilitates safe hoisting of heavy items; swivel hook with fastener can rotate under load (aiding precise positioning); 3 distinct lifting points provided.
		Parameter	Value Range
		Working Length	1000 mm
		Load Capacity	1.10 t
