W1280C

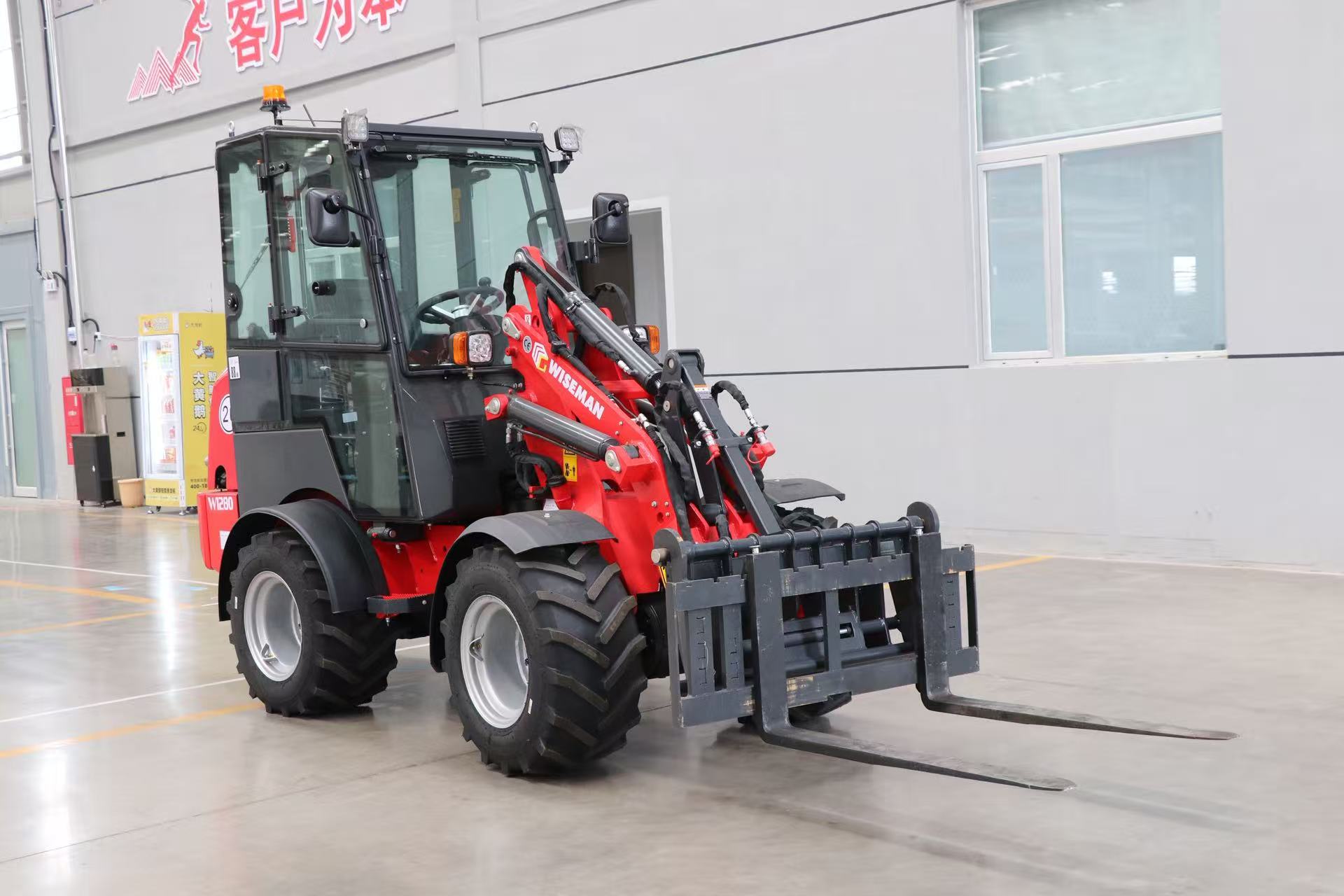

Wheel Loader for Mediterranean Olive Groves
Space-efficient compact framework
Low gravity center for enhanced stability
Tight turning radius for confined-area operation
Consistent high-performance output
- Overview
- Technical data
- Configurations
The Ultimate Workhorse for Greenhouse Farming
When efficiency meets agility in greenhouse operations, the Wiseman Compact Loader stands out as the game-changing solution for modern tomato farms and horticultural businesses. Designed to navigate the tight aisles of greenhouses while delivering uncompromising performance, this machine redefines productivity in agricultural material handling.
Elevate your greenhouse’s harvest efficiency and cut down on manual labor with the Wiseman Compact Loader—where every lift, move, and task becomes faster, safer, and more efficient.
Product Specifications
Engine Rated Power (kw/HP)：18.4/25
Operating Weight (kg):2380-2550
Tipping Load with Bucket--Machine Straight (kg):1160-1690
Bucket Pivot Point :980-1440
Applications
Compact Wheel Loader for Fruit & Veg Transport in Farm GreenhousesNimble in narrow greenhouse aisles, safely hauls harvested fruits and veggies, streamlining greenhouse produce transfer with zero ground damage. |
|
Farm Greenhouse Fruit & Vegetable Transport – Compact Wheel LoaderThis compact wheel loader is perfectly suited for greenhouse produce handling, navigating tight planting rows and narrow passageways with ease. It safely transports freshly picked fruits and vegetables from greenhouse growing areas to storage or loading zones, avoiding damage to crops and greenhouse facilities while boosting the efficiency of farm produce turnover. |
|
W1280C Technical Data | |
Engine | |
Brand/Model | Kubota D1703 or D1505 |
Type: | 3 Cylinders or 4 Cylinders, Water Cooling |
Power Output (kw/HP) | 18.4/25 |
Emissios Standard | Euro V/ Tier 4 Final |
Driving System | |
Type of Drive | Hydrostatic |
Drive | Universal Joint Shaft |
Travel Speed ( km/h) | 0-15 |
Electrical System | |
Operating Voltage （V) | 12 |
Battery Capacity (Ah) | 60 |
Alternator Rating (Ah) | 40 |
Hydraulic System | |
Max.Drive Hydraulics Work Pressure (bar) | 320 |
Max. Drive Hydraulics Discharge Volume (l/min) | 72 |
Max. Work Hydraulics Work Pressure | 25Mpa |
Max. Work Hydraulics Discharge Volume (l/min) | 32 |
Weight | |
Operating Weight (kg) | 2380-2550 |
Tipping Load with Bucket--Machine Straight, | 1160-1690 |
Tipping Load with Bucket--Machine Pivoted, | 980-1440 |
Tipping Load with Pallet Fork--Machine Straight, | 890-1260 |
Tipping Load with Pallet Fork--Machine Pivoted, | 740-1080 |
Bucket Capacity (m3) | 0.28 |
Brake System | |
Operating Brake | Transmission Drum Brake |
Parking Brake | Operating and Parking Brake in the Drive Train |
Tyre Size (standard) | 31*15.5-15 |
| 1.Engine: KUBOTA D1105 (Euro 5), Optional: Perkins |
| 2.Hydraulic System: German Rexroth pump, Gerotor motor, domestic valves; 1 pump + 2 motors, Inching function |
| 3.Boom Function: Floating function (optional) |
| 4.Control System: Electronic control levers with integrated forward/reverse buttons 5.(High/Low speed optional) |
| 6.Brake Inching Function (optional) |
| 7.Seat Sensor (optional) |
| 8.Lights: Turn signals, LED work lights |
| 9.EU-standard Hydraulic Quick Coupler,Quick change, customization supported |
| 10.Tires: 31.5*15-15.5 |
| 11.Canopy: EPS,detachable, foldable, and closable. |
1. Lightweight Bucket Square Core Functions: Features parallel alignment between the bucket’s top rim and base to ensure convenient operation; extended bottom plate and raised sidewalls increase material handling capacity; equipped with a low-wear scraper edge to comply with professional equipment performance standards. |
| ||
Parameter | Value Range | ||
Width | 870mm-1050mm | ||
Capacity | 0.28M3-0.54M3 | ||
Weight | 110kg-150kg | ||
| 2.Lightweight Bucket Round Main Application Scenarios: Applicable to the shoveling and transportation of high-volume lightweight materials including silage, straw, and wood chips, and suitable for operational scenarios that mandate the reduction of material leakage during the handling process. Core Functions: Adopts a reinforced design for lightweight material applications; the top rim of the bucket is parallel to its base to ensure convenient operation; extended bottom plate and reinforced curved sidewalls increase load capacity, with overflow protection functions to reduce material spillage; the low-wear scraper edge is replaceable when service conditions require it. | ||
Parameter | Value Range | ||
Width | 870mm-1050mm | ||
Capacity | 0.28M3-0.54M3 | ||
Weight | 110kg-150kg | ||
3. Earth Bucket Main Application Scenarios: Applicable to the grabbing and transportation of loose materials such as silage, manure, wood chips, and green waste, meeting the operational needs of agricultural production and environmental remediation projects. Core Functions: Provides high gripping force through dual hydraulic cylinders to ensure load stability during transit; side components of the bucket are detachable to suit diverse on-site requirements; equipped with a low-wear scraper edge to conform to professional equipment performance standards. |
| ||
Parameter | Value Range | ||
Width | 920mm-1150mm | ||
Capacity | 0.20M3-0.32M3 | ||
Weight | 135kg--175kg | ||
| 4. Grab Bucket With Removable Side Parts Main Application Scenarios: Applicable to the grasping and transportation of loose materials such as silage, manure, wood chips, and green waste, meeting the technical requirements of agricultural production and environmental remediation projects. Core Functions: Provides high gripping force via dual hydraulic cylinders to guarantee load stability during transportation; the bucket’s side components are detachable to satisfy diversified on-site operational needs; equipped with a low-abrasion scraper edge that complies with professional equipment performance standards. | ||
Parameter | Value Range | ||
Width | 1150mm-1550mm | ||
Capacity | 0.23M3-0.36M3 | ||
Weight | 280kg--320kg | ||
5. Multi-purpose Bucket Main Application Scenarios: Applicable to multi-scenario operations such as worksite cleaning and material transfer, and capable of completing shoveling, loading, and gripping tasks for materials including large stones and undergrowth, meeting the diversified operational needs of construction and agricultural projects. Core Functions: Supports multi-scenario operations of shoveling, loading, and gripping; features an openable emptying structure to raise dumping height; is equipped with a low-wear scraper edge; comes with dedicated bucket teeth to ensure stable load handling. |
| ||
Parameter | Value Range | ||
Width | 1150mm-1550mm | ||
Capacity | 0.23M3-0.36M3 | ||
Weight | 280kg--320kg | ||
