W1280C
Cheap Compact Articulated Loader
Compact overall equipment layout
Optimized low gravitational center
Minimized turning circle radius
High-powered working efficiency
- Overview
- Technical data
- Configurations
Wiseman W1280C Loader: The Compact Powerhouse for Construction Sites

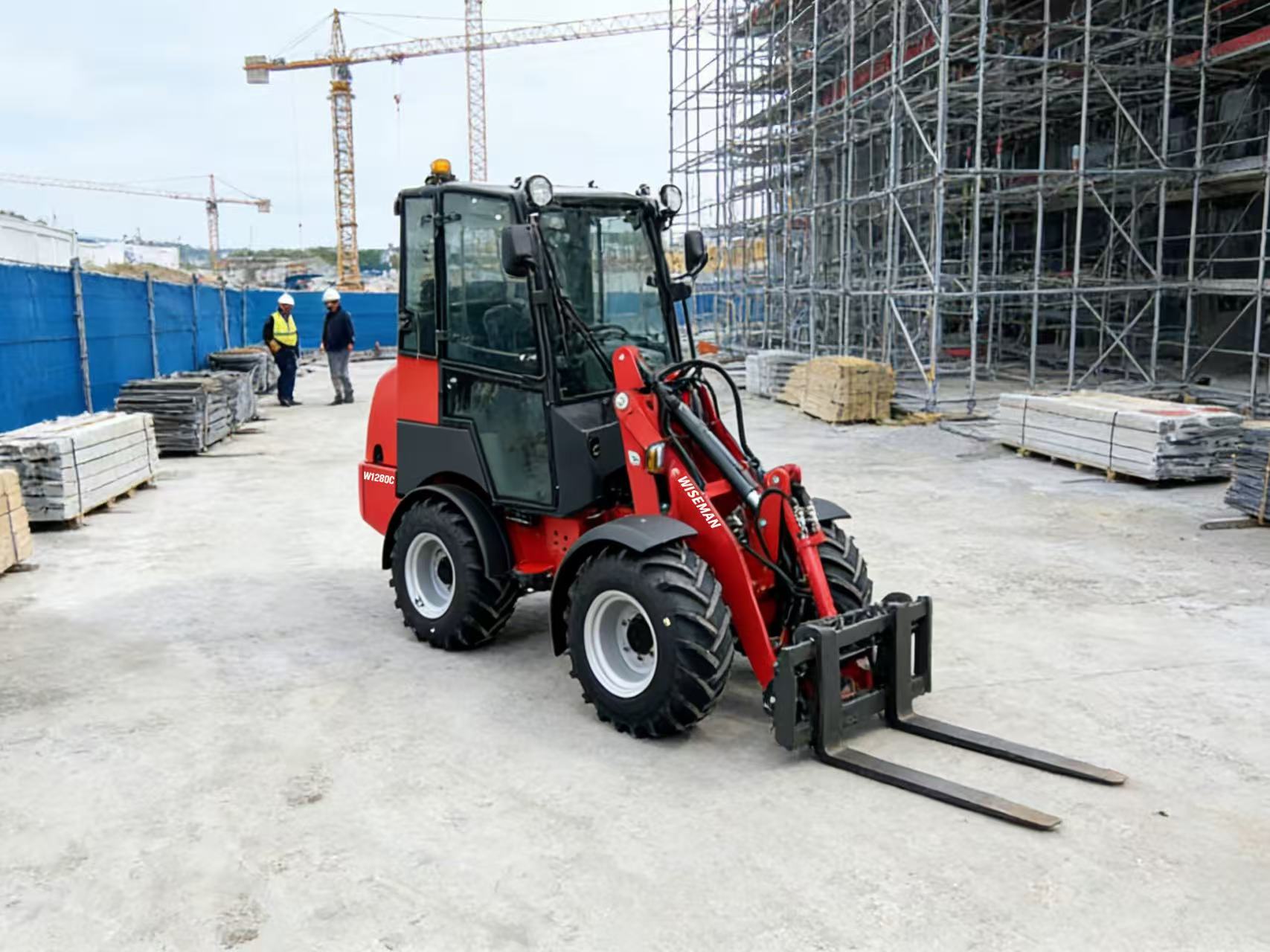

On busy construction sites where space is tight and efficiency is critical, the Wiseman W1280C compact loader stands as the ideal solution for material handling and site logistics.
Built to withstand the harsh conditions of construction work, the W1280C features a reinforced cab for operator protection, heavy-duty tires for superior traction on uneven concrete and dirt, and a durable hydraulic system that delivers consistent performance through long workdays. Whether you’re restocking materials at the build zone or clearing debris from the site, this loader turns time-consuming manual tasks into fast, efficient operations—keeping your construction project on schedule.
Product Specifications
Engine Rated Power (kw/HP)：18.4/25
Operating Weight (kg):2380-2550
Tipping Load with Bucket--Machine Straight (kg):1160-1690
Bucket Pivot Point :980-1440
Applications

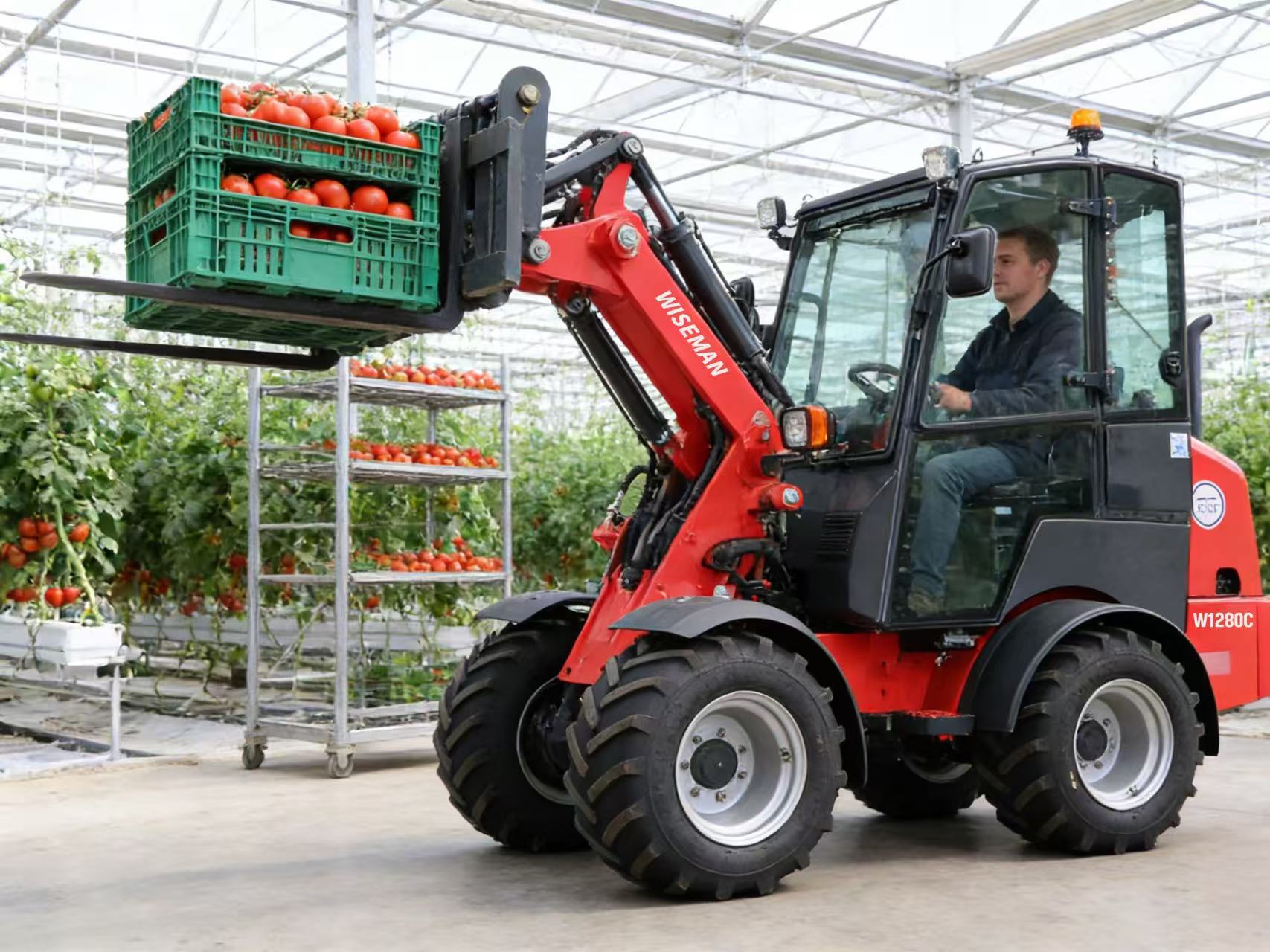

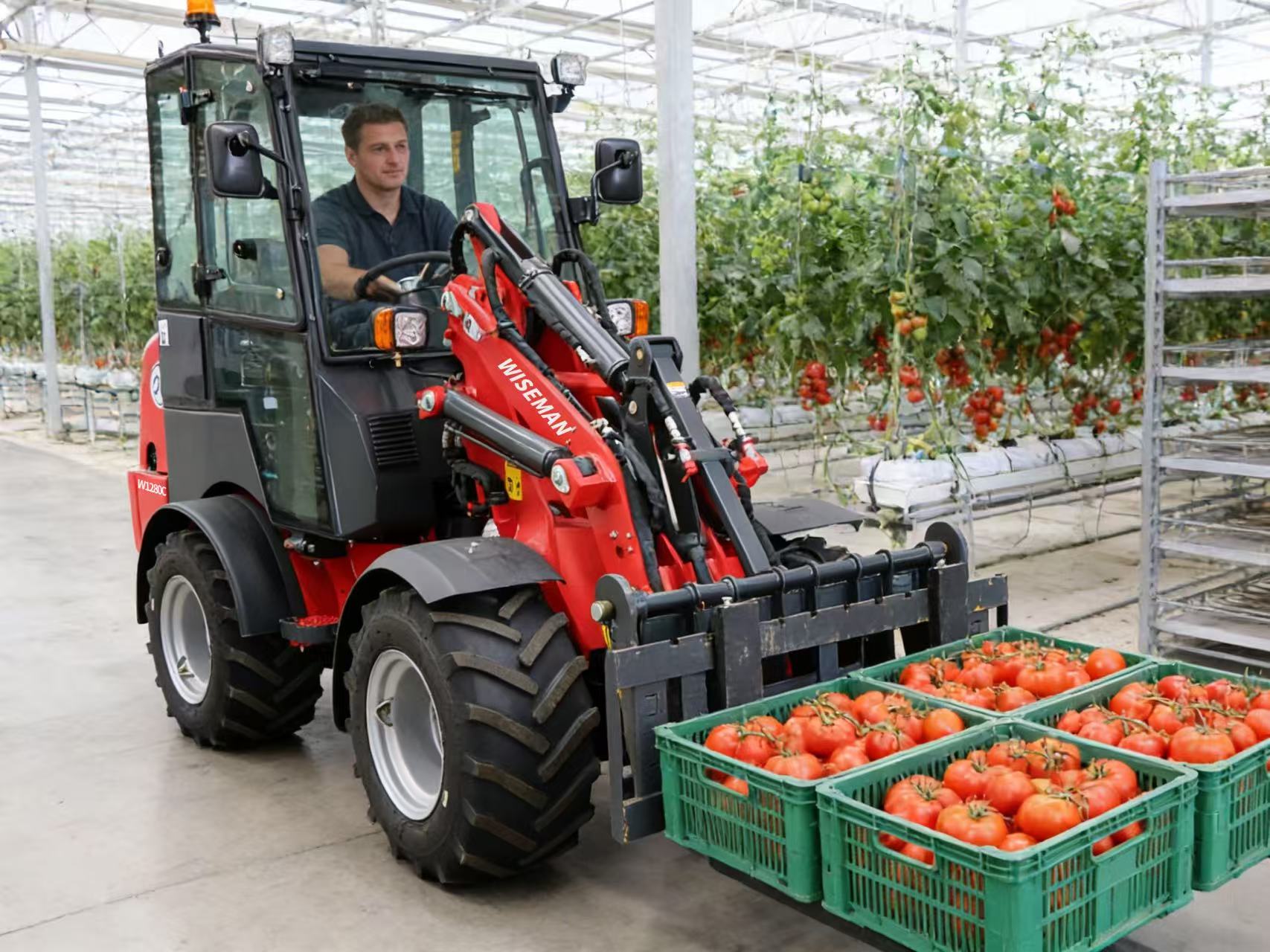

Compact Wheel Loader for Palletized Fruit & Veg Transport in Farm GreenhousesNimble in narrow greenhouse aisles, fork-equipped for pallet haulage, damage-free transport of fresh produce to streamline greenhouse logistics. |
|
Palletized Fruit & Veg Transport in Farm Greenhouses – Compact Wheel LoaderThis compact wheel loader pairs with a precision pallet fork attachment, perfectly maneuvering through tight greenhouse planting rows and narrow passageways. It securely lifts and transports pallets loaded with freshly picked fruits and vegetables, avoiding damage to greenhouse crops, plastic film and ground facilities during operation. It seamlessly connects greenhouse picking zones with storage/loading areas, eliminating manual pallet moving and greatly improving the efficiency of post-harvest produce transfer in farm greenhouses. |
|
W1280C Technical Data | |
Engine | |
Brand/Model | Kubota D1703 or D1505 |
Type: | 3 Cylinders or 4 Cylinders, Water Cooling |
Power Output (kw/HP) | 18.4/25 |
Emissios Standard | Euro V/ Tier 4 Final |
Driving System | |
Type of Drive | Hydrostatic |
Drive | Universal Joint Shaft |
Travel Speed ( km/h) | 0-15 |
Electrical System | |
Operating Voltage （V) | 12 |
Battery Capacity (Ah) | 60 |
Alternator Rating (Ah) | 40 |
Hydraulic System | |
Max.Drive Hydraulics Work Pressure (bar) | 320 |
Max. Drive Hydraulics Discharge Volume (l/min) | 72 |
Max. Work Hydraulics Work Pressure | 25Mpa |
Max. Work Hydraulics Discharge Volume (l/min) | 32 |
Weight | |
Operating Weight (kg) | 2380-2550 |
Tipping Load with Bucket--Machine Straight, | 1160-1690 |
Tipping Load with Bucket--Machine Pivoted, | 980-1440 |
Tipping Load with Pallet Fork--Machine Straight, | 890-1260 |
Tipping Load with Pallet Fork--Machine Pivoted, | 740-1080 |
Bucket Capacity (m3) | 0.28 |
Brake System | |
Operating Brake | Transmission Drum Brake |
Parking Brake | Operating and Parking Brake in the Drive Train |
Tyre Size (standard) | 31*15.5-15 |
| 1.Engine: KUBOTA D1105 (Euro 5), Optional: Perkins |
| 2.Hydraulic System: German Rexroth pump, Gerotor motor, domestic valves; 1 pump + 2 motors, Inching function |
| 3.Boom Function: Floating function (optional) |
| 4.Control System: Electronic control levers with integrated forward/reverse buttons 5.(High/Low speed optional) |
| 6.Brake Inching Function (optional) |
| 7.Seat Sensor (optional) |
| 8.Lights: Turn signals, LED work lights |
| 9.EU-standard Hydraulic Quick Coupler,Quick change, customization supported |
| 10.Tires: 31.5*15-15.5 |
| 11.Canopy: EPS,detachable, foldable, and closable. |
1. Lightweight Bucket Square Main Application Scenarios: Perfect for workers tasked with shoveling and transporting light materials like sawdust, hay, and plastic granules in daily farm or factory operations. Core Functions: The bucket’s top edge lines up perfectly with the bottom for easy control while working; extended base and taller sidewalls let you hold more material without spills; the low-wear scraper edge won’t wear out quickly, saving you time on replacements. |
| ||
Parameter | Value Range | ||
Width | 870mm-1050mm | ||
Capacity | 0.28M3-0.54M3 | ||
Weight | 110kg-150kg | ||
| 2.Lightweight Bucket Round Main Application Scenarios: Great for scooping and moving large quantities of light materials like silage, straw, and wood chips — especially useful when you need to keep material leakage to a minimum on the job. Core Functions: Built with extra reinforcement for lightweight loads; parallel top and bottom edges make the bucket easy to control while working; longer bottom and sturdy curved sidewalls let you carry more, and overflow protection keeps materials from spilling out; if the low-wear scraper edge gets worn down, you can replace it easily to keep going. | ||
Parameter | Value Range | ||
Width | 870mm-1050mm | ||
Capacity | 0.28M3-0.54M3 | ||
Weight | 110kg-150kg | ||
3. Earth Bucket Main Application Scenarios: Perfect for scooping up and transporting loose materials like silage, manure, wood chips, and green waste when you’re working on farms or landscaping projects. Core Functions: Two cylinders work together to give you strong gripping power; the bucket’s side parts can be taken off for easier cleaning or custom use; a low-wear scraper edge helps you scrape up every last bit of material without quick wear. |
| ||
Parameter | Value Range | ||
Width | 920mm-1150mm | ||
Capacity | 0.20M3-0.32M3 | ||
Weight | 135kg--175kg | ||
| 4. Grab Bucket With Removable Side Parts Main Application Scenarios: Ideal for farm and landscaping crews tasked with grabbing and transporting loose materials like silage, manure, wood chips, and green waste in day-to-day operations. Core Functions: Two hydraulic cylinders work together to provide strong gripping force that keeps loads secure; the bucket’s side parts can be easily removed for cleaning or to handle oversized materials; a low-wear scraper edge helps you scoop up every last bit of material without quick wear. | ||
Parameter | Value Range | ||
Width | 1150mm-1550mm | ||
Capacity | 0.23M3-0.36M3 | ||
Weight | 280kg--320kg | ||
5. Multi-purpose Bucket Main Application Scenarios: Perfect for daily jobs like cleaning up worksites and moving materials—it can shovel, load, and grab heavy items such as large stones and thick undergrowth without breaking a sweat. Core Functions: Works great for multi-scenario tasks (shoveling, loading, gripping); you can open it up for emptying to get a higher dumping height; the low-wear scraper edge lasts a long time; plus, it comes with teeth to handle tough loads better. |
| ||
Parameter | Value Range | ||
Width | 1150mm-1550mm | ||
Capacity | 0.23M3-0.36M3 | ||
Weight | 280kg--320kg | ||
