Robust Compact Articulated Loader

Compact design

Robust Performance

Attatchment Quick Switch

High Work Efficiency

Contact Now E-Mail Telephone WhatsApp

Overview
Technical data
Configurations
Attachments

Product Introduction

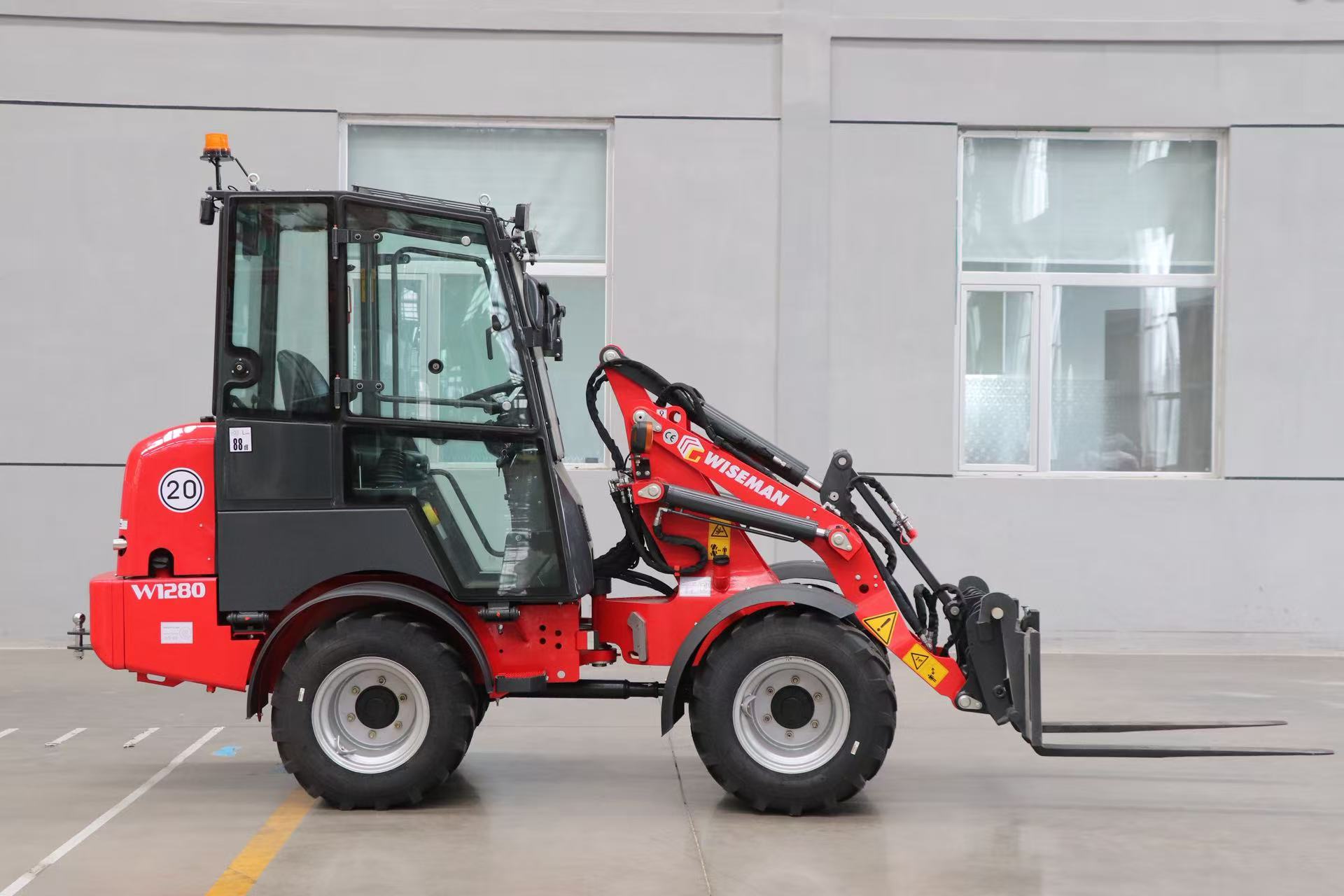

Equipped with a KUBOTA engine, the W1280 Compact Wheel Loader offers powerful performance and smooth operation. It is fitted with seat sensors and hydraulic systems that meet EU standards, guaranteeing exceptional safety and reliability. Ideally suited for medium-scale agricultural work, it serves as a dependable partner for enhancing work efficiency.

Forestry Compact Articulated Loader

Product Specifications

Engine Rated Power (kw/HP)：18.4/25

Operating Weight (kg):2380-2550

Tipping Load with Bucket--Machine Straight (kg):1160-1690

Bucket Pivot Point :980-1440

Learn More

Applications

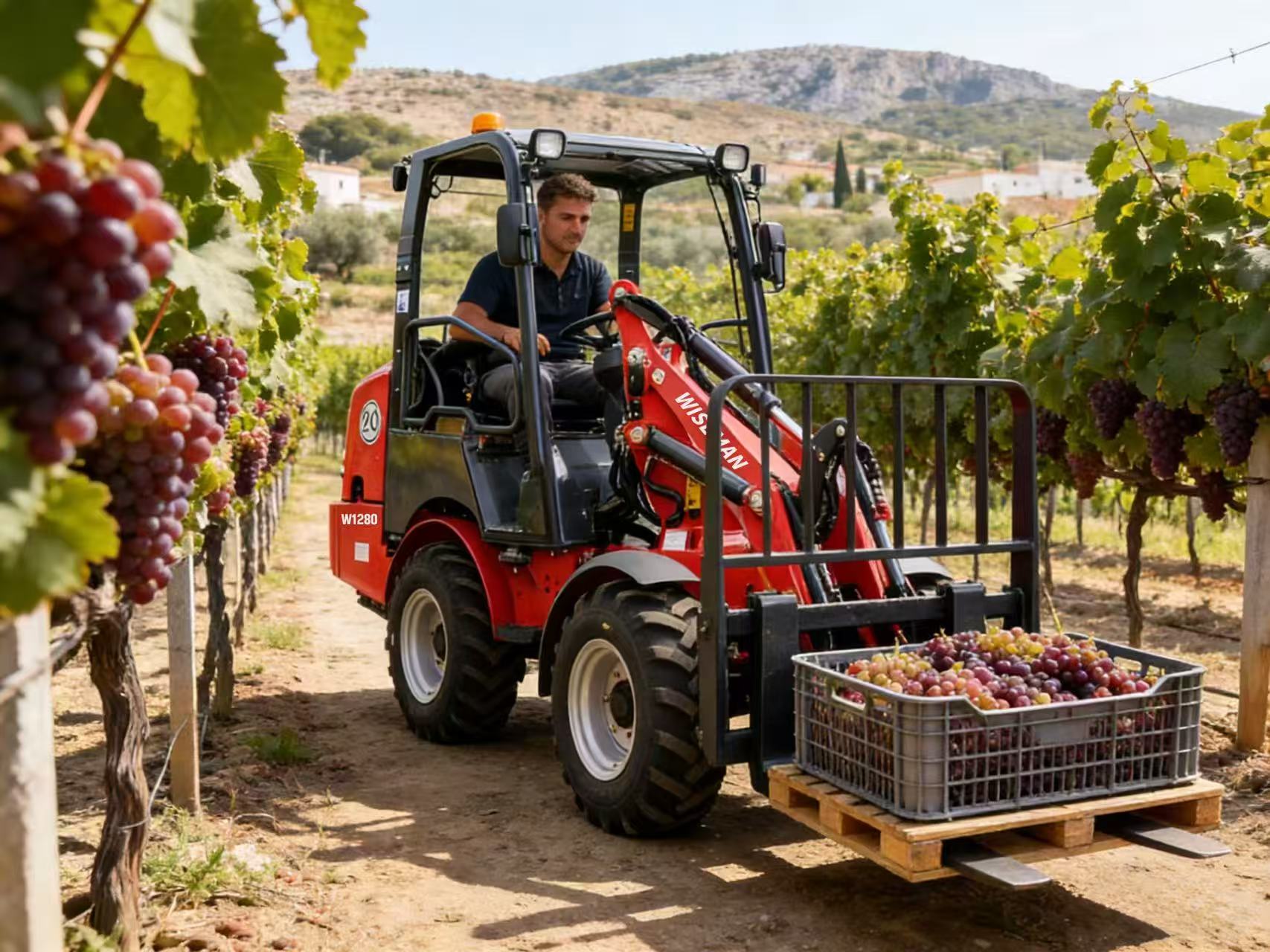

Compact Wheel Loader for Grape Transport in Vineyards

Agile in narrow vine rows, gentle handling for fresh grapes, vine-protect design, streamlining vineyard harvest-to-processing logistics.

Forestry Compact Articulated Loader

Vineyard Fresh Grape Transport & Harvest Logistics – Compact Wheel Loader

This compact wheel loader features an ultra-slim frame that navigates seamlessly through the narrow planting rows of vineyards, adapting perfectly to sloped and uneven orchard terrain. Equipped with a smooth cargo bucket or pallet fork, it safely transports freshly harvested grapes in crates or bulk, with soft operation that avoids bruising ripe fruits and damaging delicate grape vines and trunks. It replaces labor-intensive manual grape carrying, seamlessly connecting vineyard picking zones with sorting, pressing and storage areas, and greatly improves the efficiency of fresh grape logistics during the harvest season.

Forestry Compact Articulated Loader

W1280 Technical Data
Engine
Brand/Model	Kubota D1703 or D1505
Type:	3 Cylinders or 4 Cylinders, Water Cooling
Power Output (kw/HP)	18.4/25
Emissios Standard	Euro V/ Tier 4 Final
Driving System
Type of Drive	Hydrostatic
Drive	Universal Joint Shaft
Travel Speed ( km/h)	0-15
Electrical System
Operating Voltage （V)	12
Battery Capacity (Ah)	60
Alternator Rating (Ah)	40
Hydraulic System
Max.Drive Hydraulics Work Pressure (bar)	320
Max. Drive Hydraulics Discharge Volume (l/min)	72
Max. Work Hydraulics Work Pressure	25Mpa
Max. Work Hydraulics Discharge Volume (l/min)	32
Weight
Operating Weight (kg)	2380-2550
Tipping Load with Bucket--Machine Straight, Loading Frame Horizontal (kg)	1160-1690
Tipping Load with Bucket--Machine Pivoted, Loading Frame Horizontal (kg)	980-1440
Tipping Load with Pallet Fork--Machine Straight, Loading Frame Horizontal (kg)	890-1260
Tipping Load with Pallet Fork--Machine Pivoted, Loading Frame Horizontal (kg)	740-1080
Bucket Capacity (m³)	0.28
Brake System
Operating Brake	Transmission Drum Brake
Parking Brake	Operating and Parking Brake in the Drive Train
Tyre Size (standard)	31*15.5-15

	1.Engine: KUBOTA V1505 (Euro 5),
	2.Hydraulic System: German Rexroth pump, Rexroth motor, domestic valves; 1 pump +1 motor, Inching function
	3.Boom Function: Floating function (optional)
	4.Control System: Electronic control levers with integrated forward/reverse buttons .(High/Low speed optional)
	5.Brake Inching Function (optional)
	6.Seat Sensor (optional)
	7.Lights: Turn signals, LED work lights
	8.EU-standard Hydraulic Quick Coupler
	9.Tires: 31×15.5-15
	10.Canopy: EPS

1. Earth Bucket Main Application Scenarios：Grabbing and transporting of loose materials such as silage, manure, wood chips, and green waste. Core Functions：High gripping force provided by two cylinders; side parts of the bucket are detachable; equipped with low-wear scraper edge.
Parameter	Value Range
Width	920mm-1150mm
Capacity	0.20M3-0.32M3
Weight	135kg--175kg
		2. Load Hooks Main Application Scenarios: Safe lifting and precise positioning of heavy loads (e.g., metal parts, equipment accessories). Core Functions: Enables safe lifting of heavy loads; swivel hook with fastener can rotate under load (aids precise positioning); 3 different lifting points.
		Parameter	Value Range
		Working Length	1000 mm
		Load Capacity	1.10 t
3. Feed Blade Main Application Scenarios: Pushing feeding mixture (e.g., silage, concentrate mixture) on feeding tables in livestock farms. Core Functions: Hydraulically driven for large-angle adjustment of the plate; left/right pivoting to adjust pushing direction.
Parameter	Value Range
Width	1800 mm - 2200 mm
Max. Adjustable Angle	70°
Weight	225 kg
		4. Earth Borer Main Application Scenarios: Ground drilling for fence post fixing, tree planting, and sign installation, suitable for agricultural, municipal, and garden fields. Core Functions: Various drill sizes available to meet different drilling needs.
		Parameter	Value Range
		Length	1240 mm
		Drill Diameter	∅152 mm-∅305 mm
		Weight	173 kg - 197 kg
5.Logging Fork Main Application Scenarios: Suitable for cleaning scattered branches and short log sections to assist in site organization, and can also complete short-distance loading, unloading and transportation of logs with a diameter of 100-300mm. Core Functions Compatible with compact loaders, it can firmly clamp small and medium-sized logs and branches, effectively preventing materials from slipping during transportation and ensuring operational stability.
Parameter	Value Range
Dimension（LXWXH)	1323mmX804mmX828mm
Weight	172 kg
