W1160
Compact Loader for Organic Farming
Space-saving streamlined build
Ultra-stable low gravity center
Minimal turning circle for tight quarters
Top-tier robust operational power
- Overview
- Technical data
- Configurations

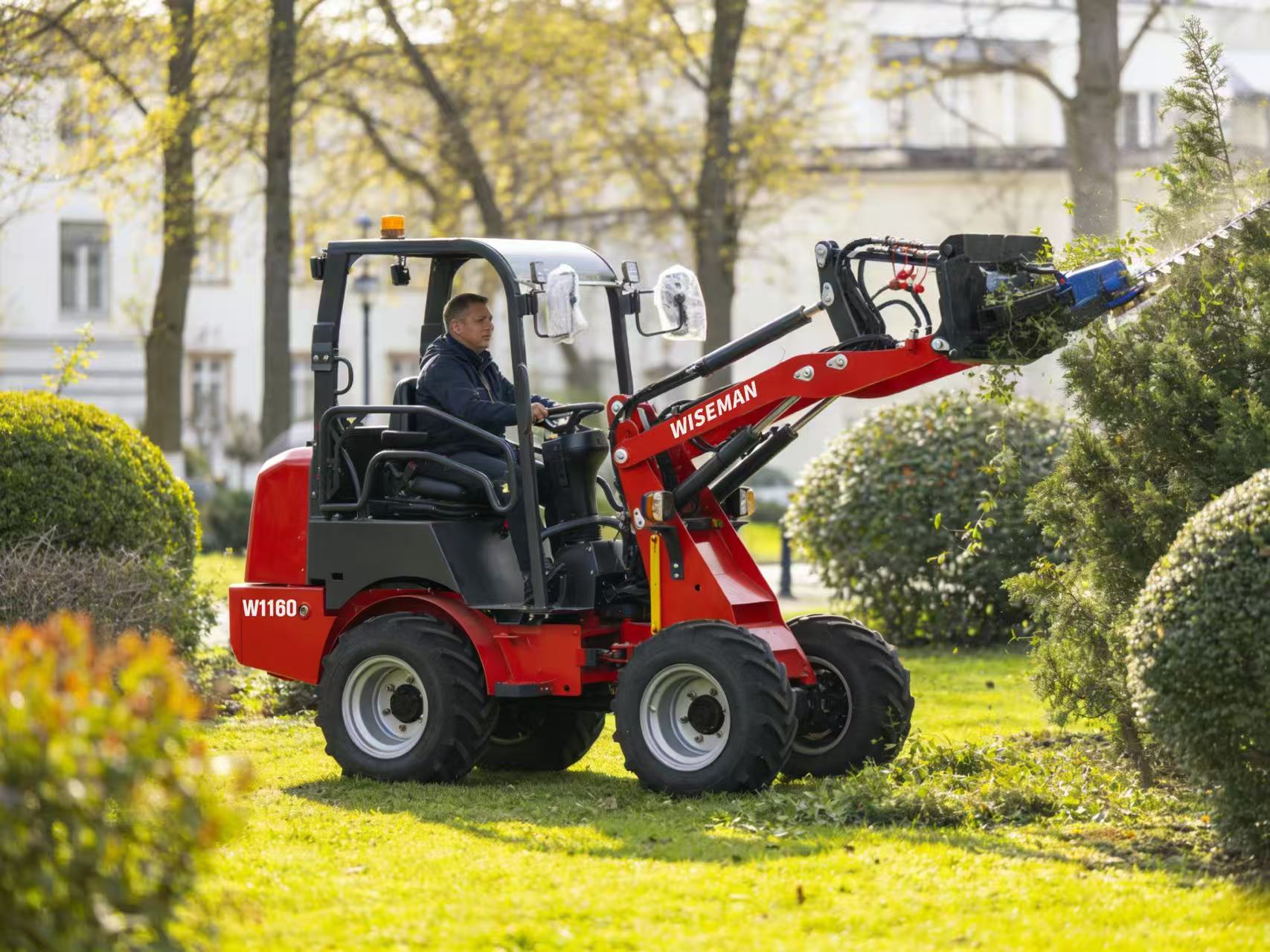

Elevate Estate & Garden Maintenance
In the world of formal gardens, sprawling estates, and manicured landscapes—where precision meets grandeur—the Wiseman loader stands as the ultimate tool for seamless groundskeeping.
For landscape teams that refuse to compromise on precision or productivity, the Wiseman compact loader is the perfect match for maintaining the beauty of the world’s most stunning gardens.
Product Specifications
Engine Rated Power (kw/HP)：18.4kW/2800rpm
Operating Weight (kg):1850 kg
Tipping Load with Bucket--Machine Straight (kg):850 kg
Bucket Pivot Point :520
Applications

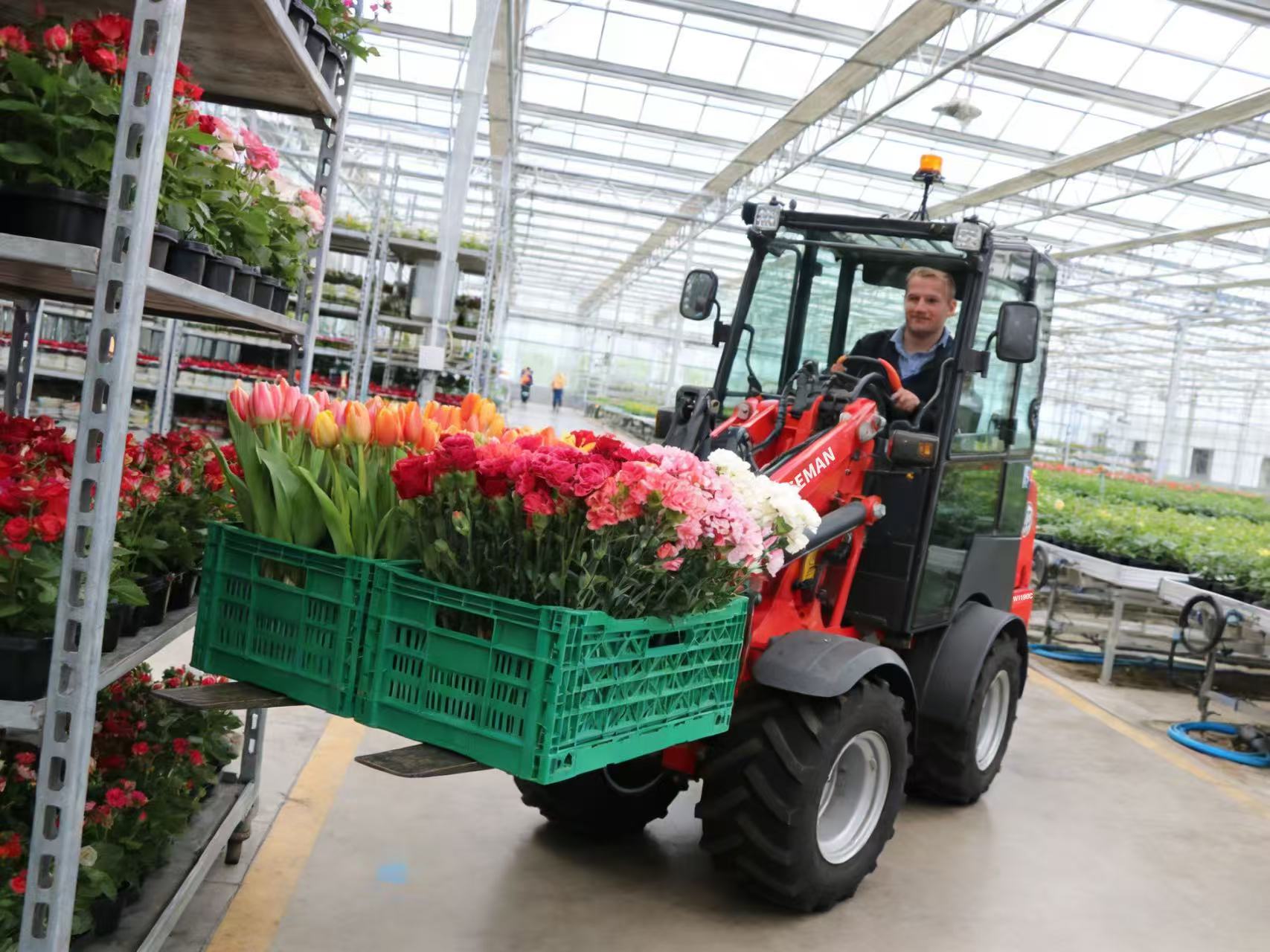

Compact Wheel Loader for Potted Flower Moving in Farm GreenhousesAgile in tight greenhouse aisles, gentle handling design, damage-free for delicate potted flowers, streamlining greenhouse transplanting and on-site moving. |
|

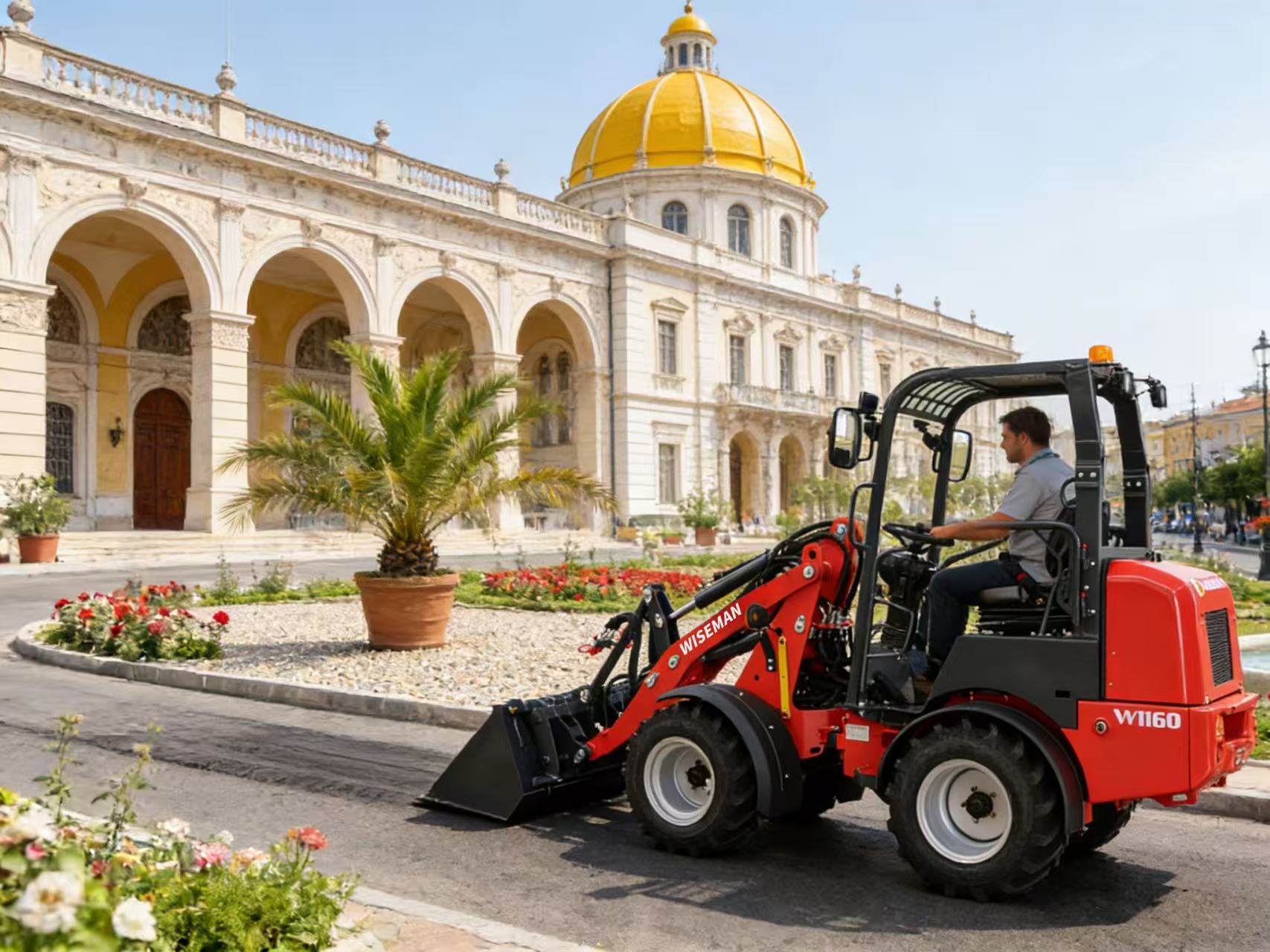

Compact Wheel Loader for Municipal Public WorksCity-agile, multi-attachment compatible, tackles all municipal daily operations to boost urban infrastructure maintenance efficiency. |
|
Technical Data for W1160 Compact Loader | |
Engine | |
Brand/Model | Perkins 403J-11 or Kubota D1105 |
Type: | 3 Cylinders, Water Cooling |
Power Output | 18.4kW/2800rpm |
Displacement | 1.13 L |
Emissios Standard： | Euro Stage V |
Drive System | |
Type of Drive | Hydrostatic |
Gear Shift | Electric, Continuously Variable Transmissioin (CVT) |
Travel Speed | 0-20 km/h |
Electrical System | |
Operating Voltage | 12 V |
Battery Capacity | 60 Ah |
Alternator Rating | 40 A |
Hydraulic System | |
Max.Drive Hydraulics Work Pressure | 300 bar |
Max. Drive Hydraulics Discharge Volume | 84 l/min |
Max. Work Hydraulics Work Pressure | 180 bar |
Max. Work Hydraulics Discharge Volume | 32 l/min |
Boom Lifting Time | 3.1 s |
Automatic Levelling Function | yes |
Weight | |
Operating Weight | 1850 kg |
Tipping Load with Bucket--Machine Straight: | 850 kg |
Tipping Load with Bucket--Machine Pivoted: | 550 kg |
Bucket Capacity | 0.28 m3 |
Max.Lifting Force | 1100 kg |
Refilling Capacity | |
Fuel Tank (L) | 26 L |
Hydulic Oil Tank (L) | 40 L |
Engine Oil (L) | 4 L |
Coolant (L) | 12 L |
Brake System | |
Operating Brake | Transmission Drum Brake |
Parking Brake | Operating and Parking Brake in the Drive Train |
Tyre Size | 31x15.5-15 |
Machine Dimension (mm) | |
Overall Length with Bucket | 3895 |
Overall Length without Bucket | 3065 |
Bucket Pivot Point to the Centre of Axle | 520 |
Wheel Base | 1522 |
Rear Overhang | 950 |
Height to the Roof of Canopy | 2210 |
Seat Height | 1200 |
Working Range (mm) | |
Overall Working Height | 3180 |
Max. Lifting Height | 2740 |
Load-Over Height | 2385 |
Dumping Height | 1900 |
Digging Depth | 120 |
Overall Width | 1300 |
Wheel Track | 910 |
Ground Clearance | 221 |
Max. Turning Radius | 2435 |
Outter Turning Radius | 2220 |
Inner Turning Radius | 880 |
Articulation Angle | 51° |
Roll Back Angle at Max. Lifting Height | 52° |
Dumping Angle | 35° |
| 1.Engine: KUBOTA D1105 (Euro 5), Optional: Perkins |
| 2.Hydraulic System: German Rexroth pump, Gerotor motor, domestic valves; 1 pump + 2 motors, Inching function |
| 3.Boom Function: Floating function (optional) |
| 4.Control System: Electronic control levers with integrated forward/reverse buttons 5.(High/Low speed optional) |
| 6.Brake Inching Function (optional) |
| 7.Seat Sensor (optional) |
| 8.Lights: Turn signals, LED work lights |
| 9.EU-standard Hydraulic Quick Coupler,Quick change, customization supported |
| 10.Tires: 31.5*15-15.5 |
| 11.Canopy: EPS,detachable, foldable, and closable. |
1. Lightweight Bucket Square Main Application Scenarios: Perfect for moving bulky yet lightweight materials—think sawdust, hay, and plastic pellets—across worksites, farms, or processing facilities. Core Functions: Parallel bucket rim and base make every scoop smooth and effortless; longer bottom and taller sidewalls up your material-carrying game; a tough, low-wear scraper edge ensures clean, efficient scraping with minimal wear. |
| ||
Parameter | Value Range | ||
Width | 870mm-1050mm | ||
Capacity | 0.28M3-0.54M3 | ||
Weight | 110kg-150kg | ||
| 2.Lightweight Bucket Round Main Application Scenarios: Need to haul huge piles of silage, straw, or wood chips without losing half the load? This lightweight round bucket is your solution, built specifically for scenarios where cutting down material leakage is non-negotiable. Core Functions: Reinforced construction tailored for lightweight materials; parallel top and bottom edges make every scoop smooth and hassle-free; longer bottom and tough curved sidewalls boost how much you can carry, with overflow protection stopping materials from spilling out; the low-wear scraper edge is easy to replace when it’s time to refresh your tool. | ||
Parameter | Value Range | ||
Width | 870mm-1050mm | ||
Capacity | 0.28M3-0.54M3 | ||
Weight | 110kg-150kg | ||
3. Earth Bucket Main Application Scenarios: Tackle messy loose-material jobs with ease—this bucket is your go-to for grabbing and moving silage, manure, wood chips, and green waste on farms or worksites. Core Functions: Dual cylinders crank up the gripping force to lock in loads tight; detachable side sections let you customize for different materials; a tough low-wear scraper edge keeps operations smooth and efficient. |
| ||
Parameter | Value Range | ||
Width | 920mm-1150mm | ||
Capacity | 0.20M3-0.32M3 | ||
Weight | 135kg--175kg | ||

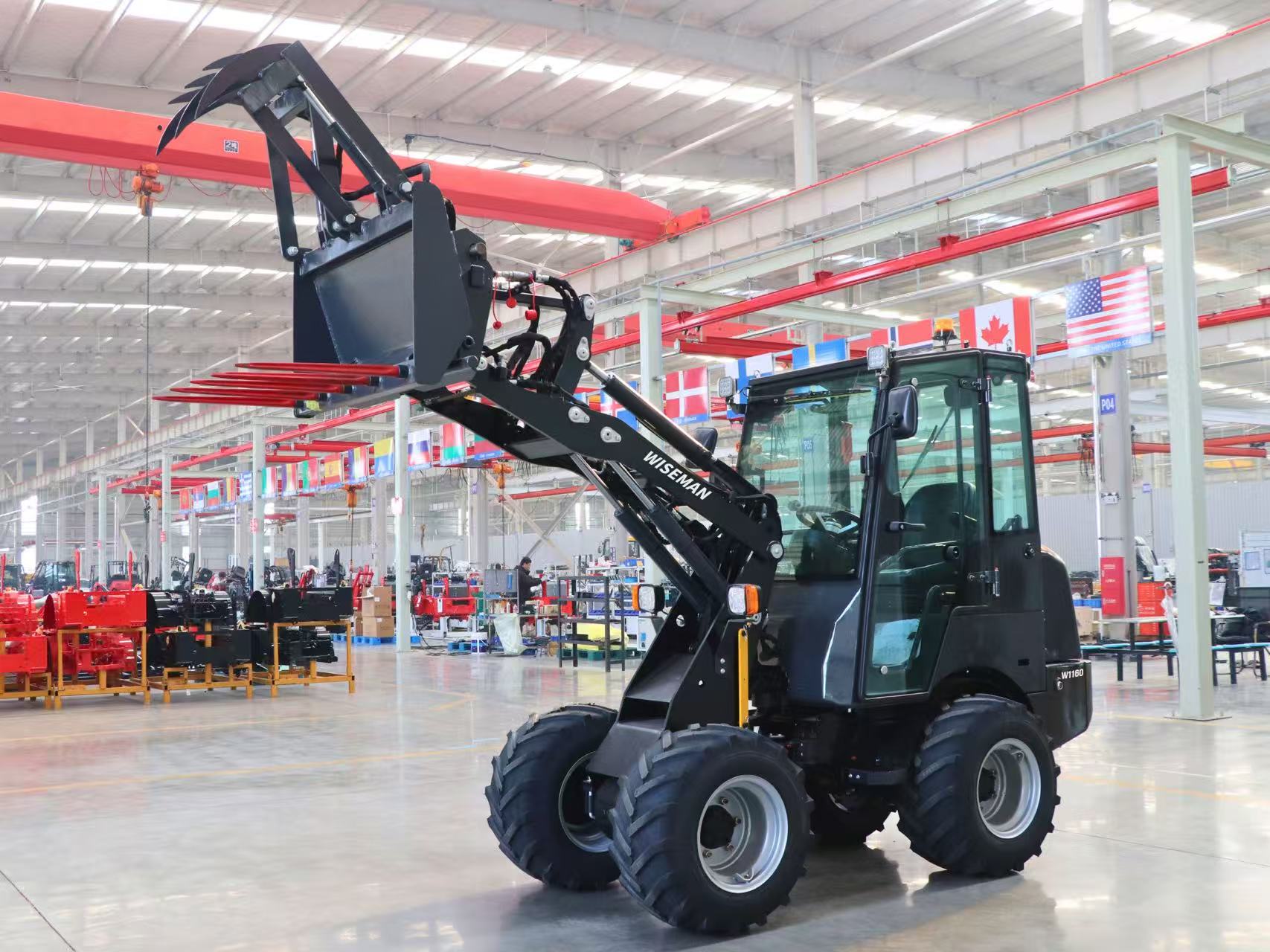

| 4. Grab Bucket With Removable Side Parts Main Application Scenarios: Need to move messy loose materials like silage, manure, wood chips, or green waste without hassle? This grab bucket is your reliable solution for secure grabbing and smooth transportation on any worksite. Core Functions: Dual cylinders crank up the gripping force to lock loads tight and prevent spills; detachable side parts let you adapt to different material volumes; a tough low-wear scraper edge ensures clean, efficient scraping every time. | ||
Parameter | Value Range | ||
Width | 1150mm-1550mm | ||
Capacity | 0.23M3-0.36M3 | ||
Weight | 280kg--320kg | ||
5. Multi-purpose Bucket Main Application Scenarios: Need a one-stop tool for site cleanup, material moving, and more? This bucket does it all—shovel, load, and grab everything from bulky stones to stubborn undergrowth with ease. Core Functions: Built for multi-scenario work (shoveling, loading, gripping); openable design lifts dumping height for hassle-free emptying; a tough low-wear scraper edge keeps performance sharp; integrated teeth add extra bite for tough loads. |
| ||
Parameter | Value Range | ||
Width | 1150mm-1550mm | ||
Capacity | 0.23M3-0.36M3 | ||
Weight | 280kg--320kg | ||
