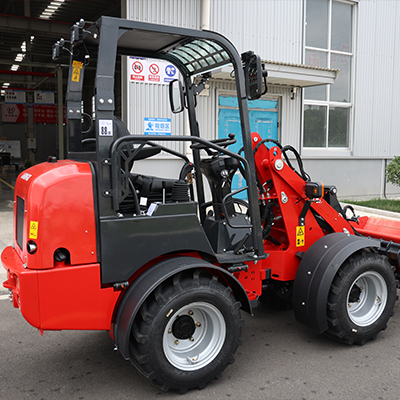

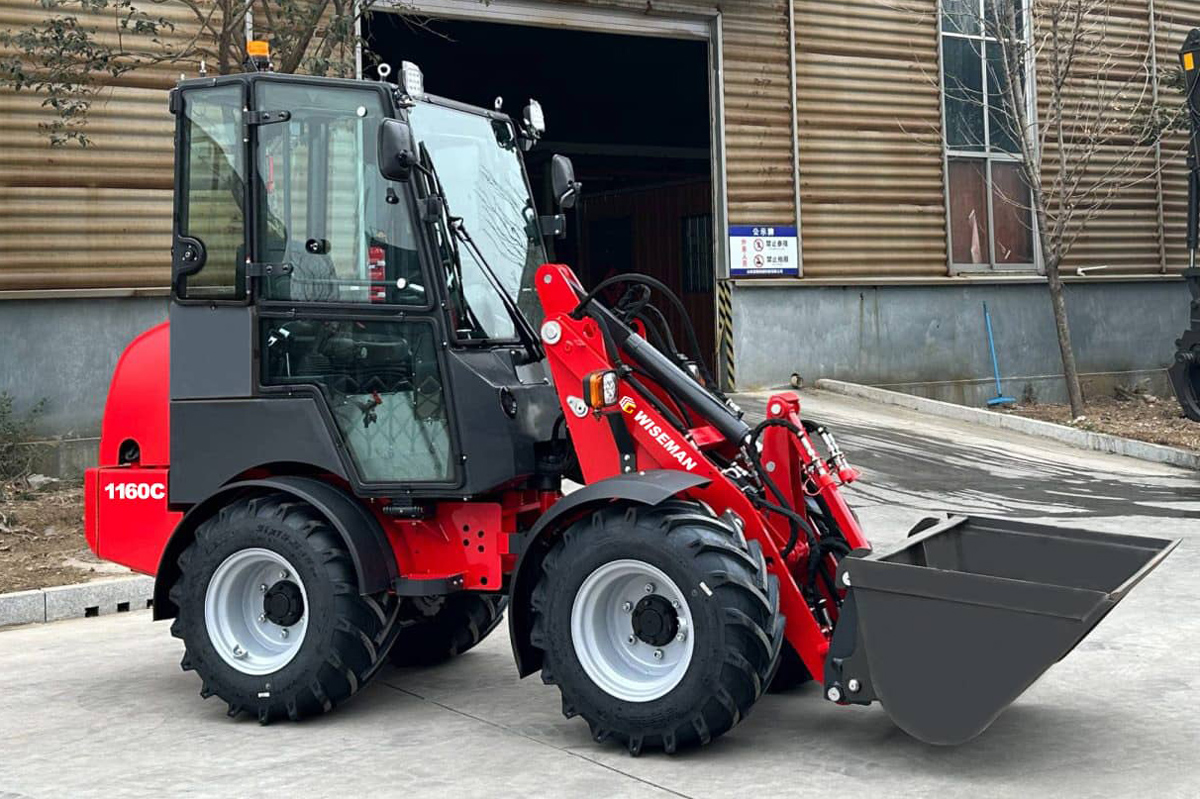

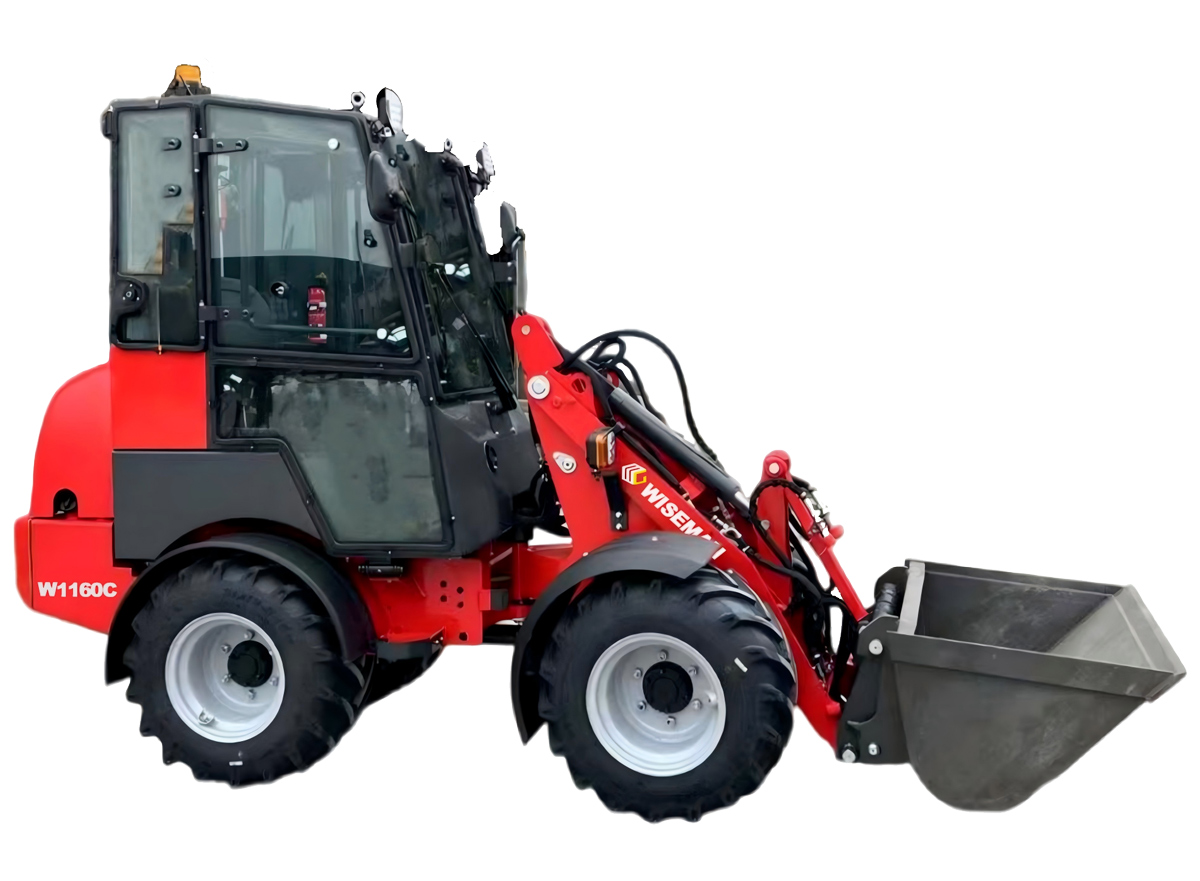

W1160C
Best Small Front Loader
Compact design
Low center of gravity
Small turning radius
Powerful performance
- Overview
- Technical data
- Configurations
Product Introduction
The Compact Loader for Olive Groves with Mulching Attachment meets the organic olive farming requirements of Southern Europe. It crushes pruning branches and fallen leaves into mulch, which can be reused in the olive grove to improve soil fertility and retain moisture. The mulching attachment's high crushing efficiency and uniform particle size ensure good mulching effect, and the loader's compact design adapts to the narrow space between olive trees. This combination promotes sustainable development of olive farming.
Product Specifications
Engine Rated Power (kw/HP)：18.2kW/3000rpm
Operating Weight (kg):2030 kg
Tipping Load with Bucket--Machine Straight (kg):850 kg
Bucket Pivot Point : 520
Applications
1. All-Purpose Cleaning Compact loaders can be outfitted with a variety of sweepers, high-pressure washing devices, and brushes to tackle all kinds of dirt. Meanwhile, a weed broom allows for mechanical weed removal, ensuring your property and production system remain clean consistently. |
|

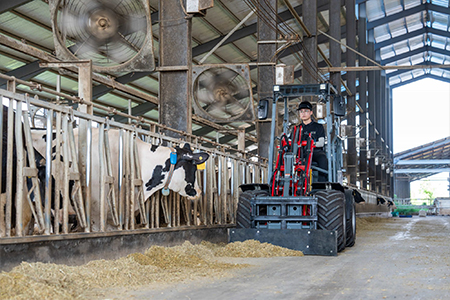

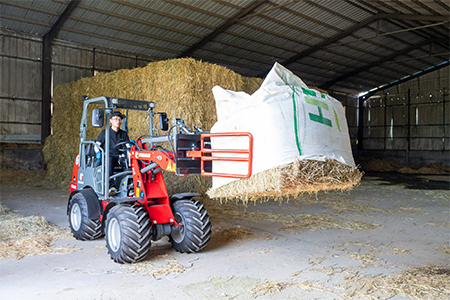

2. Managing Various Bales Handling round, square, or silage bales is a daily regular task on farms. Due to the diversity of bale types, compact loaders are equipped with a selection of bale handlers and tongs, ensuring you have the proper equipment for every bale. |
|
Technical Data for W1160C Compact Loader | |
Engine | |
Brand/Model | Perkins 403J-11 or Kubota D1105 |
Type: | 3 Cylinders, Water Cooling |
Power Output | 18.2kW/3000rpm |
Displacement | 1.13 L |
Emissios Standard： | Euro Stage V |
Drive System | |
Type of Drive | Hydrostatic |
Gear Shift | Electric, Continuously Variable Transmissioin (CVT) |
Travel Speed | 0-13 km/h |
Electrical System | |
Operating Voltage | 12 V |
Battery Capacity | 72 Ah |
Alternator Rating | 12V-40 A |
Hydraulic System | |
Max.Drive Hydraulics Work Pressure | 300 bar |
Max. Drive Hydraulics Discharge Volume | 84 l/min |
Max. Work Hydraulics Work Pressure | 180 bar |
Max. Work Hydraulics Discharge Volume | 33 l/min |
Boom Lifting Time | 3.1 s |
Automatic Levelling Function | yes |
Weight | |
Operating Weight | 2030 kg |
Tipping Load with Bucket--Machine Straight: | 850 kg |
Tipping Load with Bucket--Machine Pivoted: | 550 kg |
Bucket Capacity | 0.28 m3 |
Max.Lifting Force | 1100 kg |
Refilling Capacity | |
Fuel Tank (L) | 26 L |
Hydulic Oil Tank (L) | 40 L |
Engine Oil (L) | 4 L |
Coolant (L) | 12 L |
Brake System | |
Operating Brake | Transmission Drum Brake |
Parking Brake | Operating and Parking Brake in the Drive Train |
Tyre Size | 31x15.5-15 |
Machine Dimension (mm) | |
Overall Length with Bucket | 3895 |
Overall Length without Bucket | 3065 |
Bucket Pivot Point to the Centre of Axle | 520 |
Wheel Base | 1522 |
Rear Overhang | 950 |
Height to the Roof of Canopy | 2210 |
Seat Height | 1200 |
Working Range (mm) | |
Overall Working Height | 3180 |

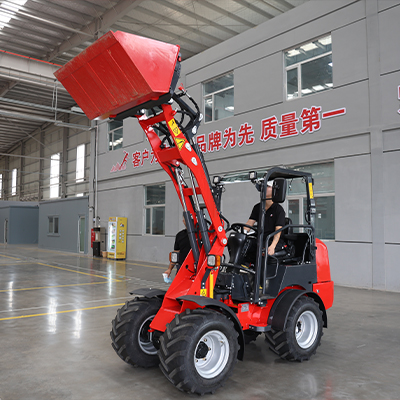

Max. Lifting Height | 2740 |
Load-Over Height | 2385 |
Dumping Height | 1900 |
Digging Depth | 120 |
Overall Width | 1300 |
Wheel Track | 910 |
Ground Clearance | 221 |
Max. Turning Radius | 2435 |
Outter Turning Radius | 2220 |
Inner Turning Radius | 880 |
Articulation Angle | 51° |
Roll Back Angle at Max. Lifting Height | 52° |
Dumping Angle | 35° |

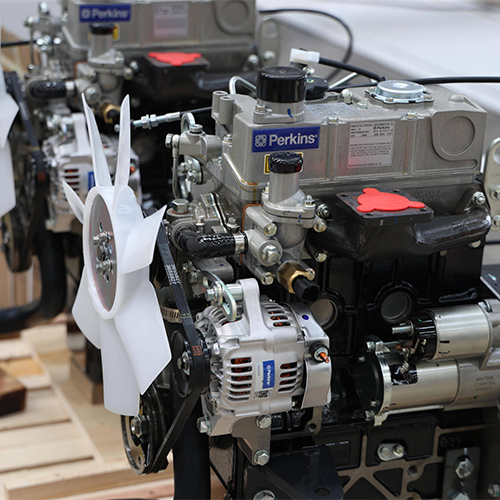

| 1. Engine Perkins Euro 5, 403J-11, OR Kubota D1105 Euro 5 |

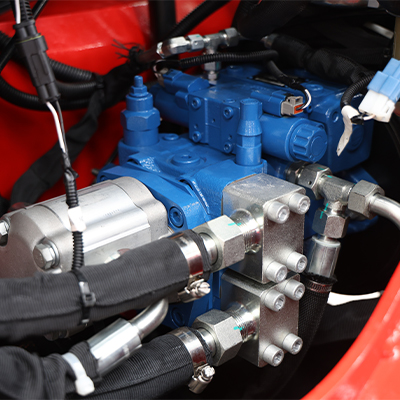

| 2. Hydraulic System German Rexroth pump, Rexroth motor 1 pump + 1 motor, Inching function |
| 3. Valves & Functions Italian Walvoil valves, Dual floating positions (optional) |

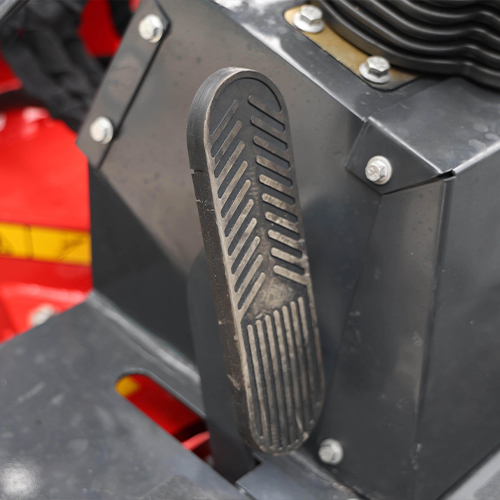

| 4. Brake System Brake with inching function (optional) |

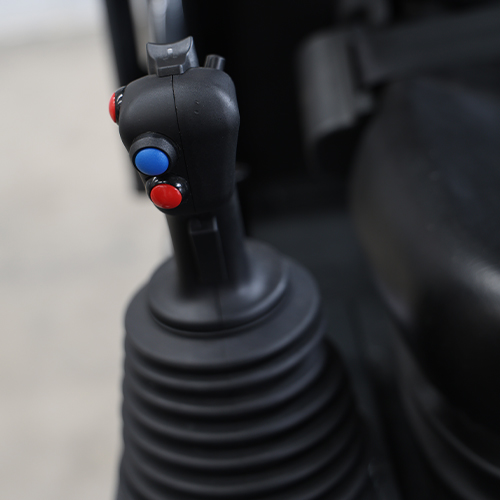

| 5. Control System Electronic control levers with integrated forward/reverse buttons, High/low speed electronically controlled |

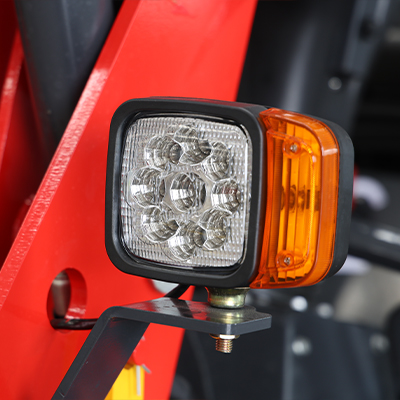

| 6. Lights Turn signals, LED work lights |

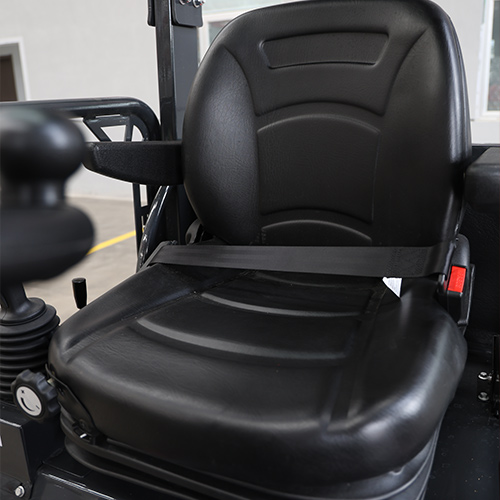

| 7. Safety Sensors Seat safety shutdown sensor (20s delay) Includes start neutral switch and park brake switch |
| 8. Hydraulic Quick Coupler EU-standard |
| 9. Tires 10.0/75-15.3 OR 31.5×15-15.5 |
| 10. Speed Control High/low speed controlled by electronic levers Cab with heater and radio |

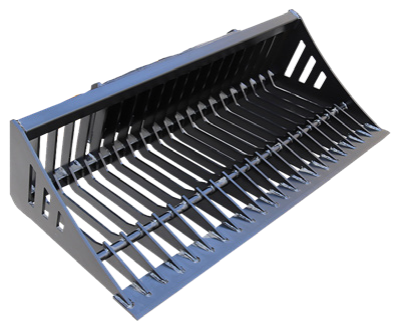

| 1. Stone Bucket Main Application Scenarios: Suitable for picking up large stones in fields, construction sites, gardens, etc., particularly for separating stones from loose fine materials (e.g., soil, sand). Core Functions:
- Efficient Stone Handling: Accurately grips large stones to fulfill on-site stone cleaning demands;
- Sieving & Separation: Equipped with a sieving function, allowing loose fine materials to fall back to the ground and realize automatic separation of stones and fine materials;
- Clear Monitoring: Enables operators to easily observe loaded stones, improving operational accuracy. | ||
Parameter | Value Range | ||
Width | 1090mm | ||
Capacity | 0.22M3 | ||
Weight | 112kg | ||

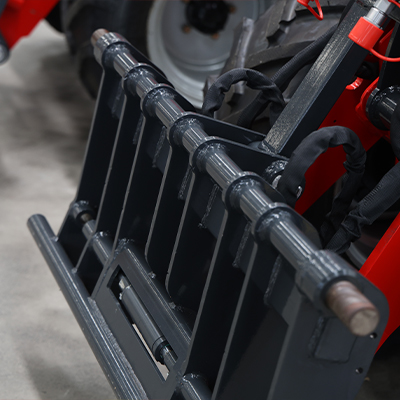

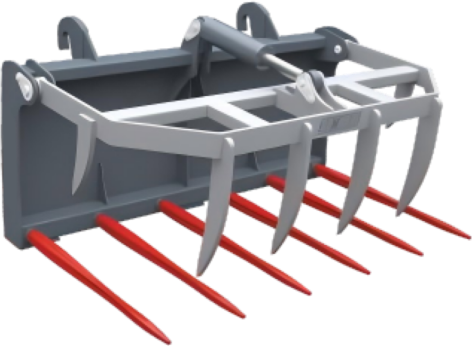

2. Fork and Grab
Core Functions: Fork-shaped top structure with one hydraulic cylinder; 5 tines in total (600mm length) for material gripping and transportation. |
| ||
Parameter | Value Range | ||
Width | 860mm-930mm | ||
Length of Tines | 600mm-800mm | ||
Weight | 155kg--185kg | ||

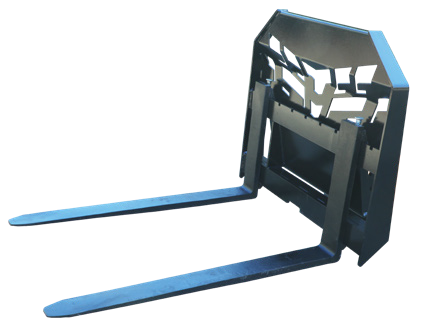

| 3. Pallet Fork
Core Functions: Unobstructed view of loaded goods; equipped with 2 hooks and adjustable tine width. | ||
Parameter | Value Range | ||
Length | 1000mm | ||
Max.Load Capacity | 2000kg | ||
Weight | 160 kg - 210 kg | ||

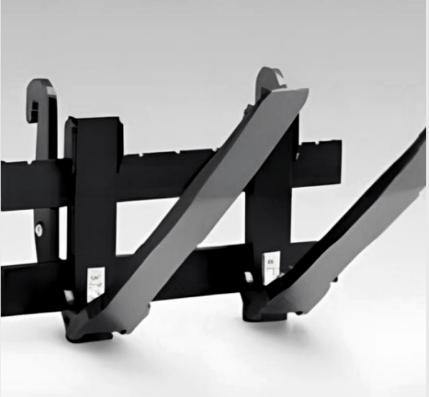

4. Fold-down Pallet Fork
Core Functions: Foldable tines; clear view of loaded goods; 2 hooks included; adjustable tine width. |
| ||
Parameter | Value Range | ||
Length | 1000 mm | ||
Max.Load Capacity | 2000 kg | ||
Weight | 190 kg | ||

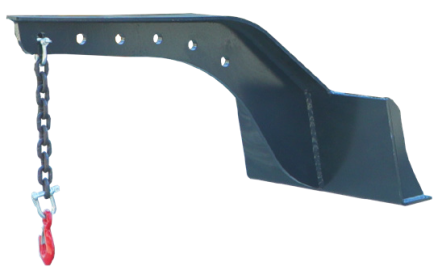

| 5. Load Hooks
Core Functions: Facilitates safe lifting of heavy loads; swivel hook with fastener can rotate under load (aiding precise positioning); 3 different lifting points provided. | ||
Parameter | Value Range | ||
Working Length | 1000 mm | ||
Load Capacity | 1.10 t | ||
