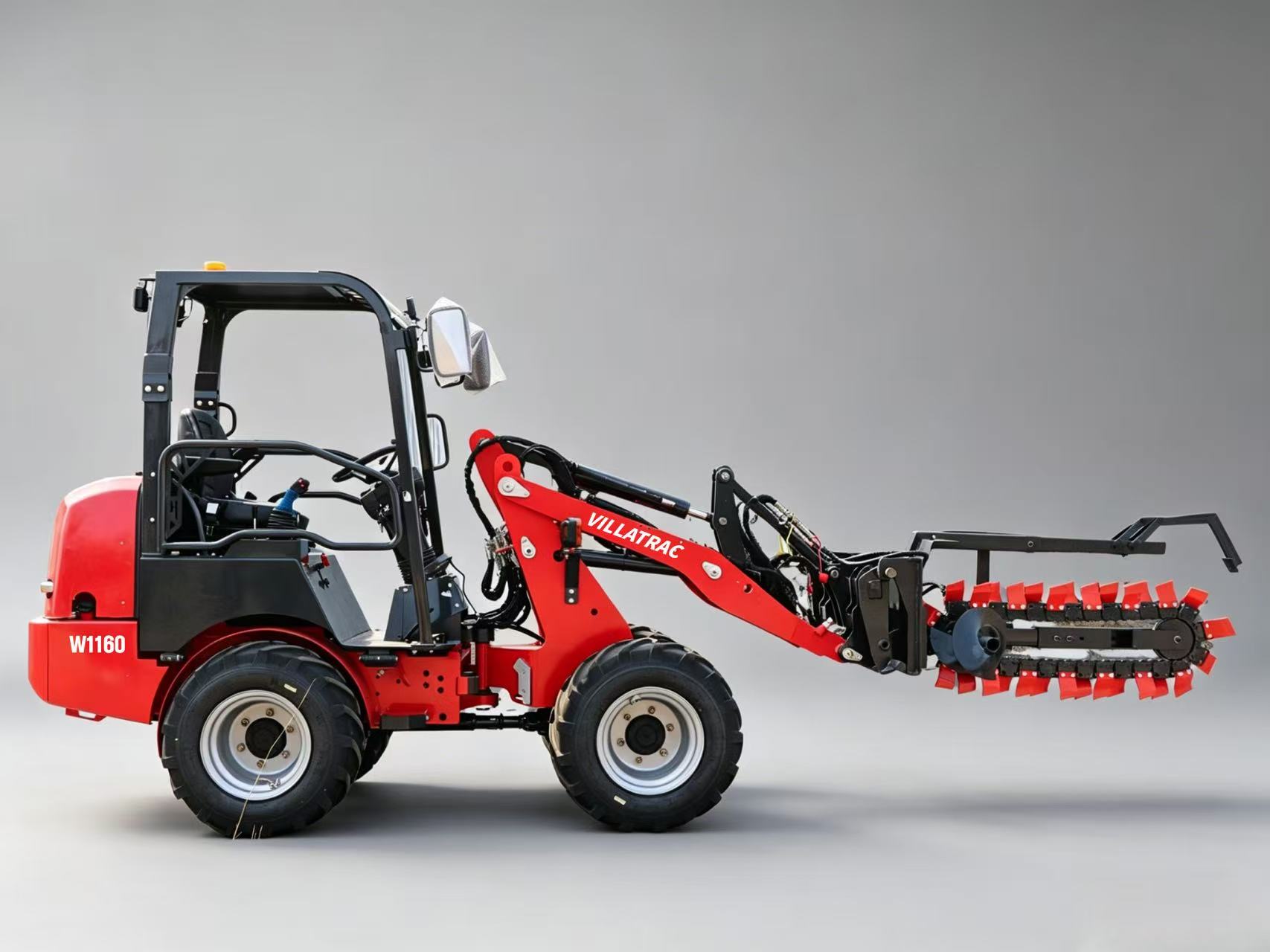

W1160
New 4WD Wheel Loader
Sleek compact design saves footprint
Low center of gravity ensures great stability
Mini turning radius adapts to tight spaces
Powerful solid performance handles heavy tasks
- Overview
- Technical data
- Configurations
Product Introduction
Expertly designed and manufactured to reliably endure the harshness of severe, complicated working environments and long-term, high-intensity heavy-load tasks, the W1160 is built to sustain consistent performance even when confronted with the most challenging on-site requirements. Equipped with high-quality Rexroth hydraulic components praised for their exceptional durability and precision—and an advanced hydrostatic transmission system, this machine not only produces non-stop high power to tackle tough work with ease but also boasts highly precise, immediate-response load control that flexibly adapts to various job demands, ensuring smooth and efficient operation in every situation.Featuring excellent flexibility and universal applicability, the W1160 performs remarkably across a variety of work scenarios. These include large scale construction debris removal, professional forestry clearing and maintenance, as well as heavy-duty bulk material loading and transportation for agricultural and industrial purposes. Its key advantage is its consistent ability to deliver stable and reliable operation at all times, even in the harshest and most demanding outdoor construction, forestry, and agricultural conditions where common machinery fails to perform effectively.
Product Specifications
Engine Rated Power (kw/HP)：18.4kW/2800rpm
Operating Weight (kg):1850 kg
Tipping Load with Bucket--Machine Straight (kg):850 kg
Bucket Pivot Point :520
Applications
Equestrian Farm Feed Handling Loader Perfect for daily feed transportation on European horse farms, this loader features flexible maneuverability.It easily navigates stable aisles and pasture paths with stable load-bearing performance.Effortlessly moving hay and grain feed, it greatly saves labor and supports orderly horse breeding management. |
|

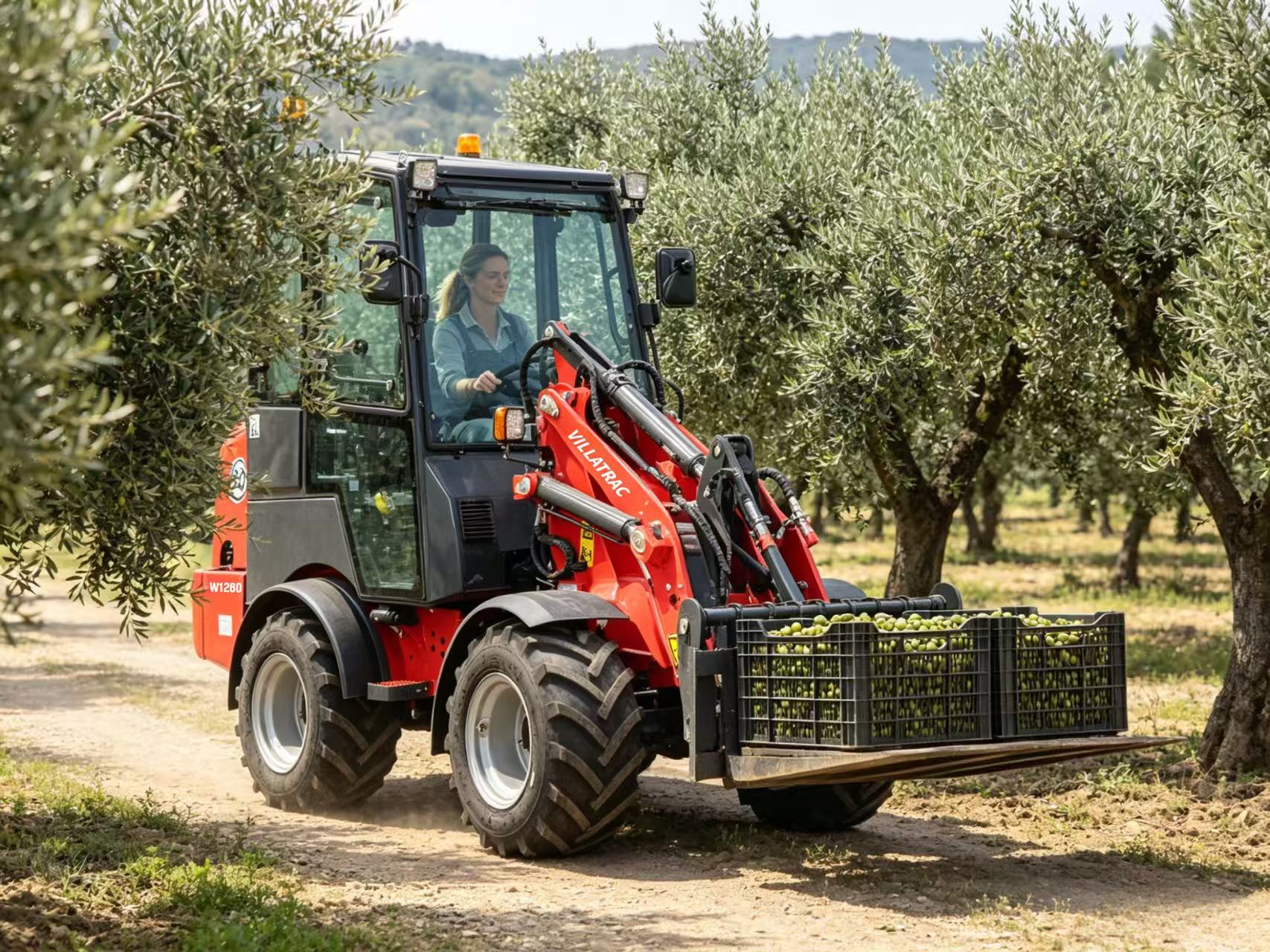

Compact Loader for European Olive Harvest Transport Tailored for European olive orchards, this compact loader easily shuttles harvested olives across orchard rows.Small turning radius adapts to narrow paths, protecting olive trees and ripe fruits.Durable and fuel-efficient, it streamlines harvest delivery and cuts farm labor costs significantly. | |
Technical Data for W1160 Compact Loader | |
Engine | |
Brand/Model | Perkins 403J-11 or Kubota D1105 |
Type: | 3 Cylinders, Water Cooling |
Power Output | 18.4kW/2800rpm |
Displacement | 1.13 L |
Emissios Standard： | Euro Stage V |
Drive System | |
Type of Drive | Hydrostatic |
Gear Shift | Electric, Continuously Variable Transmissioin (CVT) |
Travel Speed | 0-20 km/h |
Electrical System | |
Operating Voltage | 12 V |
Battery Capacity | 60 Ah |
Alternator Rating | 40 A |
Hydraulic System | |
Max.Drive Hydraulics Work Pressure | 300 bar |
Max. Drive Hydraulics Discharge Volume | 84 l/min |
Max. Work Hydraulics Work Pressure | 180 bar |
Max. Work Hydraulics Discharge Volume | 32 l/min |
Boom Lifting Time | 3.1 s |
Automatic Levelling Function | yes |
Weight | |
Operating Weight | 1850 kg |
Tipping Load with Bucket--Machine Straight: | 850 kg |
Tipping Load with Bucket--Machine Pivoted: | 550 kg |
Bucket Capacity | 0.28 m3 |
Max.Lifting Force | 1100 kg |
Refilling Capacity | |
Fuel Tank (L) | 26 L |
Hydulic Oil Tank (L) | 40 L |
Engine Oil (L) | 4 L |
Coolant (L) | 12 L |
Brake System | |
Operating Brake | Transmission Drum Brake |
Parking Brake | Operating and Parking Brake in the Drive Train |
Tyre Size | 31x15.5-15 |
Machine Dimension (mm) | |
Overall Length with Bucket | 3895 |
Overall Length without Bucket | 3065 |
Bucket Pivot Point to the Centre of Axle | 520 |
Wheel Base | 1522 |
Rear Overhang | 950 |
Height to the Roof of Canopy | 2210 |
Seat Height | 1200 |
Working Range (mm) | |
Overall Working Height | 3180 |
Max. Lifting Height | 2740 |
Load-Over Height | 2385 |
Dumping Height | 1900 |
Digging Depth | 120 |
Overall Width | 1300 |
Wheel Track | 910 |
Ground Clearance | 221 |
Max. Turning Radius | 2435 |
Outter Turning Radius | 2220 |
Inner Turning Radius | 880 |
Articulation Angle | 51° |
Roll Back Angle at Max. Lifting Height | 52° |
Dumping Angle | 35° |
| 1.Engine: KUBOTA D1105 (Euro 5), Optional: Perkins |
| 2.Hydraulic System: German Rexroth pump, Gerotor motor, domestic valves; 1 pump + 2 motors, Inching function |
| 3.Boom Function: Floating function (optional) |
| 4.Control System: Electronic control levers with integrated forward/reverse buttons 5.(High/Low speed optional) |
| 6.Brake Inching Function (optional) |
| 7.Seat Sensor (optional) |
| 8.Lights: Turn signals, LED work lights |
| 9.EU-standard Hydraulic Quick Coupler,Quick change, customization supported |
| 10.Tires: 31.5*15-15.5 |
| 11.Canopy: EPS,detachable, foldable, and closable. |
1. Feed Blade Main Application Scenarios Do you need to evenly disperse fermented silage, concentrated feed blends, and other varieties of livestock fodder along your farm’s feeding troughs? This feed pusher optimizes daily livestock feeding routines and significantly improves work efficiency. Core Functions Hydraulic operation enables wide-angle adjustment of the blade, ensuring total coverage of all feeding areas. It can swing left and right to adjust pushing routes, easily covering every corner of the feeding zones with no gaps left. |
| ||
Parameter | Value Range | ||
Width | 1800 mm - 2200 mm | ||
Max. Adjustable Angle | 70° | ||
Weight | 225 kg | ||
| 2. Bale Fork Main Application Scenarios Looking for a convenient way to lift and stack round & square hay straw bales without installing extra attachments? This specially made bale grab connects instantly to standard pallet fork mounts, helping you finish farm tasks smoothly with less effort. Core Functions It mounts swiftly onto universal pallet fork structures. Two sharp tines dig steadily into bales and hold them firmly, greatly simplifying farm bale transport and stacking operations. | ||
Parameter | Value Range | ||
Width | 1130 mm | ||
Weight | 65 kg | ||
3. Round Bale Tong Main Application Scenarios Looking to transport and store wrapped round hay bales without damaging the plastic covering or compressing the internal forage? This professional bale handling tool offers gentle yet efficient care for wrapped round forage bales used in livestock farming. Core Functions It holds bales steadily without causing any damage to their outer surface, ensuring the original wrapping of each round bale remains fully intact. This tool effectively preserves the quality of stored forage and maintains its nutritional value for an extended storage period. |
| ||
Parameter | Value Range | ||
Width | 1400mm | ||
Weight | 158 kg | ||
| 4. Fence Mower Main Application Scenarios Are you tired of the tedious, repetitive manual weeding and shrub trimming around fence posts in farms, pastures, or municipal green spaces? This fence-specific mower eliminates the hassle of fence maintenance, providing thorough and consistent trimming services to keep the area around fence posts tidy and well-organized. Core Functions It trims a clean and orderly area around each fence post, eliminating the need for strenuous manual labor. The machine supports hydraulic switching between transport and working modes, allowing you to operate it comfortably from the cab without having to step out or manually adjust modes. | ||
Parameter | Value Range | ||
Weight | 220 kg | ||
5. Double-blade Mowing Unit Main Application Scenarios Do you aim to shape the hedges in your garden or municipal green belt into a flawless and neat form? This dual-blade trimming attachment can easily handle side trimming and multi-angle cutting tasks, turning overgrown and unkempt hedges into a neat and refined landscape. Core Functions It offers three different cutting positions to enable flexible operation, excels in the side trimming of hedges, and ensures that the hedges maintain a clean and professional appearance after trimming. |
| ||
Parameter | Value Range | ||
Width | 1500 mm | ||
Weight | 200 kg | ||
