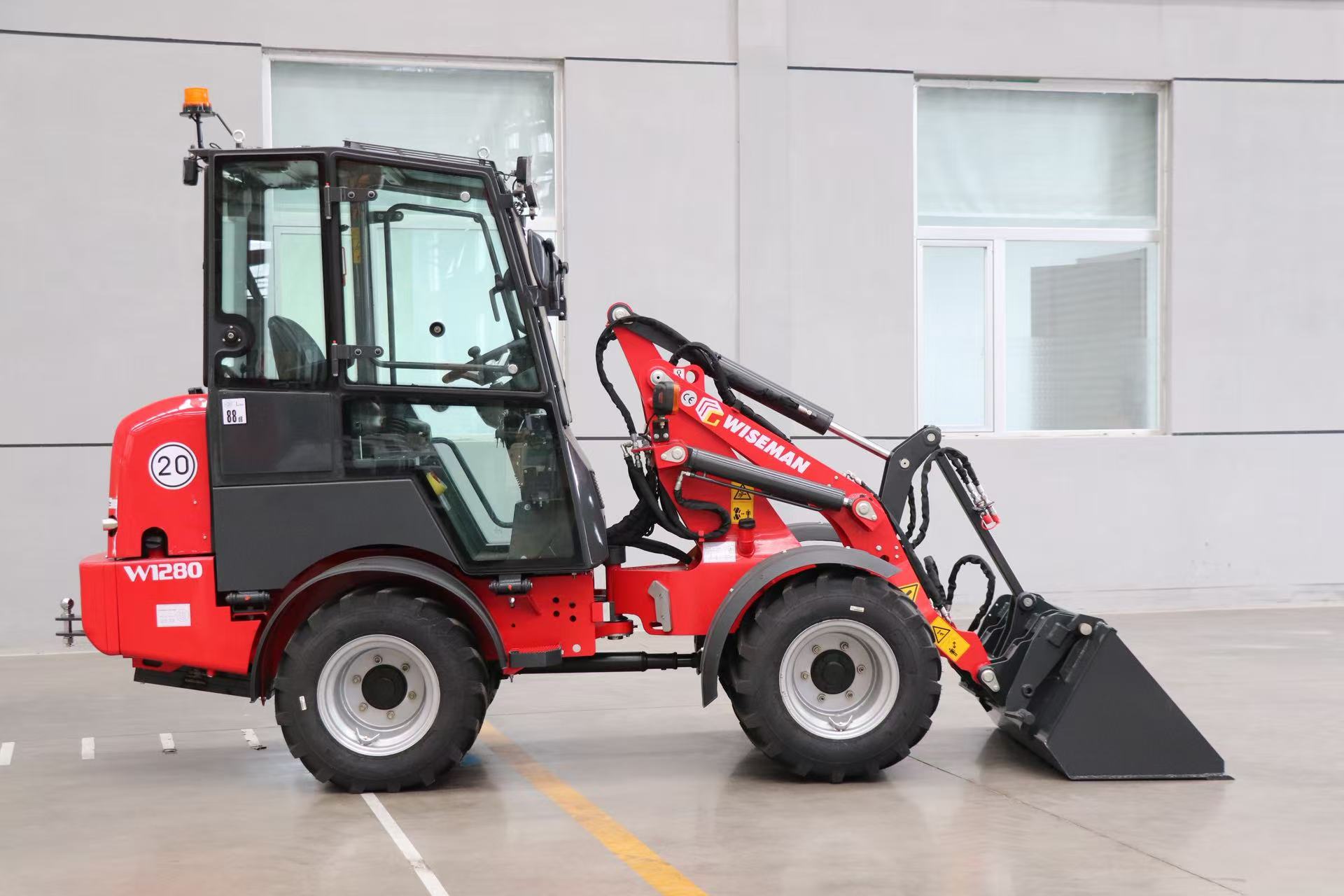

W1280
Agile Compact Articulated Loader
Tightly packaged layout
Low-slung center of gravity
Tight-radius turning capacity
Strong operational efficiency
- Overview
- Technical data
- Configurations
Product Introduction

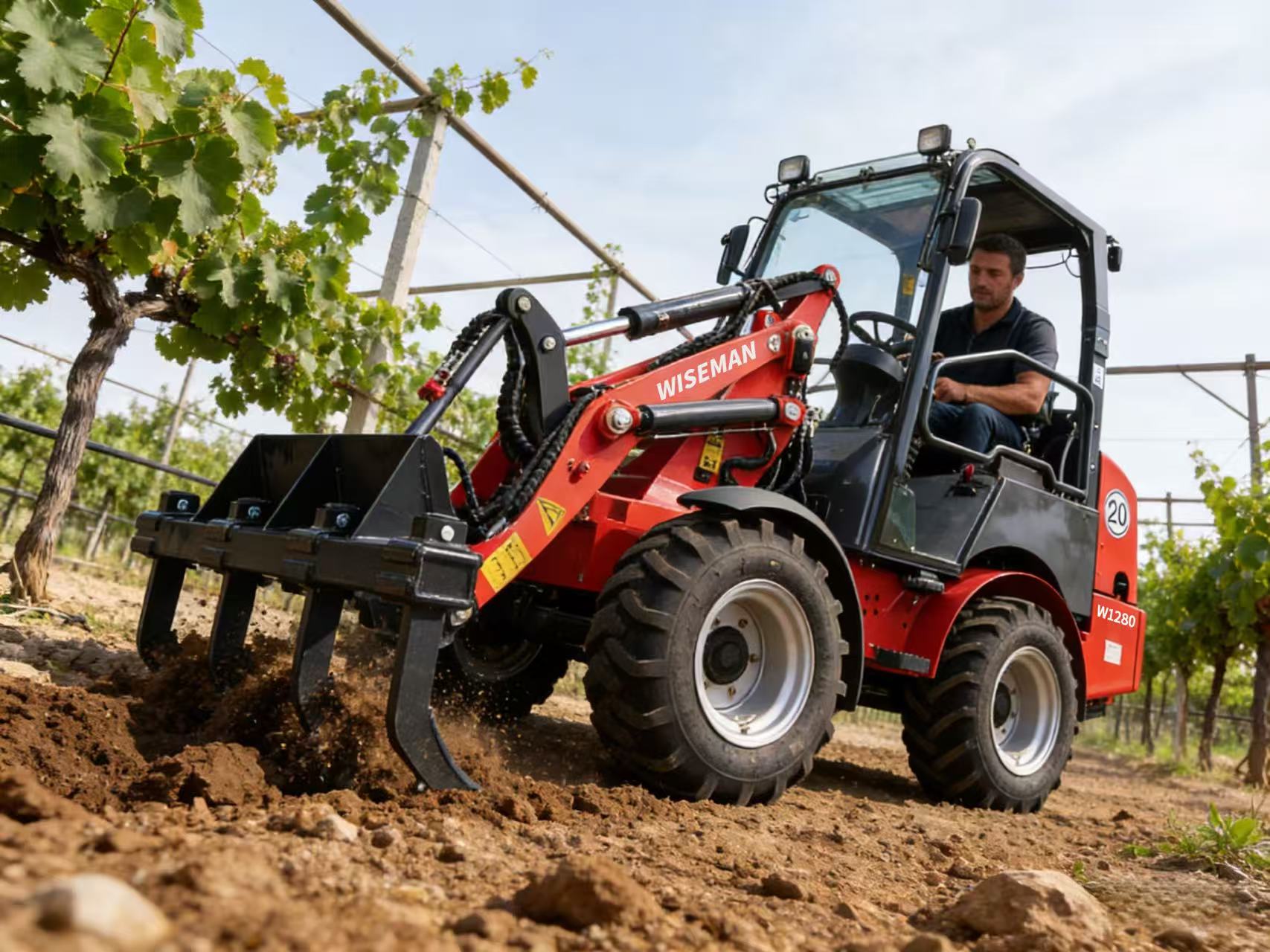

Our Vineyard Compact Wheel Loader with Soil Loosening Attachment is suitable for Mediterranean vineyards. The low ground pressure tires protect the vine root system, while the soil loosening attachment effectively improves soil aeration and water permeability. The loader's powerful engine provides sufficient digging power, and the adjustable loosening depth adapts to different soil layers. Compliant with EU environmental regulations, it features low noise and low emissions, making it an environmentally friendly choice for vineyard soil improvement.
Product Specifications
Engine Rated Power (kw/HP)：18.4/25
Operating Weight (kg):2380-2550
Tipping Load with Bucket--Machine Straight (kg):1160-1690
Bucket Pivot Point :980-1440
Applications

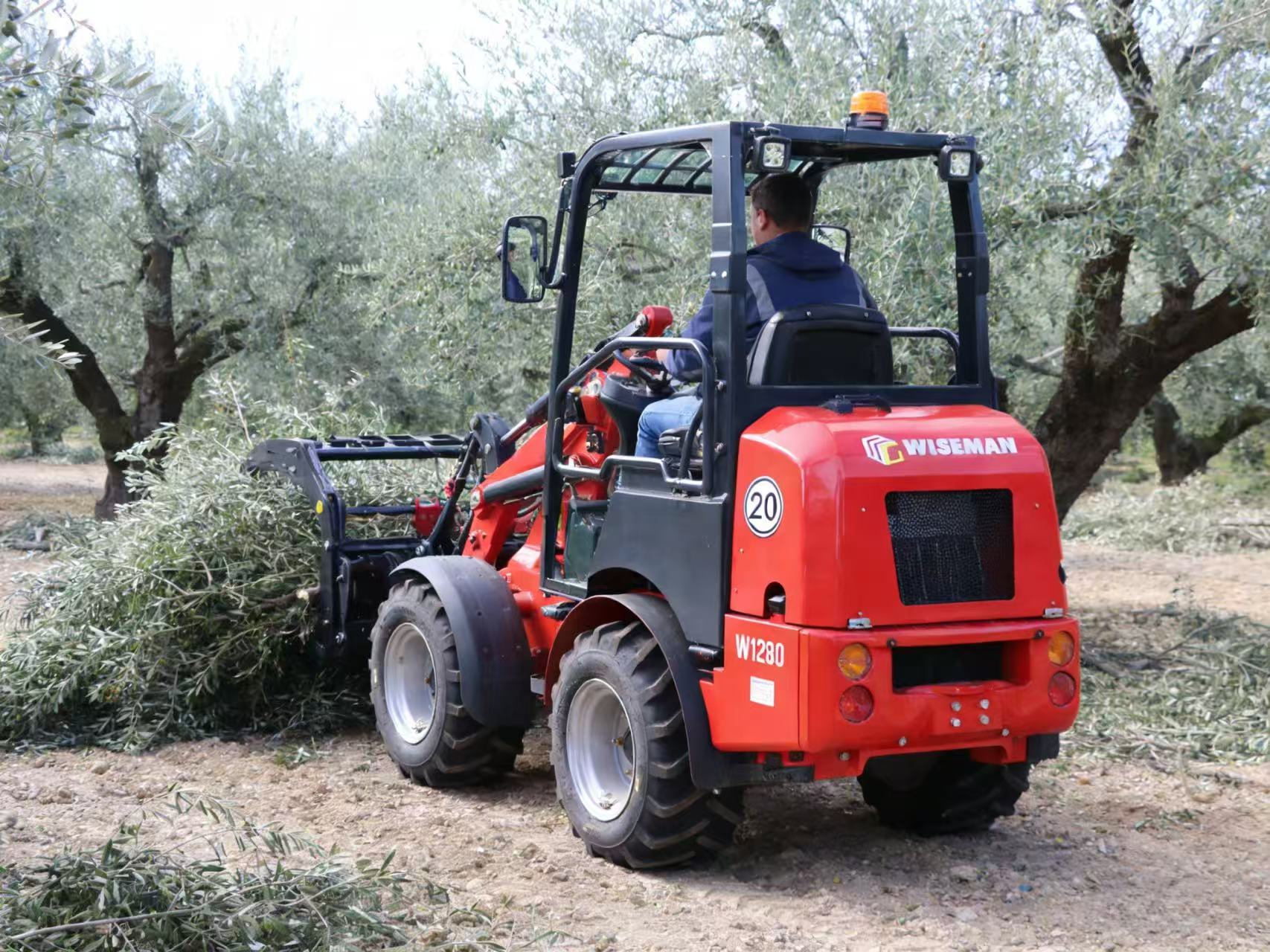

1.Compact Wheel Loader for Deadwood Removal in Logging Yards Agile for logging yards, efficient for quick deadwood clearing and removal. |
|
2.Deadwood Removal in Logging Yards – Compact Wheel Loader This compact wheel loader excels at logging yard deadwood removal. Maneuverable in wooded areas, it safely and efficiently clears fallen and dry deadwood with easy operation. |
|
W1280 Technical Data | |
Engine | |
Brand/Model | Kubota D1703 or D1505 |
Type: | 3 Cylinders or 4 Cylinders, Water Cooling |
Power Output (kw/HP) | 18.4/25 |
Emissios Standard | Euro V/ Tier 4 Final |
Driving System | |
Type of Drive | Hydrostatic |
Drive | Universal Joint Shaft |
Travel Speed ( km/h) | 0-15 |
Electrical System | |
Operating Voltage （V) | 12 |
Battery Capacity (Ah) | 60 |
Alternator Rating (Ah) | 40 |
Hydraulic System | |
Max.Drive Hydraulics Work Pressure (bar) | 320 |
Max. Drive Hydraulics Discharge Volume (l/min) | 72 |
Max. Work Hydraulics Work Pressure (bar) | 25Mpa |
Max. Work Hydraulics Discharge Volume (l/min) | 32 |
Weight | |
Operating Weight (kg) | 2380-2550 |
Tipping Load with Bucket--Machine Straight, | 1160-1690 |
Tipping Load with Bucket--Machine Pivoted, | 980-1440 |
Tipping Load with Pallet Fork--Machine Straight, | 890-1260 |
Tipping Load with Pallet Fork--Machine Pivoted, | 740-1080 |
Bucket Capacity (m3) | 0.28 |
Brake System | |
Operating Brake | Transmission Drum Brake |
Parking Brake | Operating and Parking Brake in the Drive Train |
Tyre Size (standard) | 31*15.5-15 |
| 1.Engine: KUBOTA D1105 (Euro 5), Optional: Perkins |
| 2.Hydraulic System: German Rexroth pump, Gerotor motor, domestic valves; 1 pump + 2 motors, Inching function |
| 3.Boom Function: Floating function (optional) |
| 4.Control System: Electronic control levers with integrated forward/reverse buttons 5.(High/Low speed optional) |
| 6.Brake Inching Function (optional) |
| 7.Seat Sensor (optional) |
| 8.Lights: Turn signals, LED work lights |
| 9.EU-standard Hydraulic Quick Coupler,Quick change, customization supported |
| 10.Tires: 31.5*15-15.5 |
| 11.Canopy: EPS,detachable, foldable, and closable. |
| 1. Rubber Blade
Core Functions: Removes residual debris from slatted floors; strips oil stains and contaminants from ground surfaces. | ||
Parameter | Value Range | ||
Width | 1200 mm - 1500 mm | ||
Weight | 85 kg - 160 kg | ||
2. Sweeper
Core Functions: Superior cleaning effect; supports connection via pallet fork (standard) or bucket (optional); convenient tool attachment for rapid switching. |
| ||
Parameter | Value Range | ||
Width | 1250 mm - 1550 mm | ||
Weight | 150 kg-180kg | ||
| 3.Sweeping Machine Main Application Scenarios: Suitable for cleaning open areas such as courtyards, factory roads, bike lanes, and parking lots, meeting daily debris cleaning requirements. Core Functions:
- Open-Area Compatibility: Engineered for open-area cleaning, efficiently sweeping various scattered debris;
- Built-In Debris Tray: Comes with a built-in debris collection tray to collect swept materials. | ||
Parameter | Value Range | ||
Width | 1250 mm - 1550 mm | ||
Weight | 190 kg-220 kg | ||
4. Snow Blade
Core Functions: Equipped with a hydraulic rotation device; roller level compensation (with height indicator) and stepless adjustment of wheels/skids for precise snow clearing; elastic edge protection to avoid harming curbs and buildings. |
| ||
Parameter | Value Range | ||
Width | 1300 mm - 1550 mm | ||
Road-clearing Width at 30° | 1115 mm - 1320 mm | ||
Weight | 167 kg - 183 kg | ||
| 5. Earth Borer
Core Functions: Various drill sizes offered to meet diverse drilling needs. | ||
Parameter | Value Range | ||
Length | 1240 mm | ||
Drill Diameter | ∅152 mm-∅305 mm | ||
Weight | 173 kg - 197 kg | ||

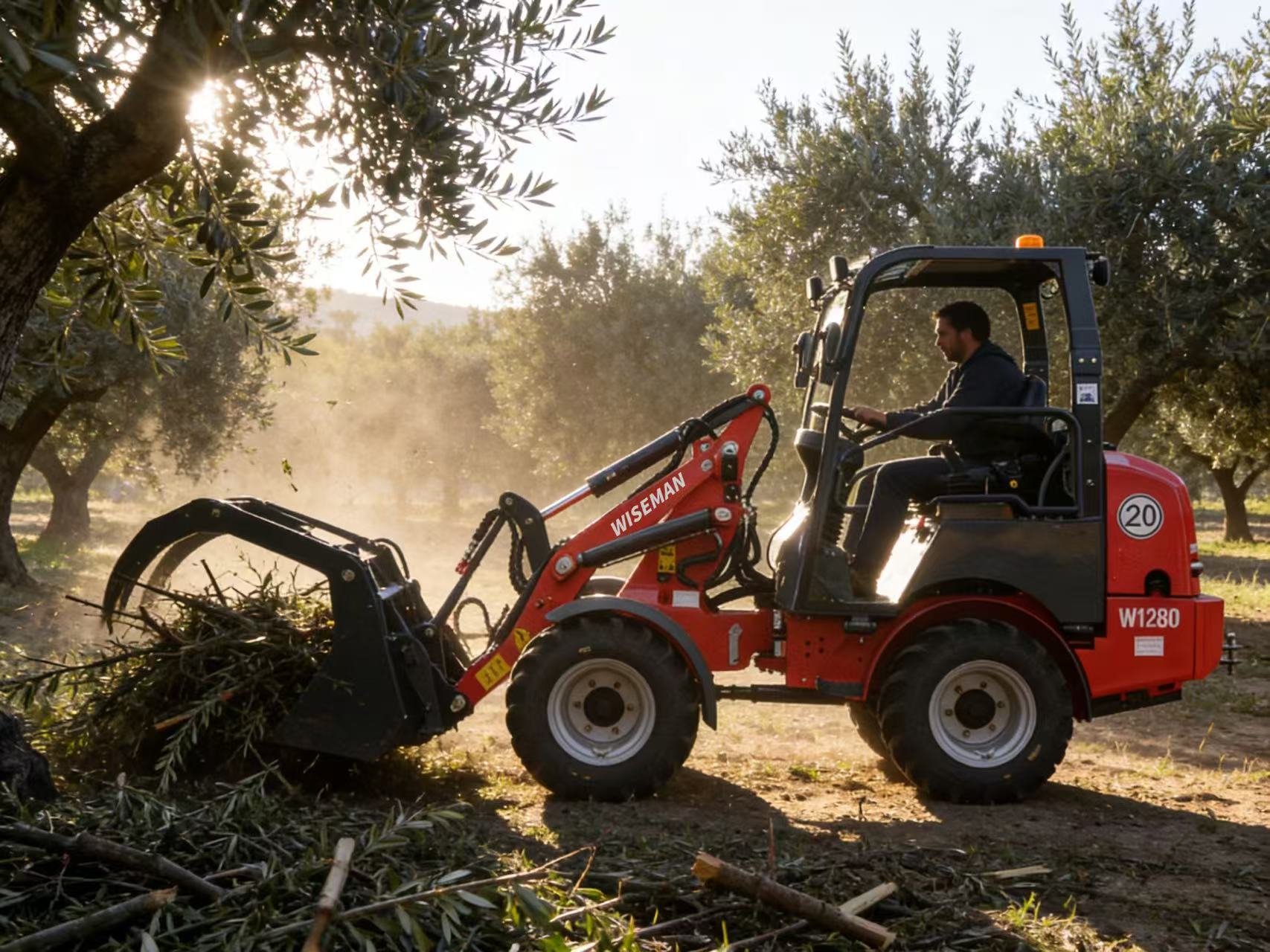

6.Logging Fork Main Application Scenarios: Suitable for clearing scattered branches and short log segments to tidy up work sites, and can also perform short-distance loading, unloading, and transportation of logs with a diameter of 100-300mm. Core Functions: Compatible with compact loaders, firmly holds small and medium-sized logs and branches, effectively preventing material slippage during transportation and ensuring stable operation. |
| ||
Parameter | Value Range | ||
Dimension（LXWXH) | 1323mmX804mmX828mm | ||
Weight | 172 kg | ||
