Product Introduction

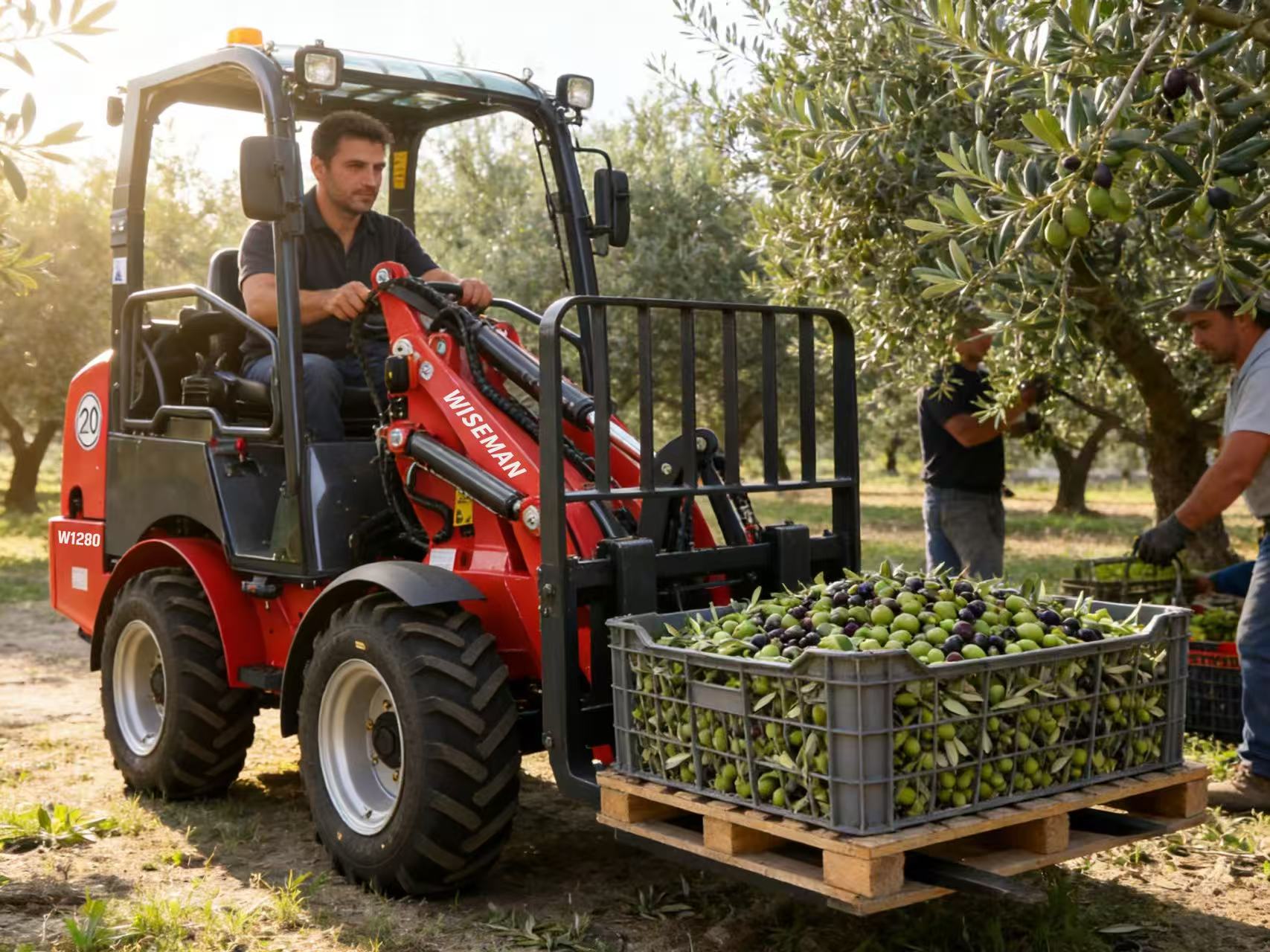

The Compact Loader for Olive Groves with Olive Picking Attachment is tailored for olive groves in Italy and Spain. Meeting EU organic farming standards, it gently picks olives without damaging the fruit or olive trees. The attachment's high picking efficiency reduces manual labor, and the loader's compact body navigates easily between olive trees. The easy-to-clean design of the picking attachment simplifies post-operation maintenance, making this combination an ideal helper for organic olive farming.

Buy Wheel Loader

Product Specifications

Engine Rated Power (kw/HP)：18.4/25

Operating Weight (kg):2380-2550

Tipping Load with Bucket--Machine Straight (kg):1160-1690

Bucket Pivot Point :980-1440

Learn More

Applications

1.Compact Wheel Loader for Soil Loosening in Vegetable Greenhouses

Agile for narrow greenhouse spaces, efficient for soil loosening and pre-planting prep.

Buy Wheel Loader

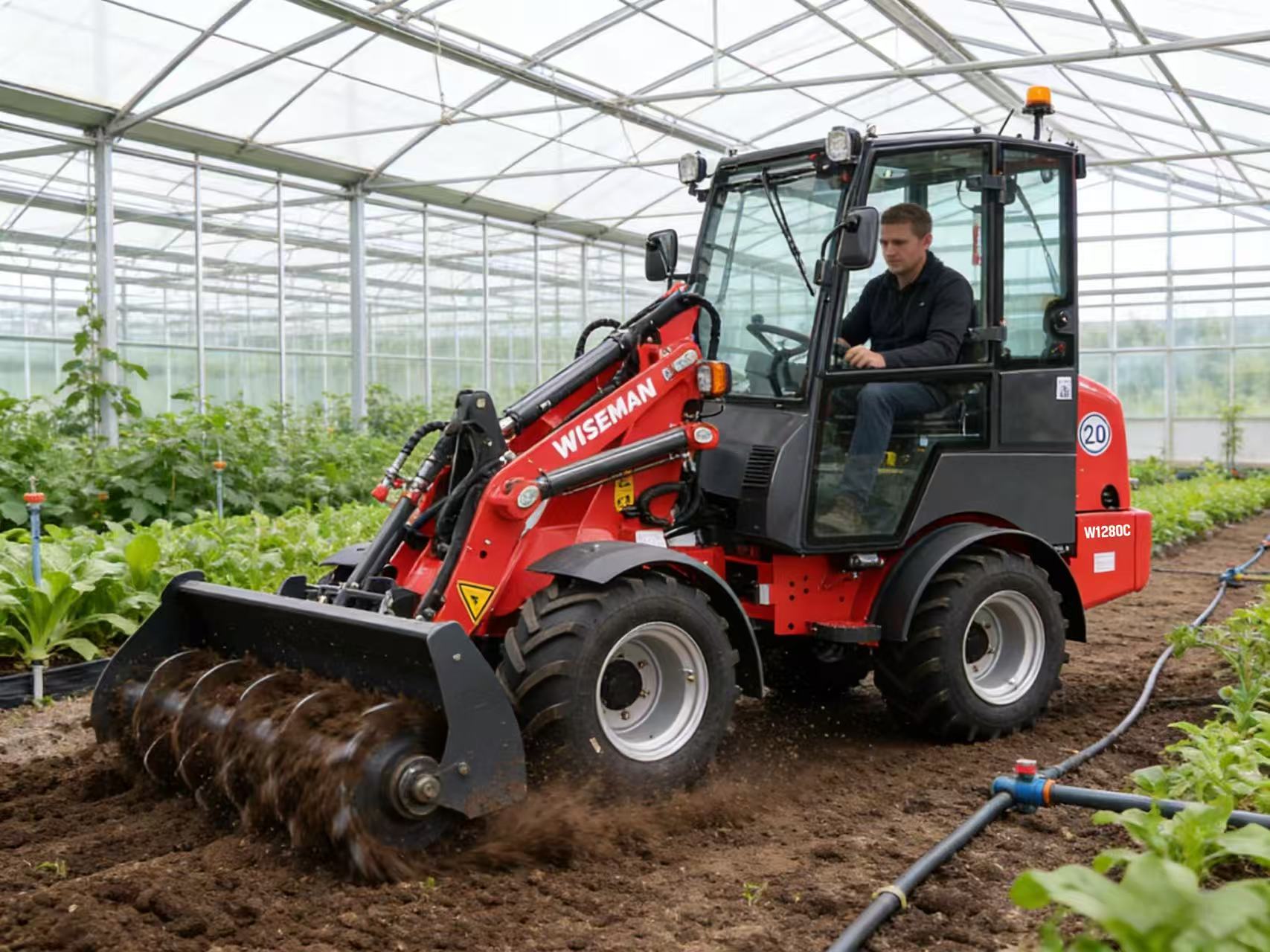

2.Soil Loosening in Vegetable Greenhouses – Compact Wheel Loader

Our compact wheel loader excels at greenhouse soil loosening. Maneuverable design fits confined areas, delivering smooth, efficient soil tillage for vegetable planting preparation.

Buy Wheel Loader

W1280 Technical Data
Engine
Brand/Model	Kubota D1703 or D1505
Type:	3 Cylinders or 4 Cylinders, Water Cooling
Power Output (kw/HP)	18.4/25
Emissios Standard	Euro V/ Tier 4 Final
Driving System
Type of Drive	Hydrostatic
Drive	Universal Joint Shaft
Travel Speed ( km/h)	0-15
Electrical System
Operating Voltage （V)	12
Battery Capacity (Ah)	60
Alternator Rating (Ah)	40
Hydraulic System
Max.Drive Hydraulics Work Pressure (bar)	320
Max. Drive Hydraulics Discharge Volume (l/min)	72
Max. Work Hydraulics Work Pressure	25Mpa
Max. Work Hydraulics Discharge Volume (l/min)	32
Weight
Operating Weight (kg)	2380-2550
Tipping Load with Bucket--Machine Straight, Loading Frame Horizontal (kg)	1160-1690
Tipping Load with Bucket--Machine Pivoted, Loading Frame Horizontal (kg)	980-1440
Tipping Load with Pallet Fork--Machine Straight, Loading Frame Horizontal (kg)	890-1260
Tipping Load with Pallet Fork--Machine Pivoted, Loading Frame Horizontal (kg)	740-1080
Bucket Capacity (m³)	0.28
Brake System
Operating Brake	Transmission Drum Brake
Parking Brake	Operating and Parking Brake in the Drive Train
Tyre Size (standard)	31*15.5-15

	1.Engine: KUBOTA D1105 (Euro 5), Optional: Perkins
	2.Hydraulic System: German Rexroth pump, Gerotor motor, domestic valves; 1 pump + 2 motors, Inching function
	3.Boom Function: Floating function (optional)
	4.Control System: Electronic control levers with integrated forward/reverse buttons 5.(High/Low speed optional)
	6.Brake Inching Function (optional)
	7.Seat Sensor (optional)
	8.Lights: Turn signals, LED work lights
	9.EU-standard Hydraulic Quick Coupler,Quick change, customization supported
	10.Tires: 31.5*15-15.5
	11.Canopy: EPS,detachable, foldable, and closable.

1. Lightweight Bucket Square Main Application Scenarios: Shoveling and carting light-duty materials such as sawdust, hay, and plastic pellets.Core Functions: The bucket’s top rim stays parallel to the base for hassle-free handling; an extended bottom and raised side panels boost material conveying capacity; fitted with a low-abrasion scraper edge.
Parameter	Value Range
Width	870mm-1050mm
Capacity	0.28M3-0.54M3
Weight	110kg-150kg
		2.Lightweight Bucket Round Main Application Scenarios: Scooping and moving large batches of light materials like silage, straw, and wood chips, perfect for situations where material spillage needs to be controlled.Core Functions: Reinforced structure customized for light-duty materials; top rim is parallel to the base for simple maneuvering; capacity is enhanced by an extended bottom and reinforced curved side panels, with overflow guard to limit spillage; the low-abrasion scraper edge is replaceable when necessary.
		Parameter	Value Range
		Width	870mm-1050mm
		Capacity	0.28M3-0.54M3
		Weight	110kg-150kg
3. Earth Bucket Main Application Scenarios: Clamping and conveying loose materials including silage, manure, wood chips, and green refuse.Core Functions: Two cylinders deliver strong clamping force; lateral parts of the bucket are detachable; equipped with a low-abrasion scraper edge.
Parameter	Value Range
Width	920mm-1150mm
Capacity	0.20M3-0.32M3
Weight	135kg--175kg
		4. Grab Bucket With Removable Side Parts Main Application Scenarios: Clamping and transporting loose materials such as silage, manure, wood chips, and green refuse.Core Functions: High clamping force is supplied by two cylinders; lateral sections of the bucket can be removed; comes with a low-abrasion scraper edge.
		Parameter	Value Range
		Width	1150mm-1550mm
		Capacity	0.23M3-0.36M3
		Weight	280kg--320kg
5. Multi-purpose Bucket Main Application Scenarios: Multi-scene operations like site clearing and material relocation, enabling shoveling, loading, and clamping (e.g., large stones, underbrush).Core Functions: Adaptable to multi-scene tasks (shoveling, loading, clamping); openable design for emptying to raise dumping height; fitted with a low-abrasion scraper edge and integrated teeth.
Parameter	Value Range
Width	1150mm-1550mm
Capacity	0.23M3-0.36M3
Weight	280kg--320kg
