W1280C
Agricultural Wheel Loader Price
Easy-to-store compact construction
Low-mounted gravity center
Small turning circle for agile navigation
Reliable high-impact on-site performance
- Overview
- Technical data
- Configurations
Your Urban Workhorse

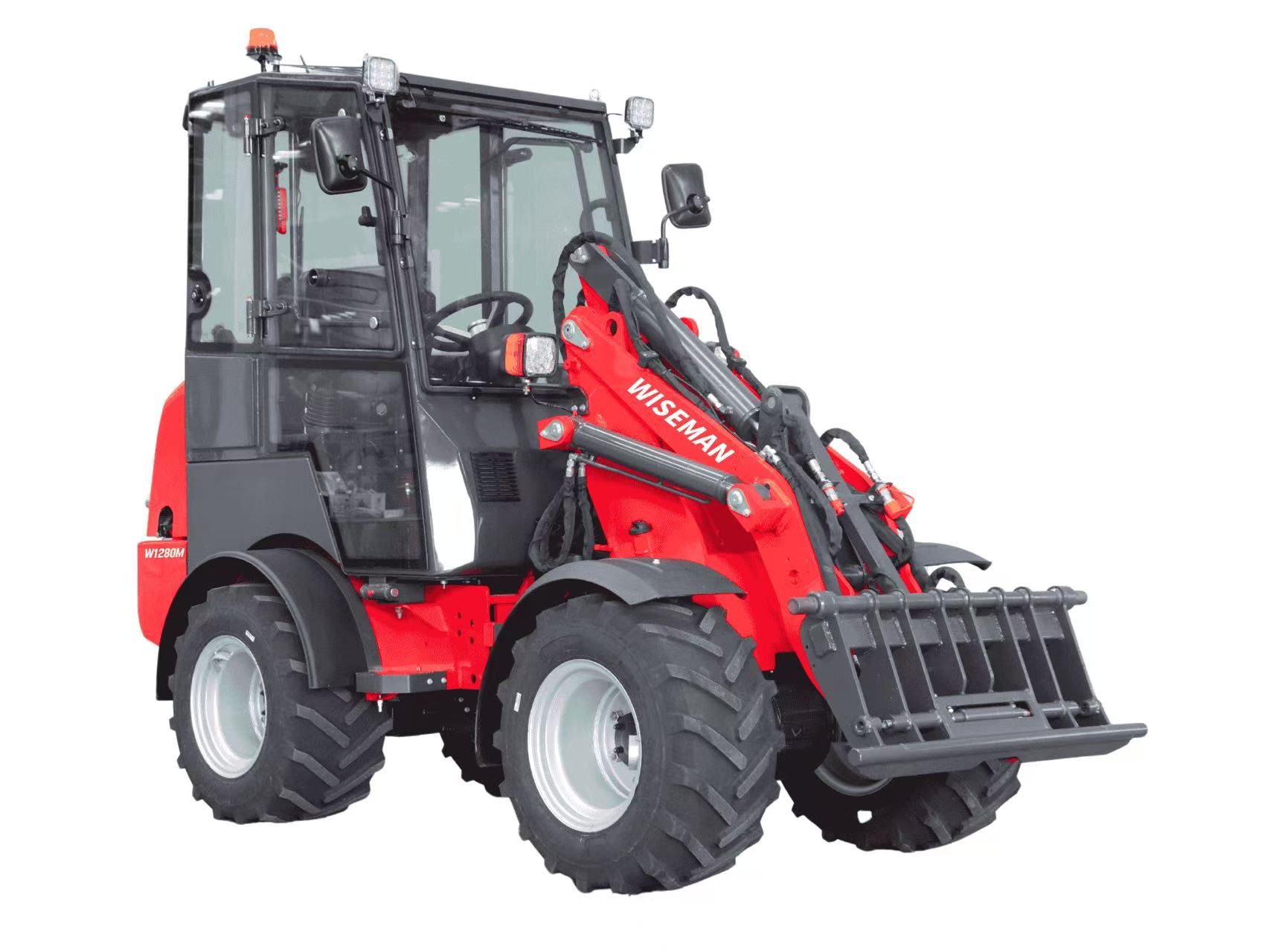

Meet the WISEMAN W1280C compact loader – the perfect blend of agility and power for urban landscaping, park maintenance, and light construction tasks. Its compact design navigates tight city spaces with ease, while robust lifting capacity and versatile attachments (like pallet forks) handle loads efficiently. Built for comfort with a fully enclosed cab and intuitive controls, it keeps operators productive all day long. Whether it’s moving materials in a city park or tackling small-scale construction jobs, the W1280C delivers performance you can rely on.
Product Specifications
Engine Rated Power (kw/HP)：18.4/25
Operating Weight (kg):2380-2550
Tipping Load with Bucket--Machine Straight (kg):1160-1690
Bucket Pivot Point :980-1440
Applications

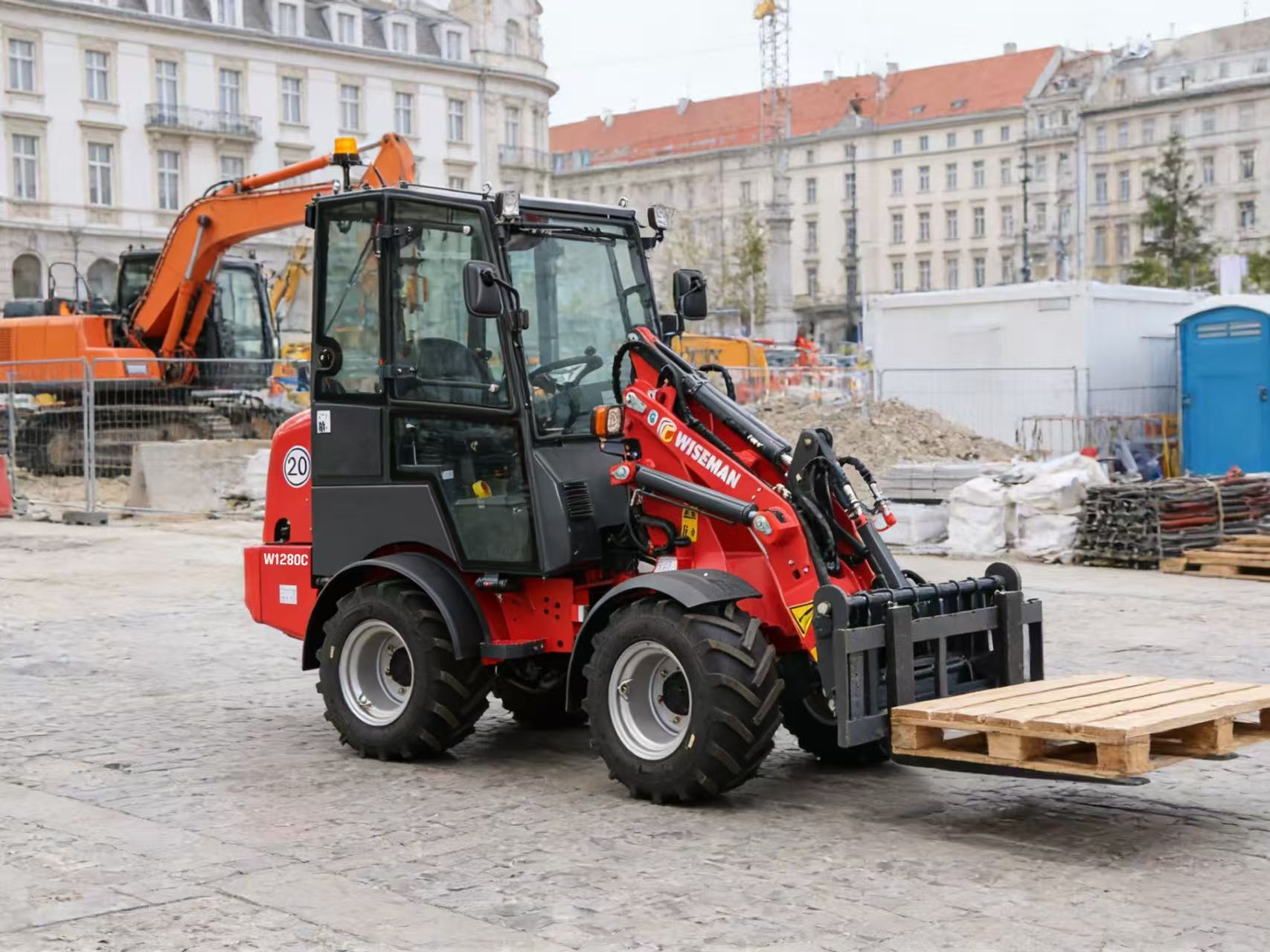

Municipal Pallet Handling & Material Transport – Compact Wheel LoaderThis compact wheel loader pairs with a sturdy pallet fork attachment, maneuvering effortlessly through narrow municipal warehouses, road maintenance sites and urban greening work zones. It securely lifts and transports pallets loaded with road repair materials, greening supplies and municipal operation tools without damaging goods or urban pavement, replacing heavy manual handling and significantly boosting the efficiency of daily municipal material distribution and on-site construction support. |
|
Compact Wheel Loader: Municipal Pallet Transport & HandlingFork-adaptable, city-agile, damage-free for all municipal palletized material haulage work. |
|
W1280C Technical Data | |
Engine | |
Brand/Model | Kubota D1703 or D1505 |
Type: | 3 Cylinders or 4 Cylinders, Water Cooling |
Power Output (kw/HP) | 18.4/25 |
Emissios Standard | Euro V/ Tier 4 Final |
Driving System | |
Type of Drive | Hydrostatic |
Drive | Universal Joint Shaft |
Travel Speed ( km/h) | 0-15 |
Electrical System | |
Operating Voltage （V) | 12 |
Battery Capacity (Ah) | 60 |
Alternator Rating (Ah) | 40 |
Hydraulic System | |
Max.Drive Hydraulics Work Pressure (bar) | 320 |
Max. Drive Hydraulics Discharge Volume (l/min) | 72 |
Max. Work Hydraulics Work Pressure | 25Mpa |
Max. Work Hydraulics Discharge Volume (l/min) | 32 |
Weight | |
Operating Weight (kg) | 2380-2550 |
Tipping Load with Bucket--Machine Straight, | 1160-1690 |
Tipping Load with Bucket--Machine Pivoted, | 980-1440 |
Tipping Load with Pallet Fork--Machine Straight, | 890-1260 |
Tipping Load with Pallet Fork--Machine Pivoted, | 740-1080 |
Bucket Capacity (m3) | 0.28 |
Brake System | |
Operating Brake | Transmission Drum Brake |
Parking Brake | Operating and Parking Brake in the Drive Train |
Tyre Size (standard) | 31*15.5-15 |
| 1.Engine: KUBOTA D1105 (Euro 5), Optional: Perkins |
| 2.Hydraulic System: German Rexroth pump, Gerotor motor, domestic valves; 1 pump + 2 motors, Inching function |
| 3.Boom Function: Floating function (optional) |
| 4.Control System: Electronic control levers with integrated forward/reverse buttons 5.(High/Low speed optional) |
| 6.Brake Inching Function (optional) |
| 7.Seat Sensor (optional) |
| 8.Lights: Turn signals, LED work lights |
| 9.EU-standard Hydraulic Quick Coupler,Quick change, customization supported |
| 10.Tires: 31.5*15-15.5 |
| 11.Canopy: EPS,detachable, foldable, and closable. |
| 1. Stone Bucket Main Application Scenarios: Engineered for the targeted collection of large stones in heterogeneous environments including agricultural fields, construction sites, and landscape gardens, with optimized performance for scenarios requiring the separation of stones from loose fine-grained materials (e.g., soil, sand). Core Functions Efficient Stone Pickup: Implements precision-oriented capture of large stones to satisfy the rigorous demands of on-site stone clearance operations; Screening & Separation: Incorporates a dedicated screening system, enabling loose fine materials to descend directly to the ground and achieve automated separation of stones and fine substances; Clear Observation: Provides unobstructed visibility of loaded stones for operators, enhancing operational accuracy and reducing the risk of misoperation. | ||
Parameter | Value Range | ||
Width | 1090mm | ||
Capacity | 0.22M3 | ||
Weight | 112kg | ||
2. Fork and Grab Main Application Scenarios: Designed to address multi-task operational demands including loose pen remediation, round/square bale logistics, and the handling of heterogeneous loose materials such as green clippings and green waste in agricultural systems. Core Functions: Incorporates a fork-shaped upper structure actuated by a single hydraulic cylinder; configured with five tines of 600mm length to ensure reliable material grasping and transportation performance. |
| ||
Parameter | Value Range | ||
Width | 860mm-930mm | ||
Length of Tines | 600mm-800mm | ||
Weight | 155kg--185kg | ||
| 3. Pallet Fork Main Application Scenarios: Designed to optimize the transportation of heterogeneous palletized goods including boxed and bagged commodities, aligning with the operational demands of modern logistics and material handling systems. Core Functions: Provides unobstructed visual access to loaded cargo for operational safety; integrates two structural hooks for auxiliary load fixation; incorporates adjustable tine width to ensure compatibility with a wide range of pallet configurations. | ||
Parameter | Value Range | ||
Length | 1000mm | ||
Max.Load Capacity | 2000kg | ||
Weight | 160 kg - 210 kg | ||
4. Fold-down Pallet Fork Main Application Scenarios: Designed to optimize dual operational demands: on-road mobility (via folded tines that minimize spatial occupation) and the efficient conveyance of heterogeneous palletized goods in modern supply chain systems. Core Functions: Incorporates a foldable tine mechanism for space-saving transit; provides unobstructed visual access to loaded cargo for operational safety; integrates two auxiliary hooks for load stabilization; features width-adjustable tines to accommodate varied pallet specifications. |
| ||
Parameter | Value Range | ||
Length | 1000 mm | ||
Max.Load Capacity | 2000 kg | ||
Weight | 190 kg | ||
| 5. Load Hooks Main Application Scenarios: Designed to address the operational demands of safe heavy-load hoisting and precision positioning for heterogeneous heavy items including metal components and equipment accessories in industrial systems. Core Functions: Provides a secure lifting solution for heavy loads; incorporates a load-bearing swivel hook with a fastener that allows in-load rotation to optimize positioning precision; is equipped with three varied lifting points to accommodate diverse load configurations. | ||
Parameter | Value Range | ||
Working Length | 1000 mm | ||
Load Capacity | 1.10 t | ||
