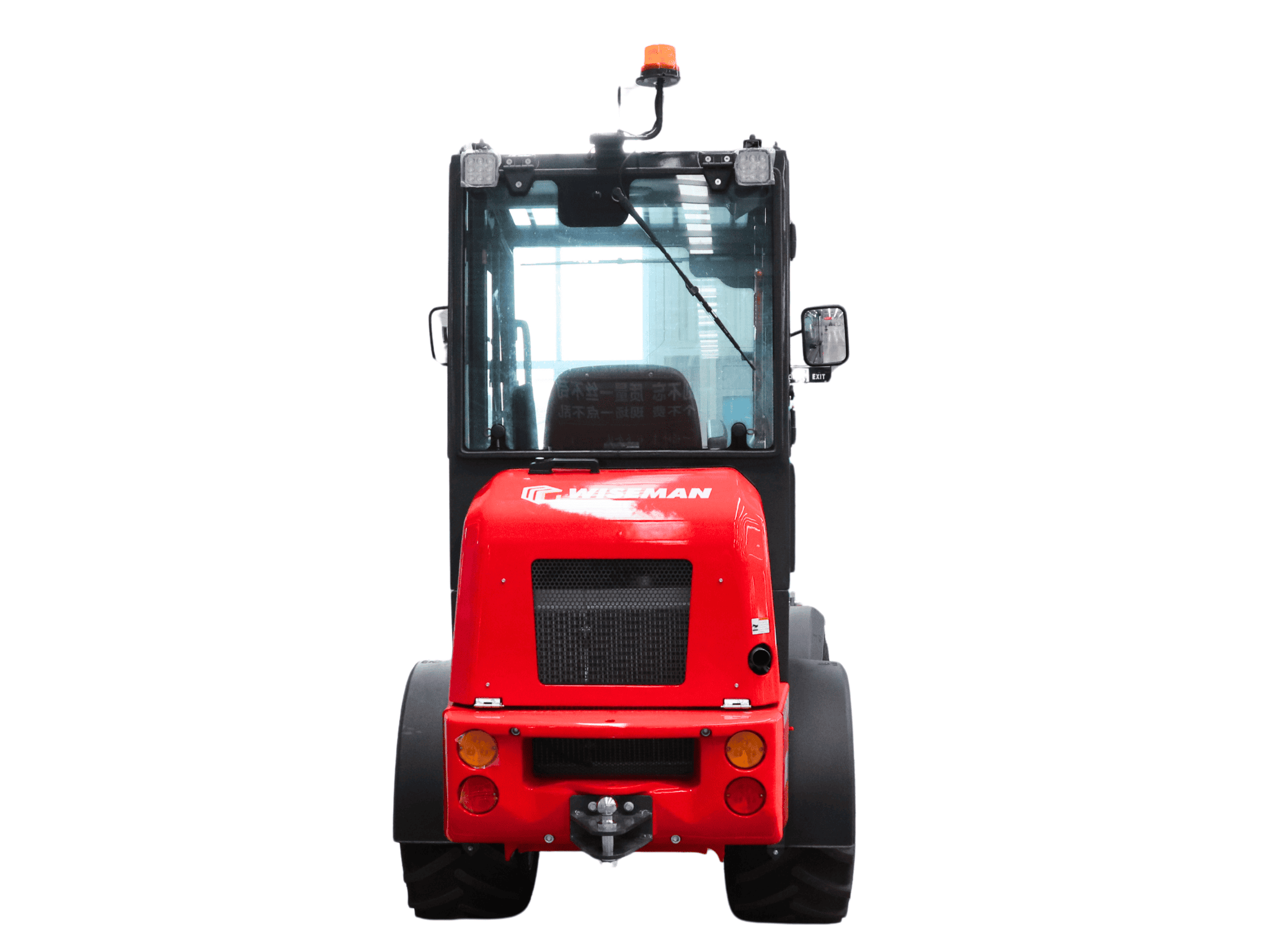

W1280C
High Quality Compact Wheel Loader
Easy-to-store compact construction
Low-mounted gravity center
Small turning circle for agile navigation
Reliable high-impact on-site performance
- Overview
- Technical data
- Configurations

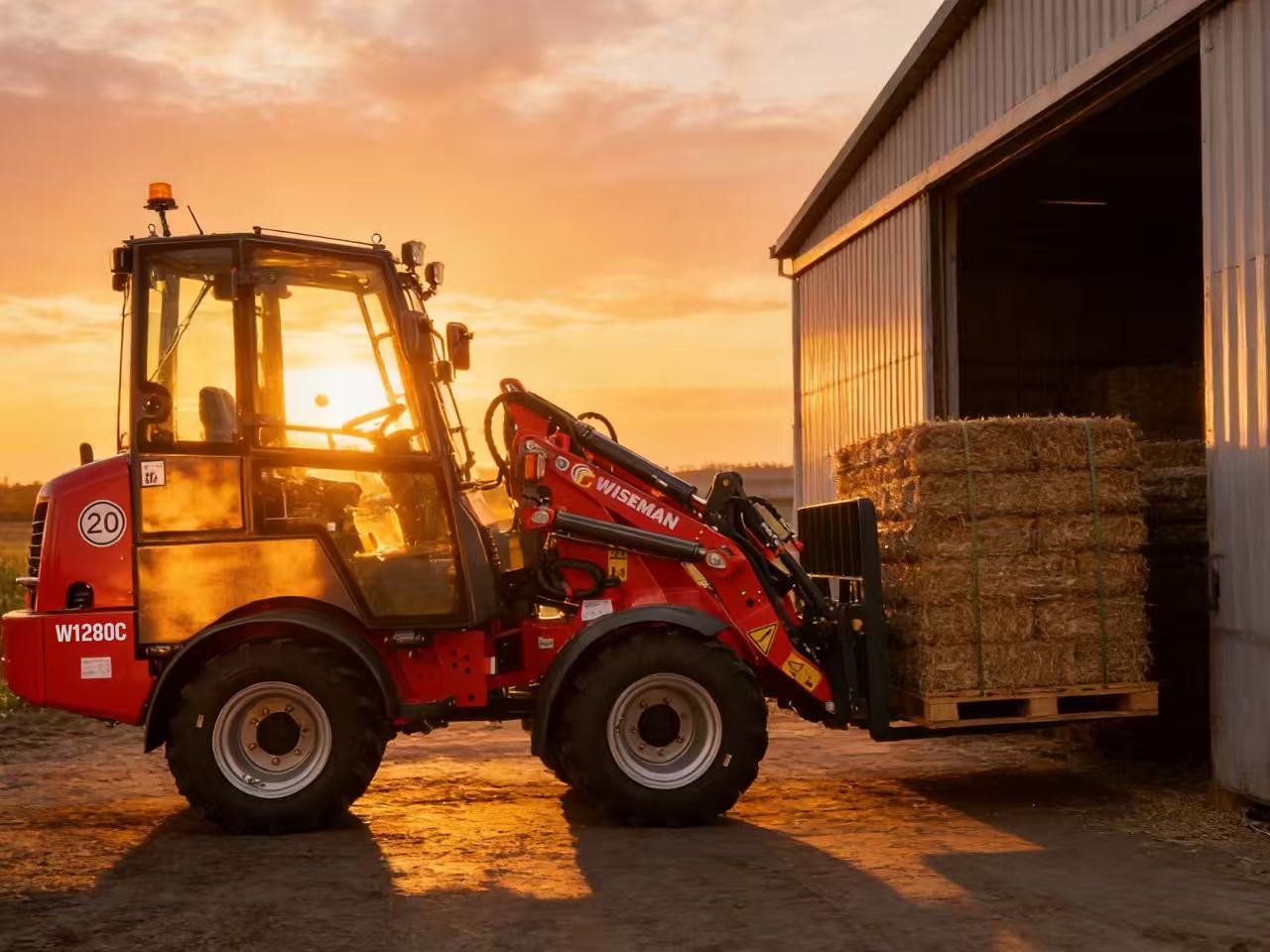

The Compact Loader That Powers Rural Work
When the sun dips low over the farm and the work’s still got to get done, the WISEMAN W1280C compact loader steps up. Designed for the demands of rural life, this nimble workhorse handles hay bale transport, feed hauling, and farmyard material moving with effortless strength. Its compact frame glides through tight barn aisles and uneven fields alike, while the rugged build ensures it keeps up with long days of farm work.
Product Specifications
Engine Rated Power (kw/HP)：18.4/25
Operating Weight (kg):2380-2550
Tipping Load with Bucket--Machine Straight (kg):1160-1690
Bucket Pivot Point :980-1440
Applications

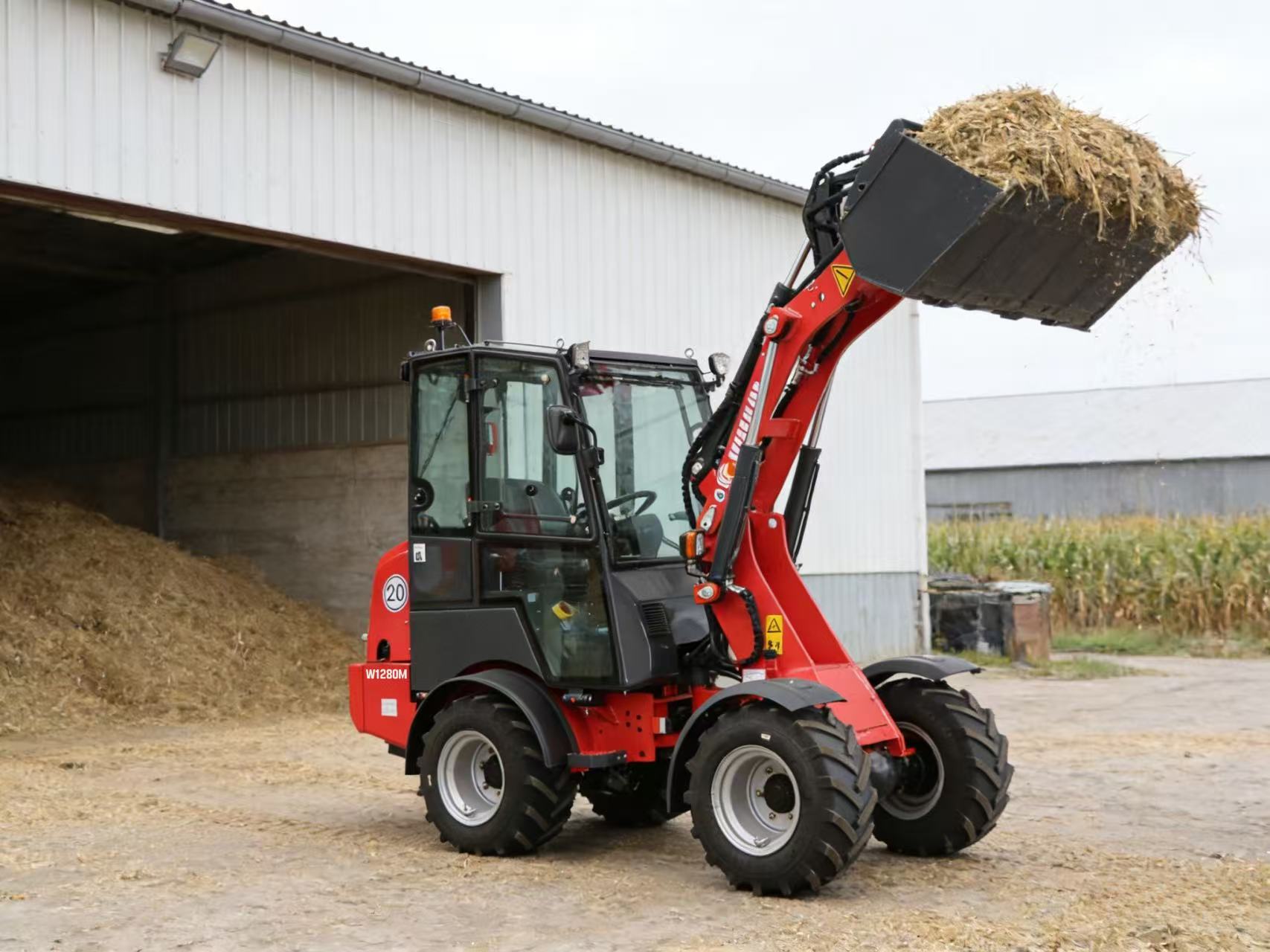

Compact Wheel Loader for Ranch Feed Hauling with Grab BucketAgile in ranch narrow lanes, steadily grips all feed varieties via grab bucket, efficient on-site transport with zero feed waste. |
|

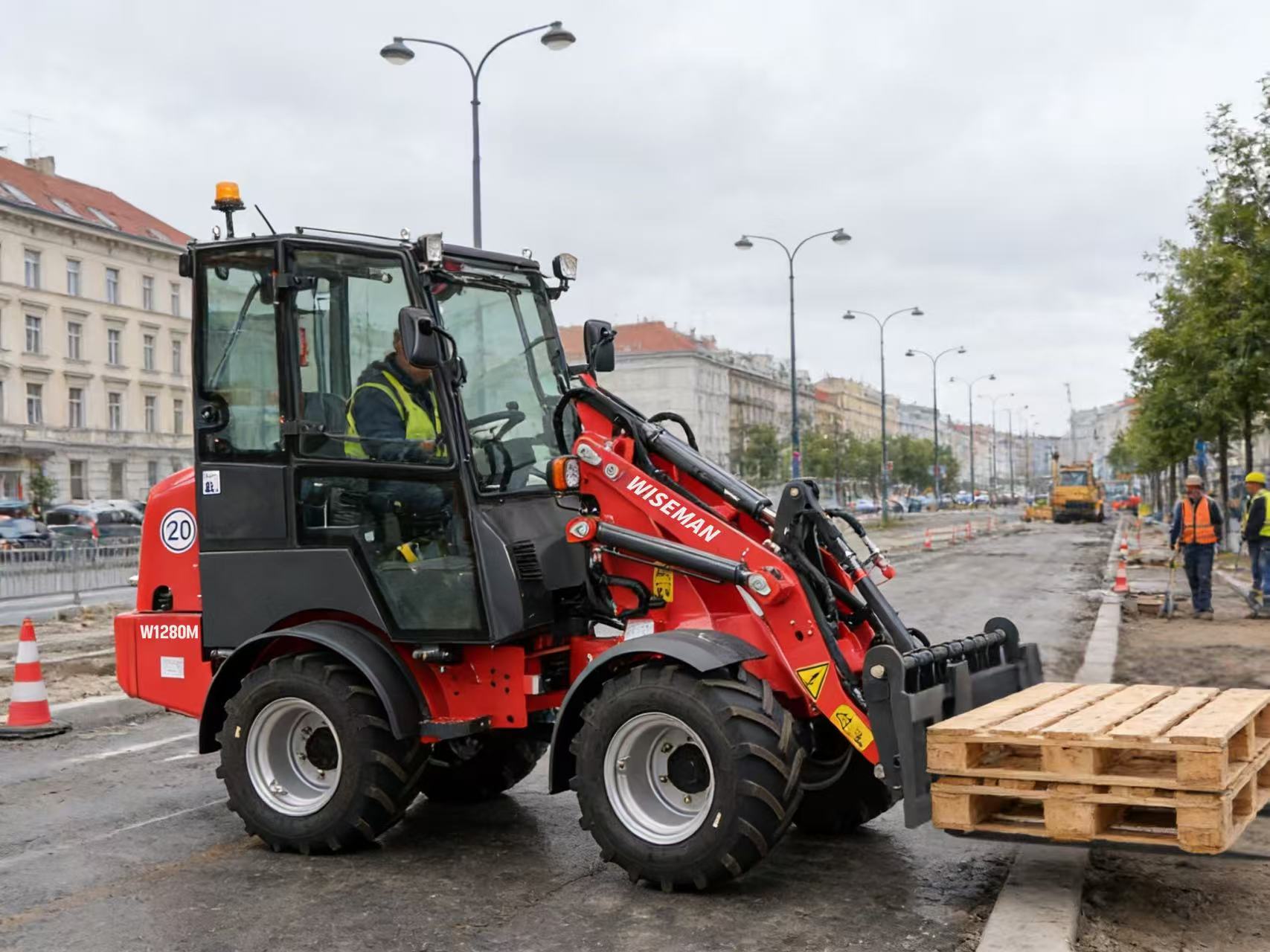

Compact Wheel Loader for Municipal Pallet TransportFork-equipped, agile in urban municipal zones, safely hauls palletized municipal supplies for streamlined on-site material handling. |
|
W1280C Technical Data | |
Engine | |
Brand/Model | Kubota D1703 or D1505 |
Type: | 3 Cylinders or 4 Cylinders, Water Cooling |
Power Output (kw/HP) | 18.4/25 |
Emissios Standard | Euro V/ Tier 4 Final |
Driving System | |
Type of Drive | Hydrostatic |
Drive | Universal Joint Shaft |
Travel Speed ( km/h) | 0-15 |
Electrical System | |
Operating Voltage （V) | 12 |
Battery Capacity (Ah) | 60 |
Alternator Rating (Ah) | 40 |
Hydraulic System | |
Max.Drive Hydraulics Work Pressure (bar) | 320 |
Max. Drive Hydraulics Discharge Volume (l/min) | 72 |
Max. Work Hydraulics Work Pressure | 25Mpa |
Max. Work Hydraulics Discharge Volume (l/min) | 32 |
Weight | |
Operating Weight (kg) | 2380-2550 |
Tipping Load with Bucket--Machine Straight, | 1160-1690 |
Tipping Load with Bucket--Machine Pivoted, | 980-1440 |
Tipping Load with Pallet Fork--Machine Straight, | 890-1260 |
Tipping Load with Pallet Fork--Machine Pivoted, | 740-1080 |
Bucket Capacity (m3) | 0.28 |
Brake System | |
Operating Brake | Transmission Drum Brake |
Parking Brake | Operating and Parking Brake in the Drive Train |
Tyre Size (standard) | 31*15.5-15 |
| 1.Engine: KUBOTA D1105 (Euro 5), Optional: Perkins |
| 2.Hydraulic System: German Rexroth pump, Gerotor motor, domestic valves; 1 pump + 2 motors, Inching function |
| 3.Boom Function: Floating function (optional) |
| 4.Control System: Electronic control levers with integrated forward/reverse buttons 5.(High/Low speed optional) |
| 6.Brake Inching Function (optional) |
| 7.Seat Sensor (optional) |
| 8.Lights: Turn signals, LED work lights |
| 9.EU-standard Hydraulic Quick Coupler,Quick change, customization supported |
| 10.Tires: 31.5*15-15.5 |
| 11.Canopy: EPS,detachable, foldable, and closable. |
1. Feed Blade Main Application Scenarios: Designed to optimize feed distribution workflows by pushing homogeneous and heterogeneous feeding mixtures (e.g., silage, concentrate blends) on designated feeding tables in modern livestock production systems. Core Functions: Incorporates a hydraulic actuation system to enable large-angle adjustment of the blade assembly; features bidirectional pivoting (left/right) to facilitate dynamic adjustment of feed-pushing directions. |
| ||
Parameter | Value Range | ||
Width | 1800 mm - 2200 mm | ||
Max. Adjustable Angle | 70° | ||
Weight | 225 kg | ||
| 2. Bale Fork Main Application Scenarios: Designed to optimize bale handling workflows by enabling the transportation and stacking of heterogeneous bale types (round/square hay, straw bales), with full adaptability to pallet fork frame systems. Core Functions: Incorporates a pallet fork frame-compatible mounting structure; configured with two tapered tines to ensure robust bale gripping and stable transit performance. | ||
Parameter | Value Range | ||
Width | 1130 mm | ||
Weight | 65 kg | ||
3. Round Bale Tong Main Application Scenarios: Designed to optimize the handling workflow of film-wrapped round bales, supporting efficient transportation and orderly stacking in large-scale forage production systems. Core Functions: Implements a damage-free gripping mechanism for round bales; maintains the structural and packaging integrity of wrapped bales to avoid forage spoilage and waste. |
| ||
Parameter | Value Range | ||
Width | 1400mm | ||
Weight | 158 kg | ||
| 4. Fence Mower Main Application Scenarios: Designed to optimize fence maintenance workflows by providing thorough trimming of weeds and shrubs adjacent to fence posts, with broad applicability in agricultural farms, pastoral lands, and municipal green belt management systems. Core Functions: Achieves a uniformly trimmed section surrounding fence posts; eliminates the reliance on manual trimming operations; integrates cab-based hydraulic actuation for seamless transition between transport and working configurations. | ||
Parameter | Value Range | ||
Weight | 220 kg | ||
5. Double-blade Mowing Unit Main Application Scenarios: Designed to optimize hedge maintenance workflows by delivering lateral trimming and multi-position cutting performance, aligning with the precision requirements of modern garden and municipal greening management systems. Core Functions: Implements three distinct operational positions for cutting or mowing operations; supports lateral trimming of hedgerows to ensure consistent shaping and landscape uniformity. |
| ||
Parameter | Value Range | ||
Width | 1500 mm | ||
Weight | 200 kg | ||
