Best Small Articulating Loader

Streamlined compact design

Low-mounted center of gravity

Minimal turning radius

High-powered performance

Contact Now E-Mail Telephone WhatsApp

Overview
Technical data
Configurations
Attachments

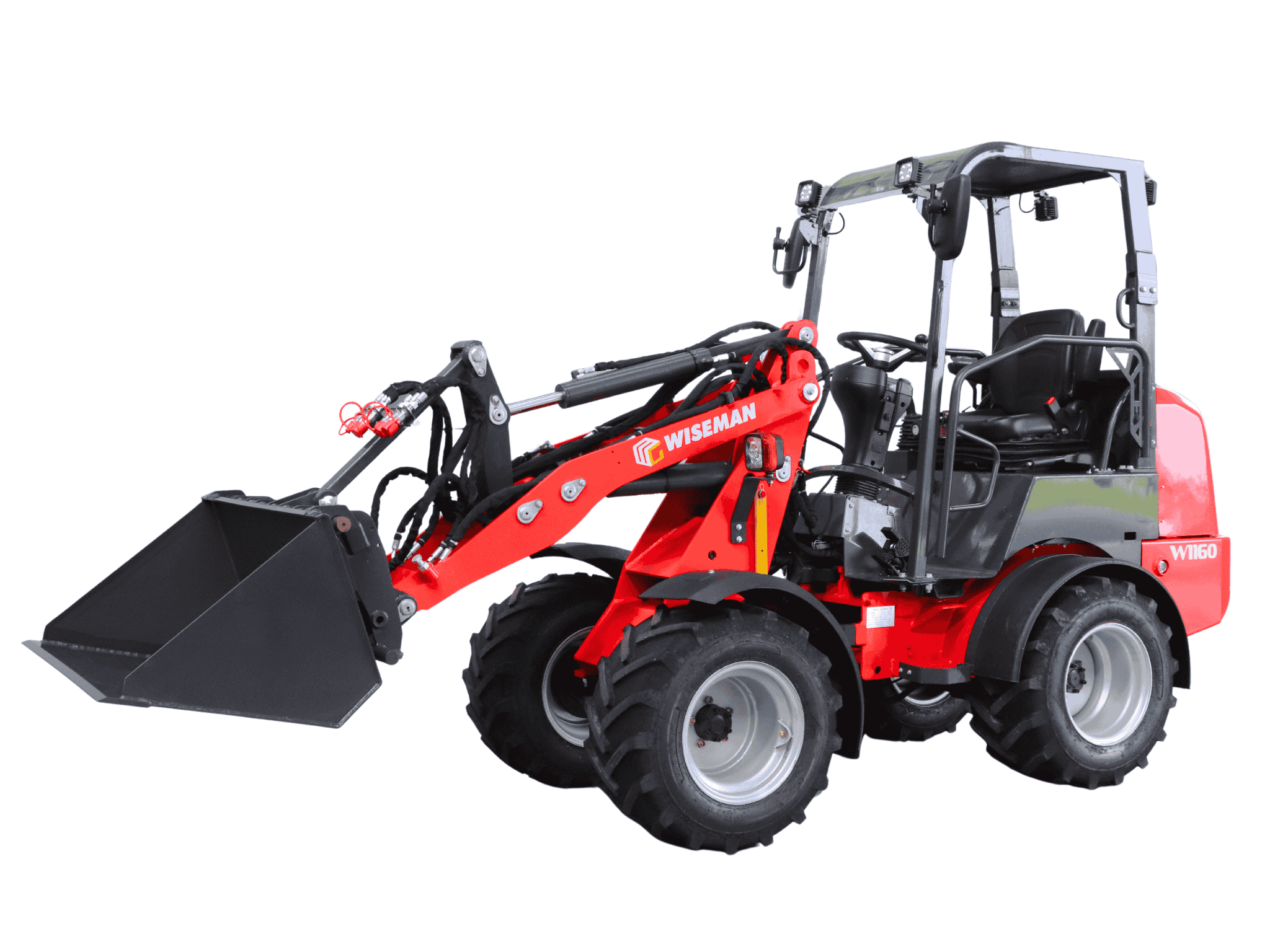

W1160 Compact Loader: Flexible Tool for Agricultural Cleaning

Our Compact Loader for Olive Groves equipped with Transport Bucket Attachment is suitable for medium-sized olive groves in Southern Europe. It efficiently transports picked olives, fertilizers and other materials, with a large load capacity that improves transportation efficiency. The bucket's smooth inner wall prevents olive damage and material adhesion, and the loader's easy-to-operate control system reduces operational difficulty. This reliable combination ensures smooth logistics in olive grove management.

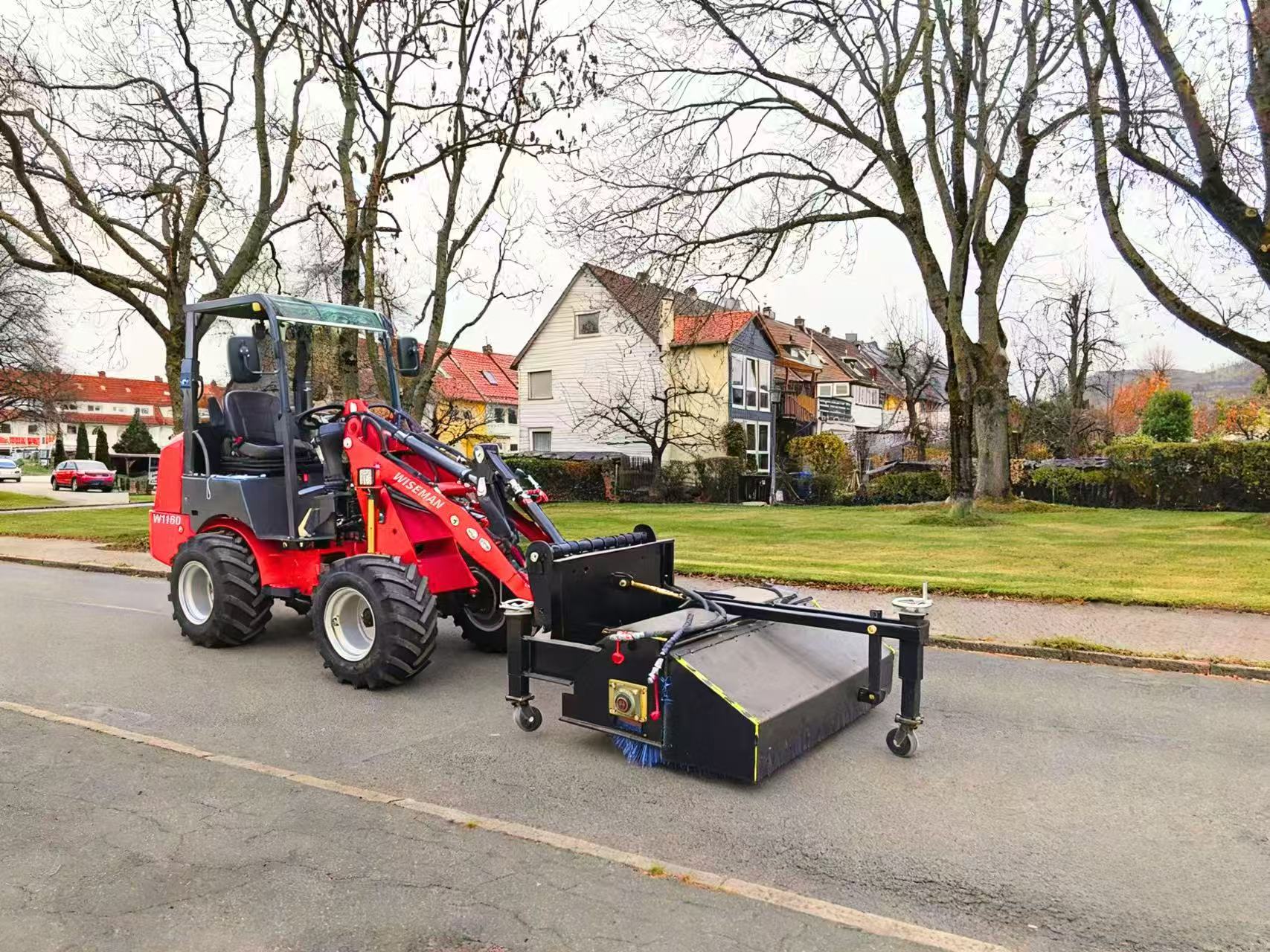

Small Articulating Loader

Product Specifications

Engine Rated Power (kw/HP)：18.4kW/2800rpm

Operating Weight (kg):1850 kg

Tipping Load with Bucket--Machine Straight (kg):850 kg

Bucket Pivot Point :520

Learn More

Applications

1、Pushing in feed Pushing feed constitutes a daily routine on dairy farms. Compact loaders, when equipped with appropriate attachments, are well-suited for this operation. Typical attachments for the task include a mechanically or hydraulically adjustable feed blade, a rotating pusher blade, and a feed clearer.
2、Mucking out the barn Barn manure removal is a routine task, and compact loaders emerge as indispensable aids for this operation. A primary advantage of these loaders is their robust pushing power, and the appropriate attachments for this specific job include a crocodile grab, a grab bucket, and a dung fork.
3、Cleaning Compact loaders can be equipped with a variety of sweepers, high-pressure washers, and brushes to address various types of grime. Weeds, on the other hand, can be removed via mechanical means using a weed broom. This, in turn, allows you to keep your property and production system in a consistently clean condition at all times.
4、Handling bales Managing round, square, or silo bales is a routine daily chore on agricultural farms. Due to the broad diversity of bale types in use, compact loaders are equipped with an array of bale handlers and bale tongs, guaranteeing that the appropriate tool is always available for the task at hand.
5、Shifting slats Certain loader models notably the 1140 and 1160 variants are exceptionally well suited for maneuvering across slatted barn floors and pushing material off these surfaces, all thanks to their lightweight construction and compact physical dimensions. Compact loaders also offer a rubber pusher blade as a purpose matched attachment for this specific task.
6、Compiling piles Within a sawmill, managing incoming tree trunks that are stockpiled by length in the storage zone is a routine daily chore. Any work machine fit for this task must possess unwavering stability, substantial payload capacity, and a sufficiently long telescopic arm reach.
7、Loading works Sawmills frequently have restricted storage capacity for finished goods, which means delivery trucks generally must be loaded from a single side only. Wiseman telescopic loaders simplify this operation considerably, as their telescopic arms are capable of reaching the rear row of the loading zone.
8、Winter service Depending on their specific model, compact loaders can be equipped with a variety of snow blades and rear spreaders. This provides invaluable support for winter maintenance operations, enabling effective clearance of snow and ice from worksites, access roads, and service roads.

Technical Data for W1160 Compact Loader
Engine
Brand/Model	Perkins 403J-11 or Kubota D1105
Type:	3 Cylinders, Water Cooling
Power Output	18.4kW/2800rpm
Displacement	1.13 L
Emissios Standard：	Euro Stage V
Drive System
Type of Drive	Hydrostatic
Gear Shift	Electric, Continuously Variable Transmissioin (CVT)
Travel Speed	0-20 km/h
Electrical System
Operating Voltage	12 V
Battery Capacity	60 Ah
Alternator Rating	40 A
Hydraulic System
Max.Drive Hydraulics Work Pressure	300 bar
Max. Drive Hydraulics Discharge Volume	84 l/min
Max. Work Hydraulics Work Pressure	180 bar
Max. Work Hydraulics Discharge Volume	32 l/min
Boom Lifting Time	3.1 s
Automatic Levelling Function	yes
Weight
Operating Weight	1850 kg
Tipping Load with Bucket--Machine Straight:	850 kg
Tipping Load with Bucket--Machine Pivoted:	550 kg
Bucket Capacity	0.28 m3
Max.Lifting Force	1100 kg
Refilling Capacity
Fuel Tank (L)	26 L
Hydulic Oil Tank (L)	40 L
Engine Oil (L)	4 L
Coolant (L)	12 L
Brake System
Operating Brake	Transmission Drum Brake
Parking Brake	Operating and Parking Brake in the Drive Train
Tyre Size	31x15.5-15
Machine Dimension (mm)
Overall Length with Bucket	3895
Overall Length without Bucket	3065
Bucket Pivot Point to the Centre of Axle	520
Wheel Base	1522
Rear Overhang	950
Height to the Roof of Canopy	2210
Seat Height	1200
Working Range (mm)
Overall Working Height	3180
Max. Lifting Height	2740
Load-Over Height	2385
Dumping Height	1900
Digging Depth	120
Overall Width	1300
Wheel Track	910
Ground Clearance	221
Max. Turning Radius	2435
Outter Turning Radius	2220
Inner Turning Radius	880
Articulation Angle	51°
Roll Back Angle at Max. Lifting Height	52°
Dumping Angle	35°

	1.Engine: KUBOTA D1105 (Euro 5), Optional: Perkins
	2.Hydraulic System: German Rexroth pump, Gerotor motor, domestic valves; 1 pump + 2 motors, Inching function
	3.Boom Function: Floating function (optional)
	4.Control System: Electronic control levers with integrated forward/reverse buttons 5.(High/Low speed optional)
	6.Brake Inching Function (optional)
	7.Seat Sensor (optional)
	8.Lights: Turn signals, LED work lights
	9.EU-standard Hydraulic Quick Coupler
	10.Tires: 26×12-12
	11.Canopy: EPS

1. Lightweight Bucket Square Primary Application Scenarios Scooping and hauling of lightweight materials including sawdust, hay, and plastic pellets. Core Capabilities The bucket’s top edge maintains parallel alignment with its base for simplified operation; material handling capacity is enhanced via an extended bucket floor and raised side walls; fitted with a low-abrasion scraper edge for prolonged service life.
Parameter	Value Range
Width	870mm-1050mm
Capacity	0.28M3-0.54M3
Weight	110kg-150kg
		2.Lightweight Bucket Round Primary Application Scenarios Scooping and hauling of high-volume lightweight materials (e.g., silage, straw, wood chips), ideal for applications where minimizing material leakage is a key requirement. Core Capabilities Purpose-built for lightweight material handling with a reinforced structural design; The bucket’s top edge maintains parallel alignment with its base for simplified operational control; Material capacity is enhanced via an extended bucket floor and reinforced curved side walls, paired with overflow protection to reduce material spillage; The low-wear scraper edge is replaceable when worn to sustain long-term performance.
		Parameter	Value Range
		Width	870mm-1050mm
		Capacity	0.28M3-0.54M3
		Weight	110kg-150kg
3. Earth Bucket Primary Application Scenarios Gripping and conveying of bulk loose materials including silage, manure, wood chips, and green waste. Core Capabilities Delivers high gripping force via dual hydraulic cylinders for secure material holding; Side components of the bucket are detachable for flexible configuration; Fitted with a low-abrasion scraper edge for extended service longevity.
Parameter	Value Range
Width	920mm-1150mm
Capacity	0.20M3-0.32M3
Weight	135kg--175kg
		4. Grab Bucket With Removable Side Parts Primary Application Scenarios Gripping and conveying of bulk loose materials such as silage, manure, wood chips, and green waste across agricultural, landscaping, and waste management sites. Core Capabilities Delivers robust gripping force via dual hydraulic cylinders to ensure secure retention of loads during transit; Modular side components of the bucket are detachable for customized load-handling configurations; Integrated with a low-abrasion scraper edge to prolong the attachment’s service life and reduce maintenance frequency.
		Parameter	Value Range
		Width	1150mm-1550mm
		Capacity	0.23M3-0.36M3
		Weight	280kg--320kg
5. Multi-purpose Bucket Primary Application Scenarios Versatile worksite operations including site clearance and material transfer, supporting shoveling, loading, and grabbing tasks (e.g., handling large stones, undergrowth). Core Capabilities Engineered for multi-scenario use covering shoveling, loading, and grabbing functions; Features an openable structure for emptying to boost dumping height; Equipped with a low-abrasion scraper edge for extended service life; Comes with integrated teeth for enhanced material penetration and grip.
Parameter	Value Range
Width	1150mm-1550mm
Capacity	0.23M3-0.36M3
Weight	280kg--320kg
		6. Stone Bucket Primary Application Scenarios Ideal for collecting large stones in fields, construction sites, gardens, and similar locations, with particular suitability for scenarios that require separating stones from loose fine materials (e.g., soil, sand). Core Capabilities Efficient Stone Retrieval: Precisely grips large stones to fulfill on-site stone clearance requirements; Screening & Separation: Integrated with a sieving function, loose fine materials fall directly back to the ground, enabling automatic separation of stones and fine substances; Unobstructed Observation: Allows operators to easily monitor loaded stones, enhancing operational precision.
		Parameter	Value Range
		Width	1090mm
		Capacity	0.22M3
		Weight	112kg
7. Fork and Grab Primary Application Scenarios Cleaning of open pen enclosures, transportation of round or square bales, and handling of loose materials including green clippings and green waste. Core Capabilities Features a fork-shaped top structure paired with a single hydraulic cylinder; equipped with 5 total tines (each 600mm in length) for secure material grabbing and conveyance.
Parameter	Value Range
Width	860mm-930mm
Length of Tines	600mm-800mm
Weight	155kg--185kg
		8. Pallet Fork Primary Application Scenarios Transportation of diverse palletized goods (e.g., boxed and bagged items) across warehouses, distribution centers, and worksites. Core Capabilities Provides unobstructed visibility of loaded materials for safe operation; Comes with 2 integrated hooks for additional load-securing options; Features adjustable tine width to accommodate different pallet sizes.
		Parameter	Value Range
		Length	1000mm
		Max.Load Capacity	2000kg
		Weight	160 kg - 210 kg
9. Fold-down Pallet Fork Primary Application Scenarios Road transit (foldable tines minimize spatial footprint) and transportation of a wide range of palletized goods across logistics and worksite environments. Core Capabilities Features foldable tines for space-efficient road travel; Ensures unobstructed visibility of loaded materials for safe operation; Equipped with 2 integrated hooks for auxiliary load securing; Offers adjustable tine width to accommodate diverse pallet dimensions.
Parameter	Value Range
Length	1000 mm
Max.Load Capacity	2000 kg
Weight	190 kg
		10. Load Hooks Primary Application Scenarios Safe hoisting and accurate positioning of heavy-duty loads (e.g., metal components, equipment fittings) across industrial workshops and construction sites. Core Capabilities Facilitates the secure lifting of heavy loads to mitigate operational risks; Features a swivel hook with a fastener that can rotate under load, supporting precise load positioning; Equipped with 3 distinct lifting points for flexible load attachment.
		Parameter	Value Range
		Working Length	1000 mm
		Load Capacity	1.10 t
11. Feed Blade Primary Application Scenarios Pushing feed mixtures (e.g., silage, concentrate blends) across feeding tables within livestock farm facilities. Core Capabilities Hydraulically powered to enable wide-angle adjustment of the push plate for flexible feeding operations; Supports left and right pivoting to modify the direction of feed pushing, aligning with different feeding table layouts.
Parameter	Value Range
Width	1800 mm - 2200 mm
Max. Adjustable Angle	70°
Weight	225 kg
		12. Bale Fork Primary Application Scenarios Transportation and stacking of round or square bales (including hay bales and straw bales), with full compatibility for mounting on pallet fork frames. Core Capabilities Can be mounted onto pallet fork frames for seamless integration with existing equipment; Equipped with 2 tapered tines to enable secure grabbing and stable transportation of bales.
		Parameter	Value Range
		Width	1130 mm
		Weight	65 kg
13. Round Bale Tong Primary Application Scenarios Transportation and stacking of film-wrapped round bales across agricultural storage and feeding operations. Core Capabilities Enables bale grabbing without causing surface or structural damage; Maintains the overall integrity of wrapped bales throughout handling and storage.
Parameter	Value Range
Width	1400mm
Weight	158 kg
		14. Fence Mower Primary Application Scenarios Comprehensive trimming of weeds and shrubs surrounding fence posts, suitable for fence maintenance work in farmlands, pastures, and municipal green belts. Core Capabilities Delivers a cleanly trimmed area around fence posts for uniform fence-side upkeep; Eliminates the need for manual trimming to reduce labor costs and operational time; Supports hydraulic adjustment from transport to working position directly from the driver’s cab, ensuring operational convenience and safety.
		Parameter	Value Range
		Weight	220 kg
15. Double-blade Mowing Unit Primary Application Scenarios Side trimming of hedges and multi-position cutting operations, tailored for hedge shaping tasks in garden maintenance and municipal greening projects. Core Capabilities Enables cutting or mowing operations in three distinct positions to accommodate varied hedge shapes; Supports dedicated side mowing of hedges for uniform and precise greenery trimming.
Parameter	Value Range
Width	1500 mm
Weight	200 kg
		16. Rubber Blade Primary Application Scenarios Cleaning of slatted flooring in livestock farming facilities (e.g., removal of manure and feed residues); stripping and decontamination of oil-stained asphalt and concrete surfaces (including workshop floors and parking lot pavements). Core Capabilities Removes residual debris and buildup from slatted livestock floors to maintain hygienic breeding environments; Strips oil stains and surface contaminants from hard floors to restore clean, safe working and parking surfaces.
		Parameter	Value Range
		Width	1200 mm - 1500 mm
		Weight	85 kg - 160 kg
17. Sweeper Primary Application Scenarios Cleaning of ground debris (e.g., dust, scraps, fallen leaves) in warehouses, farm passageways, and construction sites; can be deployed rapidly during loading and unloading intervals for on-demand cleaning. Core Capabilities Delivers superior cleaning results to maintain tidy operational environments; Supports connection via a standard pallet fork or optional bucket for flexible equipment integration; Features user-friendly tool attachment for quick switching between configurations to match varied tasks.
Parameter	Value Range
Width	1250 mm - 1550 mm
Weight	150 kg-180kg
		18.Sweeping Machine Primary Application Scenarios Ideal for cleaning operations in open spaces including yards, factory roadways, cycle lanes, and parking lots, catering to daily debris removal requirements. Core Functions Scene Adaptability: Engineered specifically for open-area cleaning tasks, capable of efficiently sweeping a wide range of scattered debris; Standard Practical Components: Comes with an integrated debris collection tray to gather all swept-up debris for centralized disposal.
		Parameter	Value Range
		Width	1250 mm - 1550 mm
		Weight	190 kg-220 kg
19. Snow Blade Primary Application Scenarios Snow removal operations on roads, courtyards, and factory premises, tailored for outdoor winter snow-clearing tasks across residential, industrial, and public spaces. Core Capabilities Equipped with a hydraulic swiveling device for flexible snow-clearing maneuvering; Features roller level compensation (with integrated height indicator) and stepless adjustment of wheels/skids to ensure precise, uniform snow removal; Incorporates elastic edge protection to prevent damage to curbs and building perimeters during operation.
Parameter	Value Range
Width	1300 mm - 1550 mm
Road-clearing Width at 30°	1115 mm - 1320 mm
Weight	167 kg - 183 kg
		20. Earth Borer Primary Application Scenarios Ground drilling for fence post installation, tree planting, and sign mounting, tailored for use in agricultural, municipal, and landscaping sectors. Core Capabilities Offers a range of drill bit sizes to accommodate diverse drilling requirements across different operational tasks.
		Parameter	Value Range
		Length	1240 mm
		Drill Diameter	∅152 mm-∅305 mm
		Weight	173 kg - 197 kg
21.Logging Fork Primary Application Scenarios Ideal for clearing scattered branches and short log segments to support on-site tidying; also capable of completing short-distance loading, unloading, and transportation of logs with a diameter ranging from 100mm to 300mm. Core Functions Compatible with compact loaders, it can firmly clamp small and medium-sized logs and branches, effectively preventing material slippage during transit and ensuring stable operational performance.
Parameter	Value Range
Dimension（LXWXH)	1323mmX804mmX828mm
Weight	172 kg
