Best 4WD Wheel Loader

Compact modular structural configuration

Lowered center-of-gravity positioning

Narrow turning envelope radius

High-intensity power delivery capability

Contact Now E-Mail Telephone WhatsApp

Overview
Technical data
Configurations
Attachments

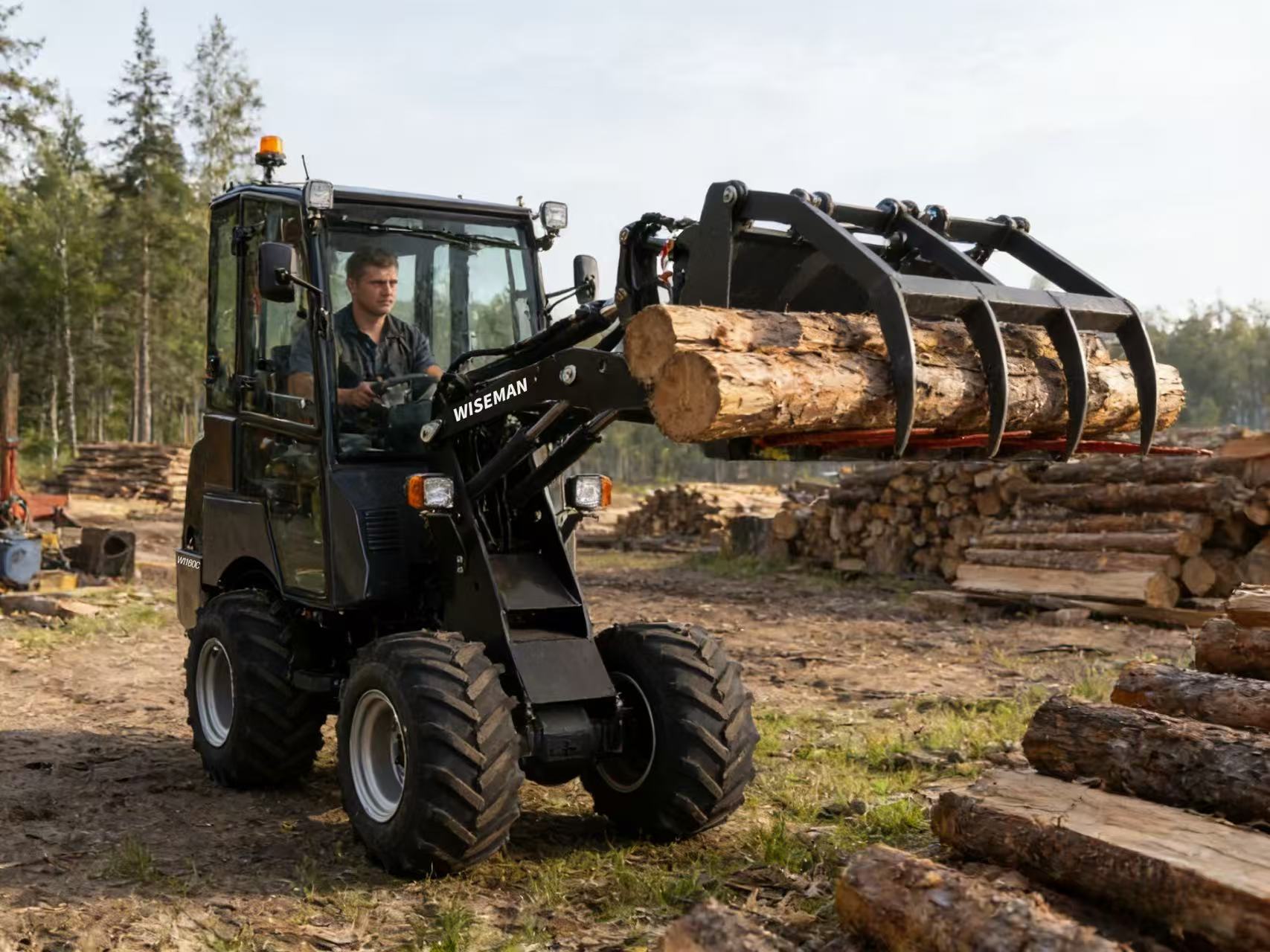

Powerhouse for Forestry & Logging

When it comes to forestry and logging work, the Wiseman compact wheel loader stands as an unrivaled workhorse. Engineered to handle heavy timber with precision, its rugged grapple attachment clamps securely onto logs of all sizes, making lifting and moving bulky timber a seamless task.

Whether you’re stacking logs, clearing timber, or transporting raw lumber, the Wiseman compact wheel loader delivers the strength, control, and reliability to tackle your forestry jobs efficiently—turning tough logging tasks into straightforward work.

4WD Wheel Loader

Product Specs

Engine Rated Power (kw/HP)：18.4kW/2800rpm

Operating Weight (kg):1850 kg

Tipping Load with Bucket--Machine Straight (kg):850 kg

Bucket Pivot Point :520

Learn More

Applications

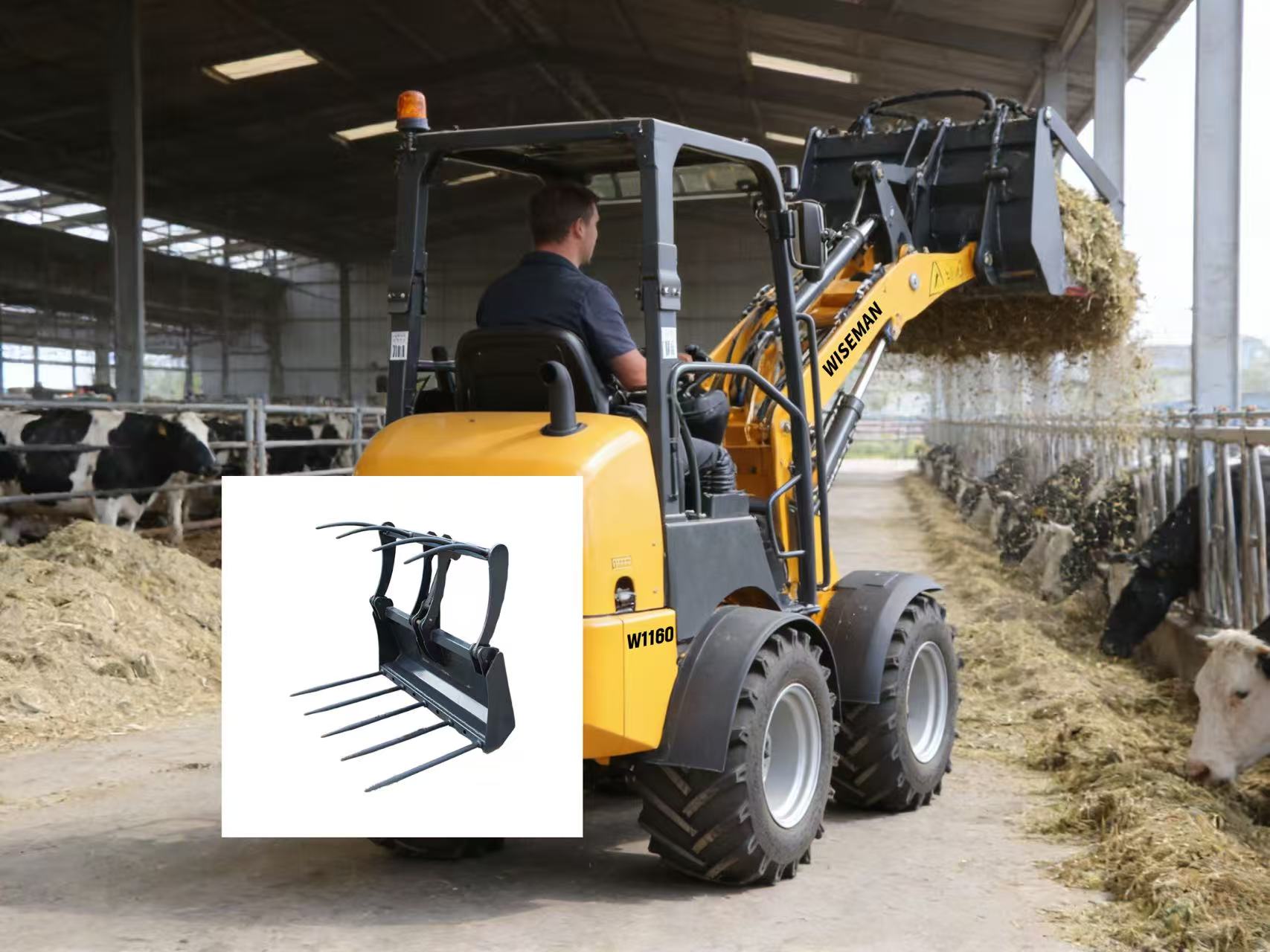

Compact Wheel Loader for Feed Grappling in Ranches

Grapple-equipped, nimble in ranch feed zones, firmly grips all feed types and streamlines daily feeding prep with no feed waste.

4WD Wheel Loader

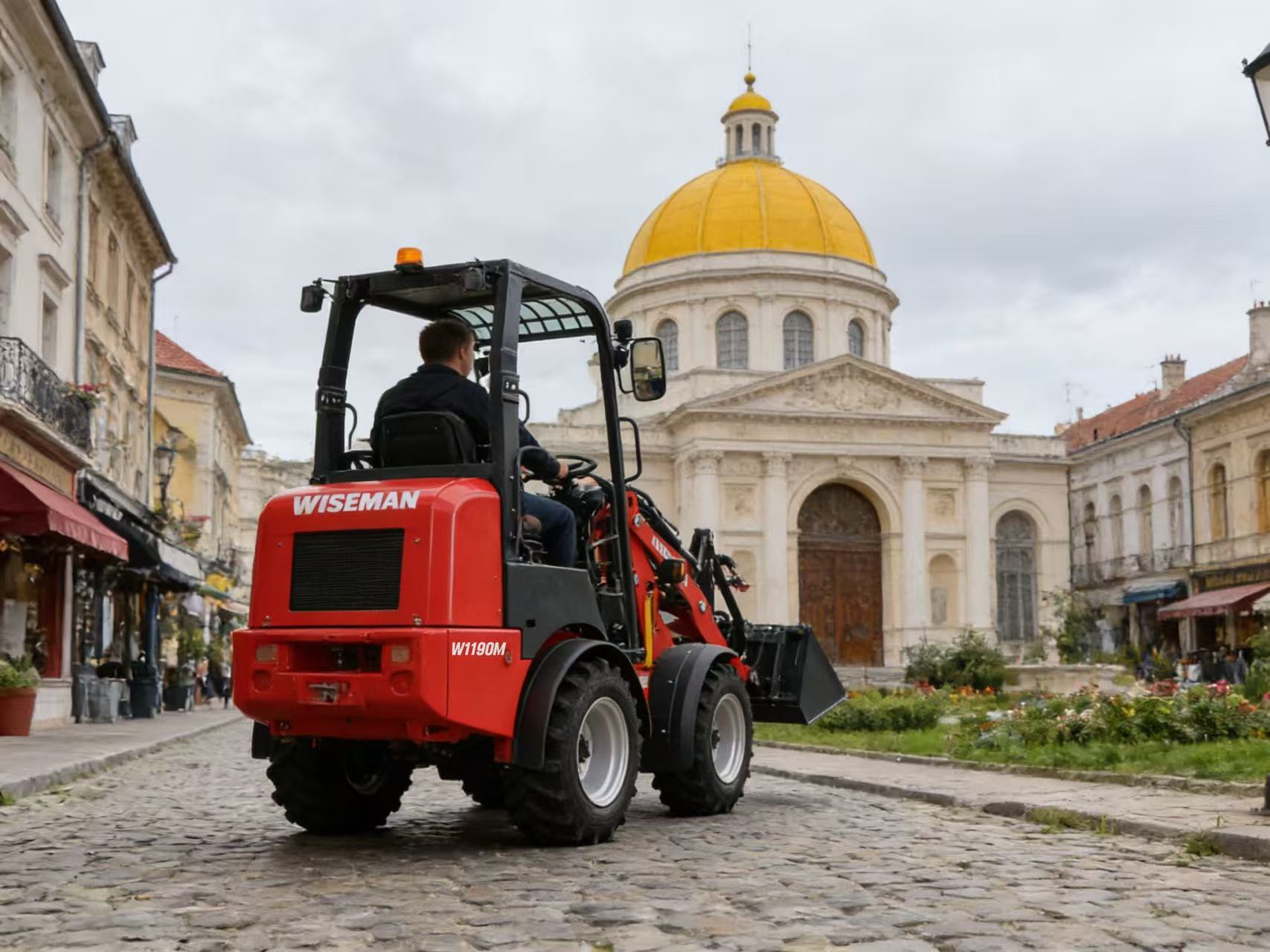

Municipal Construction & Urban Upkeep – Compact Wheel Loader Utility

This compact wheel loader is a reliable workhorse for municipal construction, maneuvering freely in urban construction spots, sidewalks and green belt peripheries. It efficiently transports road repair materials, moves greening soil and clears municipal construction debris, replacing heavy manual labor and significantly improving the efficiency of urban small-scale municipal construction and daily maintenance work.

4WD Wheel Loader

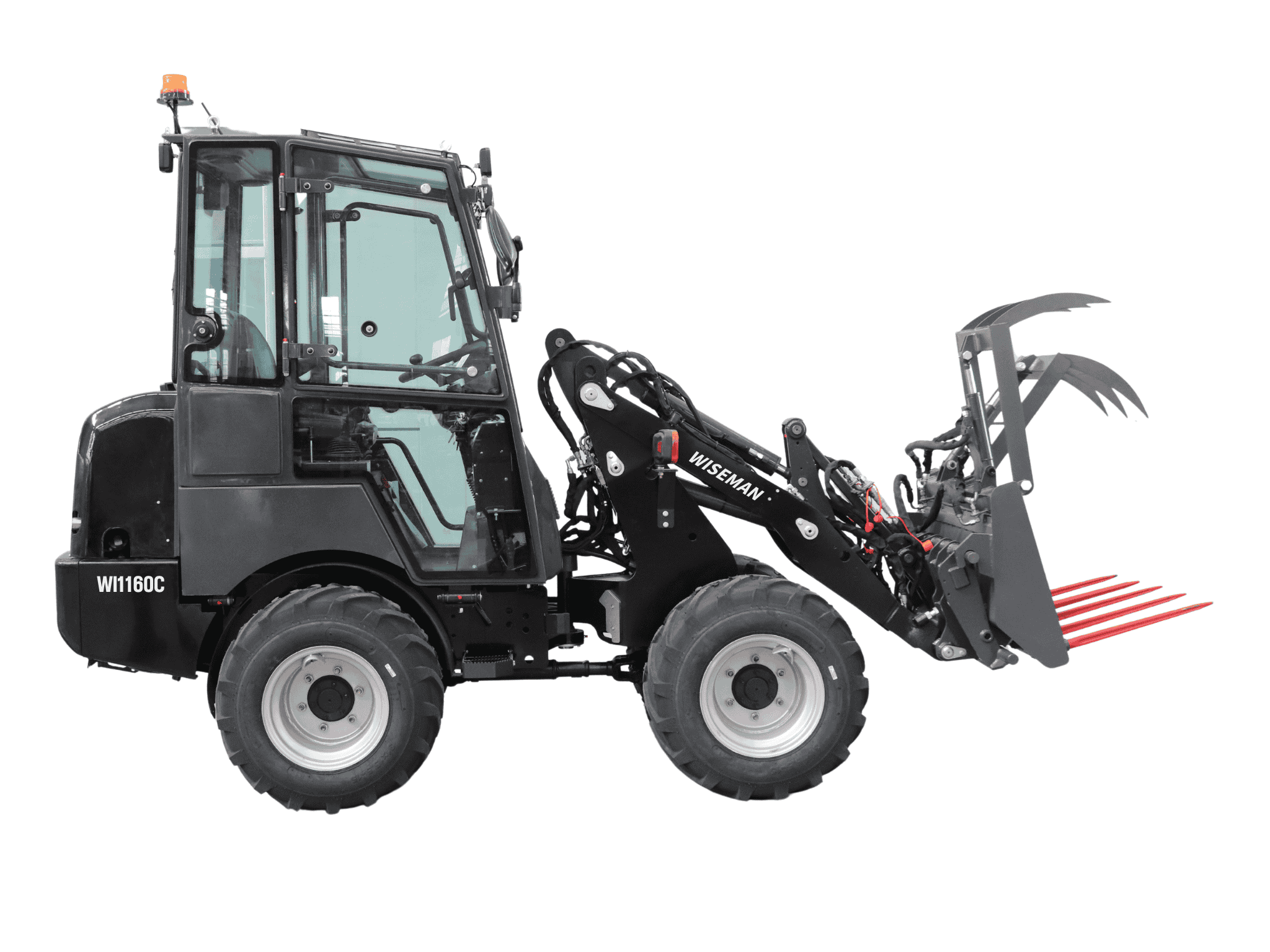

Technical Data for W1160C Compact Loader
Engine
Brand/Model	Perkins 403J-11 or Kubota D1105
Type:	3 Cylinders, Water Cooling
Power Output	18.2kW/3000rpm
Displacement	1.13 L
Emissios Standard：	Euro Stage V
Drive System
Type of Drive	Hydrostatic
Gear Shift	Electric, Continuously Variable Transmissioin (CVT)
Travel Speed	0-13 km/h
Electrical System
Operating Voltage	12 V
Battery Capacity	72 Ah
Alternator Rating	12V-40 A
Hydraulic System
Max.Drive Hydraulics Work Pressure	300 bar
Max. Drive Hydraulics Discharge Volume	84 l/min
Max. Work Hydraulics Work Pressure	180 bar
Max. Work Hydraulics Discharge Volume	33 l/min
Boom Lifting Time	3.1 s
Automatic Levelling Function	yes
Weight
Operating Weight	2030 kg
Tipping Load with Bucket--Machine Straight:	850 kg
Tipping Load with Bucket--Machine Pivoted:	550 kg
Bucket Capacity	0.28 m3
Max.Lifting Force	1100 kg
Refilling Capacity
Fuel Tank (L)	26 L
Hydulic Oil Tank (L)	40 L
Engine Oil (L)	4 L
Coolant (L)	12 L
Brake System
Operating Brake	Transmission Drum Brake
Parking Brake	Operating and Parking Brake in the Drive Train
Tyre Size	31x15.5-15
Machine Dimension (mm)
Overall Length with Bucket	3895
Overall Length without Bucket	3065
Bucket Pivot Point to the Centre of Axle	520
Wheel Base	1522
Rear Overhang	950
Height to the Roof of Canopy	2210
Seat Height	1200
Working Range (mm)
Overall Working Height	3180
Max. Lifting Height	2740
Load-Over Height	2385
Dumping Height	1900
Digging Depth	120
Overall Width	1300
Wheel Track	910
Ground Clearance	221
Max. Turning Radius	2435
Outter Turning Radius	2220
Inner Turning Radius	880
Articulation Angle	51°
Roll Back Angle at Max. Lifting Height	52°
Dumping Angle	35°

	1.Engine: KUBOTA D1105 (Euro 5), Optional: Perkins
	2.Hydraulic System: German Rexroth pump, Gerotor motor, domestic valves; 1 pump + 2 motors, Inching function
	3.Boom Function: Floating function (optional)
	4.Control System: Electronic control levers with integrated forward/reverse buttons 5.(High/Low speed optional)
	6.Brake Inching Function (optional)
	7.Seat Sensor (optional)
	8.Lights: Turn signals, LED work lights
	9.EU-standard Hydraulic Quick Coupler,Quick change, customization supported
	10.Tires: 31.5*15-15.5
	11.Canopy: EPS,detachable, foldable, and closable.

1. Feed Blade Main Application Scenarios: This tool is great for farms—it helps push feed mixtures like silage and concentrate blends across feeding tables so animals can eat conveniently. Core Functions: It’s driven by hydraulics, which lets you adjust the blade at a large angle; you can also pivot it left or right to change the direction of the feed push.
Parameter	Value Range
Width	1800 mm - 2200 mm
Max. Adjustable Angle	70°
Weight	225 kg
		2. Bale Fork Main Application Scenarios: This tool is used to move and stack round or square hay and straw bales on farms, and it can be attached to regular pallet fork frames. Core Functions: Mounts onto a pallet fork frame easily; two tapered tines help you grab bales firmly for safe transportation.
		Parameter	Value Range
		Width	1130 mm
		Weight	65 kg
3. Round Bale Tong Main Application Scenarios: This tool is used to move and stack round bales that are wrapped in plastic film, which is common on farms that store hay or silage. Core Functions: It grabs the bales without hurting them; makes sure the wrapped round bales stay completely intact during transport and stacking.
Parameter	Value Range
Width	1400mm
Weight	158 kg
		4. Fence Mower Main Application Scenarios: This tool is great for trimming weeds and bushes around fence posts in farms, pastures, or city green belts—keeping fences looking neat and well-maintained. Core Functions: Makes the area around fence posts nice and clean after trimming; you don’t have to trim those spots by hand; use hydraulics from the driver’s cab to switch it between moving and working modes.
		Parameter	Value Range
		Weight	220 kg
5. Double-blade Mowing Unit Main Application Scenarios: This tool is used for trimming the sides of hedges and cutting in different positions—it’s great for shaping hedges neatly in gardens and city green spaces. Core Functions: It can cut or mow in three different positions; it also works well for trimming the sides of hedges to make them look tidy.
Parameter	Value Range
Width	1500 mm
Weight	200 kg
