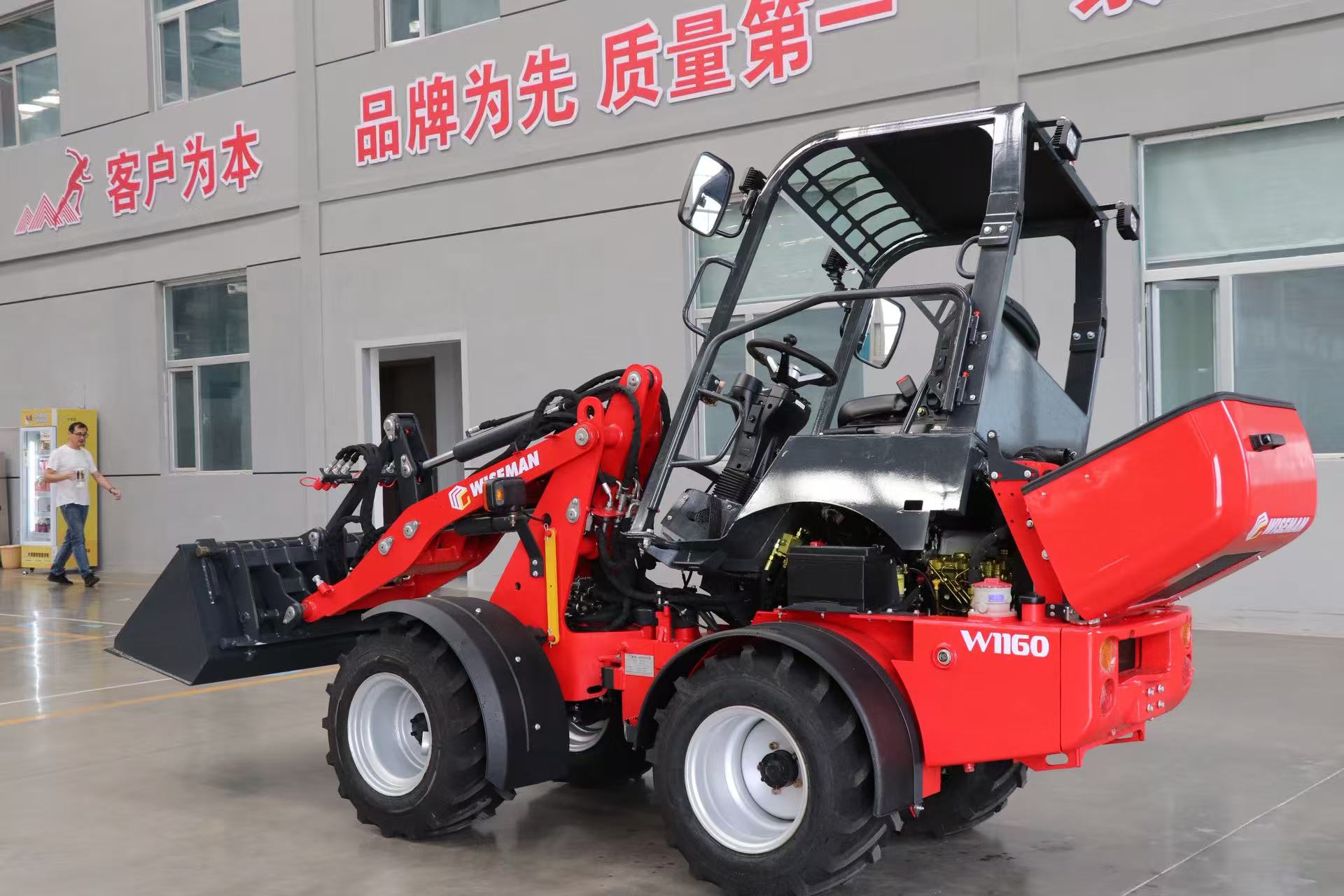

Best Small Loader

Space-saving streamlined build

Ultra-stable low gravity center

Minimal turning circle for tight quarters

Top-tier robust operational power

Contact Now E-Mail Telephone WhatsApp

Overview
Technical data
Configurations
Attachments

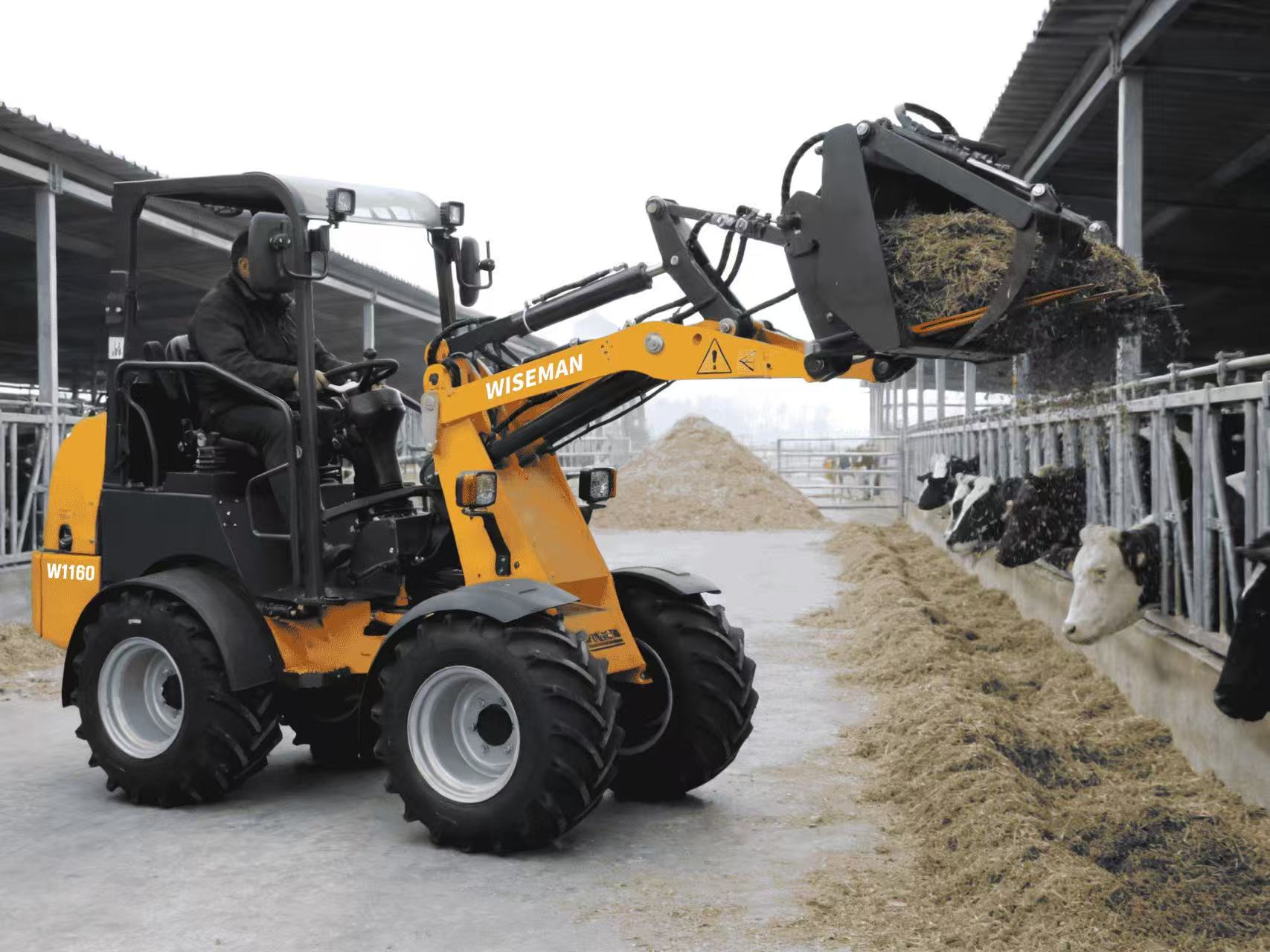

Streamline Livestock Feeding Operations

For dairy farms and livestock operations where efficient feed distribution is critical, theloader is the game-changing solution for daily feeding routines.

Built to withstand the messy, high-use environment of livestock farming, the loader features heavy-duty tires for traction on uneven barn floors and a rugged frame that stands up to daily wear.

Small Loader for Narrow Spaces

Product Specifications

Engine Rated Power (kw/HP)：18.4kW/2800rpm

Operating Weight (kg):1850 kg

Tipping Load with Bucket--Machine Straight (kg):850 kg

Bucket Pivot Point :520

Learn More

Applications

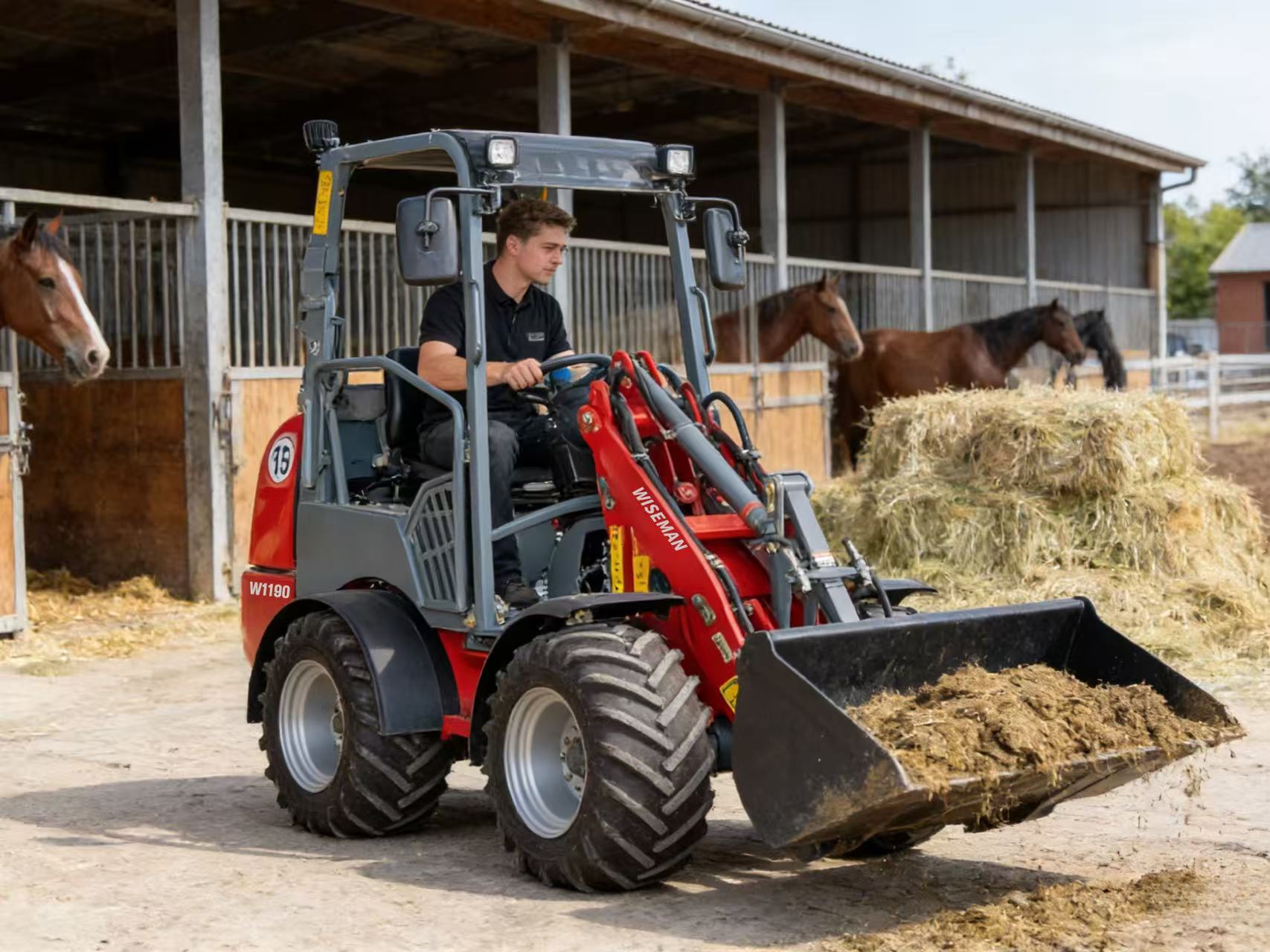

Compact Wheel Loader for Manure Removal in Equestrian Yards

Nimble in stable aisles & horse arenas, manure attachment-equipped, efficient waste haulage with no damage to riding surfaces.

Small Loader for Narrow Spaces

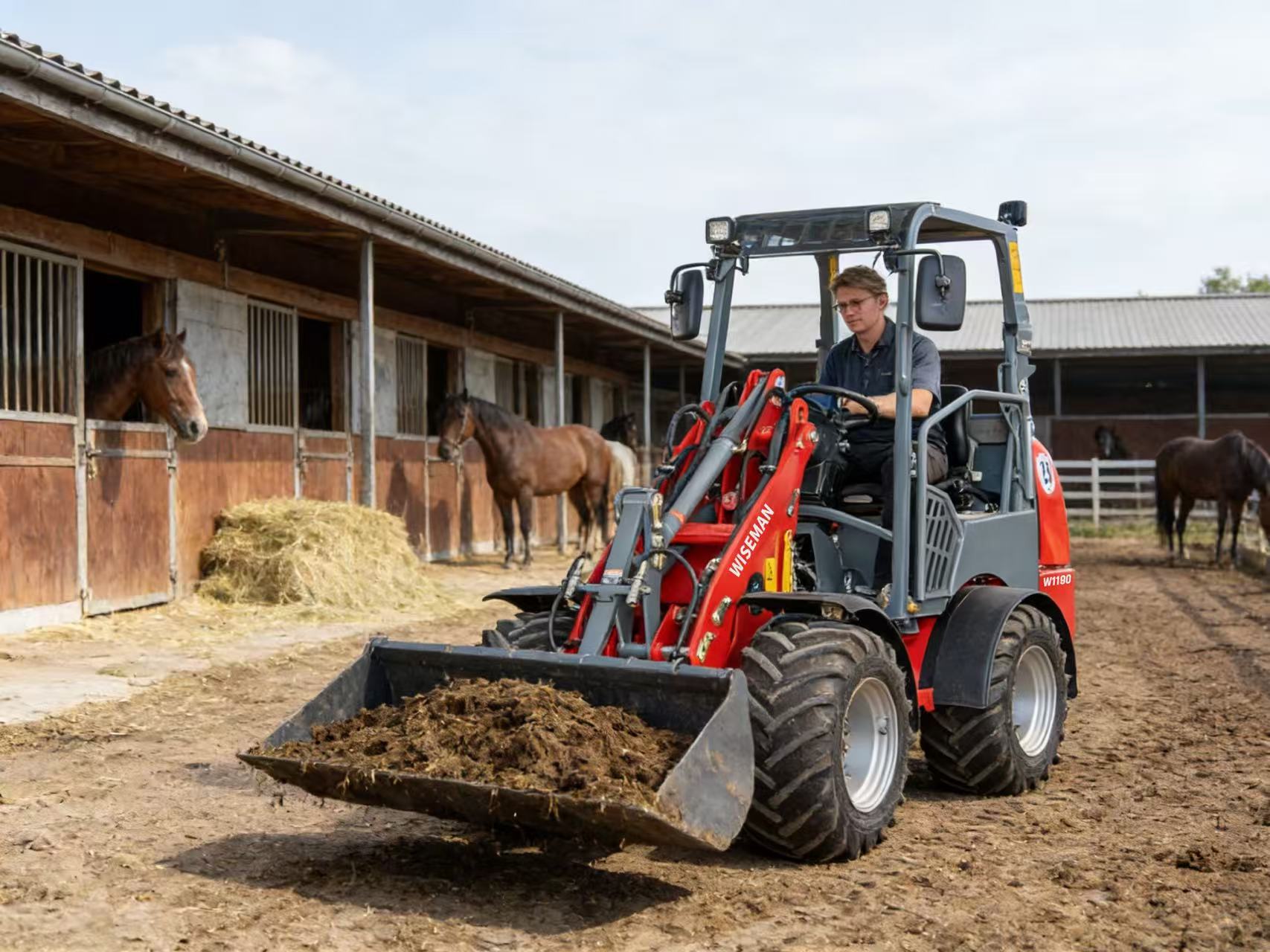

Equestrian Yard Manure Cleaning & Sanitation – Compact Wheel Loader

This compact wheel loader matches a dedicated equestrian manure cleaning attachment, maneuvering flexibly through narrow horse stable aisles, paddocks and sand/rubber riding arenas. It efficiently scrapes, collects and transports horse manure to designated disposal zones, with gentle operation that avoids scratching or rutted equestrian ground surfaces. It eliminates heavy manual manure cleaning, maintains a clean and hygienic equestrian environment, and greatly boosts the daily sanitation efficiency of horse ranches and riding schools.

Small Loader for Narrow Spaces

Technical Data for W1160 Compact Loader
Engine
Brand/Model	Perkins 403J-11 or Kubota D1105
Type:	3 Cylinders, Water Cooling
Power Output	18.4kW/2800rpm
Displacement	1.13 L
Emissios Standard：	Euro Stage V
Drive System
Type of Drive	Hydrostatic
Gear Shift	Electric, Continuously Variable Transmissioin (CVT)
Travel Speed	0-20 km/h
Electrical System
Operating Voltage	12 V
Battery Capacity	60 Ah
Alternator Rating	40 A
Hydraulic System
Max.Drive Hydraulics Work Pressure	300 bar
Max. Drive Hydraulics Discharge Volume	84 l/min
Max. Work Hydraulics Work Pressure	180 bar
Max. Work Hydraulics Discharge Volume	32 l/min
Boom Lifting Time	3.1 s
Automatic Levelling Function	yes
Weight
Operating Weight	1850 kg
Tipping Load with Bucket--Machine Straight:	850 kg
Tipping Load with Bucket--Machine Pivoted:	550 kg
Bucket Capacity	0.28 m3
Max.Lifting Force	1100 kg
Refilling Capacity
Fuel Tank (L)	26 L
Hydulic Oil Tank (L)	40 L
Engine Oil (L)	4 L
Coolant (L)	12 L
Brake System
Operating Brake	Transmission Drum Brake
Parking Brake	Operating and Parking Brake in the Drive Train
Tyre Size	31x15.5-15
Machine Dimension (mm)
Overall Length with Bucket	3895
Overall Length without Bucket	3065
Bucket Pivot Point to the Centre of Axle	520
Wheel Base	1522
Rear Overhang	950
Height to the Roof of Canopy	2210
Seat Height	1200
Working Range (mm)
Overall Working Height	3180
Max. Lifting Height	2740
Load-Over Height	2385
Dumping Height	1900
Digging Depth	120
Overall Width	1300
Wheel Track	910
Ground Clearance	221
Max. Turning Radius	2435
Outter Turning Radius	2220
Inner Turning Radius	880
Articulation Angle	51°
Roll Back Angle at Max. Lifting Height	52°
Dumping Angle	35°

	1.Engine: KUBOTA D1105 (Euro 5), Optional: Perkins
	2.Hydraulic System: German Rexroth pump, Gerotor motor, domestic valves; 1 pump + 2 motors, Inching function
	3.Boom Function: Floating function (optional)
	4.Control System: Electronic control levers with integrated forward/reverse buttons 5.(High/Low speed optional)
	6.Brake Inching Function (optional)
	7.Seat Sensor (optional)
	8.Lights: Turn signals, LED work lights
	9.EU-standard Hydraulic Quick Coupler,Quick change, customization supported
	10.Tires: 31.5*15-15.5
	11.Canopy: EPS,detachable, foldable, and closable.

1. Feed Blade Main Application Scenarios: Need to evenly push silage, concentrate mixtures, or other feed blends across your livestock farm’s feeding tables? This feed blade is built to make daily feeding tasks smooth and efficient. Core Functions: Hydraulic power lets you adjust the blade at a large angle for perfect coverage; pivot left or right to change the pushing direction and target every feeding spot.
Parameter	Value Range
Width	1800 mm - 2200 mm
Max. Adjustable Angle	70°
Weight	225 kg
		2. Bale Fork Main Application Scenarios: Need to haul and stack hay or straw bales (round or square) without extra equipment? This bale fork hooks right up to your existing pallet fork frame for hassle-free farm operations. Core Functions: Mounts easily on any pallet fork frame; two tapered tines dig in to grab bales tight, making transport and stacking a breeze.
		Parameter	Value Range
		Width	1130 mm
		Weight	65 kg
3. Round Bale Tong Main Application Scenarios: Need to haul and stack film-wrapped round bales without tearing the plastic or crushing the forage inside? This round bale tong is your go-to tool for gentle, efficient bale handling. Core Functions: Grabs bales securely without causing any harm; keeps every wrapped round bale intact so your forage stays fresh and protected.
Parameter	Value Range
Width	1400mm
Weight	158 kg
		4. Fence Mower Main Application Scenarios: Tired of manually hacking away weeds and shrubs around fence posts on your farm, pasture, or municipal green belt? This fence mower takes the hassle out of fence maintenance with thorough, consistent trimming. Core Functions: Leaves a spotless trimmed zone around every fence post; cuts out the need for backbreaking manual work; switch from transport to working mode hydraulically—all from the comfort of your cab.
		Parameter	Value Range
		Weight	220 kg
5. Double-blade Mowing Unit Main Application Scenarios: Need to shape hedges perfectly in your garden or municipal green belt? This double-blade mowing unit handles side trimming and multi-position cutting with ease, turning unruly hedges into polished landscapes. Core Functions: Cuts or mows in three different positions for flexible operation; excels at side trimming of hedges to create clean, professional-looking shapes.
Parameter	Value Range
Width	1500 mm
Weight	200 kg
