BG110
Rubber Tyre Excavator
Fast! Maximize Transit Efficiency, Save Money and Time
Strong! Robust Performance for Tough Conditions, Handle Complex Work with Ease
Economical! Eco-Friendly, Durable, and Higher Long-Term Returns
Versatile! Multi-Purpose Adaptation, Cover More Scenarios
- Overview
- Technical data
- Configurations
Product Introduction

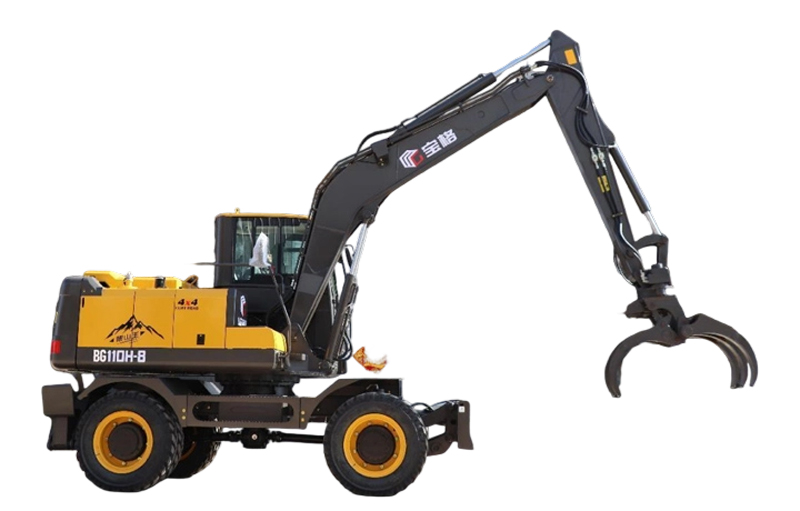

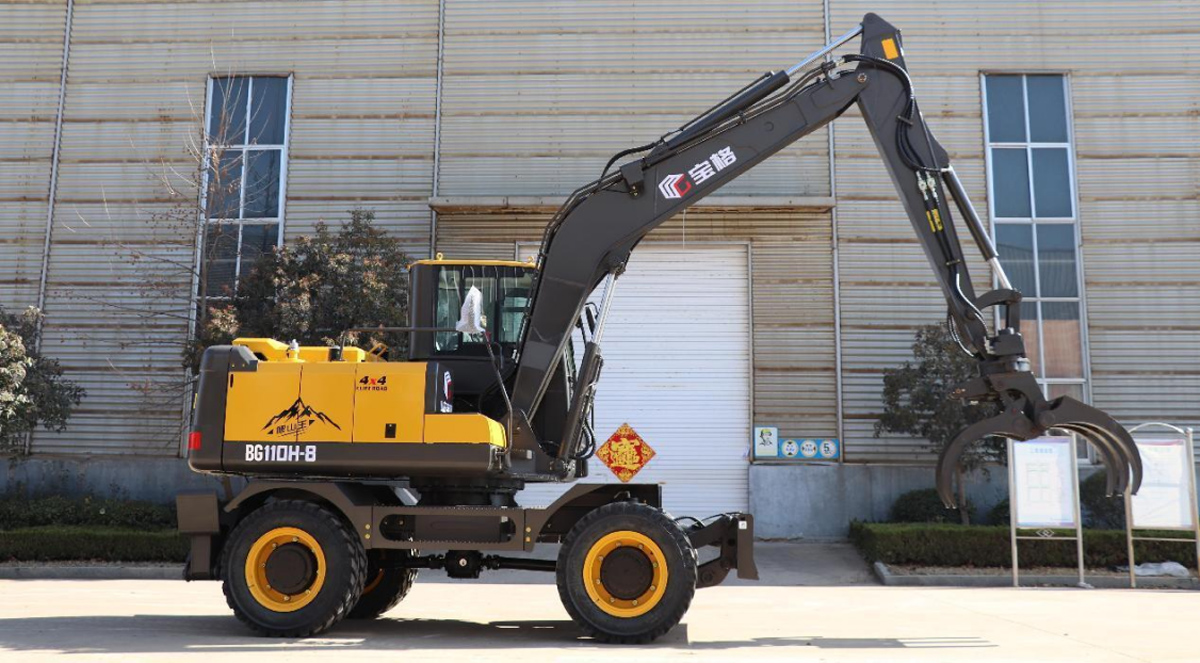

The BG110-8 is a cost-effective wheeled excavator independently developed by Shandong Baoge. By leveraging in-depth insights into market demands and integrating high-quality resources, this model incorporates three core advantages to deliver outstanding performance:
① A Yuchai engine that ensures exceptional fuel efficiency, reducing operational costs for users;
② Load-sensitive electro-hydraulic control technology, which enables precise, smooth operation and enhances work efficiency in complex tasks;
③ A high-strength chassis paired with heavy-duty work equipment, significantly boosting the machine’s durability and load-bearing capacity for long-term heavy-duty operations.
This excavator excels in a wide range of application scenarios, including farmland development, road construction, construction site operations, timber handling, sugarcane loading and unloading, as well as other industrial fields requiring reliable earth-moving or material handling capabilities.
Product Specifications
Engine Rated Power (kw/HP)：62.5 Kw/2200rpm
Operating Weight (kg): 9800 kg
Applications
1、Municipal Engineering: Move Across Multiple Sites, Double Efficiency For tasks like urban road repair, pipeline installation, or landscaping upkeep, switching between several job sites in a single day is often unavoidable. The Bogo Wheeled Excavator eliminates this challenge with its outstanding fast-travel capability. Reaching speeds of up to 35 km/h, it no longer requires a truck for relocation, saving both time and transport expenses. It can easily move from a project in the east of the city to another in the west on its own, handling 3–4 sites per day and cutting transportation costs by up to 50%. |
|
2、Emergency Rescue: Arrive Quickly, Tackle Challenges Powerfully When it comes to clearing roads after heavy rainfall or responding to earthquake emergencies, speed means saving lives. The Bogo Wheeled Excavator can head straight to the disaster site without waiting for transport vehicles, arriving rapidly under its own power. Its 35 km/h travel speed buys precious rescue time, while the massive 13,000 N·m torque delivers exceptional driving force. Even on debris-covered roads or muddy rescue terrain, it can effortlessly tow obstacles, dig passageways, and open vital access routes for rescue teams. |
|
3、Agricultural Production: Protect Farmland, Excel at Farm Work Need to level soil for farmland improvement? Load, unload, and transport crops after harvest? Or dig ditches and repair irrigation facilities? The Bogo Wheeled Excavator’s farmland-friendly design gives farmers peace of mind. Its tire ground pressure is just 30% of that of crawler excavators, meaning it can work in fields without compacting soil or damaging crop roots. Even on freshly planted vegetable beds or well-maintained green lawns, the ground stays protected, ensuring no impact on future cultivation. |
|
4、Rural Infrastructure: Adapt to Terrain, Save Money and Worry When working on rural road construction, water conservancy projects, or landscaping, the biggest worry is often whether the machine can enter the site or operate effectively. The Bogo Wheeled Excavator solves this with exceptional flexibility tailored for rural environments. Its ultra-compact 2.13-meter tail swing radius allows it to maneuver smoothly between narrow village roads and houses, eliminating the need for road widening. The robust ZG35 integral axle housing supports loads up to 30 tons and delivers strong climbing performance, ensuring stable operation on hillside paths and river embankments. Whether strengthening rural roads or building irrigation facilities, it carries out construction tasks with confidence and reliability. |
|
Performance Parameter | |
Operating Weight | 9800 kg |
Bucket Capacity | 0.28-0.33 m3 |
Engine Power | 62.5 Kw/2200rpm |
Travel Speed (Maximum) | 30 km/h |
Rotating Speed | 12 r/min |
Grade Ability | 35° |
Bucket Digging Force | 48 KN |
Machine Dimension | |
Overall Length | 6815 mm |
Overall Width | 2200 mm |
Overall Height | 3170 mm |
Wheel Base | 2390 mm |
Min. Ground Clearance | 310 mm |
Tail Swing Radius | 2130 mm |
Counterweight Ground Clearance | 1160 mm |
Operating Range | |
Max.Digging Height | 8055 mm |
Max.Unloading Height | 5984 mm |
Max.Digging Depth | 2969 mm |
Max.Digging Distance | 7537 mm |
| 1. Employs advanced power matching technology equipped with a tailored power curve, delivering high torque at low speeds while ensuring simultaneous low fuel consumption. 2. Enables optimal matching between the engine and hydraulic pump, maximizing the utilization rate of engine power and boosting operational efficiency. |
| 3. The engine is fitted with stepless electronic throttle control, allowing operation at any optimal speed and thereby realizing seamless integration between working conditions and efficiency. at any ideal speed to achieve perfect integration of working conditions and efficiency. |
| 4. Boasts high load-bearing capacity, with its key specifications—including rated load, main drive module, axle shaft diameter, and overall weight—leading the industry. |
| 5. Features a self-developed hub reduction axle that delivers ton-level load capacity and excellent gradeability, with a design distinct from the conventional half-shaft axles widely adopted in the industry. 6. Comes equipped with a self-developed 10-ton hub reduction axle, paired with caliper disc brakes and a differential lock; this combination ensures outstanding off-road performance. |
| 7. Employs hydraulic components of crawler excavator grade for engineering operations—a design choice that inherently elevates the hydraulic system’s durability and load-bearing capacity, meeting the rigorous demands of heavy-duty work. 8. Leveraging our robust procurement network, we source hydraulic components exclusively from well-established, reputable brands in the construction machinery sector, laying a solid foundation for the hydraulic system’s long-term reliable performance. |
| 9. The hydraulic system is rigorously aligned with crawler excavator standards, facilitating smooth coordinated compound movements of the machine. This alignment not only ensures stable, precise operational control but also significantly boosts overall working efficiency. |
| 10. By contrast with traditional open-loop throttle-controlled hydraulic systems, the load sensing hydraulic system ensures the actuator speed remains fully independent of load—eliminating the issue of speed loss under heavy loads that plagues conventional setups. Not only does this technology deliver significantly enhanced compound motion coordination (enabling smoother, more synchronized multi-action operations like simultaneous boom lifting and bucket digging), but it also shortens work cycle times， boosts digging forces, and ultimately elevates overall operational efficiency. |
| 11. Equipped with four-wheel heavy-duty extra-large disc brakes, this braking solution effectively eliminates two long-standing pain points in the industry: braking delay and unreliable stopping response. It delivers instant, consistent braking force, ensuring safe, predictable stopping even during heavy-load operations (e.g., full-load material transport) or high-frequency braking scenarios—addressing critical safety and efficiency concerns for wheeled excavator users. |
Not only do the diversified attachments unlock the "one-machine-multiple-uses" capability of the wheeled excavator, but they also directly address users’ needs for versatility across scenarios. From standard digging buckets for earthwork, breakers for demolition, and grapples for material handling to rippers for hard soil cultivation, this wide range of attachments eliminates the need to invest in multiple specialized machines—greatly reducing equipment procurement and maintenance costs while boosting overall equipment utilization.
This multi-scenario adaptability allows the excavator to seamlessly switch between tasks (e.g., from site leveling in construction projects to sugarcane loading in agriculture, or from road repair in municipal works to timber handling in forestry), ensuring it delivers consistent value across construction, agriculture, mining, and municipal sectors—all while optimizing operational efficiency.
