W1280
Buy Compact Articulated Loader
Compact and optimized design delivers exceptional space utilization.
Low center of gravity ensures improved stability and safer operation.
Meets Euro V, Tier 4 Final or zero‑emission environmental requirements.
Quick‑change system supports use with a wide variety of attachments.
- Overview
- Technical data
- Configurations

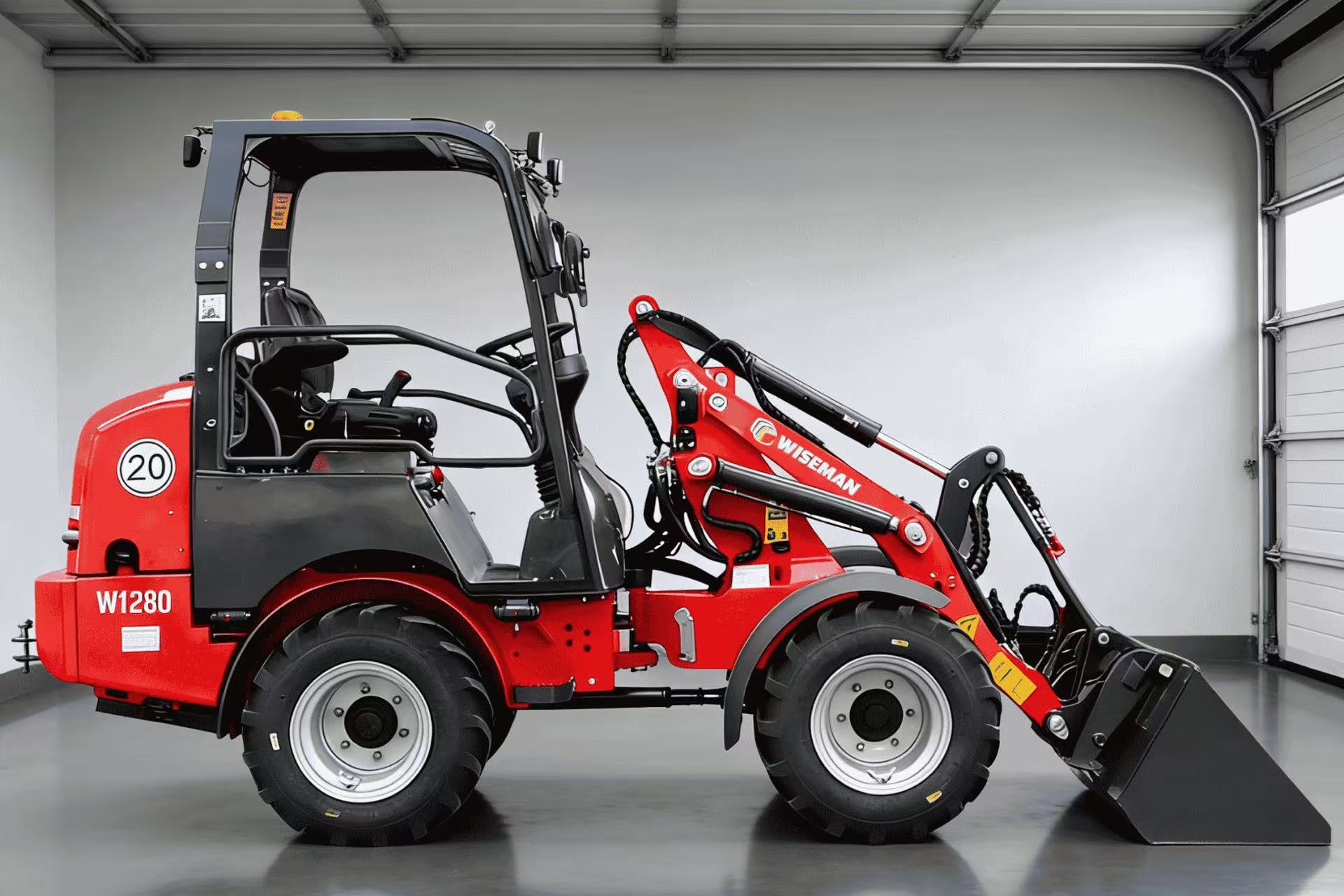

Product Introduction
The W1280 demonstrates exceptional adaptability across a variety of operating scenarios.When equipped with a bucket, it offers a tipping load of 1,160 kg to 1,690 kg, effortlessly managing heavy‑duty material handling tasks.The lengthened boom provides a maximum lifting height of 2,862 mm, significantly enhancing operational reach and productivity.With its high load capacity and impressive lifting height, the W1280 stands as a tough, all‑around loader for varied applications.
Product Specifications
Engine Rated Power (kw/HP)：18.4/25
Operating Weight (kg):2380-2550
Tipping Load with Bucket--Machine Straight (kg):1160-1690
Bucket Pivot Point :980-1440
Applications

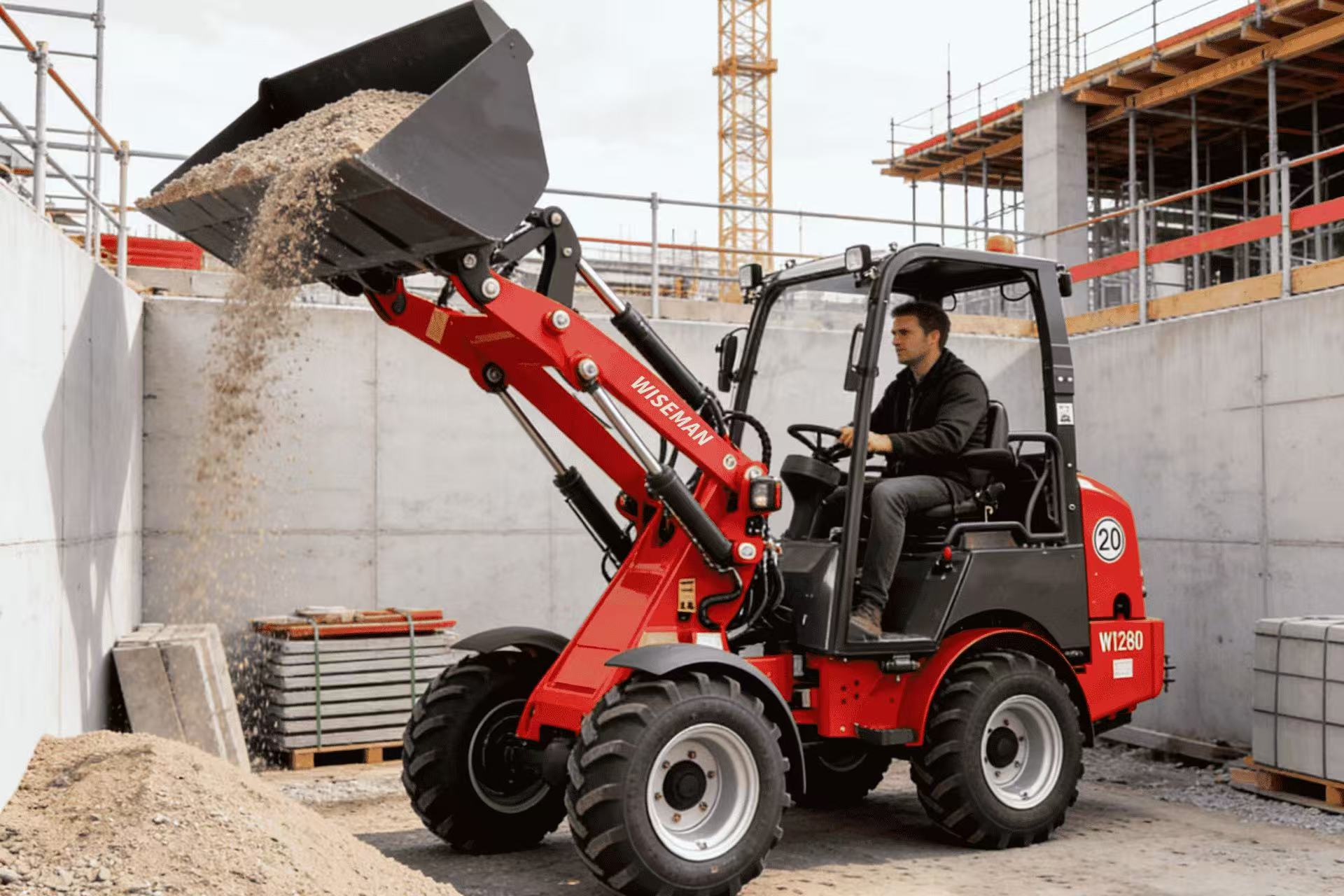

Loaders for Sand and Soil Hauling on European Construction Sites Loaders are indispensable equipment for sand and soil hauling in European construction projects. They efficiently transport bulk sand, soil and gravel from delivery points to construction zones, with excellent stability and load-bearing capacity. Easy to maneuver in crowded construction sites and adaptable to various ground conditions, they minimize manual labor and ensure the smooth supply of construction materials, supporting the efficient progress of European building projects. |
|

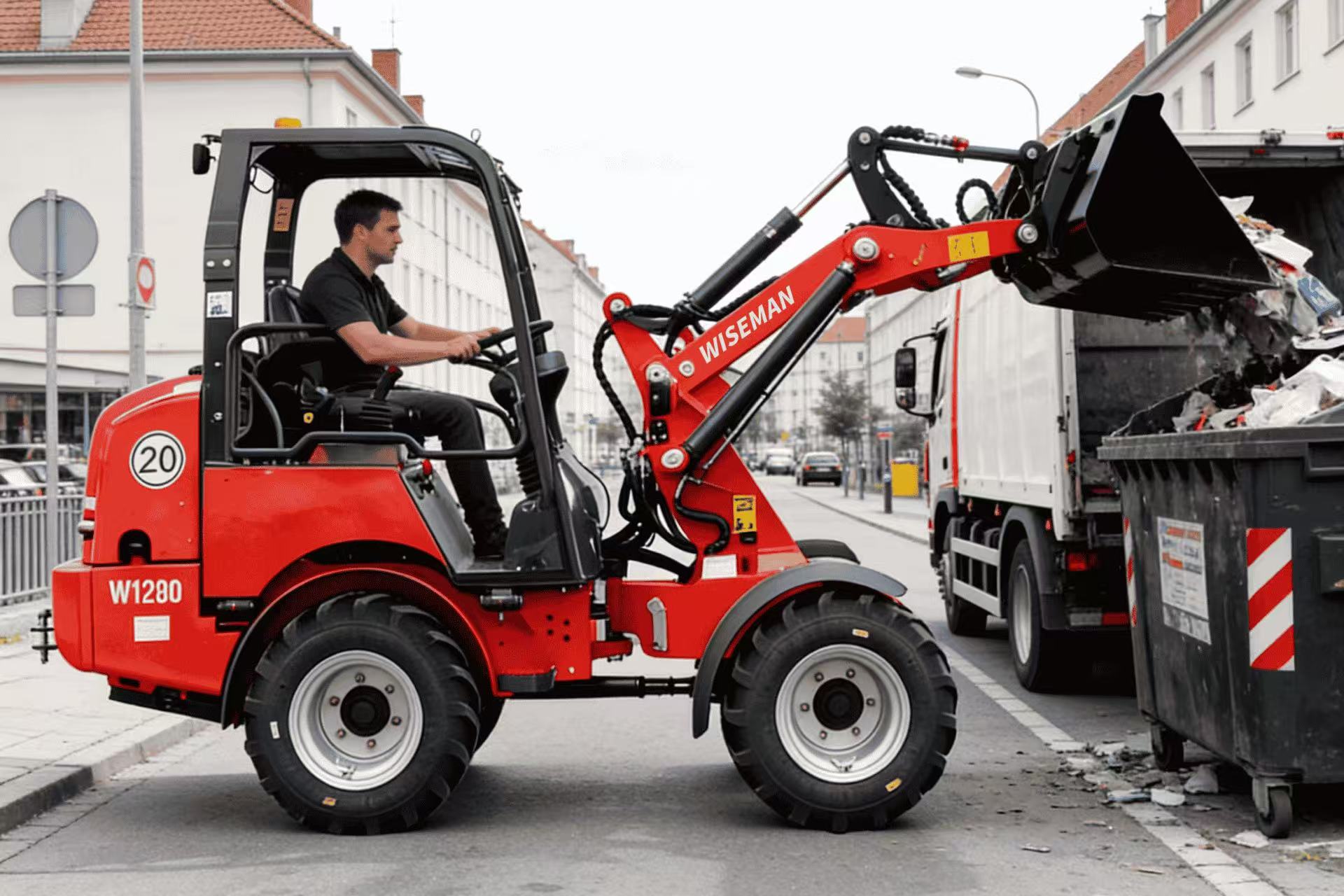

Loaders for Municipal Waste Hauling in European Cities Loaders are practical and reliable tools for municipal waste handling in European urban areas. They are specially designed to transport various municipal wastes, including household garbage, green waste and light construction debris, from collection points to transfer stations or recycling facilities. With compact structure and flexible operation, they can easily navigate narrow urban streets and residential areas without damaging public facilities, effectively reducing manual labor and improving the efficiency of municipal waste management. |
|
W1280 Technical Data | |
Engine | |
Brand/Model | Kubota D1703 or D1505 |
Type: | 3 Cylinders or 4 Cylinders, Water Cooling |
Power Output (kw/HP) | 18.4/25 |
Emissios Standard | Euro V/ Tier 4 Final |
Driving System | |
Type of Drive | Hydrostatic |
Drive | Universal Joint Shaft |
Travel Speed ( km/h) | 0-15 |
Electrical System | |
Operating Voltage （V) | 12 |
Battery Capacity (Ah) | 60 |
Alternator Rating (Ah) | 40 |
Hydraulic System | |
Max.Drive Hydraulics Work Pressure (bar) | 320 |
Max. Drive Hydraulics Discharge Volume (l/min) | 72 |
Max. Work Hydraulics Work Pressure | 25Mpa |
Max. Work Hydraulics Discharge Volume (l/min) | 32 |
Weight | |
Operating Weight (kg) | 2380-2550 |
Tipping Load with Bucket--Machine Straight, | 1160-1690 |
Tipping Load with Bucket--Machine Pivoted, | 980-1440 |
Tipping Load with Pallet Fork--Machine Straight, | 890-1260 |
Tipping Load with Pallet Fork--Machine Pivoted, | 740-1080 |
Bucket Capacity (m3) | 0.28 |
Brake System | |
Operating Brake | Transmission Drum Brake |
Parking Brake | Operating and Parking Brake in the Drive Train |
Tyre Size (standard) | 31*15.5-15 |
| 1.Engine: KUBOTA D1105 (Euro 5), Optional: Perkins |
| 2.Hydraulic System: German Rexroth pump, Gerotor motor, domestic valves; 1 pump + 2 motors, Inching function |
| 3.Boom Function: Floating function (optional) |
| 4.Control System: Electronic control levers with integrated forward/reverse buttons 5.(High/Low speed optional) |
| 6.Brake Inching Function (optional) |
| 7.Seat Sensor (optional) |
| 8.Lights: Turn signals, LED work lights |
| 9.EU-standard Hydraulic Quick Coupler,Quick change, customization supported |
 | 10.Tires: 31.5*15-15.5 |
| 11.Canopy: EPS,detachable, foldable, and closable. |
| 1. Rubber Blade Main Application Scenarios This attachment is engineered to clean slatted floors in livestock housing by removing manure and residual feed, while also tackling oil‑contaminated concrete and asphalt in workshops, parking areas and other industrial locations. Core Functions It efficiently eliminates dirt and build‑up from slatted flooring, and provides deep cleaning for oil stains and other contaminants across various ground surfaces. | ||
Parameter | Value Range | ||
Width | 1200 mm - 1500 mm | ||
Weight | 85 kg - 160 kg | ||
2. Sweeper Main Application Scenarios Ideal for sweeping dust, debris and fallen leaves in warehouses, farm roads and construction sites, and enables high-efficiency operation when coordinated with loading work. Core Functions Delivers powerful cleaning performance; compatible with standard pallet forks and a variety of bucket attachments; boasts easy installation and quick accessory replacement. |
| ||
Parameter | Value Range | ||
Width | 1250 mm - 1550 mm | ||
Weight | 150 kg-180kg | ||
| 3.Sweeping Machine Main Application Scenarios Tailored for the daily cleaning and upkeep of open spaces including yards, factory roads, bicycle paths and parking areas, it efficiently cleans the ground and gathers all types of waste. Core Functions Excellent versatility: Designed specifically for open-area cleaning, it rapidly removes a variety of light waste and debris. User-friendly structure: Equipped with a one-piece collection box, facilitating easy collection and disposal of swept garbage. | ||
Parameter | Value Range | ||
Width | 1250 mm - 1550 mm | ||
Weight | 190 kg-220 kg | ||
4. Snow Blade Main Application Scenarios This snow plow is designed for snow removal on roads, courtyards and industrial areas, making it highly suitable for all types of winter outdoor snow-clearing tasks. Core Functions Hydraulic rotation enables flexible angle adjustment. It is equipped with roller leveling compensation and height display, along with steplessly adjustable support wheels or skids, ensuring precise operation. The elastic protective blade effectively prevents damage to curbs and nearby structures. |
| ||
Parameter | Value Range | ||
Width | 1300 mm - 1550 mm | ||
Road-clearing Width at 30° | 1115 mm - 1320 mm | ||
Weight | 167 kg - 183 kg | ||
| 5. Earth Borer Main Application Scenarios Ideal for ground drilling tasks such as fence post fitting, tree planting and sign installation, it is extensively utilized in agricultural, municipal and landscaping projects. Core Functions Offers a full range of auger sizes to cater to various drilling requirements. | ||
Parameter | Value Range | ||
Length | 1240 mm | ||
Drill Diameter | ∅152 mm-∅305 mm | ||
Weight | 173 kg - 197 kg | ||
6.Logging Fork Main Application Scenarios Designed for gathering branches and small logs to keep job sites clean, while handling short‑distance transport of logs with a diameter of 100–300 mm. Core Functions Matches perfectly with compact loaders, securely grips branches and medium‑small logs, prevents material falling during transit, and ensures steady and dependable performance. |
| ||
Parameter | Value Range | ||
Dimension（LXWXH) | 1323mmX804mmX828mm | ||
Weight | 172 kg | ||
