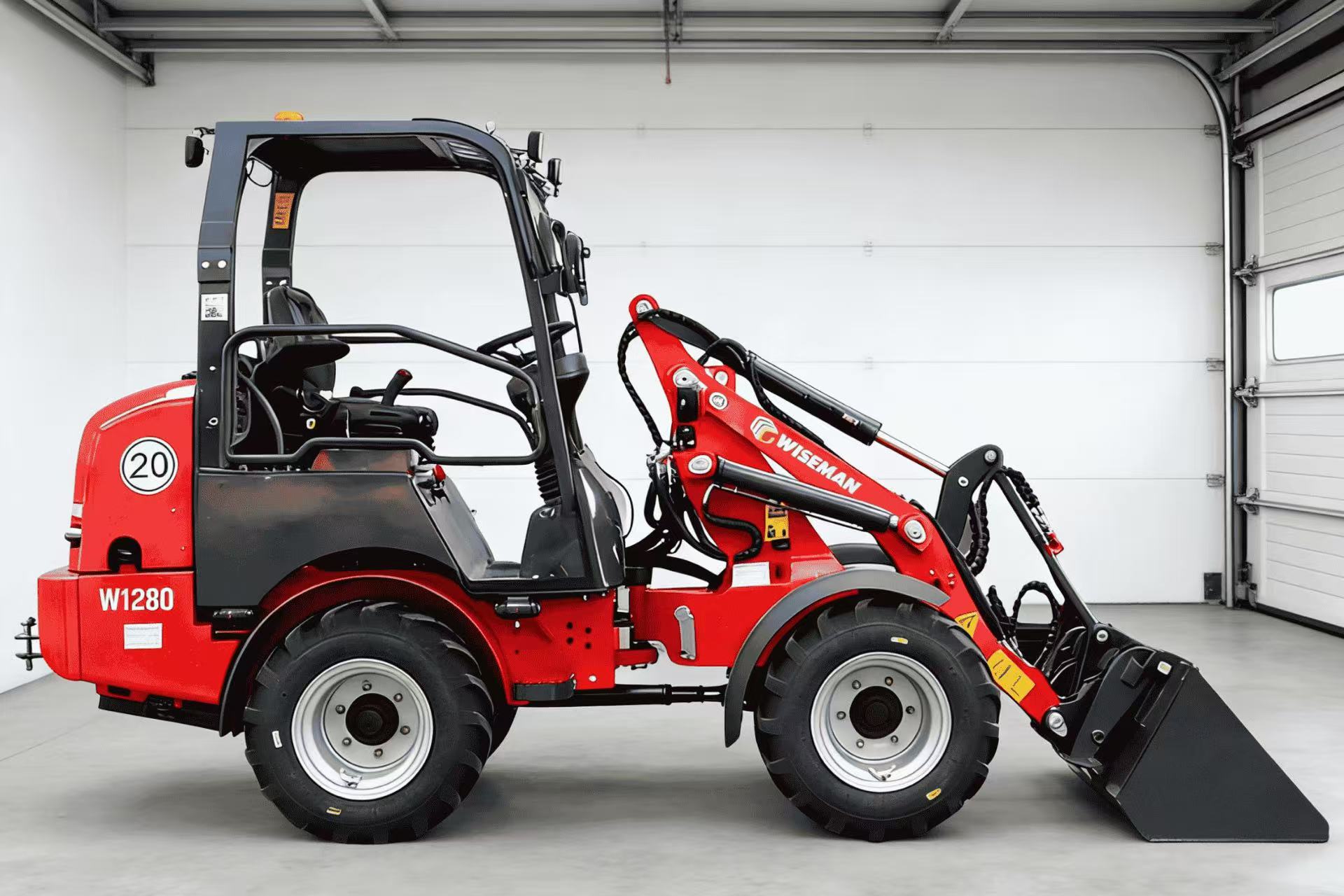

W1280
Heavy-duty Compact Articulated Loader
Optimized compact structure for superior space efficiency
Enhanced stability with a low center of gravity
Compliant with Euro V, Tier 4 Final or zero‑emission standards
Fast‑change system compatible with a full range of attachments
- Overview
- Technical data
- Configurations
Product Introduction
The W1280 boasts strong adaptability to a wide range of job applications.When fitted with a bucket, it achieves a tipping load ranging from 1,160 kg to 1,690 kg, easily handling heavy‑duty material handling work.The extended boom reaches a maximum lifting height of 2,862 mm, greatly improving working efficiency.Combining high load capacity and ample lifting height, the W1280 is a robust and multi‑purpose loader for diverse working needs.
Product Specifications
Engine Rated Power (kw/HP)：18.4/25
Operating Weight (kg):2380-2550
Tipping Load with Bucket--Machine Straight (kg):1160-1690
Bucket Pivot Point :980-1440
Applications

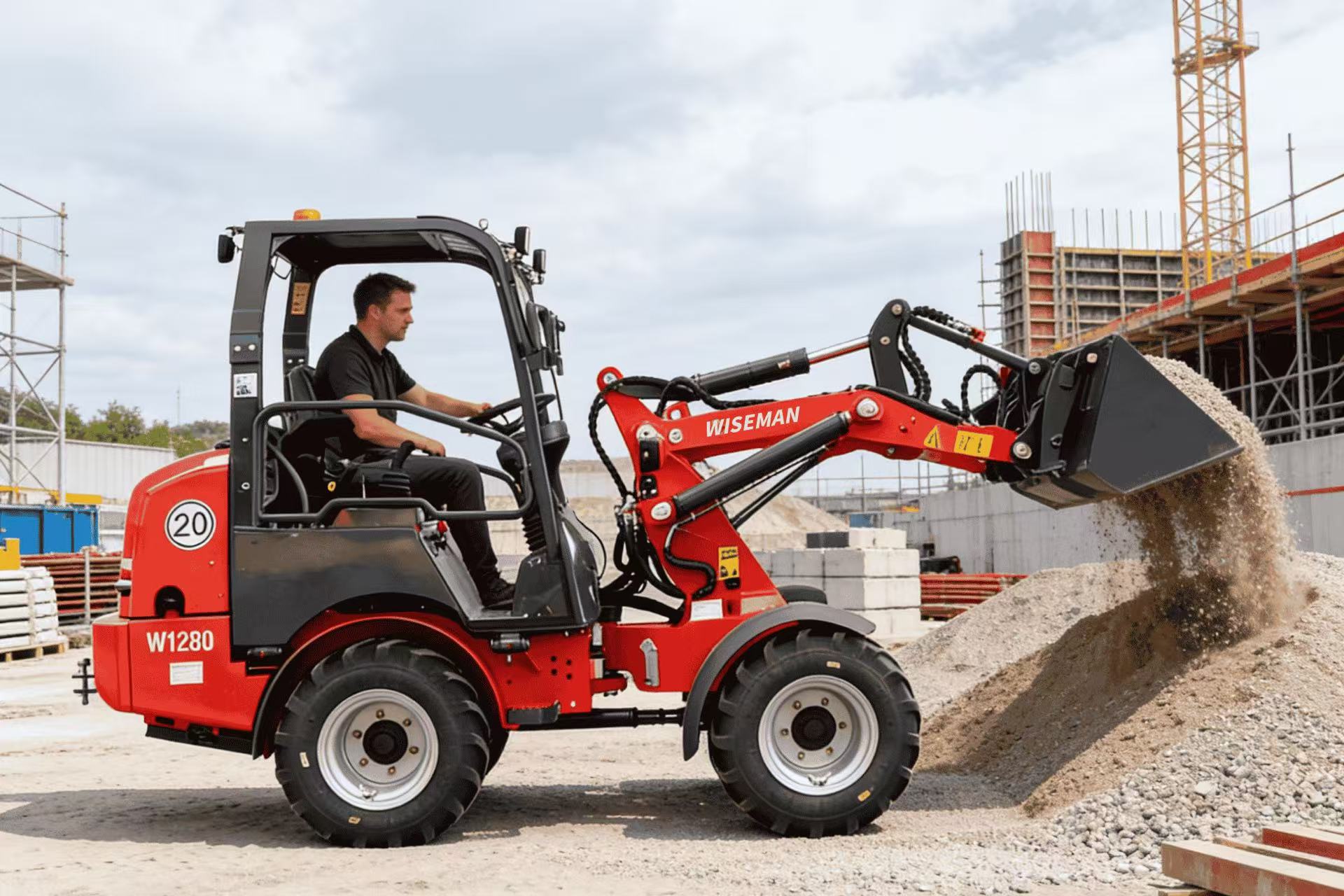

Sand & Soil Handling Loaders for European Construction Sites Loaders are crucial for sand and soil transportation on European construction sites, designed to meet the demands of bulk material handling. They efficiently move sand, soil, and gravel between stockpiles and construction zones, with strong load capacity and stable operation. Adaptable to uneven site terrains and narrow workspaces, they help accelerate construction progress and reduce manual workload for European construction teams. |
|

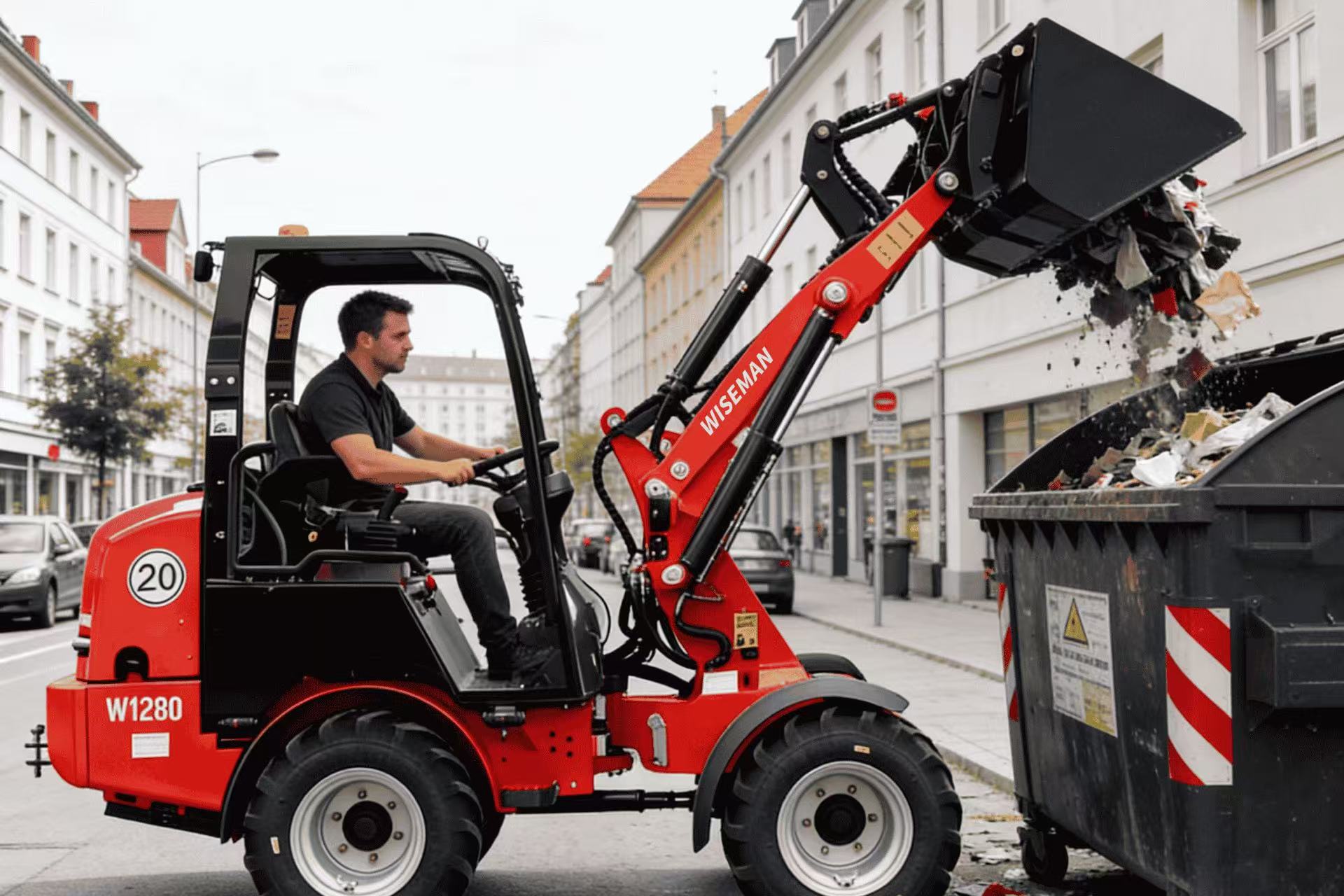

European Municipal Waste Handling Loaders Loaders are essential equipment for municipal waste transport in European cities, tailored to urban operating scenarios. They efficiently handle and move various wastes, such as household garbage, green waste and light construction debris, from urban collection points to transfer stations. With flexible maneuverability and gentle operation, they adapt to narrow urban roads and residential areas, avoiding damage to public facilities and roads, while significantly reducing manual labor and improving municipal waste management efficiency. |
|
W1280 Technical Data | |
Engine | |
Brand/Model | Kubota D1703 or D1505 |
Type: | 3 Cylinders or 4 Cylinders, Water Cooling |
Power Output (kw/HP) | 18.4/25 |
Emissios Standard | Euro V/ Tier 4 Final |
Driving System | |
Type of Drive | Hydrostatic |
Drive | Universal Joint Shaft |
Travel Speed ( km/h) | 0-15 |
Electrical System | |
Operating Voltage （V) | 12 |
Battery Capacity (Ah) | 60 |
Alternator Rating (Ah) | 40 |
Hydraulic System | |
Max.Drive Hydraulics Work Pressure (bar) | 320 |
Max. Drive Hydraulics Discharge Volume (l/min) | 72 |
Max. Work Hydraulics Work Pressure | 25Mpa |
Max. Work Hydraulics Discharge Volume (l/min) | 32 |
Weight | |
Operating Weight (kg) | 2380-2550 |
Tipping Load with Bucket--Machine Straight, | 1160-1690 |
Tipping Load with Bucket--Machine Pivoted, | 980-1440 |
Tipping Load with Pallet Fork--Machine Straight, | 890-1260 |
Tipping Load with Pallet Fork--Machine Pivoted, | 740-1080 |
Bucket Capacity (m3) | 0.28 |
Brake System | |
Operating Brake | Transmission Drum Brake |
Parking Brake | Operating and Parking Brake in the Drive Train |
Tyre Size (standard) | 31*15.5-15 |
| 1.Engine: KUBOTA D1105 (Euro 5), Optional: Perkins |
| 2.Hydraulic System: German Rexroth pump, Gerotor motor, domestic valves; 1 pump + 2 motors, Inching function |
| 3.Boom Function: Floating function (optional) |
| 4.Control System: Electronic control levers with integrated forward/reverse buttons 5.(High/Low speed optional) |
| 6.Brake Inching Function (optional) |
| 7.Seat Sensor (optional) |
| 8.Lights: Turn signals, LED work lights |
| 9.EU-standard Hydraulic Quick Coupler,Quick change, customization supported |
 | 10.Tires: 31.5*15-15.5 |
| 11.Canopy: EPS,detachable, foldable, and closable. |
| 1. Rubber Blade Main Application Scenarios This tool is built to clean slatted floors in livestock barns by clearing manure and wasted feed, and also handles oil‑stained concrete and asphalt in workshops, parking lots and other industrial sites. Core Functions It effectively removes dirt and residues from slatted floors, and thoroughly cleans oil stains and other pollutants on different types of ground surfaces. | ||
Parameter | Value Range | ||
Width | 1200 mm - 1500 mm | ||
Weight | 85 kg - 160 kg | ||
2. Sweeper Main Application Scenarios Perfect for cleaning dust, debris and leaves in warehouses, farm roads and construction sites, and supports high-efficiency operation when matched with loading tasks. Core Functions Ensures strong cleaning performance; works with standard pallet forks and various bucket attachments; features simple installation and fast accessory change. |
| ||
Parameter | Value Range | ||
Width | 1250 mm - 1550 mm | ||
Weight | 150 kg-180kg | ||
| 3.Sweeping Machine Main Application Scenarios It is made for daily cleaning and maintenance of open areas such as yards, factory roads, bike paths and parking lots, efficiently tidying the ground and collecting all kinds of waste. Core Functions Strong versatility: Specially made for cleaning open spaces, quickly removing various light waste and debris. Practical structure: Equipped with an integrated collection box for easy collection and disposal of swept rubbish. | ||
Parameter | Value Range | ||
Width | 1250 mm - 1550 mm | ||
Weight | 190 kg-220 kg | ||
4. Snow Blade Main Application Scenarios This snow blade is built for snow clearing on roads, courtyards and industrial sites, and is well suited for all kinds of winter outdoor snow removal jobs. Core Functions It uses hydraulic rotation for flexible angle adjustment. With roller leveling compensation and height indication, plus infinitely adjustable support wheels or skids, it ensures high-precision operation. The shock-absorbing protective blade effectively avoids damage to curbs and surrounding buildings. |
| ||
Parameter | Value Range | ||
Width | 1300 mm - 1550 mm | ||
Road-clearing Width at 30° | 1115 mm - 1320 mm | ||
Weight | 167 kg - 183 kg | ||
| 5. Earth Borer Main Application Scenarios Suitable for ground drilling operations including fence post installation, tree planting and sign erection, widely used in agricultural, municipal and landscaping projects. Core Functions Provides a complete selection of auger sizes to meet diverse drilling needs. | ||
Parameter | Value Range | ||
Length | 1240 mm | ||
Drill Diameter | ∅152 mm-∅305 mm | ||
Weight | 173 kg - 197 kg | ||
6.Logging Fork Main Application Scenarios It is designed to collect branches and small logs to maintain a tidy working area, and to carry out short‑distance handling of logs with a diameter ranging from 100 to 300 mm. Core Functions It can be well matched with compact loaders, firmly clamps branches and small‑to‑medium logs, prevents materials from slipping during transportation, and ensures stable and reliable operation. |
| ||
Parameter | Value Range | ||
Dimension（LXWXH) | 1323mmX804mmX828mm | ||
Weight | 172 kg | ||
