Construction Front Loader

Compact design

Low center of gravity

Small turning radius

Powerful performance

Contact Now E-Mail Telephone WhatsApp

Overview
Technical data
Configurations
Attachments

Product Introduction

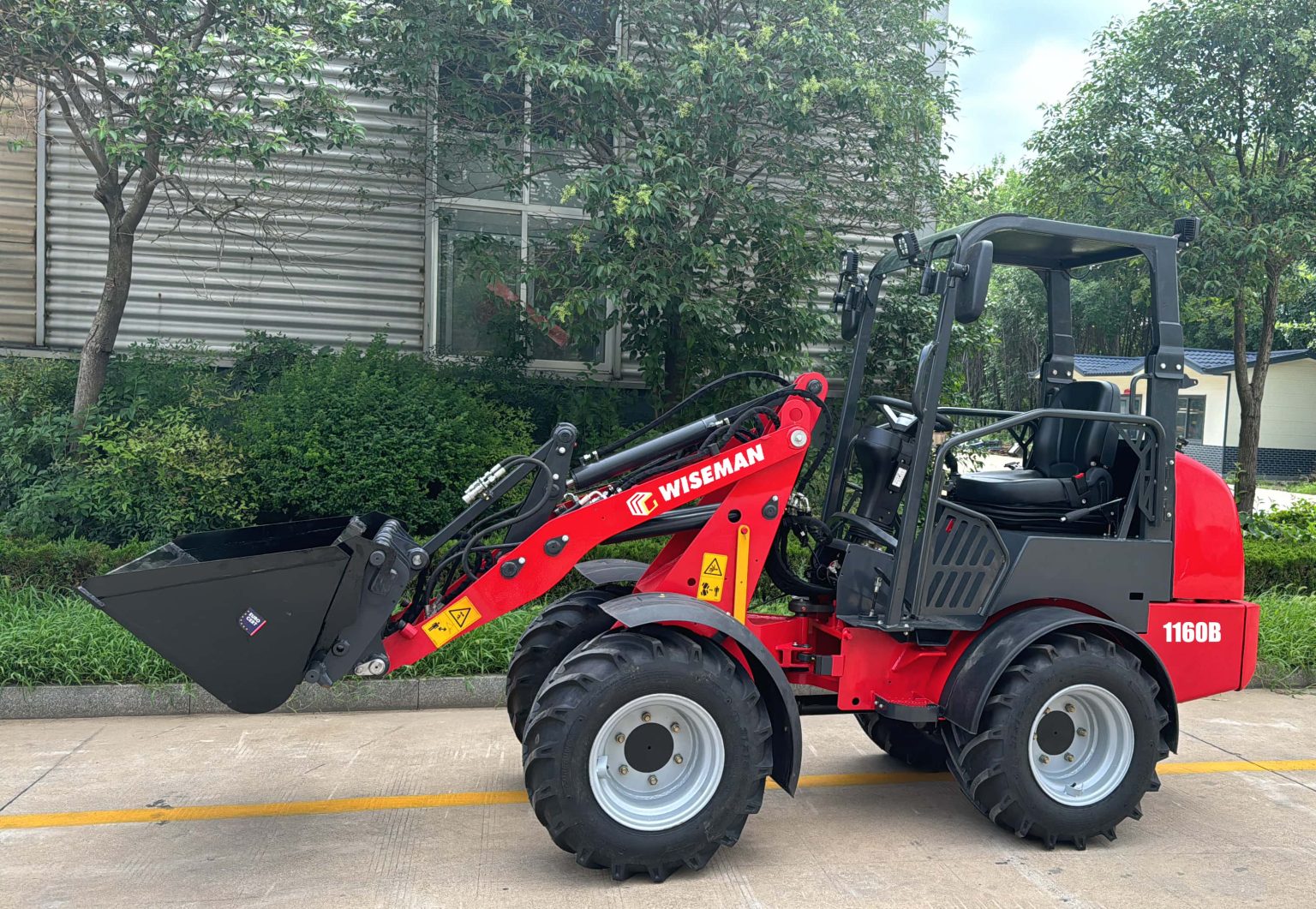

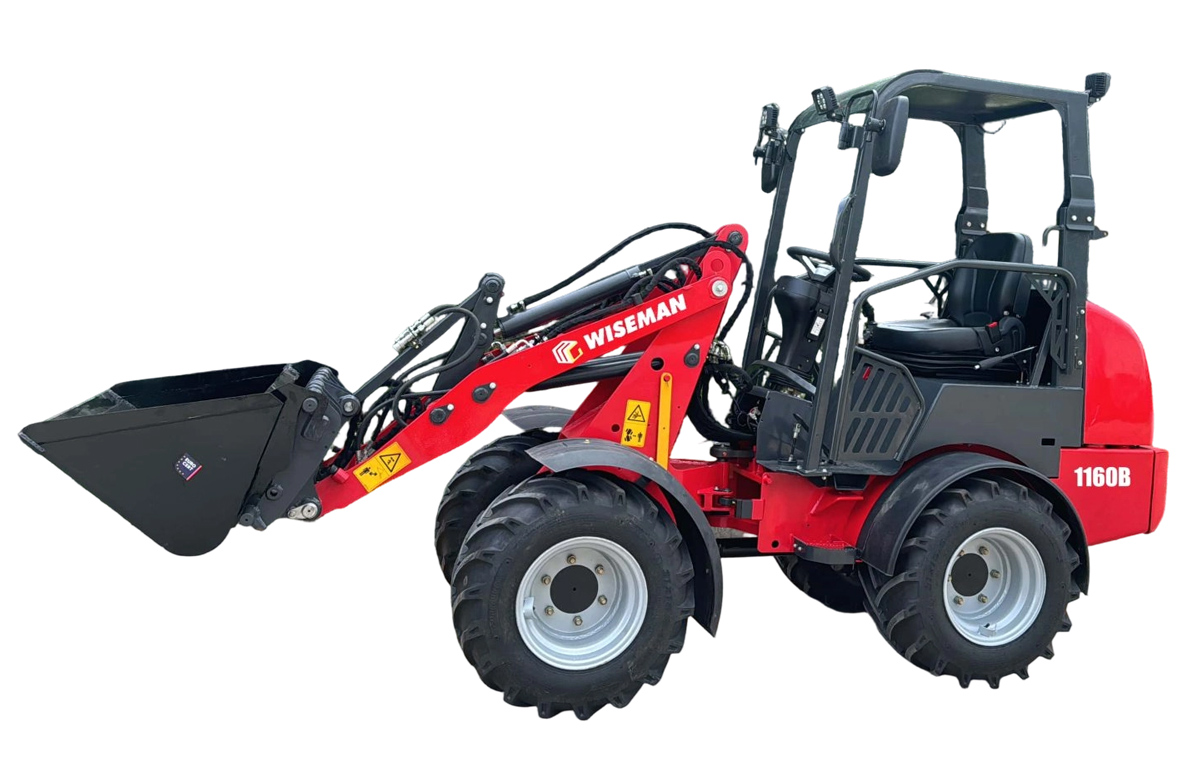

Built for tough and rugged terrains, the W1160B Compact Construction Front Loader comes equipped with the renowned Rexroth hydraulic system and a hydrostatic drive system delivering stable, powerful performance paired with responsive, precise handling. Whether tackling heavy duty debris removal, forestry felling, material handling, or other demanding tasks, this compact loader consistently rises to operational challenges and maintains reliable performance even in extreme job site conditions.

Technical Specifications

Engine: Rated Power (kW/HP) 18.2 kW / 3000 rpm

Operating Mass (kg): 1850

Bucket-equipped Tipping Load – Straight Machine Configuration (kg): 850

Bucket Pivot Point: 520

Learn More

Applications

1、Handling bales With the wide variety of bale types in use, Compact loaders are equipped with a comprehensive selection of bale handlers and bale tongs, ensuring you always have the right attachment for every bale-handling task.
2、Shifting slats Certain loaders—particularly the 1140 and 1160 models—are exceptionally well-suited for working on slatted barn floors and pushing material off them, thanks to their lightweight build and compact overall dimensions. For this application, Compact loaders can also be equipped with a rubber pusher blade as the ideal matching attachment.
3、Compiling piles In a sawmill, managing incoming tree trunks—sorted and stacked by length in the storage yard—is part of the daily workflow. A machine designed for this task must offer exceptional stability, high payload capacity, and an extended telescopic arm reach to ensure efficient and safe handling.
4、Winter service Depending on the model, Compact loaders can be equipped with a variety of snow blades and rear spreaders. These attachments provide excellent support for winter maintenance, enabling efficient clearing of snow and ice from worksites, access roads, and service routes.

Technical Data for W1160B Compact Loader
Engine
Brand/Model	Perkins 403J-11 or Kubota D1105
Type:	3 Cylinders, Water Cooling
Power Output	18.2kW/3000rpm
Displacement	1.13 L
Emissios Standard：	Euro Stage V
Drive System
Type of Drive	Hydrostatic
Gear Shift	Electric, Continuously Variable Transmissioin (CVT)
Travel Speed	0-13 km/h
Electrical System
Operating Voltage	12 V
Battery Capacity	72Ah
Alternator Output	12V-40 A
Hydraulic System
Max.Drive Hydraulics Work Pressure	300 bar
Max. Drive Hydraulics Discharge Volume	84 l/min
Max. Work Hydraulics Work Pressure	180 bar
Max. Work Hydraulics Discharge Volume	33 l/min
Boom Lifting Time	3.1 s
Automatic Levelling Function	yes
Weight
Operating Weight	1850 kg
Tipping Load with Bucket--Machine Straight:	850 kg
Tipping Load with Bucket--Machine Pivoted:	550 kg
Bucket Capacity	0.28 m3
Max.Lifting Force	1100 kg
Refilling Capacity
Fuel Tank (L)	<18 L
Hydulic Oil Tank (L)	16L
Engine Oil (L)	4 L
Coolant (L)	12 L
Brake System
Operating Brake	Transmission Drum Brake
Parking Brake	Operating and Parking Brake in the Drive Train
Tyre Size	31x15.5-15
Machine Dimension (mm)
Overall Length with Bucket	3895
Overall Length without Bucket	3065
Bucket Pivot Point to the Centre of Axle	520
Wheel Base	1522
Rear Overhang	950
Height to the Roof of Canopy	2210
Seat Height	1200
Working Range (mm)
Overall Working Height	3180
Max. Lifting Height	2740
Load-Over Height	2385
Dumping Height	1900
Digging Depth	120
Overall Width	1300
Wheel Track	910
Ground Clearance	221
Max. Turning Radius	2435
Outter Turning Radius	2220
Inner Turning Radius	880
Articulation Angle	51°
Roll Back Angle at Max. Lifting Height	52°
Dumping Angle	35°

	1.Engine Perkins 403J-11, Euro 5,Power: 18.4KW OR KUBOTA D1105 Euro 5
	2. Hydraulic System German Rexroth pump, domestic motor, domestic valves 1 pump + 2 motors, Inching function
	3. Boom Function Floating function (optional)
	4. Control System Electronic control levers with integrated forward/reverse buttons
	5. Speed Setting High/Low speed (optional), Max speed: 0-15 km/h
	6. Lights Turn signals, LED work lights
	7. Hydraulic Quick Coupler EU-standard
	8. Tires 10.0/75-15.3 OR 31.5×15-15.5
	9. Canopy: EPS

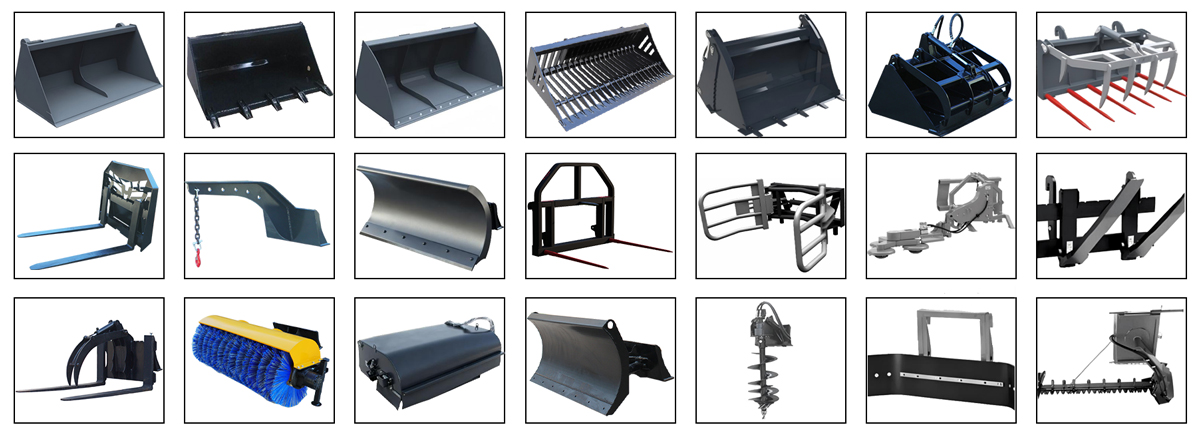

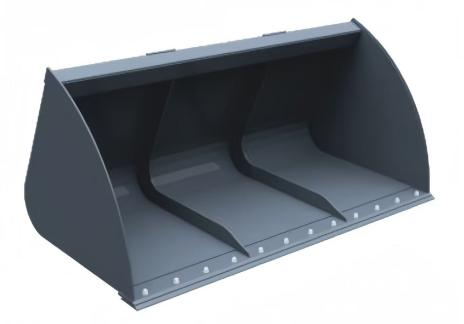

		1.Lightweight Bucket Round Main Application Scenarios: Designed for shoveling and transporting large volumes of light materials such as silage, straw, and wood chips, especially in applications where minimizing material spillage is essential. Core Functions: Engineered specifically for light materials with a reinforced structure; the top edge of the bucket is aligned parallel to the bottom for smoother operation. Capacity is enhanced through an extended bottom and strengthened curved side walls, while overflow protection helps reduce material leakage. The low-wear scraper edge is also replaceable for long-term durability.
		Parameter	Value Range
		Width	870mm-1050mm
		Capacity	0.28M3-0.54M3
		Weight	110kg-150kg
2. Sweeper Main Application Scenarios: Ideal for cleaning ground debris—such as dust, scraps, and fallen leaves—in warehouses, farm passageways, and construction sites. Can be deployed quickly during loading intervals for efficient on-site cleanup. Core Functions: Delivers excellent cleaning performance; compatible with pallet fork mounting (standard) or bucket mounting (optional); features a convenient attachment interface for fast and easy tool changes.
Parameter	Value Range
Width	1250 mm - 1550 mm
Weight	150 kg-180kg
		3.Sweeping Machine Main Application Scenarios: Ideal for cleaning operations in open areas such as yards, factory roads, cycling paths, and parking lots, effectively meeting everyday debris-removal needs. Core Functions: Versatile Cleaning Performance: Specially designed for large open spaces, delivering efficient sweeping of a wide range of scattered debris. Practical Standard Features: Comes equipped with an integrated debris collection tray for easy gathering and disposal of swept materials.
		Parameter	Value Range
		Width	1250 mm - 1550 mm
		Weight	190 kg-220 kg
4. Snow Blade Main Application Scenarios: Ideal for snow clearing on roads, courtyards, and factory grounds, providing efficient outdoor snow removal during winter. Core Functions: Features a hydraulic swivel mechanism for flexible operation; roller-level compensation with height indicator and stepless adjustment of wheels or skids for precise clearing; equipped with an elastic edge protector to prevent damage to curbs and surrounding structures.
Parameter	Value Range
Width	1300 mm - 1550 mm
Road-clearing Width at 30°	1115 mm - 1320 mm
Weight	167 kg - 183 kg
		5. Earth Borer Main Application Scenarios: Designed for ground drilling tasks such as fence post installation, tree planting, and sign placement, ideal for agricultural, municipal, and landscaping applications. Core Functions: Offers a range of drill sizes to accommodate diverse drilling requirements.
		Parameter	Value Range
		Length	1240 mm
		Drill Diameter	∅152 mm-∅305 mm
		Weight	173 kg - 197 kg
6.Logging Fork Main Application Scenarios: Ideal for clearing scattered branches and short log sections to maintain site organization. Also capable of short-distance loading, unloading, and transporting logs with diameters of 100–300mm. Core Functions: Designed for compatibility with compact loaders, it securely clamps small to medium-sized logs and branches, preventing material slippage during transport and ensuring stable, efficient operation.
Parameter	Value Range
Dimension（LXWXH)	1323mmX804mmX828mm
Weight	172 kg
