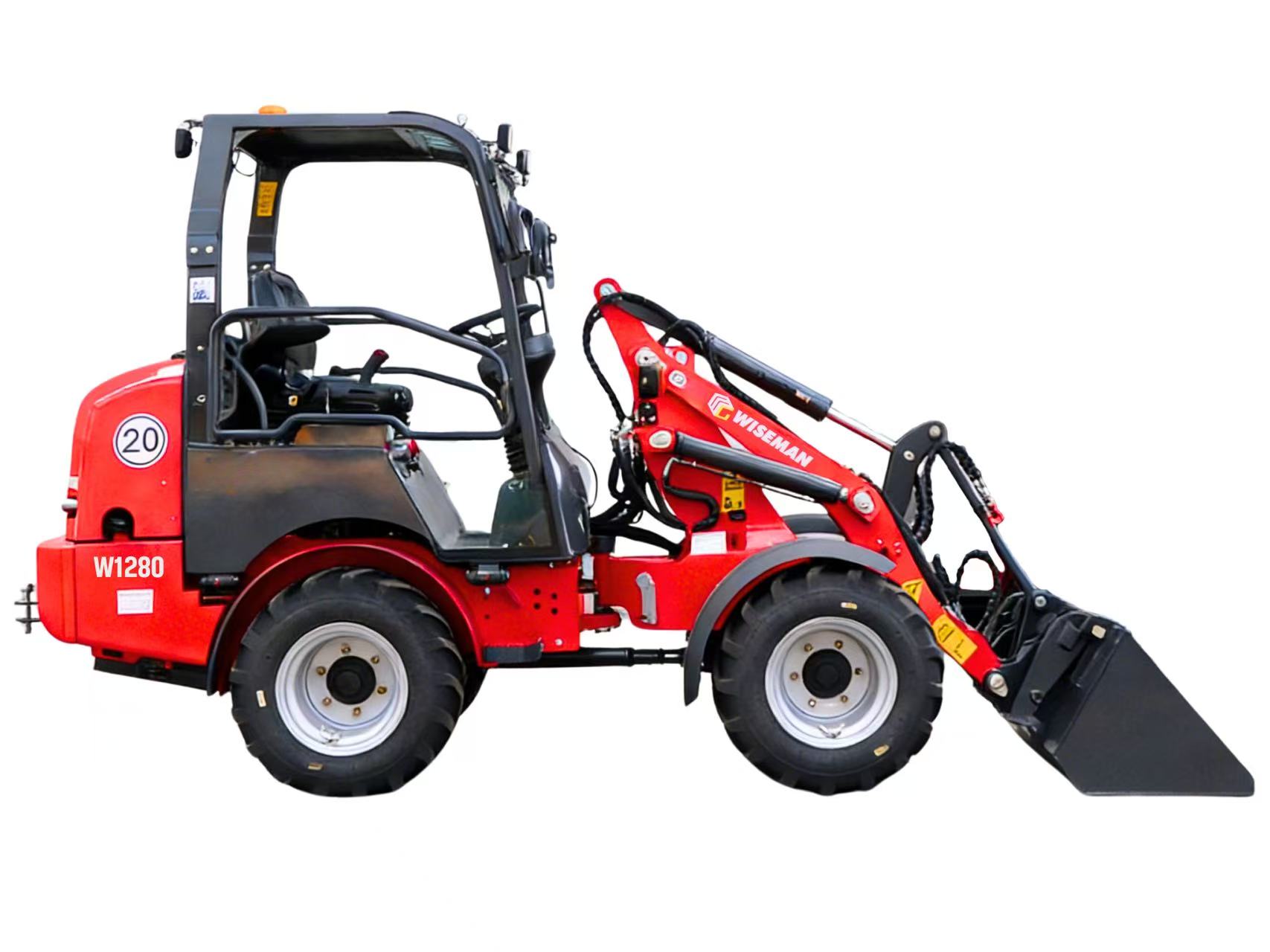

W1280
Durable Mini Articulated Loader
Concise structural design
Reduced gravity center height
Minimal turning radius
High-powered working performance
- Overview
- Technical data
- Configurations
Product Introduction
This compact wheel loader features a slim frame that navigates seamlessly through the tight planting rows of olive groves, adapting well to sloped orchard terrain. Equipped with sturdy industrial pallet forks, it stably lifts and transports crated or palletized fresh olives, with smooth operation that prevents cargo tipping and fruit bruising, and avoids scraping olive tree trunks and shallow root systems. It replaces labor-intensive manual carrying of olive crates, seamlessly connecting picking zones to sorting, pressing and storage areas, and greatly boosts the efficiency of pallet-based olive harvest haulage for large-scale olive groves.
Product Specifications
Engine Rated Power (kw/HP)：18.4/25
Operating Weight (kg):2380-2550
Tipping Load with Bucket--Machine Straight (kg):1160-1690
Bucket Pivot Point :980-1440
Applications

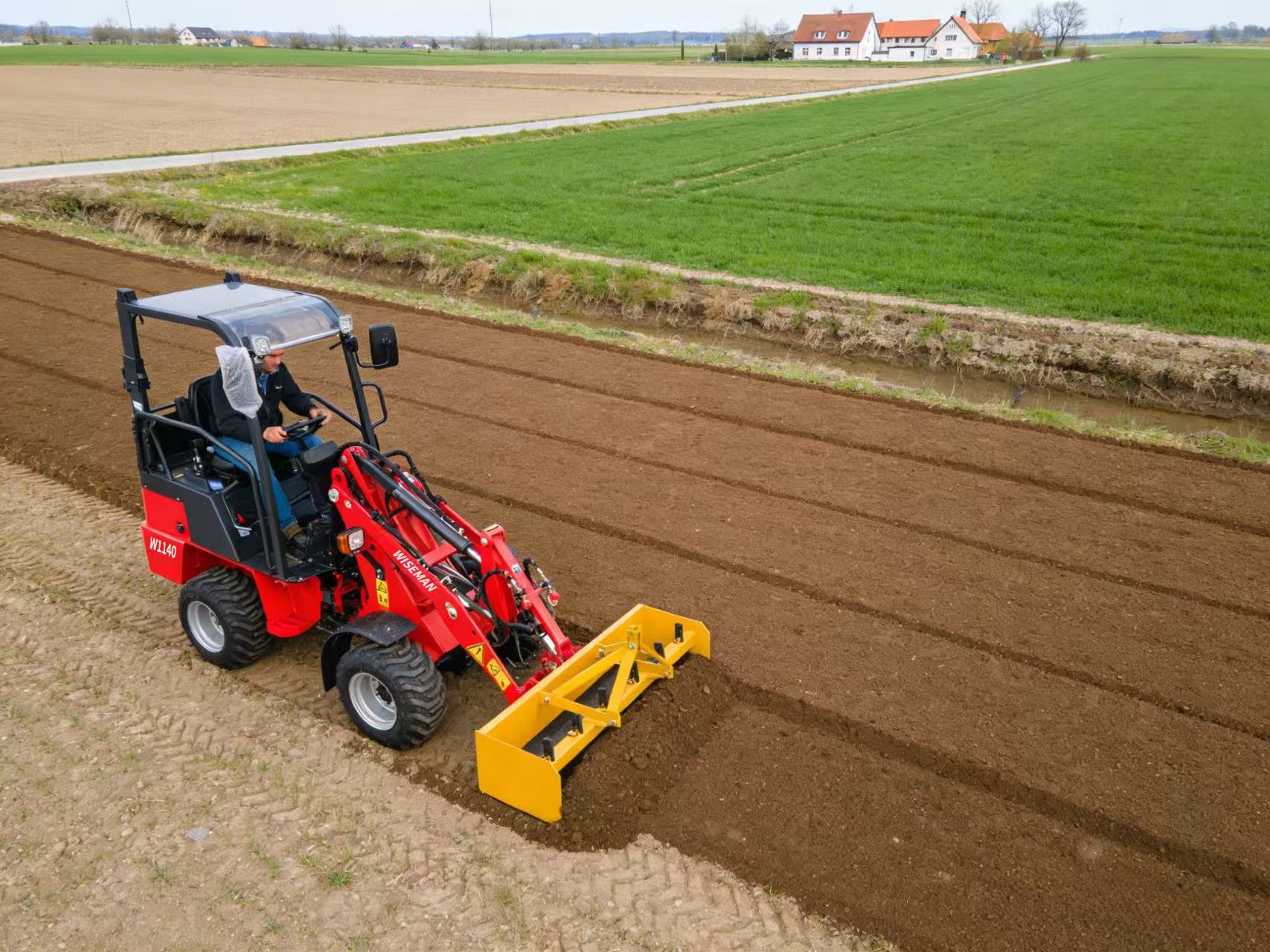

Loaders for Farm Soil LooseningLoaders with professional soil loosening attachments excel at farm soil preparation. They efficiently break up compacted soil to boost air permeability for sowing, fitting vegetable fields, orchards and crop lands. Compact and flexible, they move freely in narrow ridges without damaging crops, greatly improving farm work efficiency. |
|
Sawmill Pile Compilation In sawmills, a daily routine involves handling delivered tree trunks and stacking them in length-based piles in the storage area. A work machine for this task must have excellent stability, high payload capacity, and a generous telescopic arm reach. |
|
W1280 Technical Data | |
Engine | |
Brand/Model | Kubota D1703 or D1505 |
Type: | 3 Cylinders or 4 Cylinders, Water Cooling |
Power Output (kw/HP) | 18.4/25 |
Emissios Standard | Euro V/ Tier 4 Final |
Driving System | |
Type of Drive | Hydrostatic |
Drive | Universal Joint Shaft |
Travel Speed ( km/h) | 0-15 |
Electrical System | |
Operating Voltage （V) | 12 |
Battery Capacity (Ah) | 60 |
Alternator Rating (Ah) | 40 |
Hydraulic System | |
Max.Drive Hydraulics Work Pressure (bar) | 320 |
Max. Drive Hydraulics Discharge Volume (l/min) | 72 |
Max. Work Hydraulics Work Pressure | 25Mpa |
Max. Work Hydraulics Discharge Volume (l/min) | 32 |
Weight | |
Operating Weight (kg) | 2380-2550 |
Tipping Load with Bucket--Machine Straight, | 1160-1690 |
Tipping Load with Bucket--Machine Pivoted, | 980-1440 |
Tipping Load with Pallet Fork--Machine Straight, | 890-1260 |
Tipping Load with Pallet Fork--Machine Pivoted, | 740-1080 |
Bucket Capacity (m3) | 0.28 |
Brake System | |
Operating Brake | Transmission Drum Brake |
Parking Brake | Operating and Parking Brake in the Drive Train |
Tyre Size (standard) | 31*15.5-15 |
| 1.Engine: KUBOTA D1105 (Euro 5), Optional: Perkins |
| 2.Hydraulic System: German Rexroth pump, Gerotor motor, domestic valves; 1 pump + 2 motors, Inching function |
| 3.Boom Function: Floating function (optional) |
| 4.Control System: Electronic control levers with integrated forward/reverse buttons 5.(High/Low speed optional) |
| 6.Brake Inching Function (optional) |
| 7.Seat Sensor (optional) |
| 8.Lights: Turn signals, LED work lights |
| 9.EU-standard Hydraulic Quick Coupler,Quick change, customization supported |
| 10.Tires: 31.5*15-15.5 |
| 11.Canopy: EPS,detachable, foldable, and closable. |
1. Feed Blade
|
| ||
Parameter | Value Range | ||
Width | 1800 mm - 2200 mm | ||
Max. Adjustable Angle | 70° | ||
Weight | 225 kg | ||
| 2. Bale Fork
| ||
Parameter | Value Range | ||
Width | 1130 mm | ||
Weight | 65 kg | ||
3. Round Bale Tong
|
| ||
Parameter | Value Range | ||
Width | 1400mm | ||
Weight | 158 kg | ||
| 4. Fence Mower
| ||
Parameter | Value Range | ||
Weight | 220 kg | ||
5. Double-blade Mowing Unit
|
| ||
Parameter | Value Range | ||
Width | 1500 mm | ||
Weight | 200 kg | ||
