W1280M
Organic Farming Compact Loader
Compact modular structural configuration
Lowered center-of-gravity positioning
Narrow turning envelope radius
High-intensity power delivery capability
- Overview
- Technical data
- Configurations
The Compact Loader That Masters Agricultural Hauling

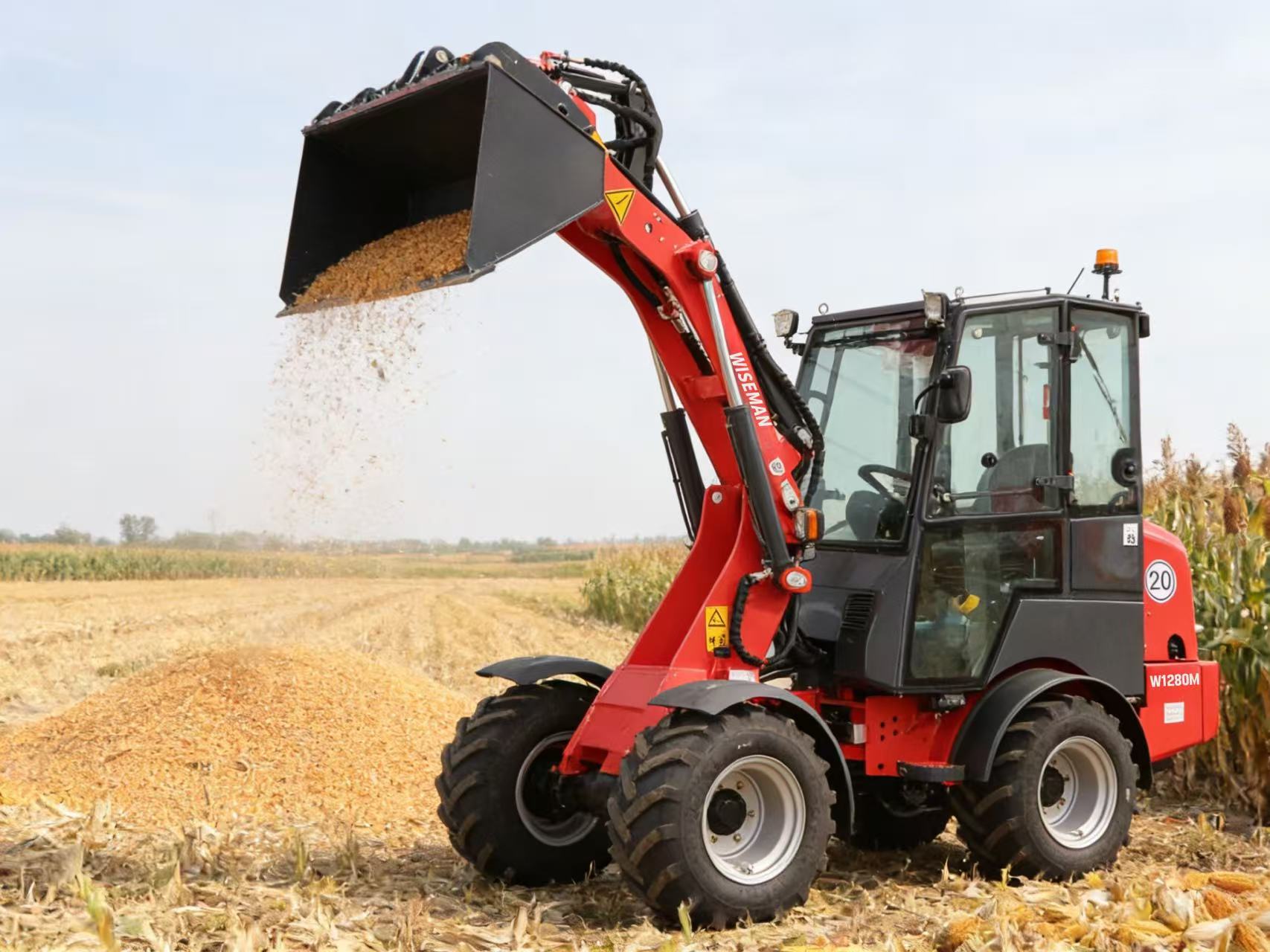

When harvest season hits and every load of grain needs moving fast, the WISEMAN W1280M compact loader is your go-to workhorse. Its high-reach articulated arm effortlessly lifts and pours grain, feed, and bulk agricultural materials with precision—ideal for field-side processing and storage loading. Built with rugged, terrain-ready tires, it navigates uneven farm fields and harvest sites without getting stuck, while the compact frame slips through narrow crop rows and farm lanes with ease. The enclosed cab shields operators from dust and debris during long harvest days, and responsive hydraulic controls make even delicate material handling a breeze. For farms that demand efficiency and versatility during the busiest seasons, the W1280M delivers unbeatable performance.
Product Specifications
Engine Rated Power (kw/HP)：18.4/25
Operating Weight (kg):2380-2550
Tipping Load with Bucket--Machine Straight (kg):1160-1690
Bucket Pivot Point :980-1440
Applications

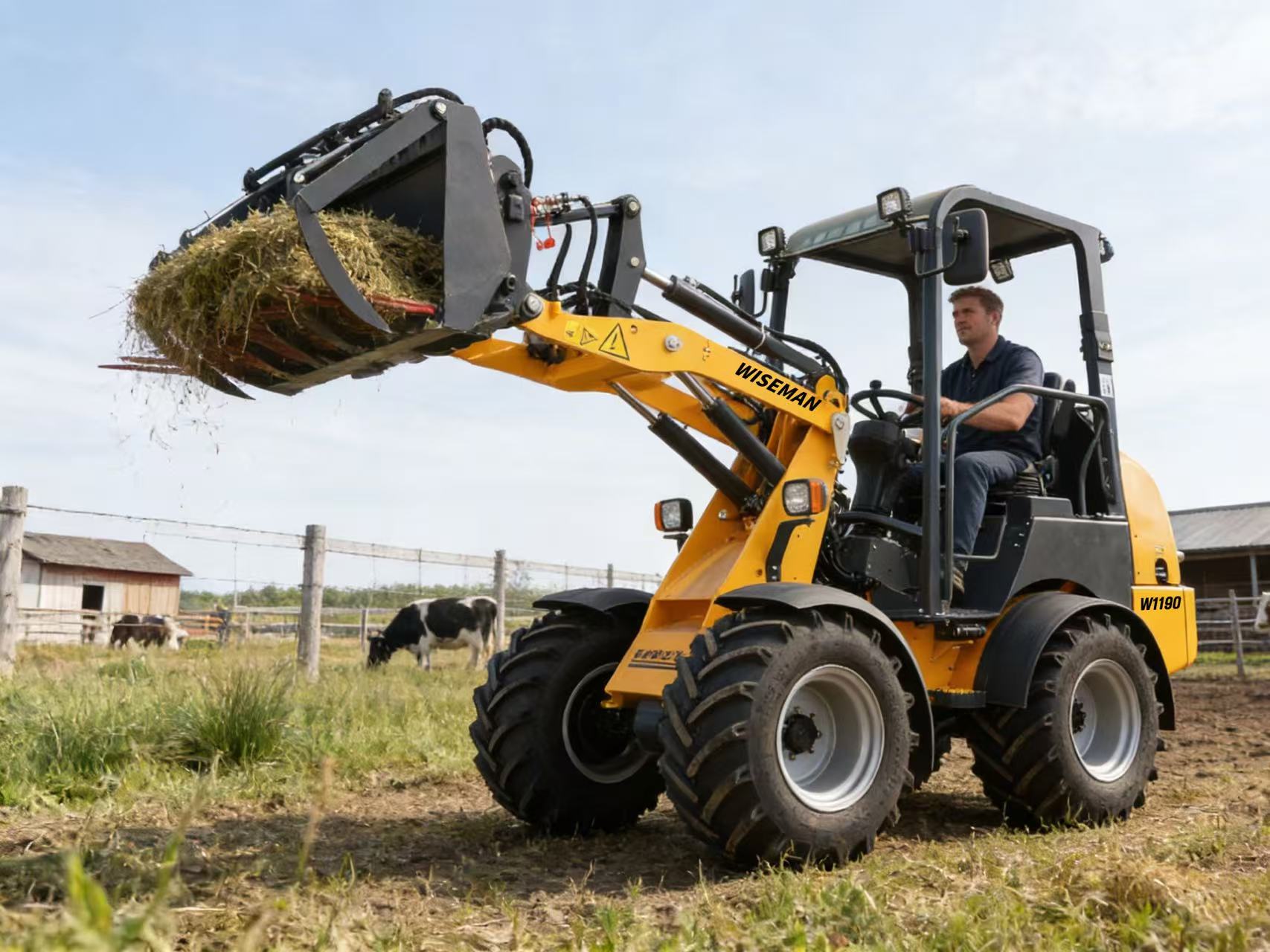

Compact Wheel Loader: Ranch Feed Grappling & Feeding TransferFeed-grapple adaptable, ranch-agile, high-efficiency for all ranch feed handling & feeding prep |
|

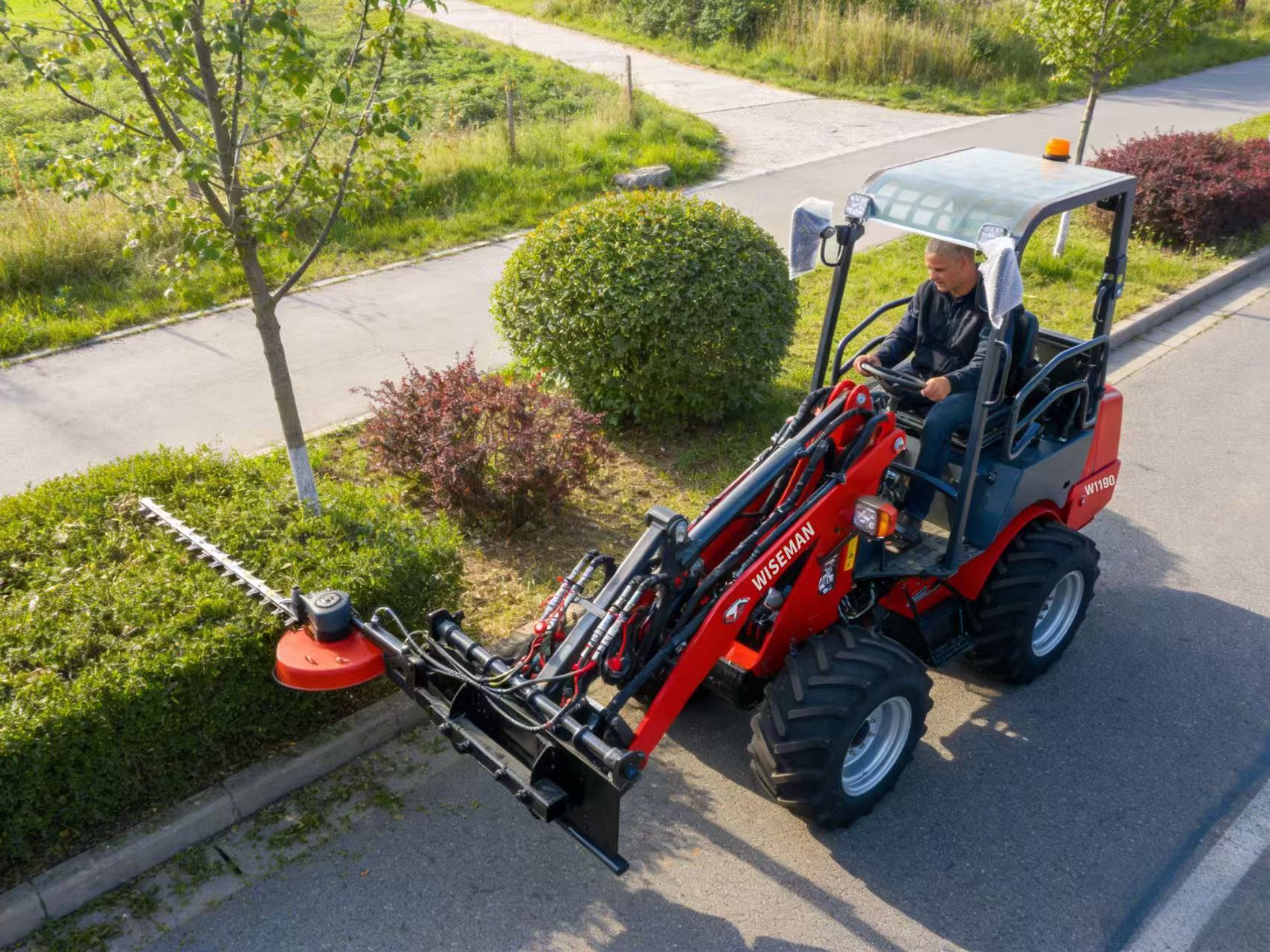

Compact Wheel Loader for Grass & Vegetation Trimming in GardensNimble in garden narrow paths, trimming attachment-equipped, enables precise grooming for tidy and well-kept garden landscapes. |
|

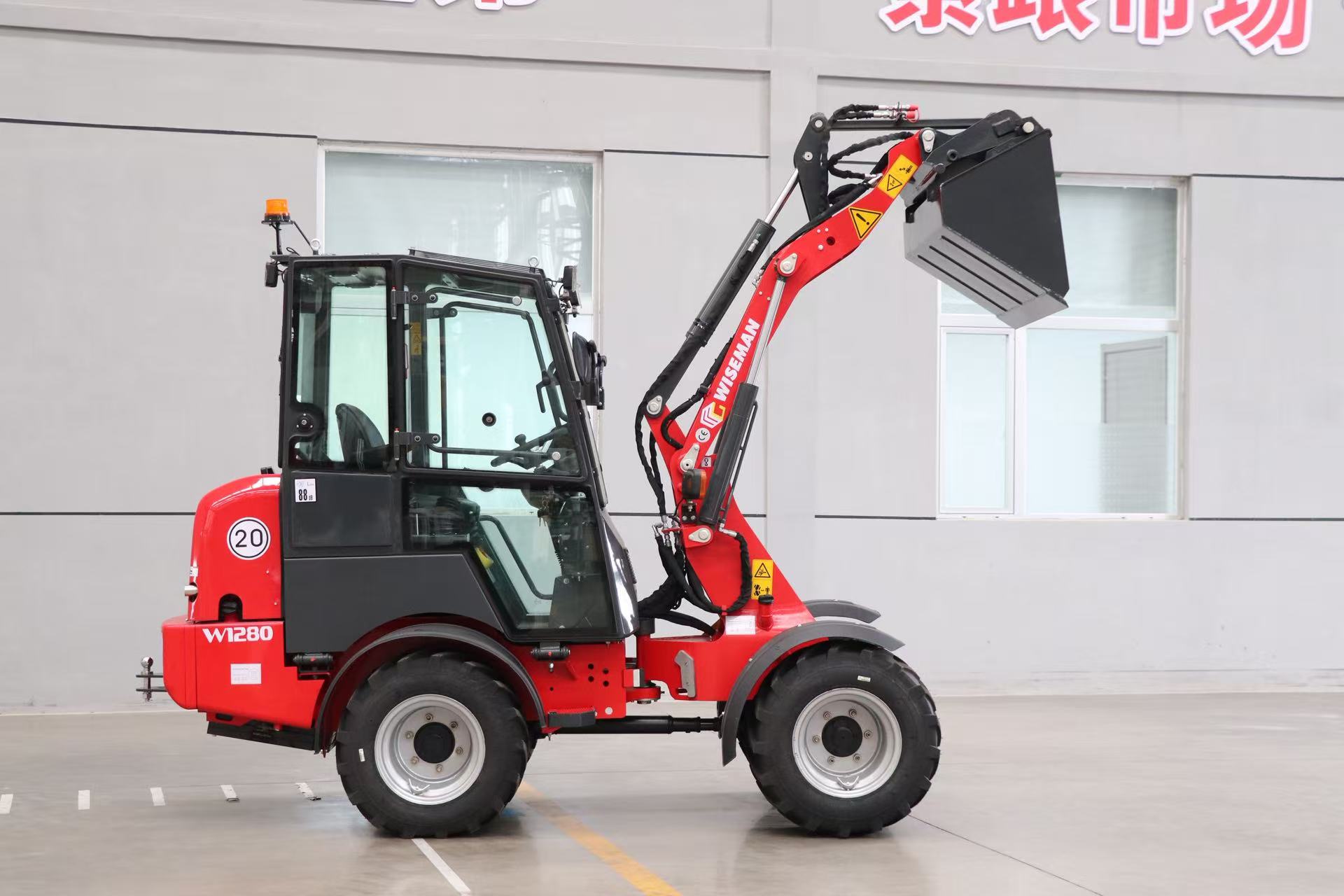

W1280 Technical Data | |
Engine | |
Brand/Model | Kubota D1703 or D1505 |
Type: | 3 Cylinders or 4 Cylinders, Water Cooling |
Power Output (kw/HP) | 18.4/25 |
Emissios Standard | Euro V/ Tier 4 Final |
Driving System | |
Type of Drive | Hydrostatic |
Drive | Universal Joint Shaft |
Travel Speed ( km/h) | 0-15 |
Electrical System | |
Operating Voltage （V) | 12 |
Battery Capacity (Ah) | 60 |
Alternator Rating (Ah) | 40 |
Hydraulic System | |
Max.Drive Hydraulics Work Pressure (bar) | 320 |
Max. Drive Hydraulics Discharge Volume (l/min) | 72 |
Max. Work Hydraulics Work Pressure | 25Mpa |
Max. Work Hydraulics Discharge Volume (l/min) | 32 |
Weight | |
Operating Weight (kg) | 2380-2550 |
Tipping Load with Bucket--Machine Straight, | 1160-1690 |
Tipping Load with Bucket--Machine Pivoted, | 980-1440 |
Tipping Load with Pallet Fork--Machine Straight, | 890-1260 |
Tipping Load with Pallet Fork--Machine Pivoted, | 740-1080 |
Bucket Capacity (m3) | 0.28 |
Brake System | |
Operating Brake | Transmission Drum Brake |
Parking Brake | Operating and Parking Brake in the Drive Train |
Tyre Size (standard) | 31*15.5-15 |
| 1.Engine: KUBOTA D1105 (Euro 5), Optional: Perkins |
| 2.Hydraulic System: German Rexroth pump, Gerotor motor, domestic valves; 1 pump + 2 motors, Inching function |
| 3.Boom Function: Floating function (optional) |
| 4.Control System: Electronic control levers with integrated forward/reverse buttons 5.(High/Low speed optional) |
| 6.Brake Inching Function (optional) |
| 7.Seat Sensor (optional) |
| 8.Lights: Turn signals, LED work lights |
| 9.EU-standard Hydraulic Quick Coupler,Quick change, customization supported |
| 10.Tires: 31.5*15-15.5 |
| 11.Canopy: EPS,detachable, foldable, and closable. |
1. Lightweight Bucket Square Main Application Scenarios: This bucket is great for moving light stuff like sawdust, hay, and plastic granules—whether you’re working on a farm, in a workshop, or at a warehouse. Core Functions: Its top and bottom edges are parallel, so it’s easy to use; the longer bottom and taller sides let you carry more material; it also has a low-wear scraper edge that lasts a long time. |
| ||
Parameter | Value Range | ||
Width | 870mm-1050mm | ||
Capacity | 0.28M3-0.54M3 | ||
Weight | 110kg-150kg | ||
| 2.Lightweight Bucket Round Main Application Scenarios: This bucket is made for moving big piles of light stuff like silage, straw, and wood chips — it’s perfect for times when you don’t want a lot of material falling out while you’re hauling it. Core Functions: It’s reinforced to handle lightweight materials well; the top edge and bottom are parallel, so it’s easy to use; longer bottom and strong curved sides let you carry more, and overflow protection stops materials from spilling; the low-wear scraper edge can be replaced if it gets too worn out. | ||
Parameter | Value Range | ||
Width | 870mm-1050mm | ||
Capacity | 0.28M3-0.54M3 | ||
Weight | 110kg-150kg | ||
3. Earth Bucket Main Application Scenarios: This bucket is made for picking up and moving loose stuff like silage, manure, wood chips, and garden green waste—great for anyone working on a farm or doing yard cleanup. Core Functions: Two cylinders provide super strong gripping force to hold loads without dropping them; the side parts of the bucket can be removed if you need to; it also has a low-wear scraper edge that lasts a long time. |
| ||
Parameter | Value Range | ||
Width | 920mm-1150mm | ||
Capacity | 0.20M3-0.32M3 | ||
Weight | 135kg--175kg | ||
| 4. Grab Bucket With Removable Side Parts Main Application Scenarios: This bucket is made for picking up and moving loose stuff like silage, manure, wood chips, and garden green waste—perfect for small farms or landscaping teams looking for a versatile tool. Core Functions: Two cylinders give it strong gripping force so loads don’t slip; the side parts can be taken off if you need more space; it also has a low-wear scraper edge that lasts a long time with little maintenance. | ||
Parameter | Value Range | ||
Width | 1150mm-1550mm | ||
Capacity | 0.23M3-0.36M3 | ||
Weight | 280kg--320kg | ||
5. Multi-purpose Bucket Main Application Scenarios: This bucket is a jack-of-all-trades—it can help clean up worksites, move materials, and even shovel, load, or grab things like big stones and bushy undergrowth. Core Functions: Good for all kinds of jobs (shoveling, loading, gripping); you can open it to empty stuff and dump from higher up; it has a low-wear scraper edge that doesn’t wear out fast; and it comes with little teeth to hold onto loads better. |
| ||
Parameter | Value Range | ||
Width | 1150mm-1550mm | ||
Capacity | 0.23M3-0.36M3 | ||
Weight | 280kg--320kg | ||
