W1280
EPA Tier 4 Compact Wheel Loader
Compact structural design scheme
Reduced vertical gravity center
Constricted turning radius dimension
High-output functional performance
- Overview
- Technical data
- Configurations

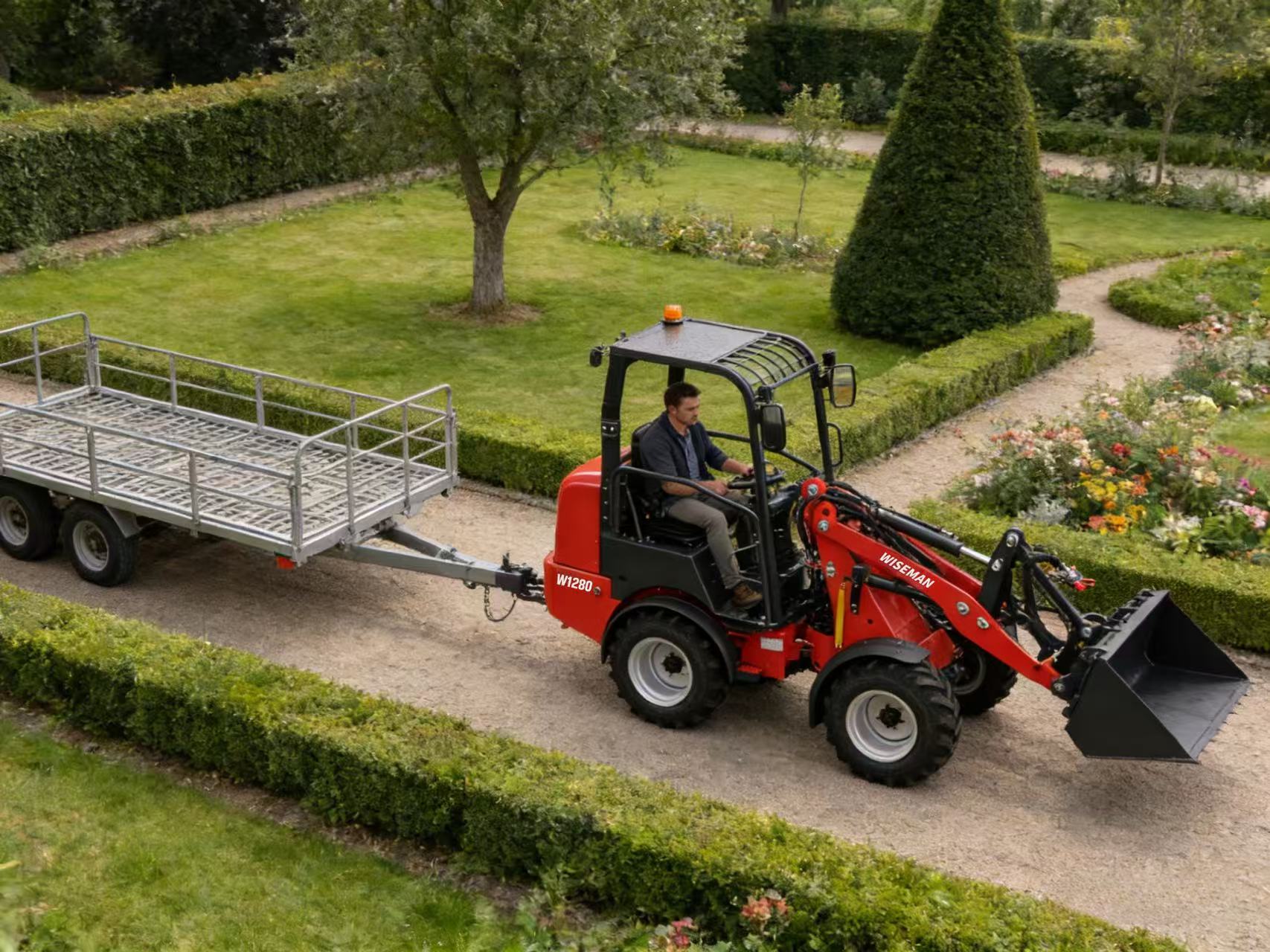

Master of Estate & Garden Logistics
For the meticulous upkeep of formal gardens, luxury estates, and manicured landscapes, the Wiseman loader is the ultimate tool for seamless material transport and groundskeeping.
Built for the demands of professional landscape teams and estate managers, the loader features intuitive controls and a comfortable operator station for all-day use, plus a rugged build that stands up to the varied tasks of estate maintenance. Whether you’re restocking garden supplies, transporting materials across sprawling grounds, or tackling small-scale landscaping projects, this loader turns logistical challenges into smooth, efficient work.
Product Specifications
Engine Rated Power (kw/HP)：18.4/25
Operating Weight (kg):2380-2550
Tipping Load with Bucket--Machine Straight (kg):1160-1690
Bucket Pivot Point :980-1440
Applications

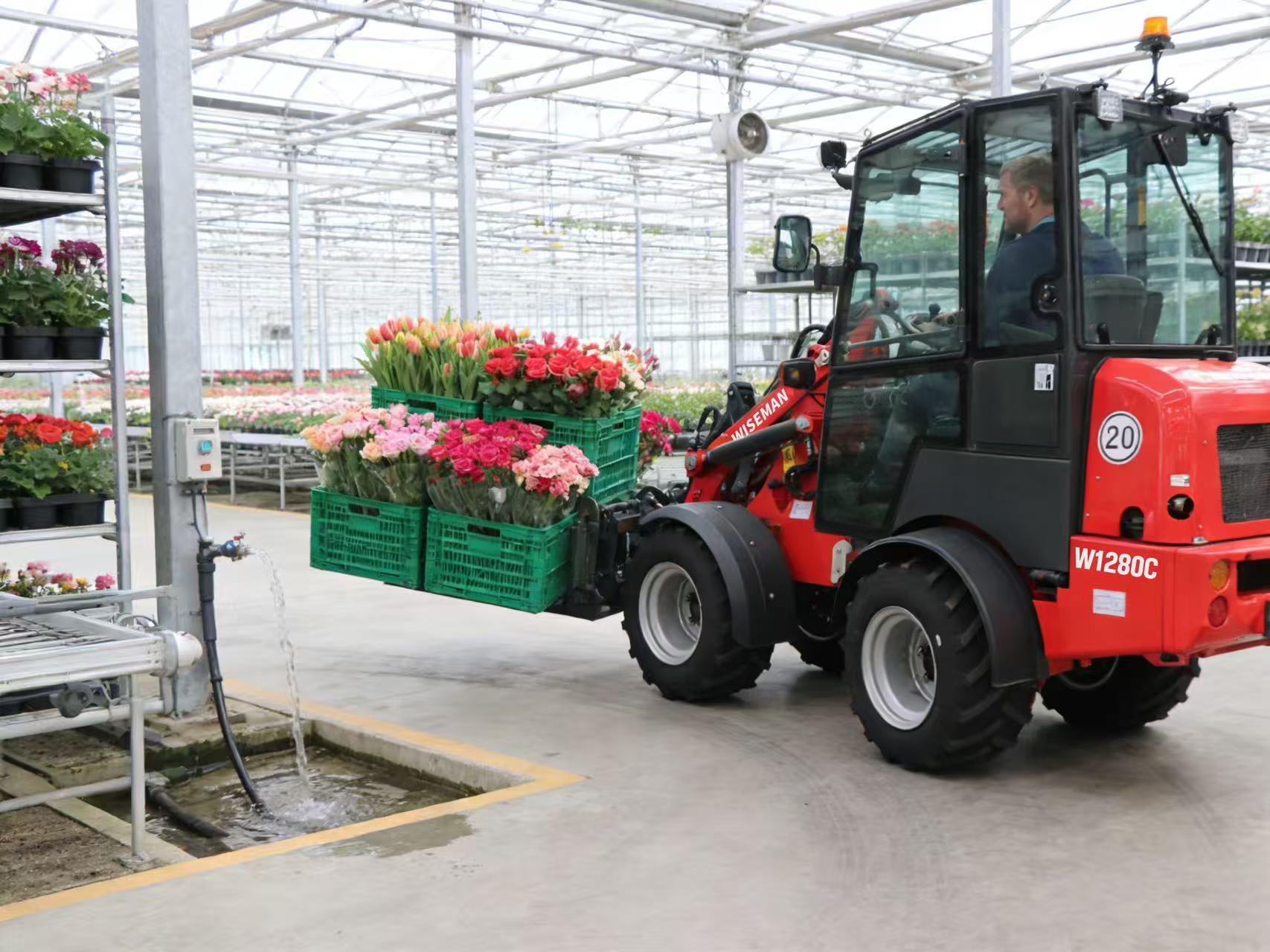

Compact Wheel Loader: Farm Greenhouse Potted Flower Pallet Haulage Fork-adaptable, greenhouse-agile, damage-free for delicate potted flower pallet transport |
|
Compact Wheel Loader for Manure Cleaning in RanchesNimble in ranch barn aisles, manure cleaner-equipped, enables efficient removal & haulage to keep ranch premises clean with no residue. |
|
W1280 Technical Data | |
Engine | |
Brand/Model | Kubota D1703 or D1505 |
Type: | 3 Cylinders or 4 Cylinders, Water Cooling |
Power Output (kw/HP) | 18.4/25 |
Emissios Standard | Euro V/ Tier 4 Final |
Driving System | |
Type of Drive | Hydrostatic |
Drive | Universal Joint Shaft |
Travel Speed ( km/h) | 0-15 |
Electrical System | |
Operating Voltage （V) | 12 |
Battery Capacity (Ah) | 60 |
Alternator Rating (Ah) | 40 |
Hydraulic System | |
Max.Drive Hydraulics Work Pressure (bar) | 320 |
Max. Drive Hydraulics Discharge Volume (l/min) | 72 |
Max. Work Hydraulics Work Pressure | 25Mpa |
Max. Work Hydraulics Discharge Volume (l/min) | 32 |
Weight | |
Operating Weight (kg) | 2380-2550 |
Tipping Load with Bucket--Machine Straight, | 1160-1690 |
Tipping Load with Bucket--Machine Pivoted, | 980-1440 |
Tipping Load with Pallet Fork--Machine Straight, | 890-1260 |
Tipping Load with Pallet Fork--Machine Pivoted, | 740-1080 |
Bucket Capacity (m3) | 0.28 |
Brake System | |
Operating Brake | Transmission Drum Brake |
Parking Brake | Operating and Parking Brake in the Drive Train |
Tyre Size (standard) | 31*15.5-15 |
| 1.Engine: KUBOTA D1105 (Euro 5), Optional: Perkins |
| 2.Hydraulic System: German Rexroth pump, Gerotor motor, domestic valves; 1 pump + 2 motors, Inching function |
| 3.Boom Function: Floating function (optional) |
| 4.Control System: Electronic control levers with integrated forward/reverse buttons 5.(High/Low speed optional) |
| 6.Brake Inching Function (optional) |
| 7.Seat Sensor (optional) |
| 8.Lights: Turn signals, LED work lights |
| 9.EU-standard Hydraulic Quick Coupler,Quick change, customization supported |
| 10.Tires: 31.5*15-15.5 |
| 11.Canopy: EPS,detachable, foldable, and closable. |
| 1. Stone Bucket Main Application Scenarios: Targeted at the collection of large stones in agricultural fields, construction sites, and landscaping gardens, with particular applicability to operational scenarios that demand the separation of stones from loose fine materials such as soil and sand. Core Functions Efficient Stone Pickup: Delivers precise capture of large stones to meet the on-site demand for stone removal; Screening & Separation: Features an integrated screening mechanism, where loose fine materials fall directly to the ground to realize the automatic separation of stones and fine-grained substances; Clear Observation: Facilitates easy visual inspection of loaded stones by operators, improving the overall accuracy of the operation. | ||
Parameter | Value Range | ||
Width | 1090mm | ||
Capacity | 0.22M3 | ||
Weight | 112kg | ||
2. Fork and Grab Main Application Scenarios: Targeted at loose pen clearance, the conveyance of round and square bales, and the management of loose materials such as green clippings and green waste in modern agricultural operations. Core Functions: Adopts a fork-structured top configuration with a single hydraulic cylinder for actuation; equipped with five 600mm tines to facilitate efficient material grabbing and transportation workflows. |
| ||
Parameter | Value Range | ||
Width | 860mm-930mm | ||
Length of Tines | 600mm-800mm | ||
Weight | 155kg--185kg | ||
| 3. Pallet Fork Main Application Scenarios: Targeted at the conveyance of diverse palletized goods such as boxed and bagged items, with broad applicability in logistics, agricultural storage, and construction material handling. Core Functions: Facilitates clear monitoring of loaded materials; equipped with dual hooks for enhanced load stability; offers adjustable tine width to adapt to varied pallet specifications. | ||
Parameter | Value Range | ||
Length | 1000mm | ||
Max.Load Capacity | 2000kg | ||
Weight | 160 kg - 210 kg | ||
4. Fold-down Pallet Fork Main Application Scenarios: Targeted at on-road travel (collapsed tines reduce equipment footprint) and the transportation of diverse palletized commodities in logistics and agricultural operations. Core Functions: Boasts foldable tine assemblies; enables clear monitoring of loaded materials; equipped with dual structural hooks; supports adjustable tine spacing for multi-pallet adaptation. |
| ||
Parameter | Value Range | ||
Length | 1000 mm | ||
Max.Load Capacity | 2000 kg | ||
Weight | 190 kg | ||
| 5. Load Hooks Main Application Scenarios: Targeted at the secure lifting and accurate placement of heavy loads like metal components and equipment fittings across manufacturing and construction sites. Core Functions: Delivers reliable heavy-load lifting performance; the fastener-equipped swivel hook supports rotation under load to enhance positioning accuracy; comes with three separate lifting points for operational flexibility. | ||
Parameter | Value Range | ||
Working Length | 1000 mm | ||
Load Capacity | 1.10 t | ||
