EU Stage V Compliant Wheel Loader

Space-saving construction

Reduced center of gravity

Narrow turning radius

Robust operational performance

Contact Now E-Mail Telephone WhatsApp

Overview
Technical data
Configurations
Attachments

Your Winter Essential

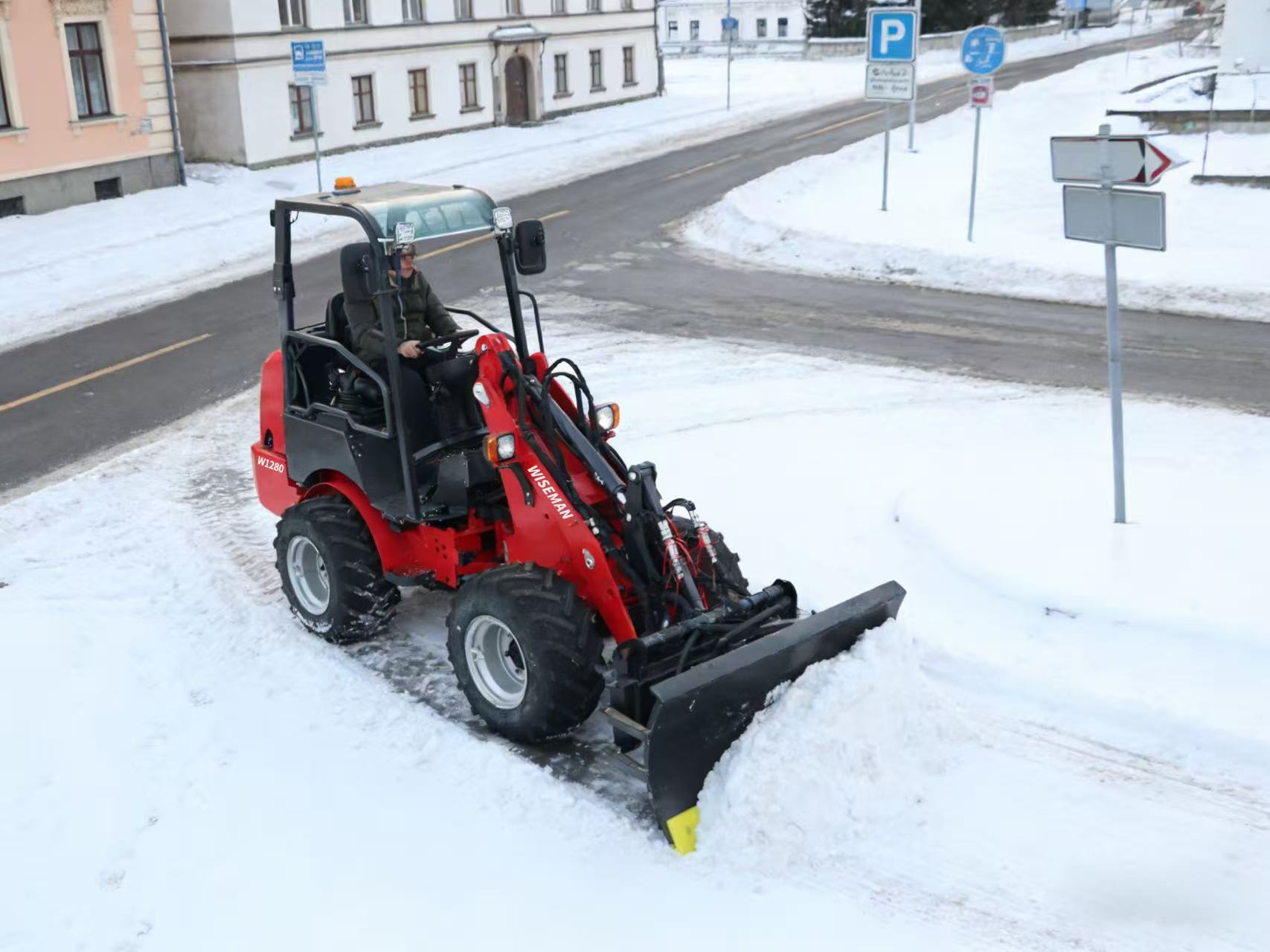

When snow and ice threaten to paralyze your streets, parking lots, and pathways, the Wiseman W1280 Compact Loader is your reliable partner for keeping spaces safe and accessible.

Beyond snow removal, the Wiseman W1280 is a year-round multi-tasker. Swap the plow for a bucket to handle debris, mulch, or gravel, making it ideal for municipalities, property managers, and small contractors. The open operator station offers unobstructed visibility, and intuitive controls let you work efficiently, whether you’re clearing a morning snowfall or prepping a site for spring.

EU Stage V Compliant Wheel Loader

Product Specifications

Engine Rated Power (kw/HP)：18.4/25

Operating Weight (kg):2380-2550

Tipping Load with Bucket--Machine Straight (kg):1160-1690

Bucket Pivot Point :980-1440

Learn More

Applications

Compact Wheel Loader: Garden Shrub & Thicket Pruning

Maneuverable, attachment-compatible, efficient for all garden landscaping pruning work.

EU Stage V Compliant Wheel Loader

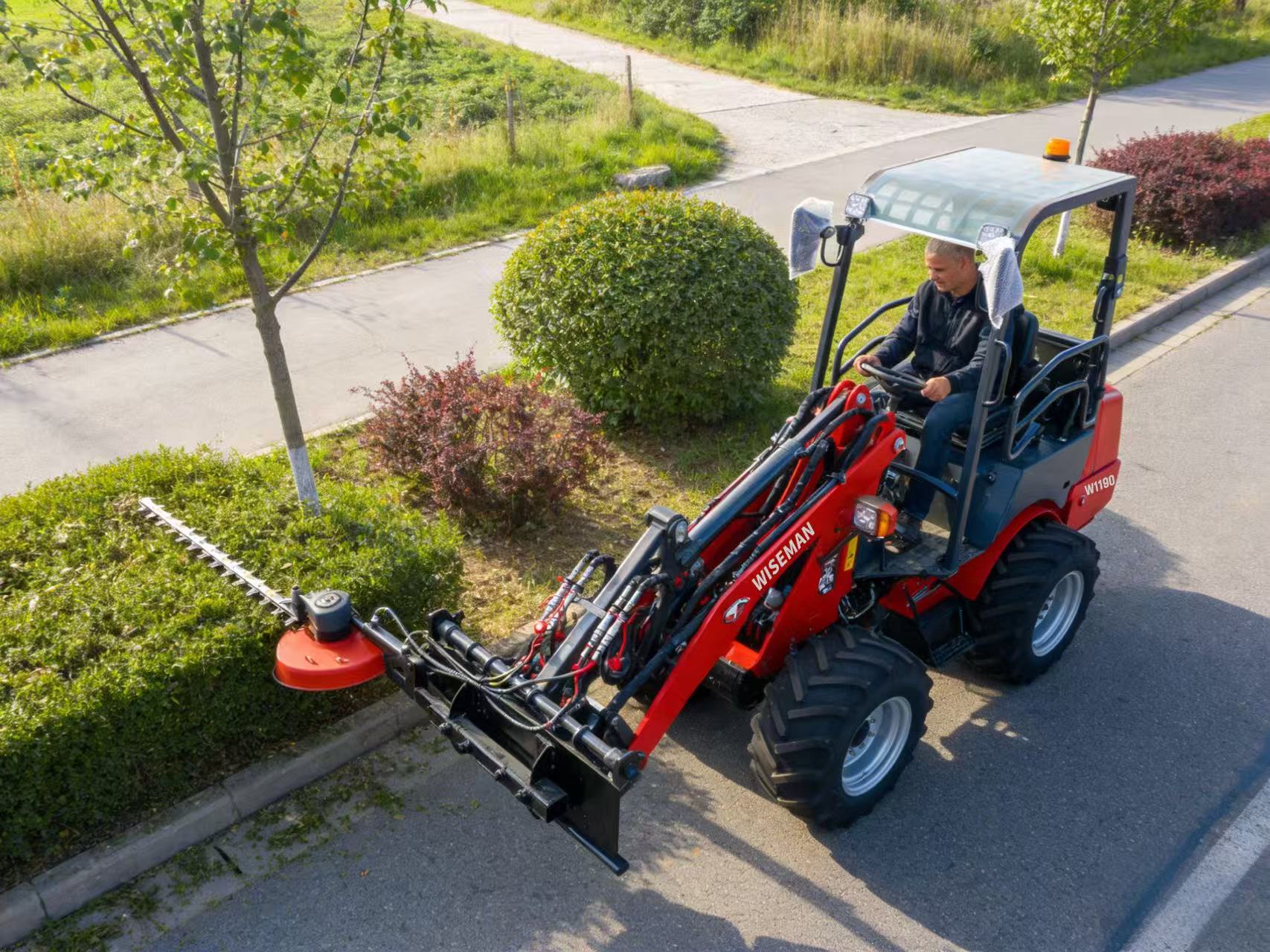

Compact Wheel Loader for Undergrowth Trimming in Landscape Gardening

Fitted with specialized trimming heads, nimble in green spaces, efficiently trims overgrown garden undergrowth for neat landscape maintenance.

EU Stage V Compliant Wheel Loader

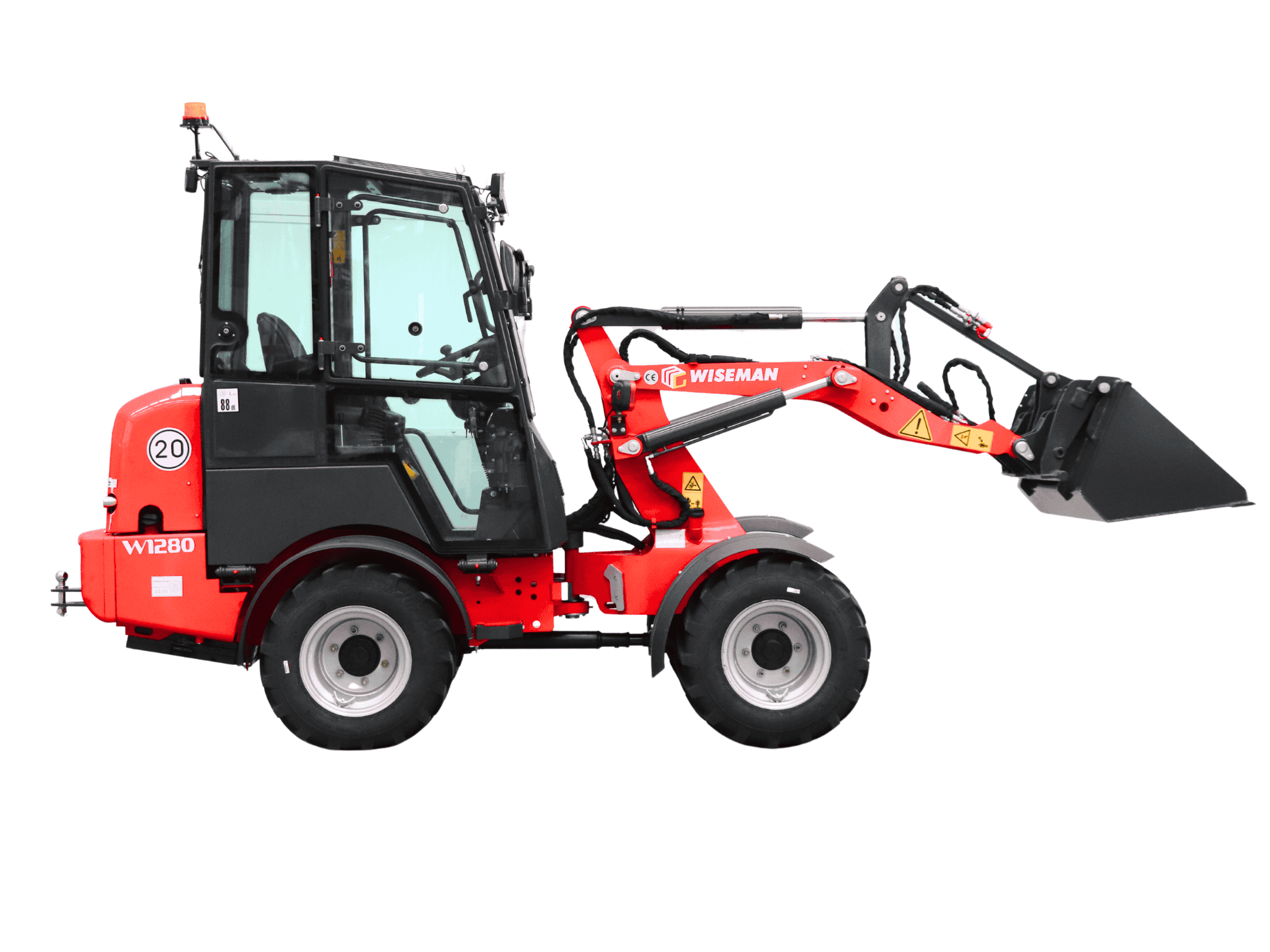

W1280 Technical Data
Engine
Brand/Model	Kubota D1703 or D1505
Type:	3 Cylinders or 4 Cylinders, Water Cooling
Power Output (kw/HP)	18.4/25
Emissios Standard	Euro V/ Tier 4 Final
Driving System
Type of Drive	Hydrostatic
Drive	Universal Joint Shaft
Travel Speed ( km/h)	0-15
Electrical System
Operating Voltage （V)	12
Battery Capacity (Ah)	60
Alternator Rating (Ah)	40
Hydraulic System
Max.Drive Hydraulics Work Pressure (bar)	320
Max. Drive Hydraulics Discharge Volume (l/min)	72
Max. Work Hydraulics Work Pressure	25Mpa
Max. Work Hydraulics Discharge Volume (l/min)	32
Weight
Operating Weight (kg)	2380-2550
Tipping Load with Bucket--Machine Straight, Loading Frame Horizontal (kg)	1160-1690
Tipping Load with Bucket--Machine Pivoted, Loading Frame Horizontal (kg)	980-1440
Tipping Load with Pallet Fork--Machine Straight, Loading Frame Horizontal (kg)	890-1260
Tipping Load with Pallet Fork--Machine Pivoted, Loading Frame Horizontal (kg)	740-1080
Bucket Capacity (m³)	0.28
Brake System
Operating Brake	Transmission Drum Brake
Parking Brake	Operating and Parking Brake in the Drive Train
Tyre Size (standard)	31*15.5-15

	1.Engine: KUBOTA D1105 (Euro 5), Optional: Perkins
	2.Hydraulic System: German Rexroth pump, Gerotor motor, domestic valves; 1 pump + 2 motors, Inching function
	3.Boom Function: Floating function (optional)
	4.Control System: Electronic control levers with integrated forward/reverse buttons 5.(High/Low speed optional)
	6.Brake Inching Function (optional)
	7.Seat Sensor (optional)
	8.Lights: Turn signals, LED work lights
	9.EU-standard Hydraulic Quick Coupler,Quick change, customization supported
	10.Tires: 31.5*15-15.5
	11.Canopy: EPS,detachable, foldable, and closable.

1. Feed Blade Main Application Scenarios: Pushing feed mixtures (e.g., silage, concentrate blends) on feeding tables in livestock farms. Core Functions: Hydraulically driven for wide-angle plate adjustment; left/right pivoting to alter pushing direction.
Parameter	Value Range
Width	1800 mm - 2200 mm
Max. Adjustable Angle	70°
Weight	225 kg
		2. Bale Fork Main Application Scenarios: Transporting and stacking round/square bales (hay bales, straw bales), compatible with pallet fork frames. Core Functions: Mountable on pallet fork frames; equipped with 2 tapered tines for grabbing and transporting bales.
		Parameter	Value Range
		Width	1130 mm
		Weight	65 kg
3. Round Bale Tong Main Application Scenarios: Transporting and stacking film-wrapped round bales. Core Functions: Grabs bales without causing damage, ensuring bale integrity is maintained.
Parameter	Value Range
Width	1400mm
Weight	158 kg
		4. Fence Mower Main Application Scenarios: Thorough trimming of weeds and shrubs around fence posts, suitable for fence maintenance in farms, pastures, and municipal green belts. Core Functions: Clean trimming around fence posts; eliminates the need for manual trimming; hydraulically adjustable from transport to working position via the driver’s cab.
		Parameter	Value Range
		Weight	220 kg
5. Double-blade Mowing Unit Main Application Scenarios: Side trimming of hedges and multi-position cutting operations, ideal for hedge shaping in garden maintenance and municipal greening projects. Core Functions: Capable of cutting or mowing in three different positions; supports side mowing of hedges.
Parameter	Value Range
Width	1500 mm
Weight	200 kg
