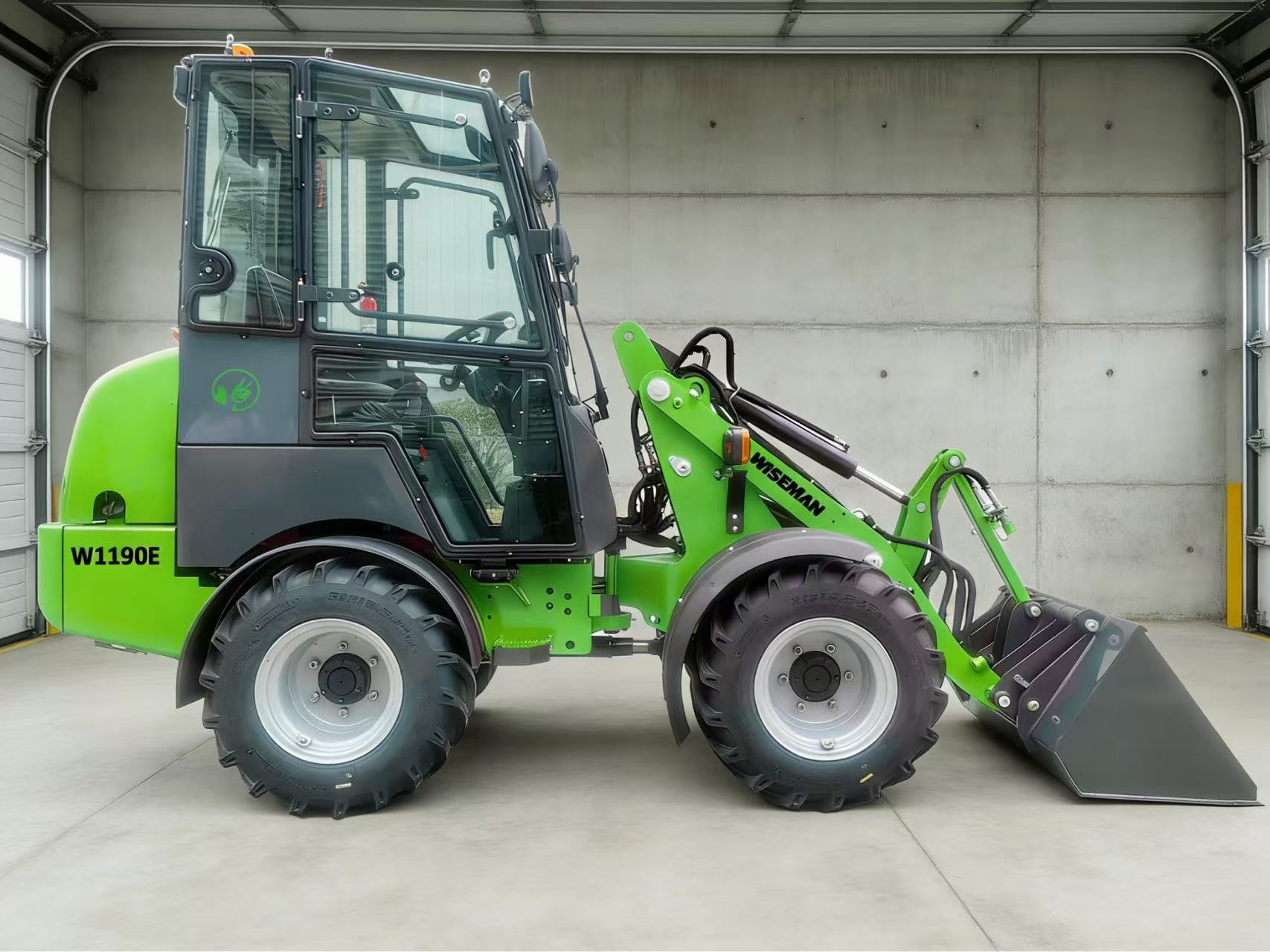

Compact Loader for Livestock Farm

Space-saving construction

Reduced center of gravity

Narrow turning radius

Robust operational performance

Contact Now E-Mail Telephone WhatsApp

Overview
Configurations
Attachments

Your Ultimate Jobsite Workhorse

When your construction, landscaping, or industrial project demands speed, precision, and uncompromising reliability, the Wiseman Compact Loader stands ready to deliver.

Step into the fully enclosed, climate-controlled operator cabin, and you’ll find ergonomic seating, panoramic visibility, and intuitive controls that reduce fatigue during long shifts. Every detail, from the durable steel chassis to the energy-efficient engine, is engineered to withstand the toughest daily use, so you can count on it to perform, shift after shift.

Compact Loader for Livestock Farm

Product Specifications

Battery Configuration: 14.4kWh high-performance battery

Hydraulic System: 18MPa hydraulic system

Hydraulic Flow: 36L/min

Continuous Working Time: 3.5 hours (uninterrupted)

Learn More

Applications

Compact Wheel Loader: Hassle-Free Transport

Compact body design enables easy loading onto trucks/trailers, perfect for flexible on-site relocation and cross-project transportation.

4. Bale Handling

Ranch Feed Scooping & Precision Discharging – Compact Wheel Loader

This compact wheel loader is optimized for ranch feed handling, navigating tight spaces around barns and feeding troughs with ease. It smoothly scoops silage, hay, pellet feed and grains, with precise discharging to feeding troughs, slashing manual labor for ranch feeding routines.

4. Bale Handling

	1.Engine: KUBOTA D1105 (Euro 5), Optional: Perkins
	2.Hydraulic System: German Rexroth pump, Gerotor motor, domestic valves; 1 pump + 2 motors, Inching function
	3.Boom Function: Floating function (optional)
	4.Control System: Electronic control levers with integrated forward/reverse buttons 5.(High/Low speed optional)
	6.Brake Inching Function (optional)
	7.Seat Sensor (optional)
	8.Lights: Turn signals, LED work lights
	9.EU-standard Hydraulic Quick Coupler,Quick change, customization supported
	10.Tires: 31.5*15-15.5
	11.Canopy: EPS,detachable, foldable, and closable.

		1. Stone Bucket Main Application Scenarios: Ideal for collecting large stones in fields, construction sites, gardens, etc., especially for separating stones from loose fine materials (e.g., soil, sand). Core Functions: - Efficient Stone Collection: Precisely grabs large stones to meet on-site stone cleaning requirements; - Screening & Separation: Built-in sieving function allows loose fine materials to fall directly to the ground, realizing automatic separation of stones and fine particles; - Clear Visibility: Enables operators to easily monitor loaded stones, improving operational accuracy.
		Parameter	Value Range
		Width	1090mm
		Capacity	0.22M3
		Weight	112kg
2. Fork and Grab Main Application Scenarios: Cleaning loose livestock pens; transporting round/square bales; handling loose materials like green cuttings and green waste.Core Functions: Fork-shaped top structure powered by one hydraulic cylinder; 5 tines total (600mm in length) for grabbing and transporting materials.
Parameter	Value Range
Width	860mm-930mm
Length of Tines	600mm-800mm
Weight	155kg--185kg
		3. Pallet Fork Main Application Scenarios: Transporting various palletized goods (e.g., boxed, bagged items).Core Functions: Clear visibility of loaded materials; equipped with 2 hooks and adjustable tine width.
		Parameter	Value Range
		Length	1000mm
		Max.Load Capacity	2000kg
		Weight	160 kg - 210 kg
4. Fold-down Pallet Fork Main Application Scenarios: Road transportation (folded tines reduce space occupancy); moving various palletized goods.Core Functions: Foldable tines; unobstructed view of loaded materials; 2 hooks included; adjustable tine width.
Parameter	Value Range
Length	1000 mm
Max.Load Capacity	2000 kg
Weight	190 kg
		5. Load Hooks Main Application Scenarios: Safe lifting and precise positioning of heavy loads (e.g., metal parts, equipment accessories).Core Functions: Enables safe hoisting of heavy items; swivel hook with fastener can rotate under load (facilitating precise positioning); 3 different lifting points available.
		Parameter	Value Range
		Working Length	1000 mm
		Load Capacity	1.10 t
