Product Introduction

Our Compact Loader for Mountain Farm with Log Grapple Attachment meets EU standards and is designed for mountain farms in the Alps. It efficiently clamps and transports small logs, firewood and other forest products. The log grapple's strong clamping force ensures safe transportation, and the loader's 4WD system provides stable performance on mountainous terrain. The durable structure withstands harsh outdoor conditions, making this combination a practical tool for mountain farm forest management.

Wheel Loader for Farm

Product Specifications

Engine Rated Power (kw/HP)：18.4/25

Operating Weight (kg):2380-2550

Tipping Load with Bucket--Machine Straight (kg):1160-1690

Bucket Pivot Point :980-1440

Learn More

Applications

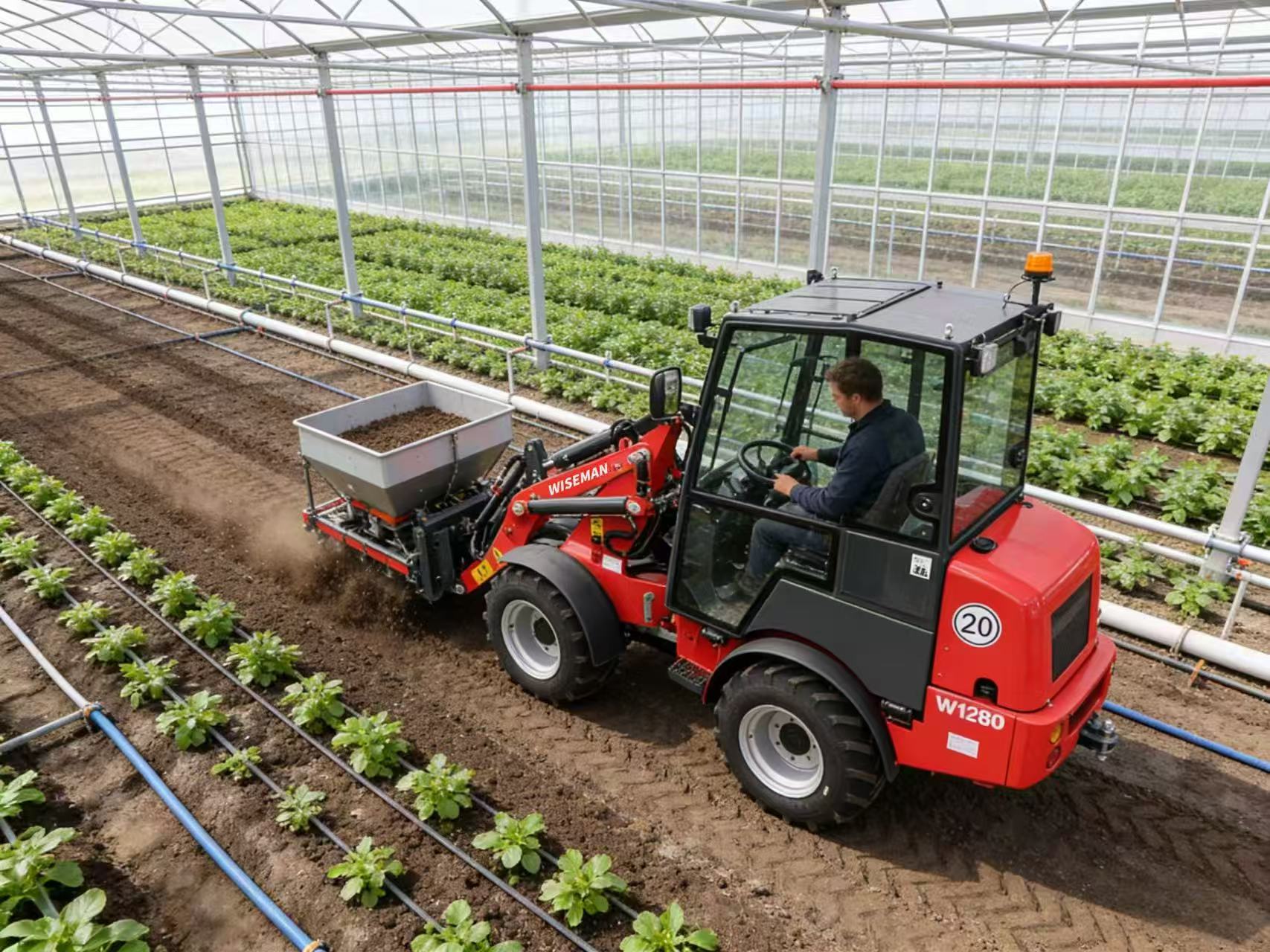

Compact Wheel Loader for Greenhouse Soil Loosening

Agile in narrow greenhouse aisles, tiller attachment fitted, seedling-safe shallow cultivation, boosts soil aeration for greenhouse planting.

Wheel Loader for Farm

Compact Wheel Loader for Farm Soil Loosening

Agile in farm ridges and fields, tiller attachment fitted, crop root-safe shallow cultivation, boosts soil fertility for field planting.

Wheel Loader for Farm

W1280C Technical Data
Engine
Brand/Model	Kubota D1703 or D1505
Type:	3 Cylinders or 4 Cylinders, Water Cooling
Power Output (kw/HP)	18.4/25
Emissios Standard	Euro V/ Tier 4 Final
Driving System
Type of Drive	Hydrostatic
Drive	Universal Joint Shaft
Travel Speed ( km/h)	0-15
Electrical System
Operating Voltage （V)	12
Battery Capacity (Ah)	60
Alternator Rating (Ah)	40
Hydraulic System
Max.Drive Hydraulics Work Pressure (bar)	320
Max. Drive Hydraulics Discharge Volume (l/min)	72
Max. Work Hydraulics Work Pressure	25Mpa
Max. Work Hydraulics Discharge Volume (l/min)	32
Weight
Operating Weight (kg)	2380-2550
Tipping Load with Bucket--Machine Straight, Loading Frame Horizontal (kg)	1160-1690
Tipping Load with Bucket--Machine Pivoted, Loading Frame Horizontal (kg)	980-1440
Tipping Load with Pallet Fork--Machine Straight, Loading Frame Horizontal (kg)	890-1260
Tipping Load with Pallet Fork--Machine Pivoted, Loading Frame Horizontal (kg)	740-1080
Bucket Capacity (m³)	0.28
Brake System
Operating Brake	Transmission Drum Brake
Parking Brake	Operating and Parking Brake in the Drive Train
Tyre Size (standard)	31*15.5-15

	1.Engine: KUBOTA D1505 or D1703 (Euro 5),
	2.Hydraulic System: German Rexroth pump, Rexroth motor, wolve valve1 pump + 1 motor, Inching function
	3.Boom Function: Floating function (optional)
	4.Control System: Electronic control levers with integrated forward/reverse buttons 5. (High/Low speed optional)
	6.Brake Inching Function (optional)
	7.Seat Sensor (optional)
	8.Lights: Turn signals, LED work lights
	9.EU-standard Hydraulic Quick Coupler
	10.Tires: 31.5×15-15
	11.Canopy: EPS

1. Lightweight Bucket Square Main Application Scenarios: Shoveling and moving light materials such as sawdust, hay, and plastic pellets.Core Functions: The bucket’s top edge is parallel to the bottom for effortless operation; material handling capacity is boosted by an extended bottom and raised sidewalls; equipped with a low-wear scraper edge.
Parameter	Value Range
Width	870mm-1050mm
Capacity	0.28M3-0.54M3
Weight	110kg-150kg
		2.Lightweight Bucket Round Main Application Scenarios: Scooping and hauling large volumes of light materials like silage, straw, and wood chips, ideal for scenarios where material leakage must be reduced.Core Functions: Reinforced design tailored for light materials; top edge of the bucket is aligned with the bottom for easy maneuvering; capacity is enhanced by an extended bottom and reinforced curved sidewalls, with overflow protection to minimize leakage; low-wear scraper edge is replaceable if needed.
		Parameter	Value Range
		Width	870mm-1050mm
		Capacity	0.28M3-0.54M3
		Weight	110kg-150kg
3. Fork and Grab Main Application Scenarios: Gripping and transporting loose materials including silage, manure, wood chips, and green waste.Core Functions: High gripping force provided by two cylinders; side parts of the bucket are detachable; fitted with a low-wear scraper edge.
Parameter	Value Range
Width	860mm-930mm
Length of Tines	600mm-800mm
Weight	155kg--185kg
		4. Pallet Fork Main Application Scenarios: Gripping and conveying loose materials such as silage, manure, wood chips, and green waste.Core Functions: Two cylinders deliver strong gripping force; side parts of the bucket can be removed; comes with a low-wear scraper edge.
		Parameter	Value Range
		Length	1000mm
		Max.Load Capacity	2000kg
		Weight	160 kg - 210 kg
5. Fold-down Pallet Fork Main Application Scenarios: Multi-scene operations such as site cleaning and material transfer, enabling shoveling, loading, and grabbing (e.g., large stones, undergrowth).Core Functions: Adaptable to multi-scene operations (shoveling, loading, grabbing); openable for emptying to increase dumping height; equipped with a low-wear scraper edge and teeth.
Parameter	Value Range
Length	1000 mm
Max.Load Capacity	2000 kg
Weight	190 kg
