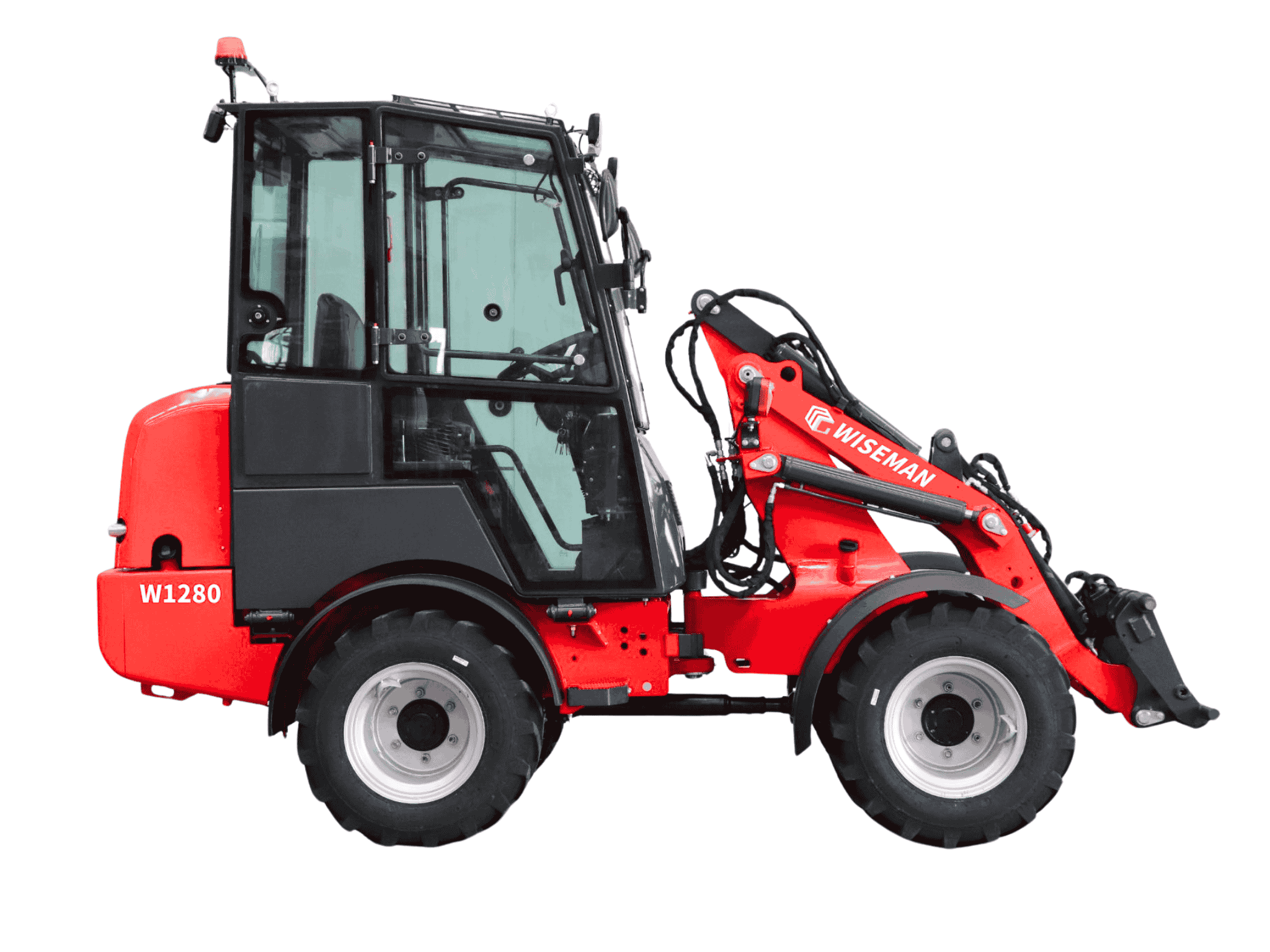

W1280
Perfect Agriculture Wheel Loader
Compact design
Multi-function
Outstanding power output
- Overview
- Technical data
- Configurations
Product Introduction
Known as Kompakter Radlader für kleine Höfe in German, our compact loader with Bucket Attachment is tailored for small farms in Germany. Meeting EU Stage V environmental standards, it handles various farm tasks such as soil loading, crop transportation and material stacking. The loader's compact size fits small farm spaces, and the low fuel consumption design reduces operational costs. The easy-to-operate control system makes it suitable for farmers of all experience levels, providing reliable support for daily farm management.
Product Specifications
Engine Rated Power (kw/HP)：18.4/25
Operating Weight (kg):2380-2550
Tipping Load with Bucket--Machine Straight (kg):1160-1690
Bucket Pivot Point :980-1440
Applications

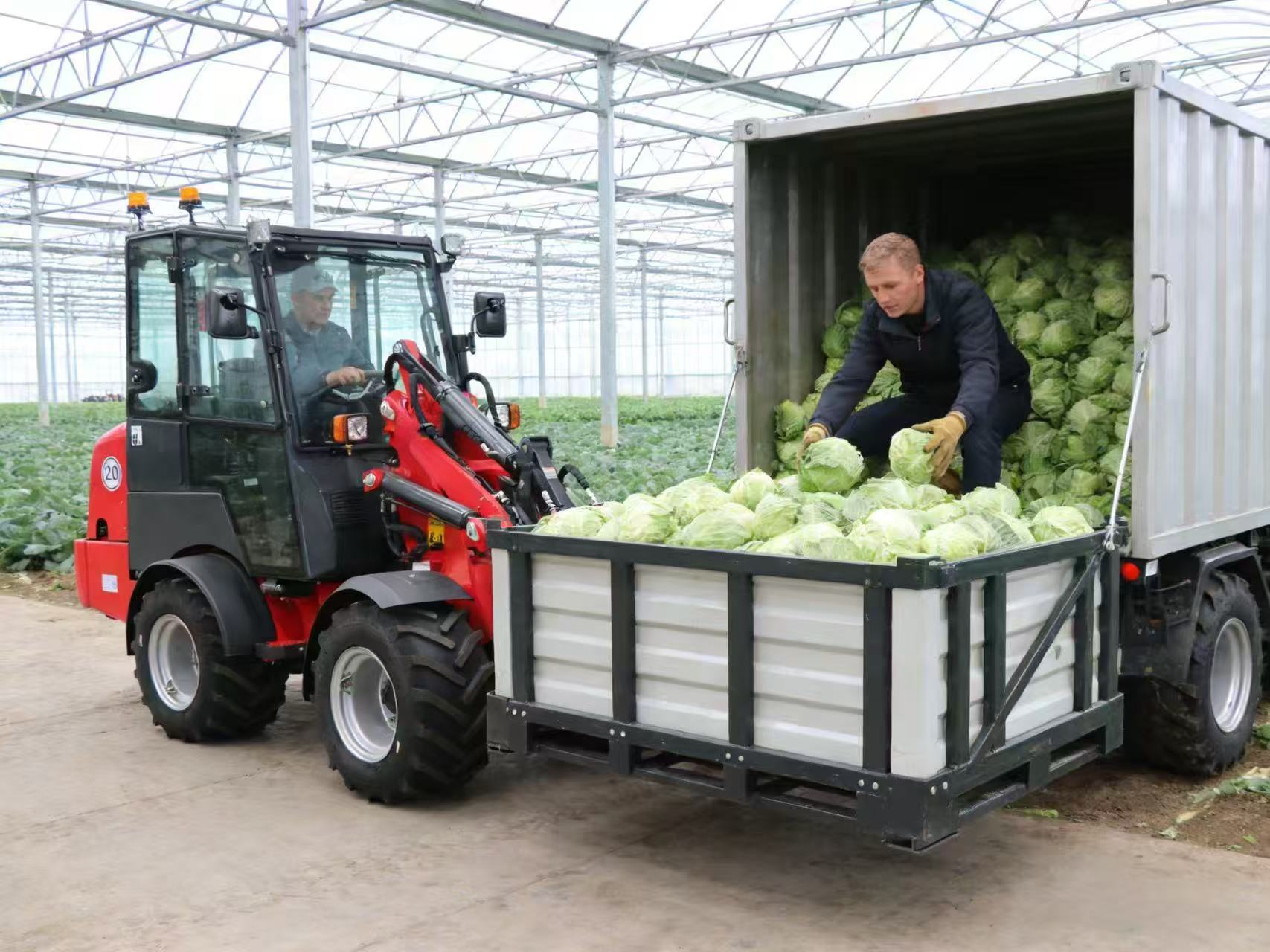

Compact Wheel Loader for Vegetable Transport in Farm GreenhousesAgile in narrow greenhouse aisles, gentle handling for fresh veggies, damage-free to seedlings, streamlining greenhouse harvest and delivery workflows. |
|

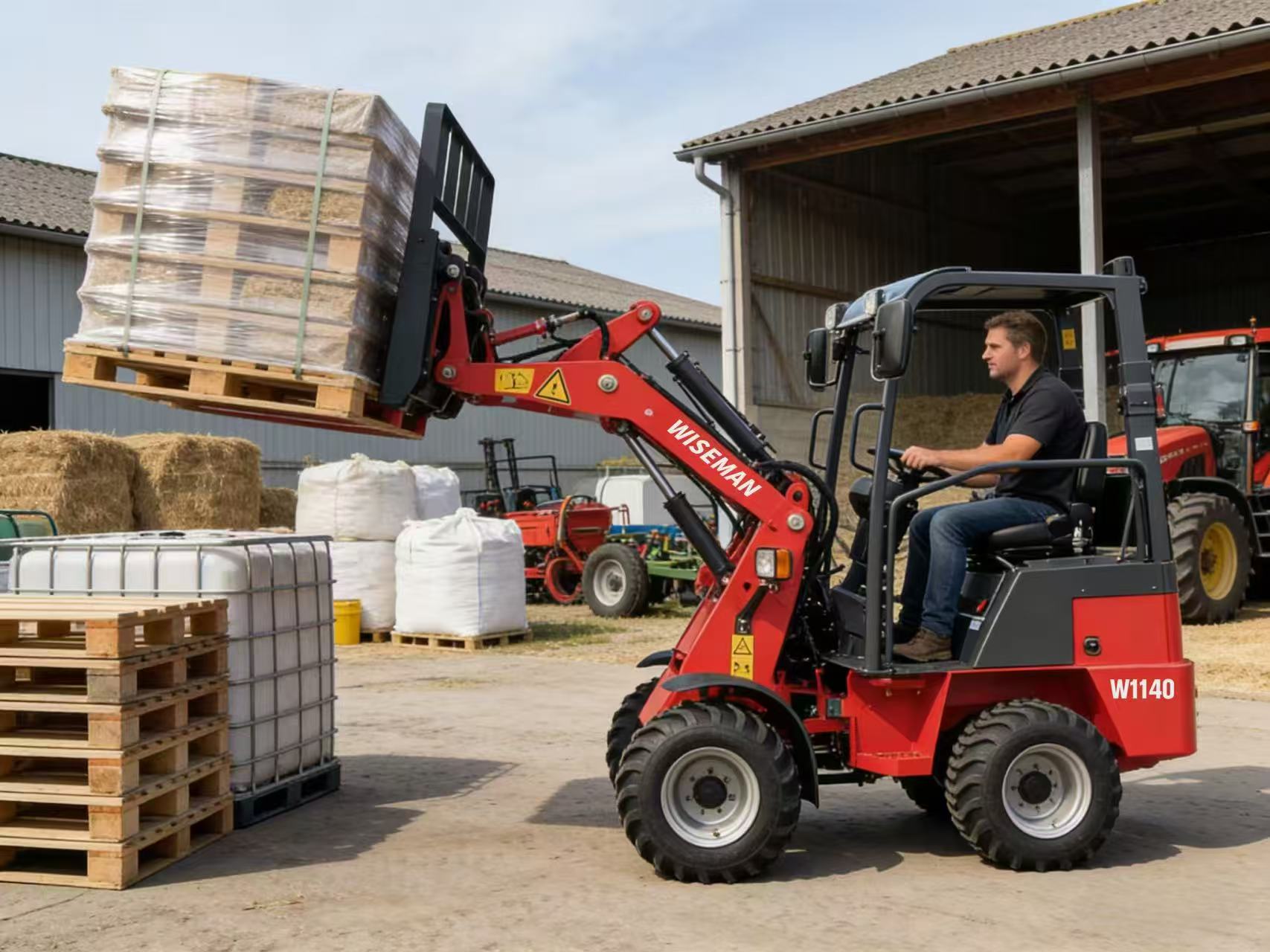

Compact Wheel Loader for Farm Pallet HandlingFarm-terrain agile, pallet fork-equipped, stable load transport, streamlining all farm palletized material moving workflows. |
|
W1280 Technical Data | |
Engine | |
Brand/Model | Kubota D1703 or D1505 |
Type: | 3 Cylinders or 4 Cylinders, Water Cooling |
Power Output (kw/HP) | 18.4/25 |
Emissios Standard | Euro V/ Tier 4 Final |
Driving System | |
Type of Drive | Hydrostatic |
Drive | Universal Joint Shaft |
Travel Speed ( km/h) | 0-15 |
Electrical System | |
Operating Voltage （V) | 12 |
Battery Capacity (Ah) | 60 |
Alternator Rating (Ah) | 40 |
Hydraulic System | |
Max.Drive Hydraulics Work Pressure (bar) | 320 |
Max. Drive Hydraulics Discharge Volume (l/min) | 72 |
Max. Work Hydraulics Work Pressure | 25Mpa |
Max. Work Hydraulics Discharge Volume (l/min) | 32 |
Weight | |
Operating Weight (kg) | 2380-2550 |
Tipping Load with Bucket--Machine Straight, | 1160-1690 |
Tipping Load with Bucket--Machine Pivoted, | 980-1440 |
Tipping Load with Pallet Fork--Machine Straight, | 890-1260 |
Tipping Load with Pallet Fork--Machine Pivoted, | 740-1080 |
Bucket Capacity (m3) | 0.28 |
Brake System | |
Operating Brake | Transmission Drum Brake |
Parking Brake | Operating and Parking Brake in the Drive Train |
Tyre Size (standard) | 31*15.5-15 |
| 1.Engine: KUBOTA D1505 or D1703 (Euro 5),
|

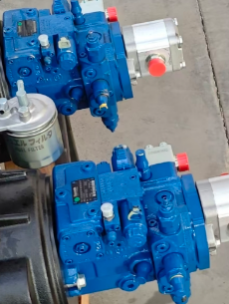

| 2.Hydraulic System: German Rexroth pump, Rexroth motor, Wolff valve; 1 pump +1 motor, Inching function |
| 3.Boom Function: Floating function |
| 4.Control System: Electronic control levers with integrated forward /reverse buttons (High/Low speed ) |
| 5.Brake Inching Function (optional) |
| 6.Seat Sensor (optional) |
| 7.Lights: Turn signals, LED work lights |
| 8.EU-standard Hydraulic Quick Coupler |
| 9.Tires: 31*15.5-15 |
| 10.Canopy: EPS |
| 1. Stone Bucket Main Application Scenarios: Suitable for picking up large stones in fields, construction sites, gardens, etc., especially for separating stones from loose fine materials (e.g., soil, sand). Core Functions:
- Precise Stone Pickup: Accurately grabs large stones to meet the demand of site stone cleaning; - Sorting & Screening: Equipped with a sieve function, loose fine materials fall directly to the ground to realize automatic separation of stones and fine materials;
- Easy Observation: Allows operators to easily monitor loaded stones, improving operational accuracy. | ||
Parameter | Value Range | ||
Width | 1090mm | ||
Capacity | 0.22M3 | ||
Weight | 112kg | ||
2. Fork and Grab
Core Functions: Fork-shaped top structure powered by one hydraulic cylinder; 5 tines total (600mm long) for material grabbing and transportation. |
| ||
Parameter | Value Range | ||
Width | 860mm-930mm | ||
Length of Tines | 600mm-800mm | ||
Weight | 155kg--185kg | ||
| 3. Pallet Fork
Core Functions: Clear view of loaded materials; equipped with 2 hooks and adjustable tine width. | ||
Parameter | Value Range | ||
Length | 1000mm | ||
Max.Load Capacity | 2000kg | ||
Weight | 160 kg - 210 kg | ||
4. Fold-down Pallet Fork
Core Functions: Retractable tines; clear visibility of loaded materials; 2 hooks included; adjustable tine width. |
| ||
Parameter | Value Range | ||
Length | 1000 mm | ||
Max.Load Capacity | 2000 kg | ||
Weight | 190 kg | ||
| 5. Load Hooks
Core Functions: Enables safe lifting of heavy loads; swivel hook with fastener can rotate under load (assisting precise positioning); 3 different lifting points available. | ||
Parameter | Value Range | ||
Working Length | 1000 mm | ||
Load Capacity | 1.10 t | ||
