Compact Wheel Loader Manufacturer

Space-saving construction

Reduced center of gravity

Narrow turning radius

Robust operational performance

Contact Now E-Mail Telephone WhatsApp

Overview
Configurations
Attachments

Power Meets Precision for Every Jobsite

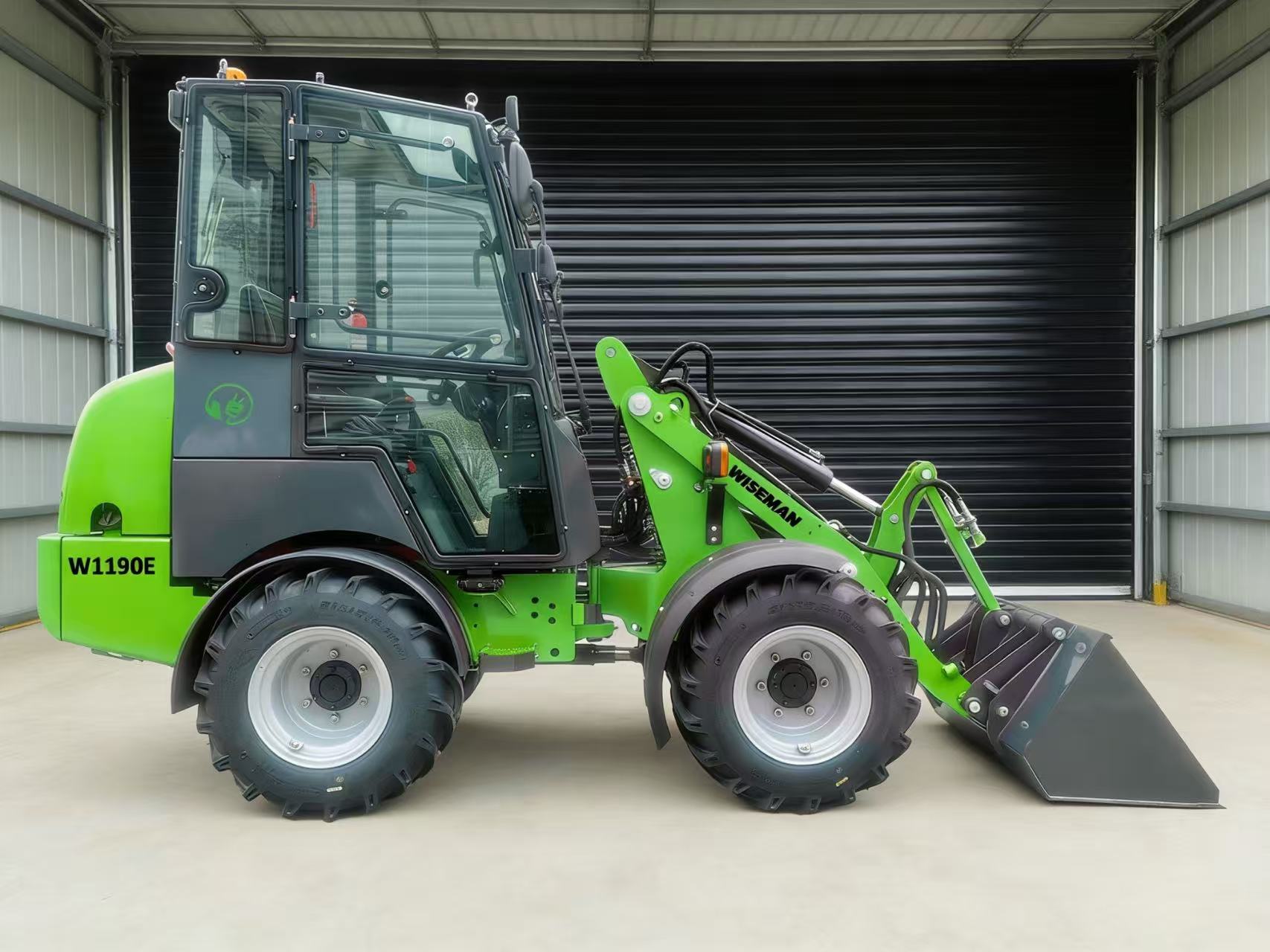

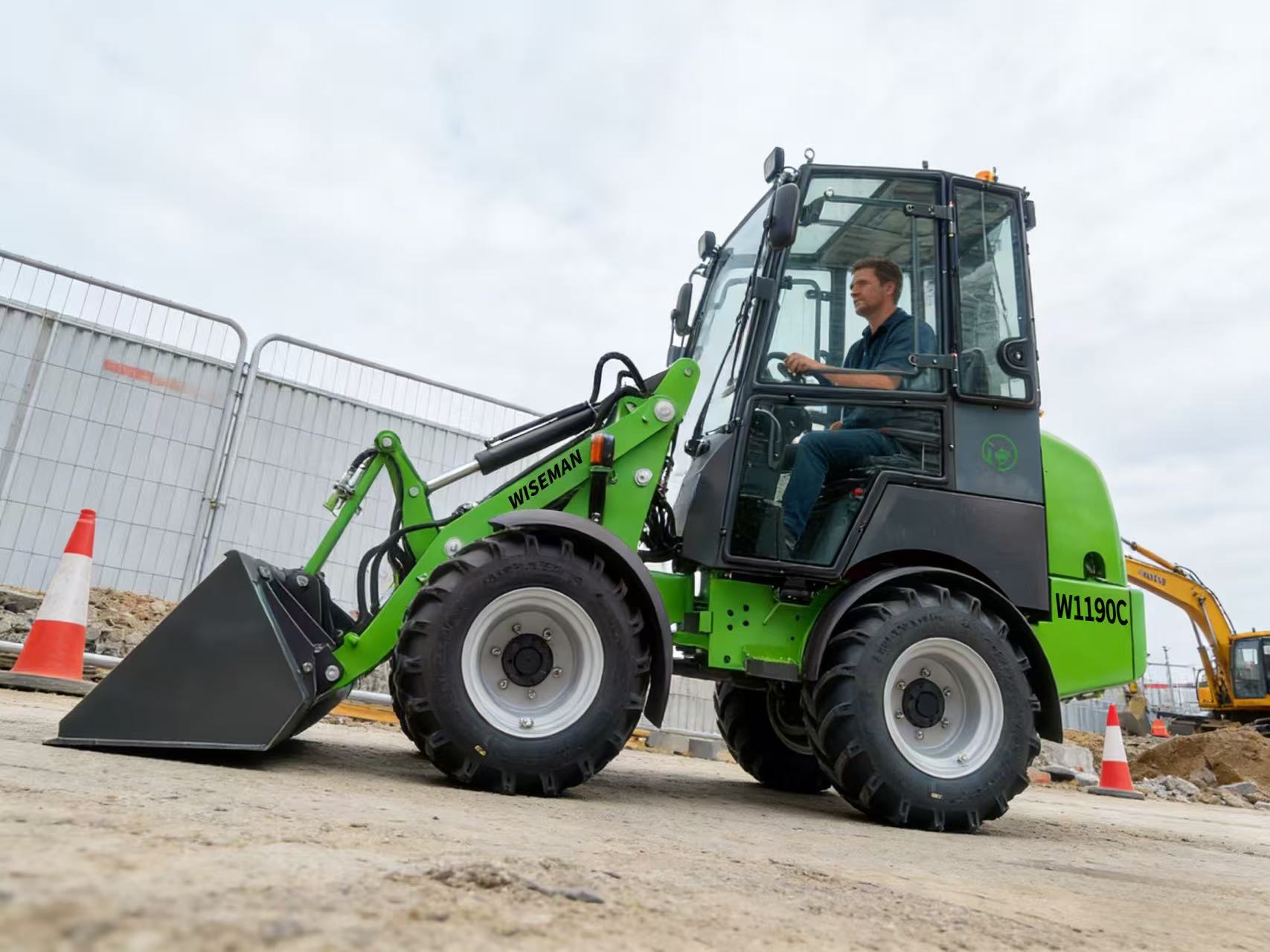

When your construction, landscaping, or industrial project demands a machine that balances raw power with nimble agility, the Wiseman W1190C Compact Loader delivers.

Step into the fully enclosed, climate-controlled operator cabin, and you’ll find ergonomic seating, panoramic visibility, and intuitive controls that keep you comfortable and focused during long shifts. Built with a durable steel chassis and an energy-efficient engine, the W1190C is engineered to withstand daily heavy use, ensuring reliable performance project after project.

Compact Wheel Loader With Quick Attach

Product Specifications

Battery Configuration: 14.4kWh high-performance battery

Hydraulic System: 18MPa hydraulic system

Hydraulic Flow: 36L/min

Continuous Working Time: 3.5 hours (uninterrupted)

Learn More

Applications

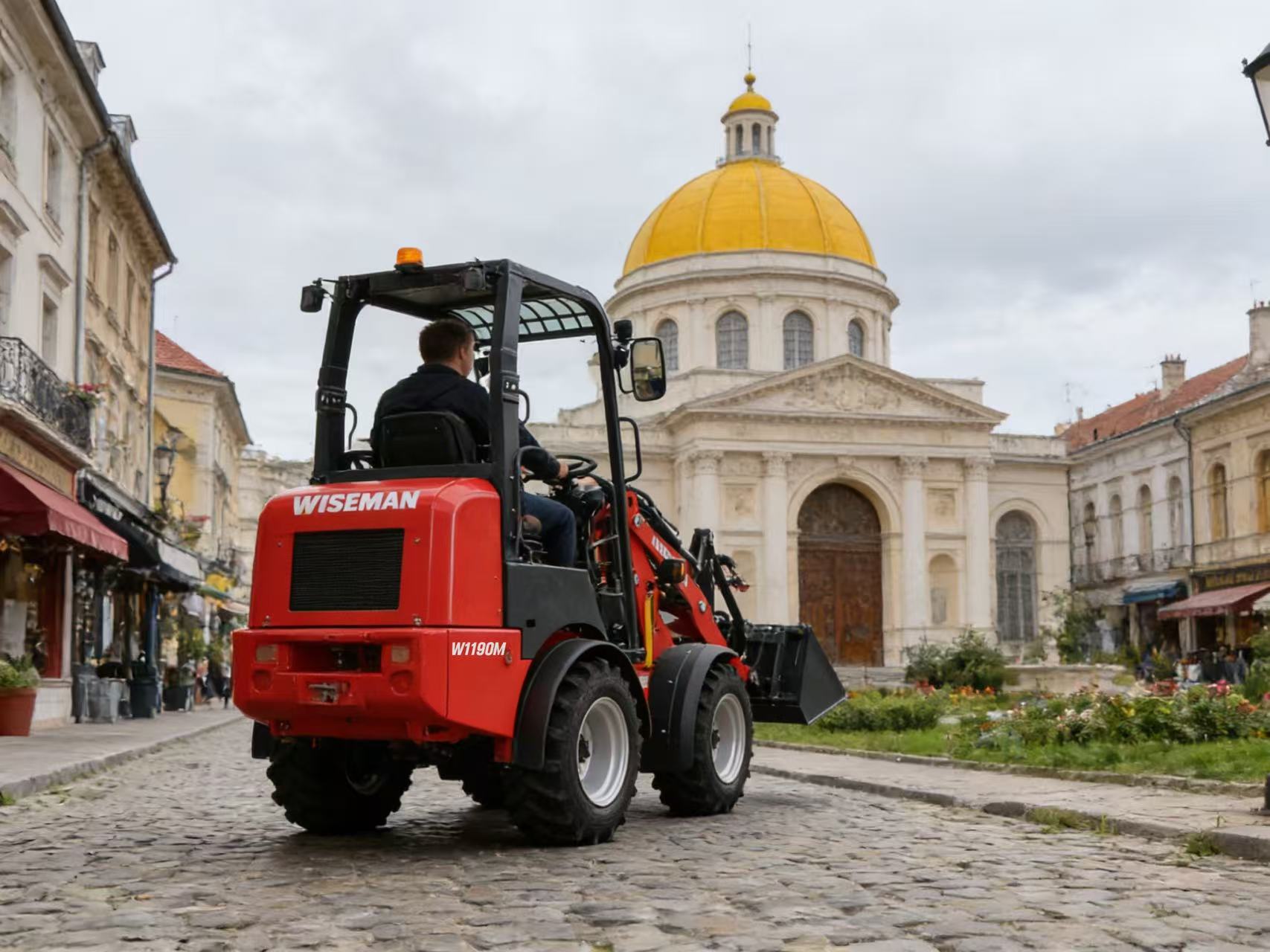

Compact Wheel Loader for Urban Municipal Works

Agile in urban narrow spaces, efficient for municipal infrastructure, road care and construction site tidying operations.

Compact Wheel Loader With Quick Attach

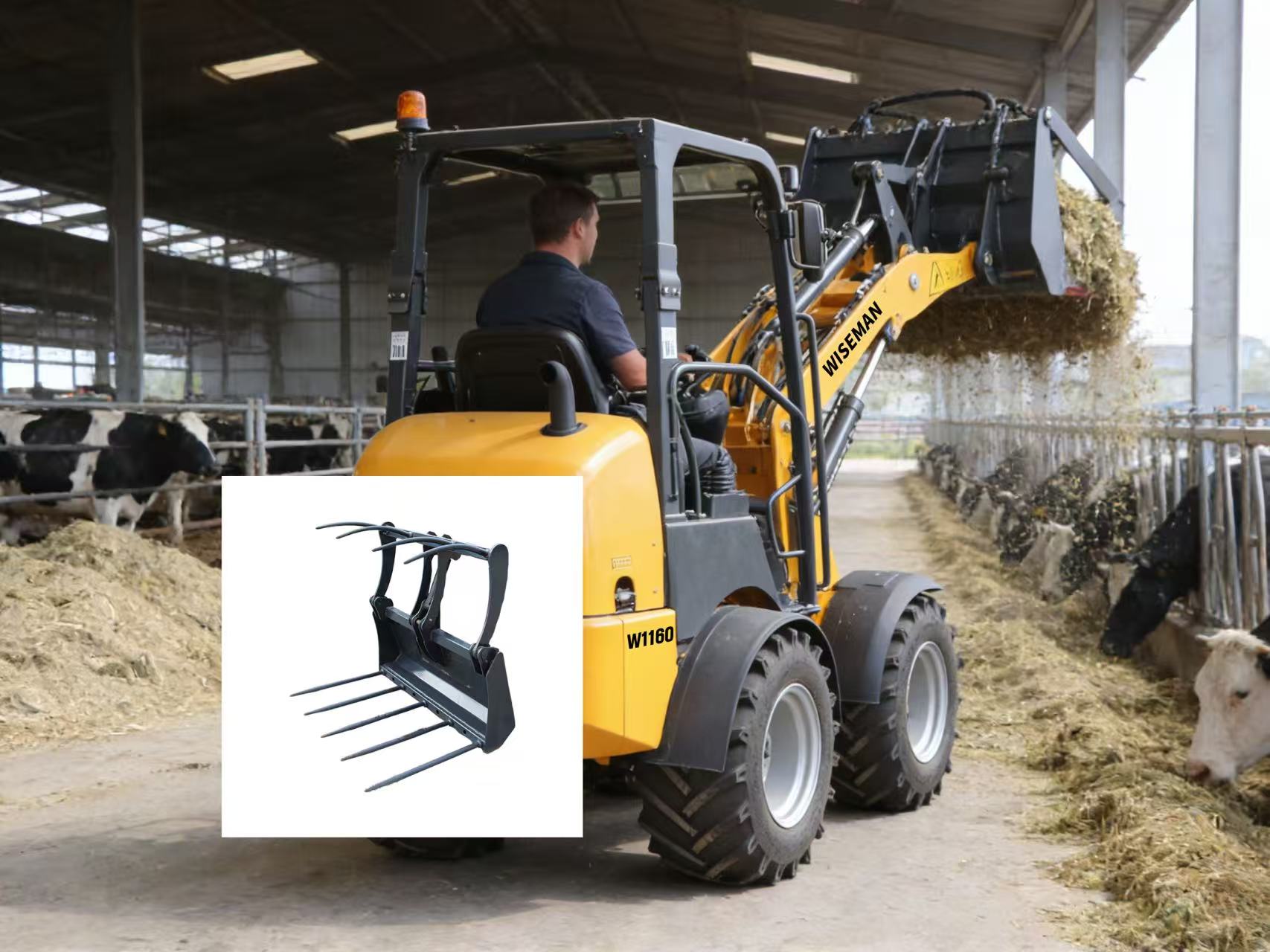

Compact Wheel Loader for Livestock Feed Scooping on Ranches

Nimble in ranch feeding areas, efficiently scoops all livestock feed types to streamline daily feeding work.

Compact Wheel Loader With Quick Attach

	1.Engine: KUBOTA D1105 (Euro 5), Optional: Perkins
	2.Hydraulic System: German Rexroth pump, Gerotor motor, domestic valves; 1 pump + 2 motors, Inching function
	3.Boom Function: Floating function (optional)
	4.Control System: Electronic control levers with integrated forward/reverse buttons 5.(High/Low speed optional)
	6.Brake Inching Function (optional)
	7.Seat Sensor (optional)
	8.Lights: Turn signals, LED work lights
	9.EU-standard Hydraulic Quick Coupler,Quick change, customization supported
	10.Tires: 31.5*15-15.5
	11.Canopy: EPS,detachable, foldable, and closable.

		1. Rubber Blade Main Application Scenarios: Cleaning slatted floors in livestock farms (e.g., manure, feed residues); stripping and cleaning oil-contaminated asphalt and concrete surfaces (e.g., workshop, parking lot floors). Core Functions: Removes residual debris from slatted floors; strips oil stains and contaminants from ground surfaces.
		Parameter	Value Range
		Width	1200 mm - 1500 mm
		Weight	85 kg - 160 kg
2. Sweeper Main Application Scenarios: Cleaning ground debris (e.g., dust, scraps, fallen leaves) in warehouses, farm passages, and construction sites; can be quickly deployed during loading intervals. Core Functions: Excellent cleaning performance; compatible with pallet fork (standard) or bucket (optional) connection; easy tool attachment for quick switching.
Parameter	Value Range
Width	1250 mm - 1550 mm
Weight	150 kg-180kg
		3.Sweeping Machine Main Application Scenarios: Suitable for cleaning open areas such as yards, factory roads, cycle lanes, and parking lots, meeting daily debris removal needs. Core Functions: - Scene Adaptability: Designed for open-area cleaning, efficiently sweeping various scattered debris; - Standard Practical Components: Equipped with a built-in debris collection tray to gather swept materials.
		Parameter	Value Range
		Width	1250 mm - 1550 mm
		Weight	190 kg-220 kg
4. Snow Blade Main Application Scenarios: Snow removal on roads, courtyards, and factory premises, suitable for outdoor winter snow clearing. Core Functions: Equipped with a hydraulic swiveling device; roller level compensation (with height indicator) and stepless adjustment of wheels/skids for precise snow clearing; elastic edge protection to prevent damage to curbs and buildings.
Parameter	Value Range
Width	1300 mm - 1550 mm
Road-clearing Width at 30°	1115 mm - 1320 mm
Weight	167 kg - 183 kg
		5. Earth Borer Main Application Scenarios: Ground drilling for fence post installation, tree planting, and sign fixing, suitable for agricultural, municipal, and gardening fields. Core Functions: Multiple drill sizes available to fulfill different drilling requirements.
		Parameter	Value Range
		Length	1240 mm
		Drill Diameter	∅152 mm-∅305 mm
		Weight	173 kg - 197 kg
6.Logging Fork Main Application Scenarios: Suitable for clearing scattered branches and short log sections to organize work sites, and can also complete short-distance loading, unloading, and transportation of logs with a diameter of 100-300mm. Core Functions: Compatible with compact loaders, firmly clamps small and medium-sized logs and branches, effectively preventing material slippage during transportation and ensuring operational stability.
Parameter	Value Range
Dimension（LXWXH)	1323mmX804mmX828mm
Weight	172 kg
