W1140E
Compact Front Loader
Small-footprint compact design
Low center of gravity (for better balance)
Tiny turning radius (great for tight spots)
Strong and powerful working performance
- Overview
- Technical data
- Configurations
W1140E Compact Loader: Equipment for Winter Site Snow Clearance
Suitable for winter site snow clearance, the W1140E Compact Loader has electric zero emissions and low-temperature adaptability, with a 72V/200Ah battery supporting 6-hour fast charging. Its 1950KG operating weight enhances ground adhesion; the hydraulic quick-change coupler matches a snow plow to efficiently clear site snow. The 800KG tipping load provides strong snow-pushing force, and the 0.23m³ bucket assists in clearing residual snow, ensuring winter site traffic safety.
Product Specifications
Battery Voltage (V) : 51.2
Operating Weight (kg): 1950
Tipping Load with Bucket--Machine Straight (kg): 800
Bucket Pivot Point: 520 mm
Applications

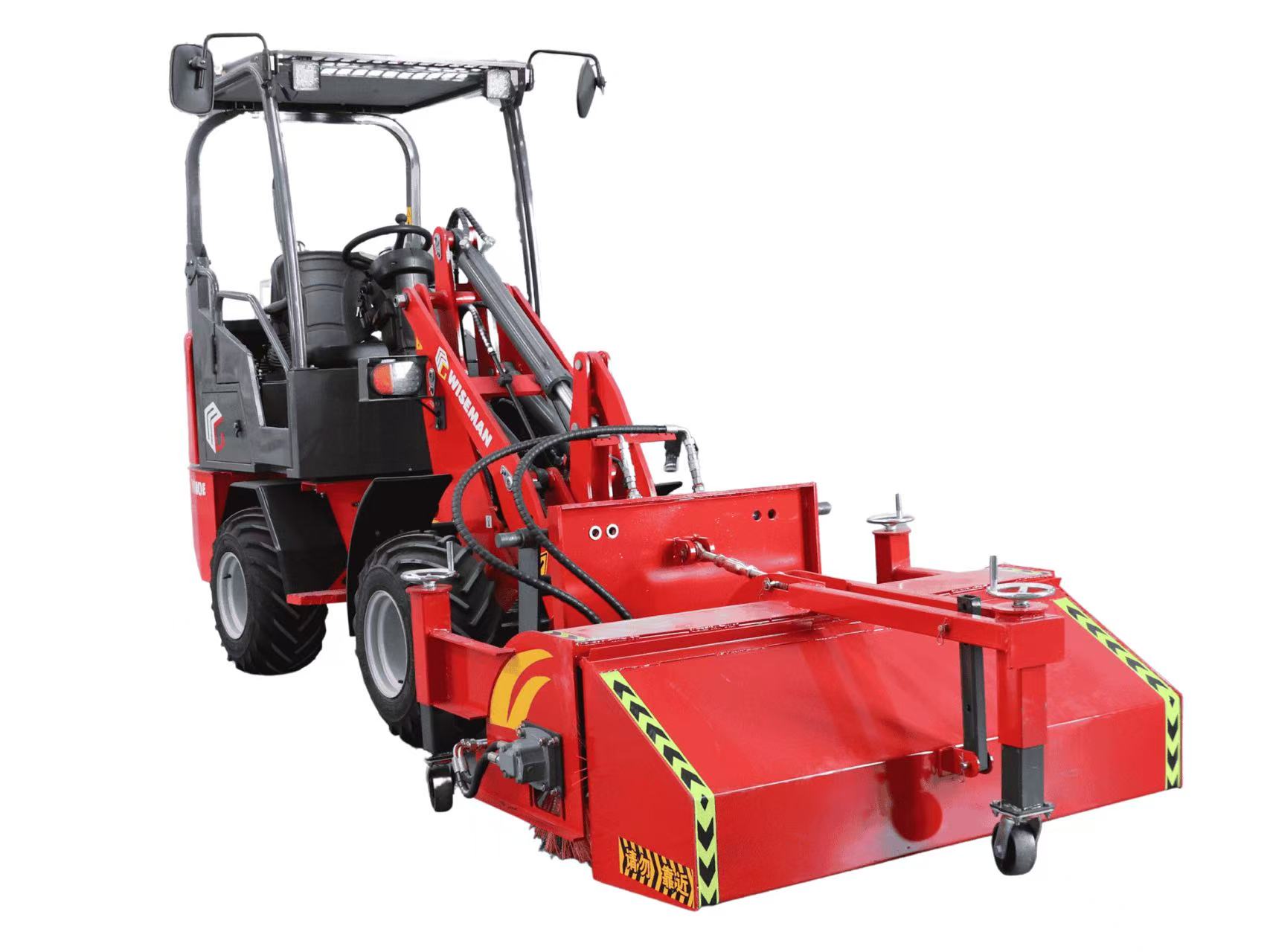

1、Cleaning Compact loaders accept a wide range of attachments—sweepers, high-pressure washers, and brushes included—to tackle all categories of dirt. Weed removal is made simple via mechanical means with a weed broom, enabling you to sustain a consistently clean environment for your property and production system. |
|

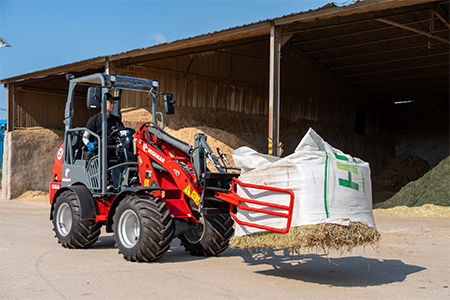

2、Handling bales Handling round, square, or silo bales is a core daily task for farm operations. To accommodate the wide variety of bale types, compact loaders are available with a curated range of bale handlers and bale tongs, ensuring you can select the ideal tool for every bale-handling scenario. |
|
3、Shifting slats For operations involving navigation of barn slatted floors and material pushing on these surfaces, certain loaders (specifically the 1140 or 1160 models) are the top choice, owing to their lightweight build and compact dimensions. To complete the setup, compact loaders offer a rubber pusher blade as a compatible and purpose-built attachment. |
|
4、Compiling piles For sawmill storage area operations, handling delivered tree trunks stacked in length-specific piles is a core daily task. When selecting a work machine for this role, the unit must feature absolute stability, high payload capacity, and a generous telescopic arm reach to meet operational demands. |
|
Technical Data for W1140E Electric Compact Loader | |
Battery Type | Lead Acid |
Battery Voltage | 51.2 V |
Total Power of Electric Motor | 412 Ah |
Battery Charging Time | 6 hour |
Bucket Capacity | 0.23 m3 |
Max.Lifting Weight | 950 kg |
Max. Travel Speed | 0-15 km/h |
Max.Dumping Angle | 35° |
Bucket Width (Overall Width) | 1300 mm |
Wheel Track | 910 mm |

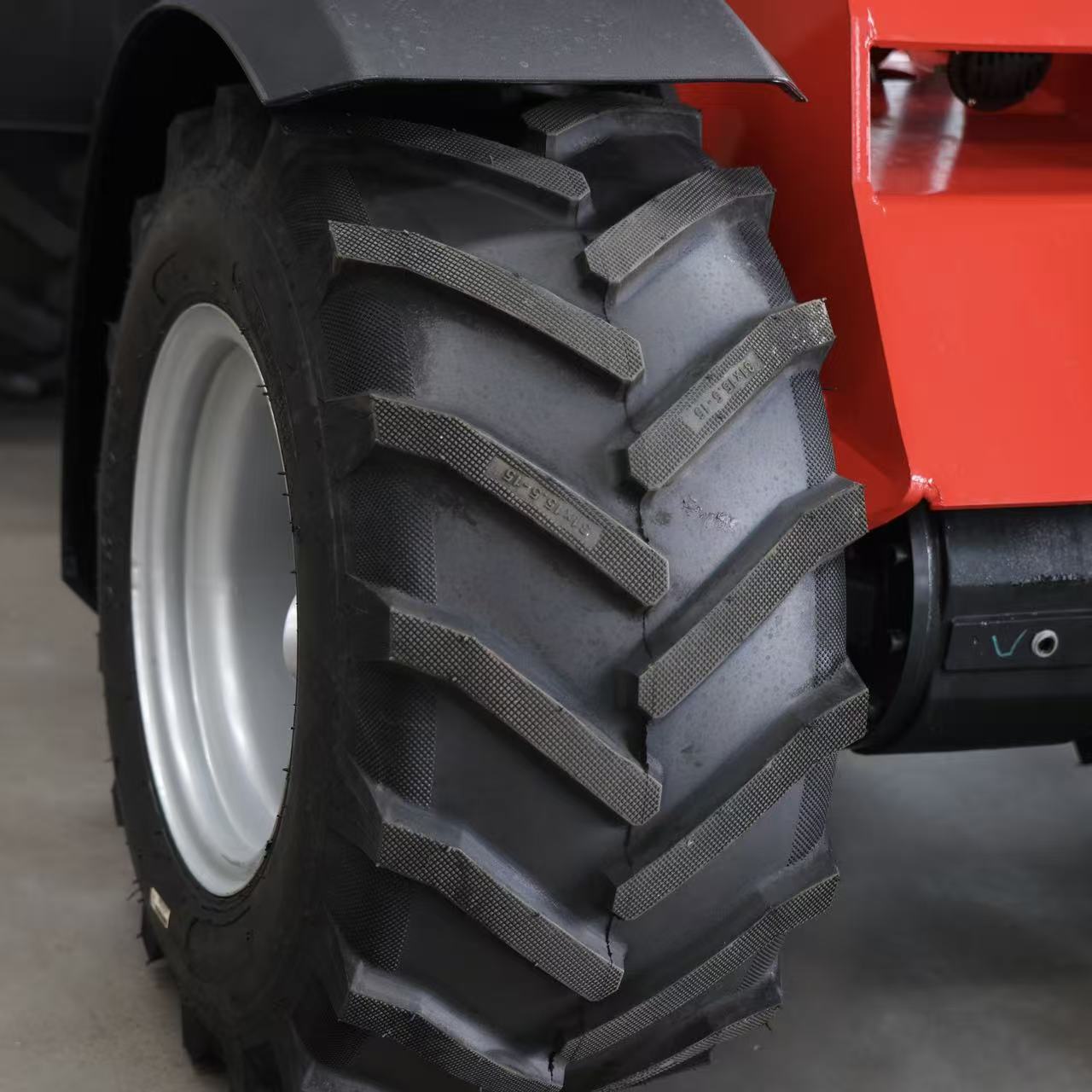

Tyre Size | 31x15.5-15 |
Min. Ground Clearance | 180 mm |
Net Weight | 1650 kg |
Overall Length with Bucket | 3640 mm |
Overall Length without Bucket | 2700 mm |
Bucket Pivot Point to the Centre of Axle | 520 mm |
Wheel Base | 1328 mm |
Rear Overhang | 770 mm |
Height to the Roof of Canopy | 2110 mm |

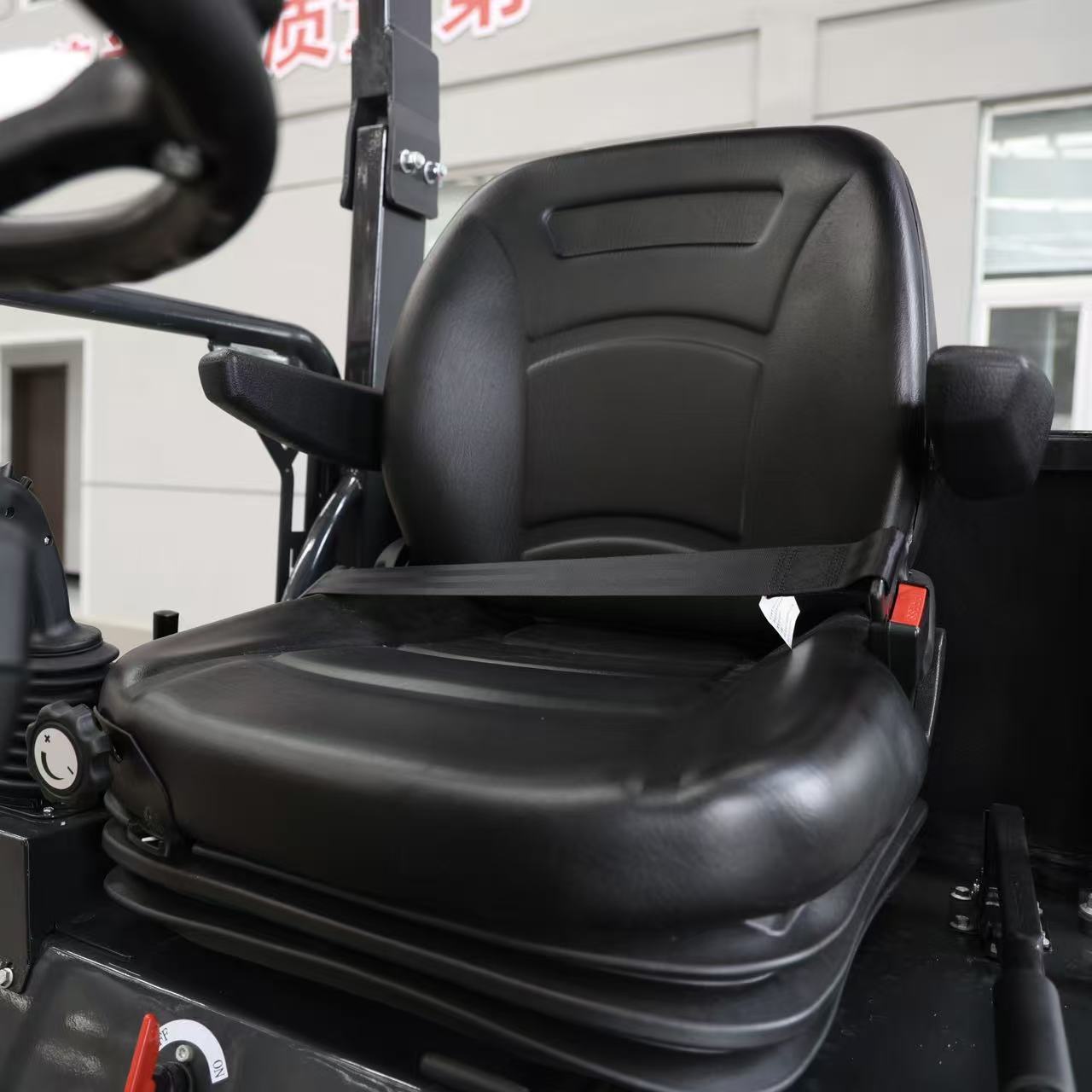

Seat Height | 1100 mm |
Overall Working Height | 3080 mm |
Max. Lifting Height | 2640 mm |
Load-Over Height | 2285 mm |
Dumping Height | 2030 mm |
Overall Width | 1300 mm |
Max. Turning Radius | 2235 mm |
Outter Turning Radius | 2020 mm |
Inner Turning Radius | 860 mm |
Articulation Angle | 51° |
Roll Back Angle at Max. Lifting Height | 52° |
Dumping Angle | 35° |

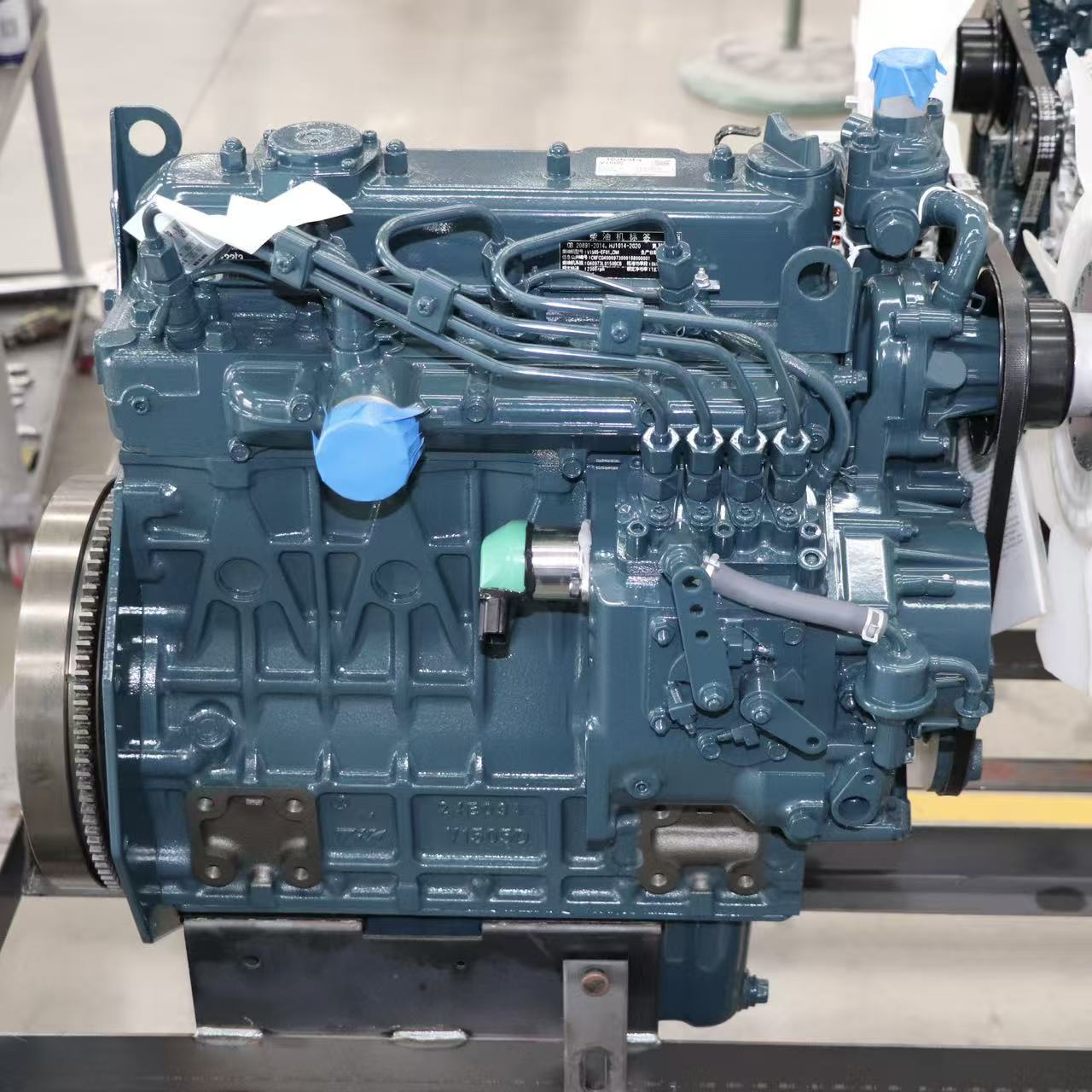

| 1.Engine: KUBOTA D1105 (Euro 5), Optional: Perkins |

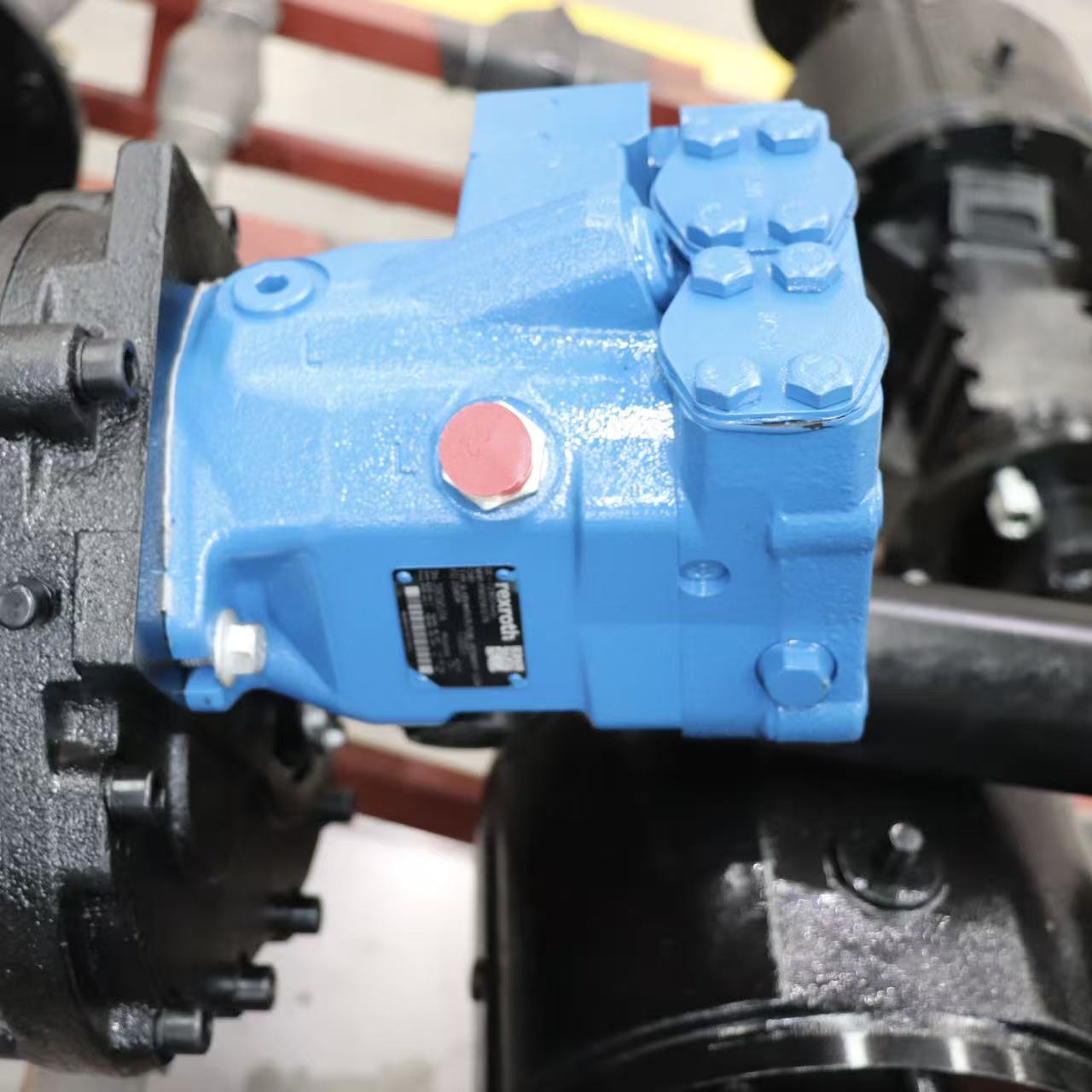

| 2.Hydraulic System: German Rexroth pump, Gerotor motor, domestic valves; 1 pump + 2 motors, Inching function |
| 3.Boom Function: Floating function (optional) |

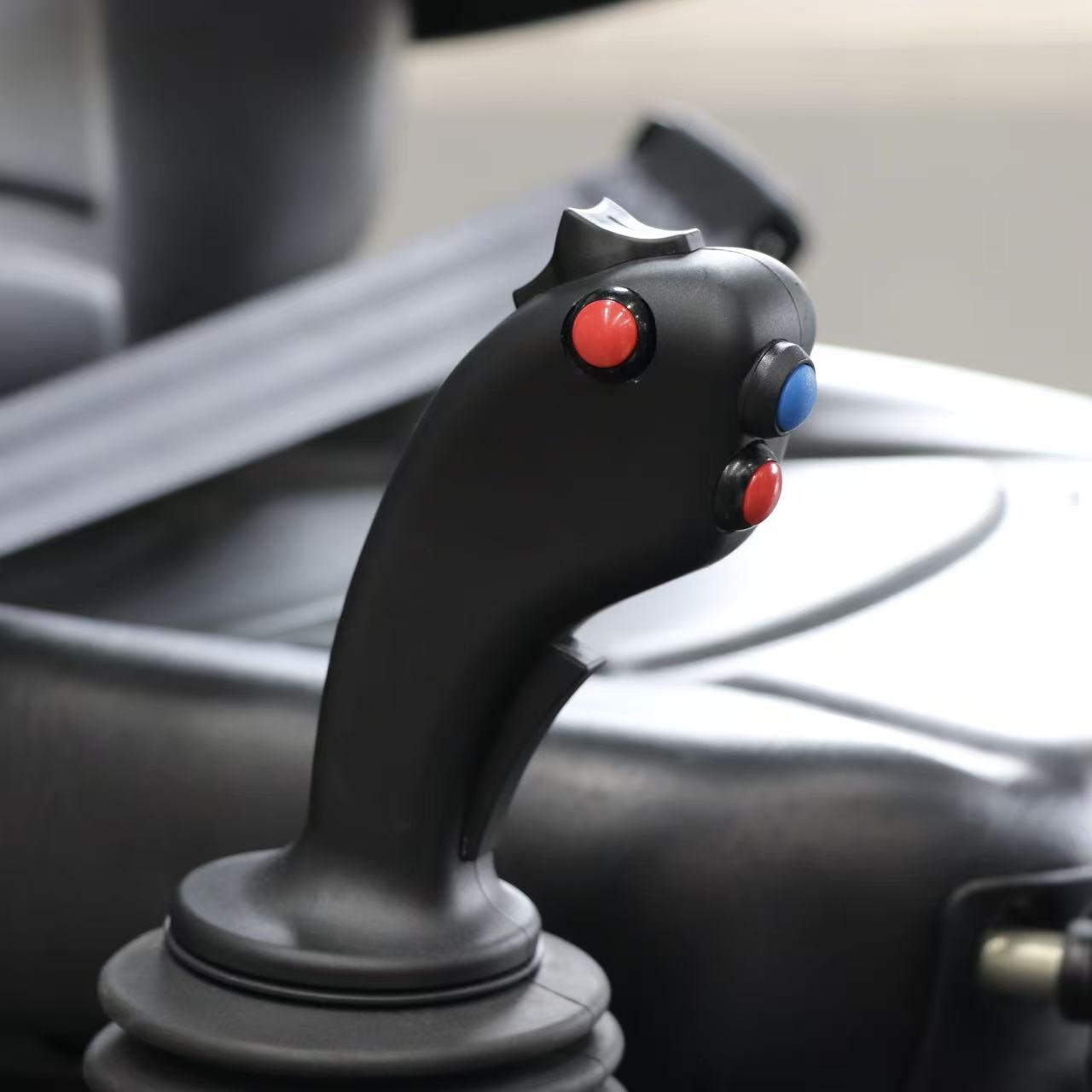

| 4.Control System: Electronic control levers with integrated forward/reverse buttons 5.(High/Low speed optional) |
| 6.Brake Inching Function (optional) |
| 7.Seat Sensor (optional) |

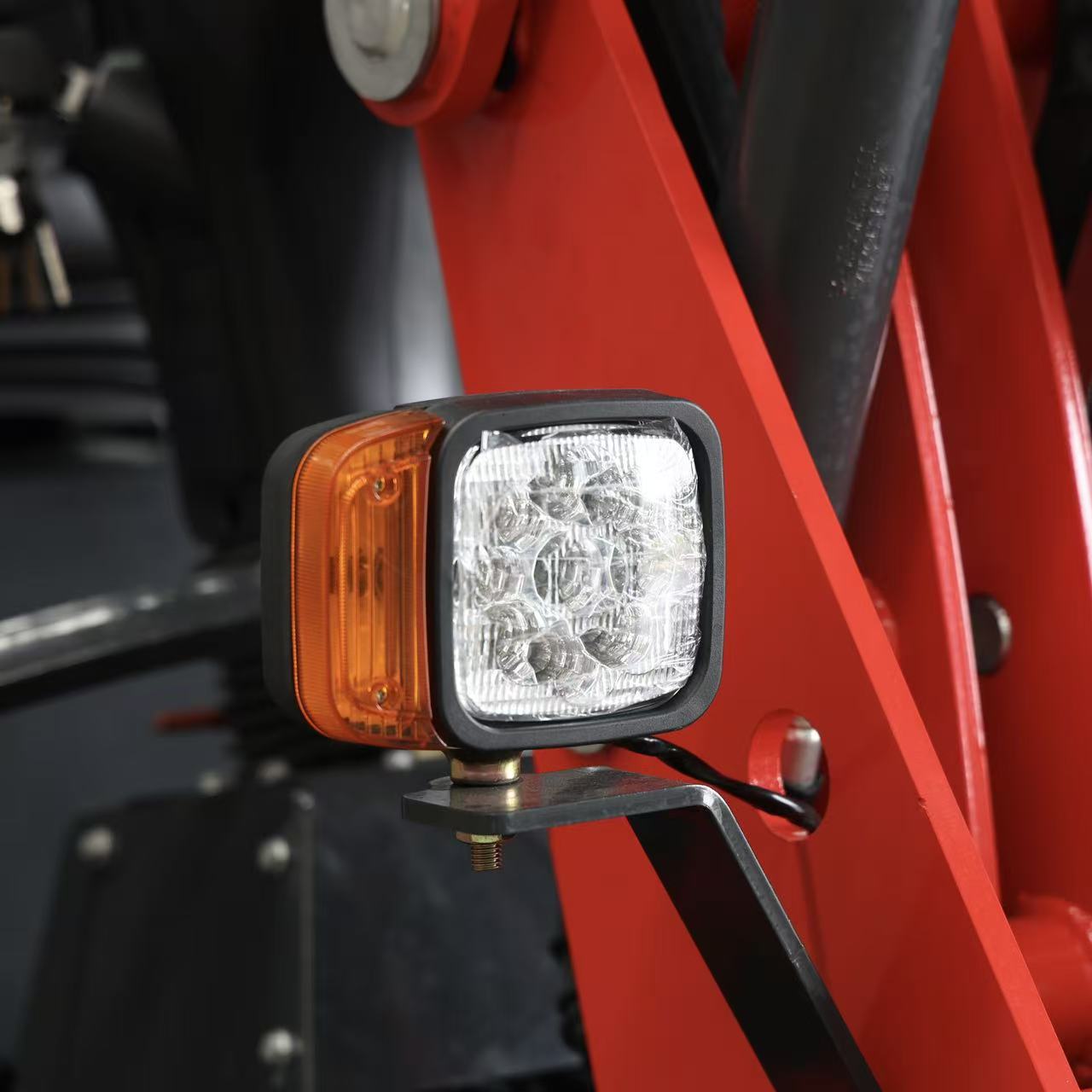

| 8.Lights: Turn signals, LED work lights |
| 9.EU-standard Hydraulic Quick Coupler,Quick change, customization supported |
| 10.Tires: 31.5*15-15.5 |
| 11.Canopy: EPS,detachable, foldable, and closable. |

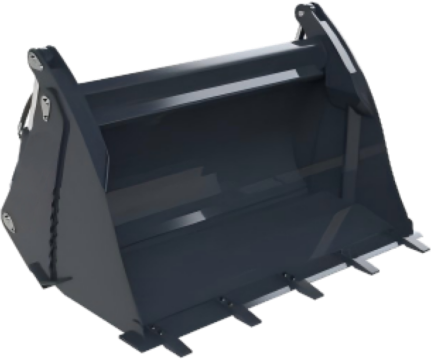

1. Multi-purpose Bucket Primary Application Scenarios Designed for multi-scenario worksite operations (site cleaning, material transfer) with the ability to perform shoveling, loading, and grabbing (e.g., large stones, undergrowth) for users seeking all-in-one equipment. Core Advantages Multi-functional for shoveling, loading, and grabbing to cover diverse task needs; Openable emptying design boosts dumping height for flexible unloading; Low-wear scraper edge reduces long-term maintenance expenses; Equipped with teeth to enhance grip on irregular or heavy loads. |
| ||
Parameter | Value Range | ||
Width | 1150mm-1550mm | ||
Capacity | 0.23M3-0.36M3 | ||
Weight | 280kg--320kg | ||
| 2. Stone Bucket Primary Application Scenarios Designed for large stone pickup in fields, construction sites, and gardens, with a key focus on scenarios that require separating stones from loose fine materials (soil, sand) for users seeking a time-saving stone-clearing solution. Core Advantages Efficient Stone Retrieval: Precisely grips large stones to meet site stone cleaning needs; Integrated Screening: Sieve function enables automatic separation of stones and fine materials by letting loose substances fall back to the ground; Unobstructed Visibility: Facilitates easy observation of loaded stones, boosting operational accuracy and reducing rework. | ||
Parameter | Value Range | ||
Width | 1090mm | ||
Capacity | 0.22M3 | ||
Weight | 112kg | ||
3. Fork and Grab Primary Application Scenarios Designed for loose pen cleaning, round/square bale transport, and loose green material handling (green cuttings, green waste) for users seeking a multi-purpose farm/landscaping attachment. Core Advantages Fork-shaped top structure with 1 hydraulic cylinder for simplified operation; 5 600mm-long tines ensure reliable material grabbing and transportation. |
| ||
Parameter | Value Range | ||
Width | 860mm-930mm | ||
Length of Tines | 600mm-800mm | ||
Weight | 155kg--185kg | ||
| 4. Pallet Fork Primary Application Scenarios Designed for transporting various palletized goods (boxed, bagged items) for users seeking a versatile, safe pallet-handling solution for warehouses or worksites. Core Advantages Clear visibility of loaded materials reduces operational risks; 2 built-in hooks add load-securing flexibility; Adjustable tine width ensures compatibility with multiple pallet sizes. | ||
Parameter | Value Range | ||
Length | 1000mm | ||
Max.Load Capacity | 2000kg | ||
Weight | 160 kg - 210 kg | ||
5. Fold-down Pallet Fork Primary Application Scenarios Designed for road travel (foldable tines reduce space occupation) and transporting diverse palletized goods for users seeking a versatile, space-saving pallet-handling solution for mobile operations. Core Advantages Foldable tines cut down on space for convenient road transit; Clear visibility of loaded materials lowers operational risks; 2 built-in hooks add load-securing flexibility; Adjustable tine width ensures compatibility with multiple pallet sizes. |
| ||
Parameter | Value Range | ||
Length | 1000 mm | ||
Max.Load Capacity | 2000 kg | ||
Weight | 190 kg | ||
| 6. Load Hooks Primary Application Scenarios Designed for safe lifting and precise positioning of heavy loads (metal parts, equipment accessories) for users seeking a reliable, versatile lifting solution for industrial and machinery sites. Core Advantages Ensures secure heavy-load lifting to minimize operational hazards; Load-rotatable swivel hook with fastener streamlines precise positioning of bulky items; 3 distinct lifting points boost adaptability for varied load attachment requirements. | ||
Parameter | Value Range | ||
Working Length | 1000 mm | ||
Load Capacity | 1.10 t | ||
7. Feed Blade Primary Application Scenarios Designed for pushing feed mixtures (silage, concentrate blends) on livestock farm feeding tables for users seeking a reliable, adaptable feed-distribution solution. Core Advantages Hydraulic drive enables large-angle push plate adjustment for versatile feed handling; Left/right pivoting allows customizable pushing direction to suit unique feeding table layouts. |
| ||
Parameter | Value Range | ||
Width | 1800 mm - 2200 mm | ||
Max. Adjustable Angle | 70° | ||
Weight | 225 kg | ||
| 8. Bale Fork Primary Application Scenarios Designed for transporting and stacking round/square bales (hay/straw bales) and compatible with pallet fork frames, ideal for farms seeking cost-effective bale-handling solutions. Core Advantages Mountable on pallet fork frames to maximize existing equipment utility; 2 tapered tines ensure reliable bale grabbing and stable transportation, reducing operational risks. | ||
Parameter | Value Range | ||
Width | 1130 mm | ||
Weight | 65 kg | ||
9. Round Bale Tong Primary Application Scenarios Designed for transporting and stacking film-wrapped round bales, ideal for farms seeking a bale-handling solution that prioritizes wrapping and bale integrity. Core Advantages Damage-free bale grabbing protects the protective film and forage quality; Maintains full bale integrity to reduce feed waste and storage losses. |
| ||
Parameter | Value Range | ||
Width | 1400mm | ||
Weight | 158 kg | ||
| 10. Fence Mower Primary Application Scenarios Designed for thorough trimming of weeds and shrubs around fence posts, ideal for users seeking an efficient fence maintenance solution for farms, pastures, or municipal green belts. Core Advantages Clean fence post trimming eliminates overgrowth-related fence damage and improves landscape tidiness; No manual trimming reduces labor costs and on-site safety hazards; Cab-controlled hydraulic position adjustment boosts operational efficiency and driver convenience. | ||
Parameter | Value Range | ||
Weight | 220 kg | ||
