Robust Compact Loader

Compact design

Low center of gravity

Small turning radius

Powerful performance

Contact Now E-Mail Telephone WhatsApp

Overview
Technical data
Configurations
Attachments

Product Introduction

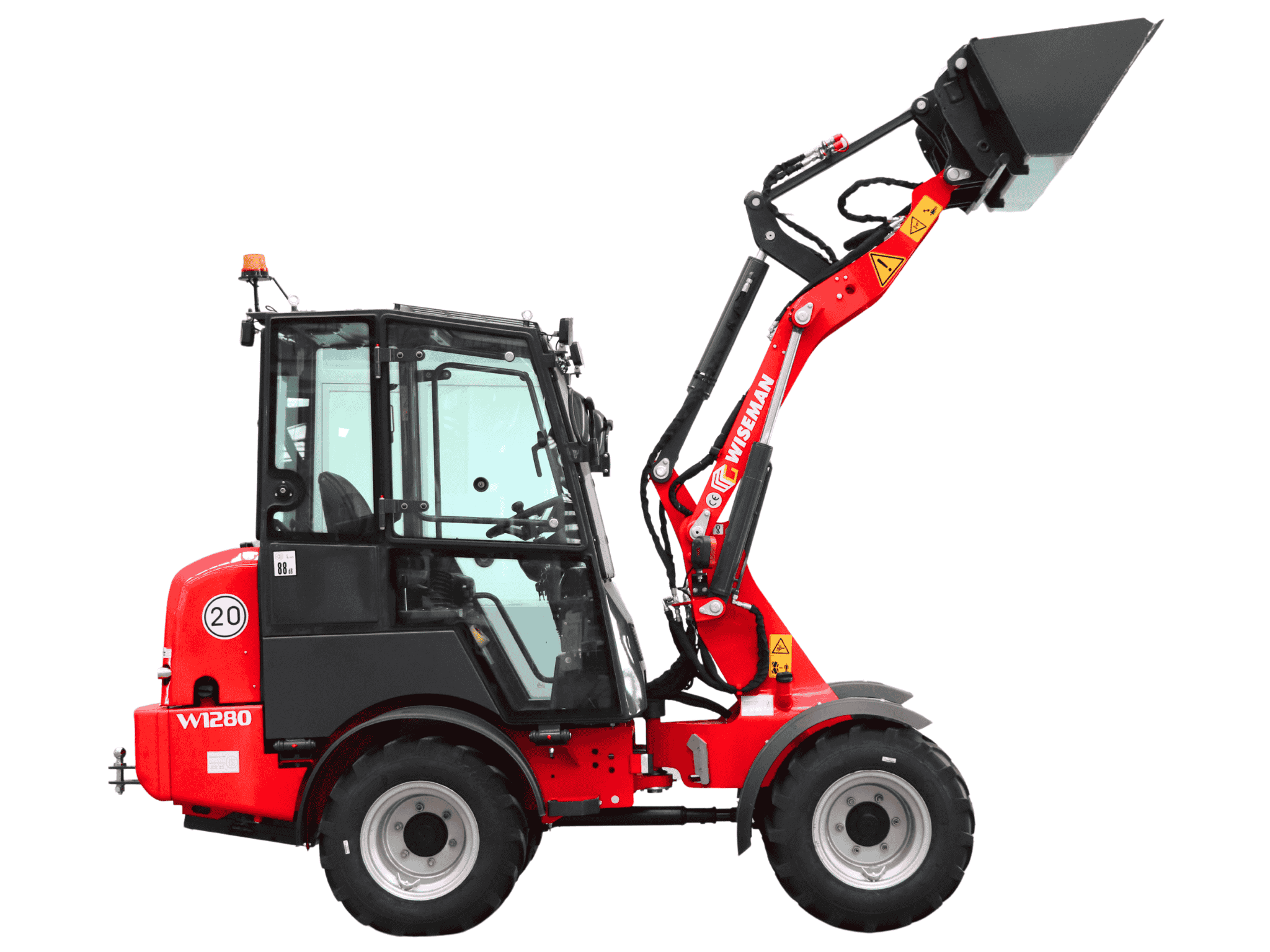

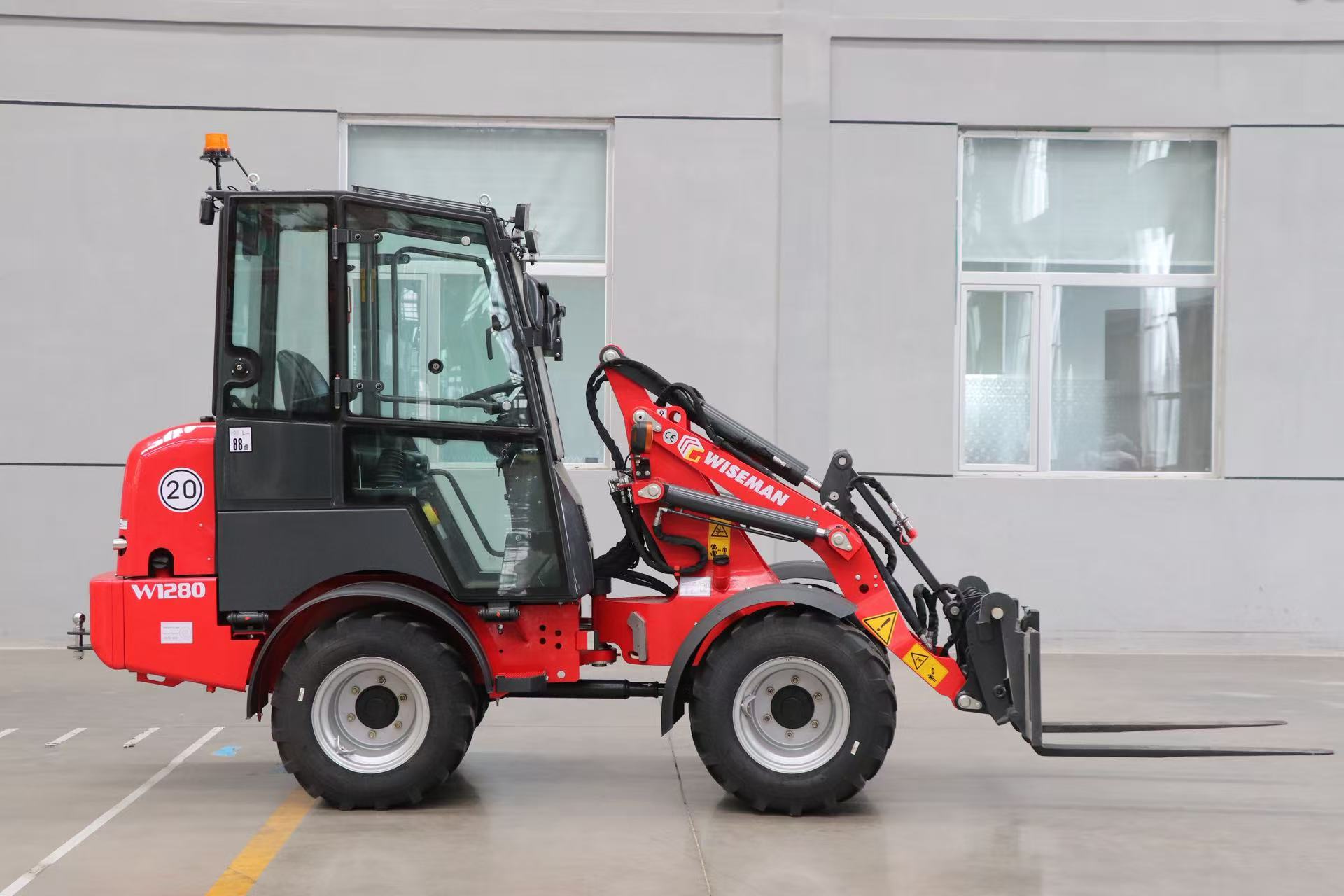

The W1280 Compact Wheel Loader achieves strong performance and fluid operation through its KUBOTA engine. With built-in seat sensors and hydraulic systems that comply with EU requirements, it maintains excellent safety and dependability. Ideally designed for medium-sized agricultural applications, it serves as a credible companion to enhance work output.

Product Specifications

Engine Rated Power (kw/HP)：18.4/25

Operating Weight (kg):2380-2550

Tipping Load with Bucket--Machine Straight (kg):1160-1690

Bucket Pivot Point :980-1440

Learn More

Applications

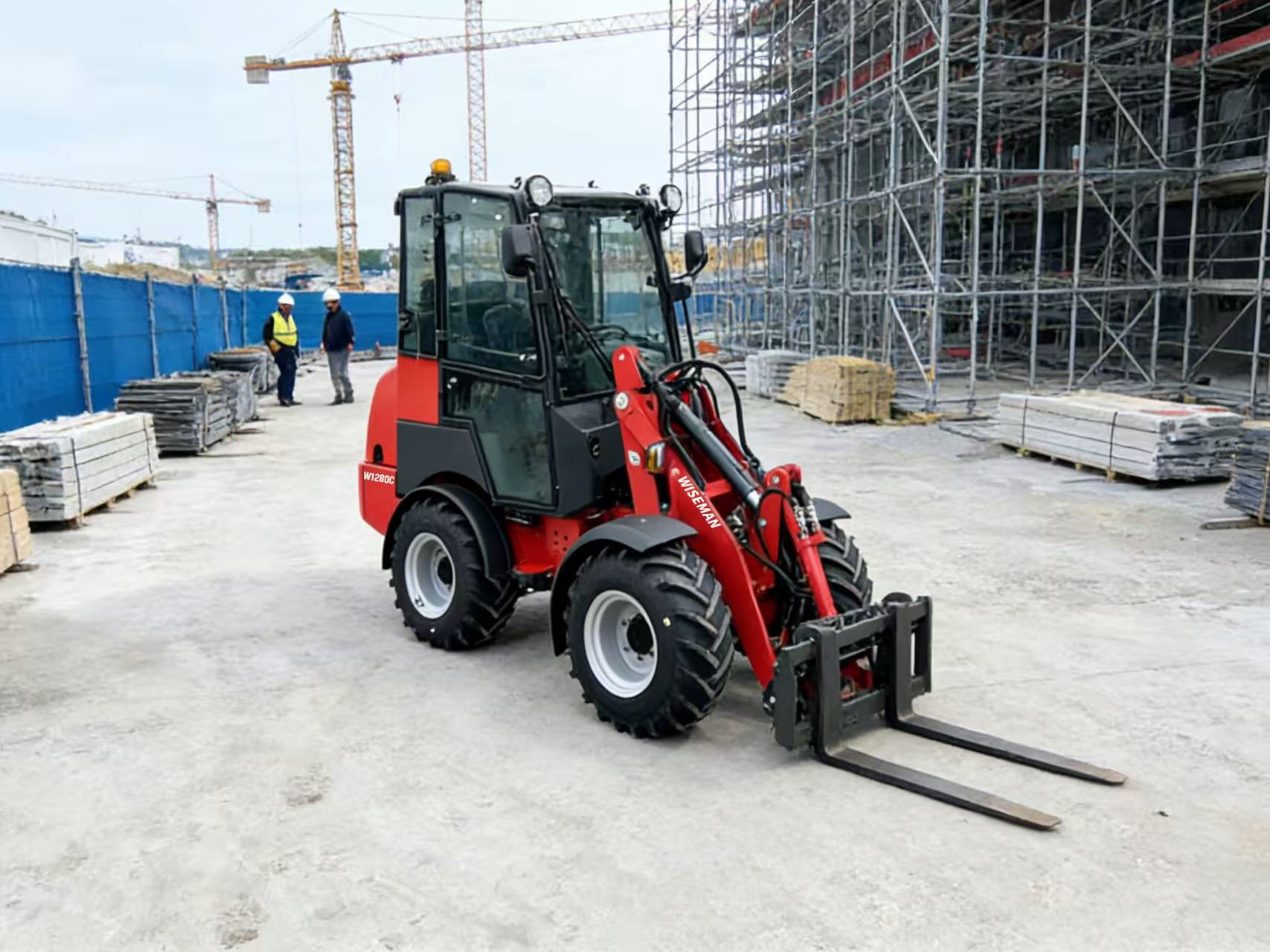

Compact Wheel Loader for Construction Site Operations

Site-agile, multi-attachment compatible, handles material haulage and debris clearance, boosting on-site construction efficiency in tight work zones.

Compact Loader for Olive Groves

Construction Site Multi-Task Operations – Compact Wheel Loader

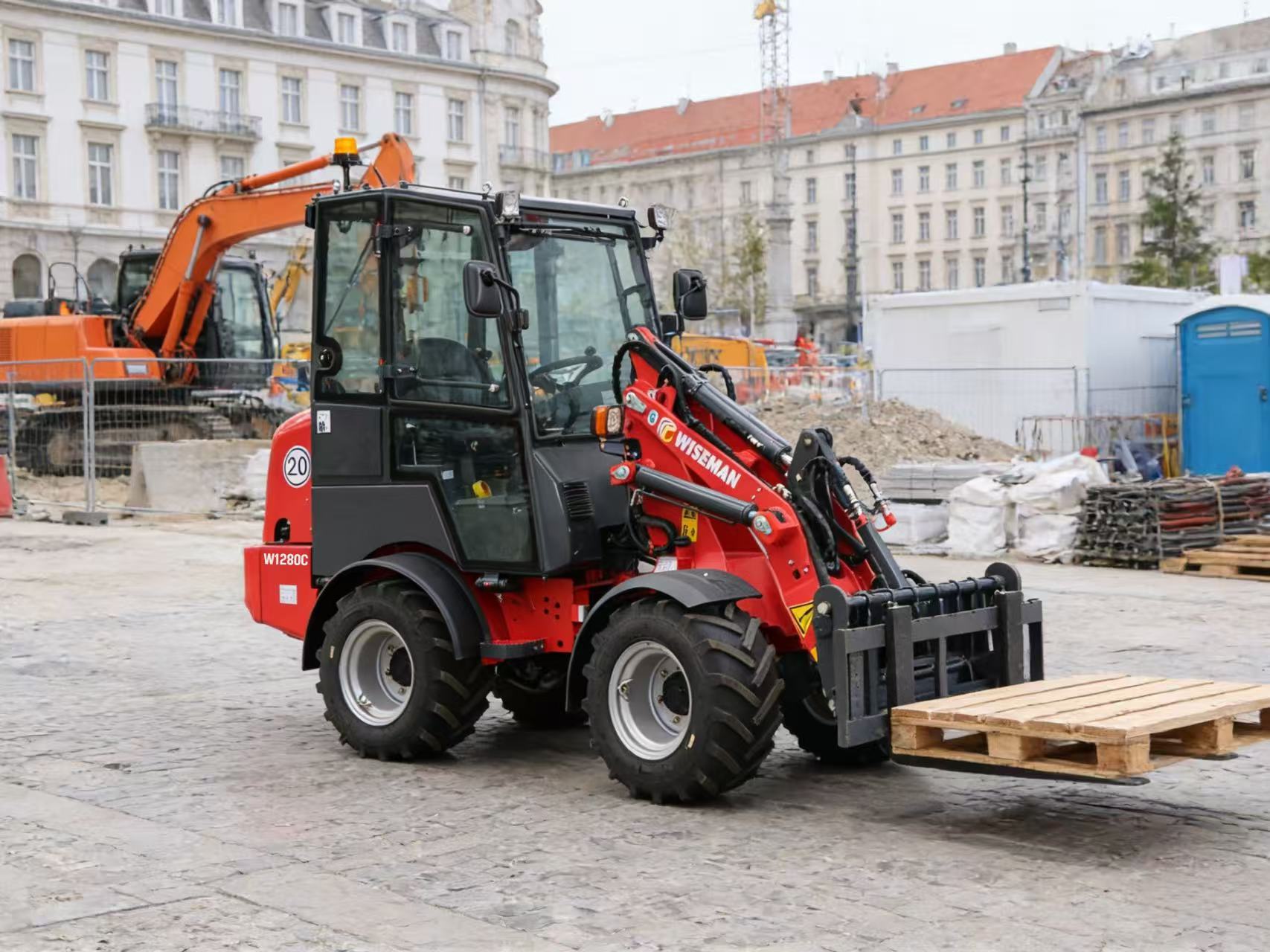

This compact wheel loader is a versatile workhorse for construction sites, with its small frame maneuvering effortlessly through narrow construction accesses, foundation pit peripheries and crowded work areas. It pairs with a full range of attachments including buckets and pallet forks to undertake sand, gravel and cement haulage, construction waste clearance, and auxiliary work for foundation and small-scale building construction. It replaces labor-intensive manual handling and inefficient small equipment, streamlines on-site material flow, and its flexible operation won’t interfere with other construction processes, significantly improving overall site working efficiency.

Compact Loader for Olive Groves

W1280 Technical Data
Engine

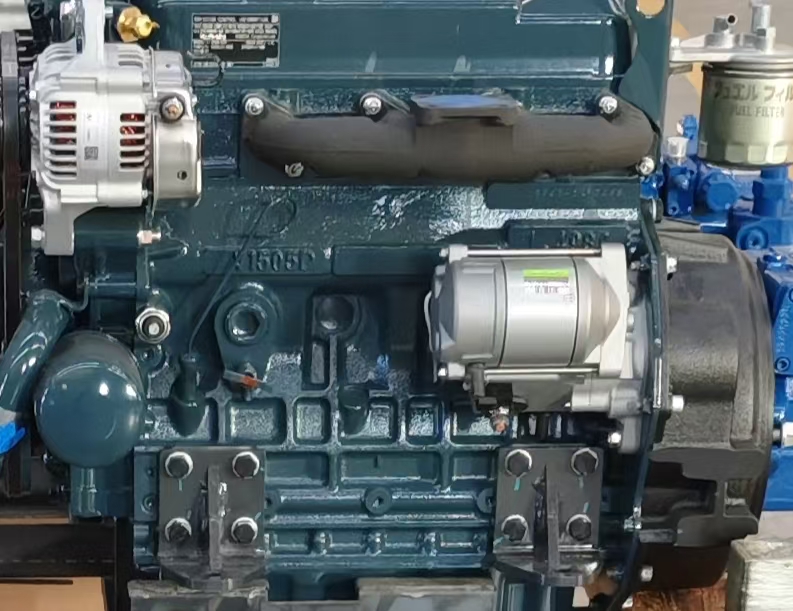

Brand/Model	Kubota D1703 or D1505
Type:	3 Cylinders or 4 Cylinders, Water Cooling
Power Output (kw/HP)	18.4/25
Emissios Standard	Euro V/ Tier 4 Final
Driving System
Type of Drive	Hydrostatic
Drive	Universal Joint Shaft
Travel Speed ( km/h)	0-15
Electrical System
Operating Voltage （V)	12
Battery Capacity (Ah)	60
Alternator Rating (Ah)	40
Hydraulic System
Max.Drive Hydraulics Work Pressure (bar)	320
Max. Drive Hydraulics Discharge Volume (l/min)	72
Max. Work Hydraulics Work Pressure	25Mpa
Max. Work Hydraulics Discharge Volume (l/min)	32
Weight
Operating Weight (kg)	2380-2550
Tipping Load with Bucket--Machine Straight, Loading Frame Horizontal (kg)	1160-1690
Tipping Load with Bucket--Machine Pivoted, Loading Frame Horizontal (kg)	980-1440
Tipping Load with Pallet Fork--Machine Straight, Loading Frame Horizontal (kg)	890-1260
Tipping Load with Pallet Fork--Machine Pivoted, Loading Frame Horizontal (kg)	740-1080
Bucket Capacity (m³)	0.28
Brake System
Operating Brake	Transmission Drum Brake
Parking Brake	Operating and Parking Brake in the Drive Train
Tyre Size (standard)	31*15.5-15

	1.Engine: KUBOTA D1505 or KUBOTA D1703(Euro 5),
	2.Hydraulic System: German Rexroth pump, Rexroth motor, Wolfer valve; 1 pump + 1 motor, Inching function
	3.Boom Function: Floating function (optional)
	4.Control System: Electronic control levers with integrated forward/reverse buttons. (High/Low speed optional)
	5.Brake Inching Function (optional)
	6.Seat Sensor (optional)
	7.Lights: Turn signals, LED work lights
	8.EU-standard Hydraulic Quick Coupler
	9.Tires: 31x15.5-15
	10.Canopy: EPS

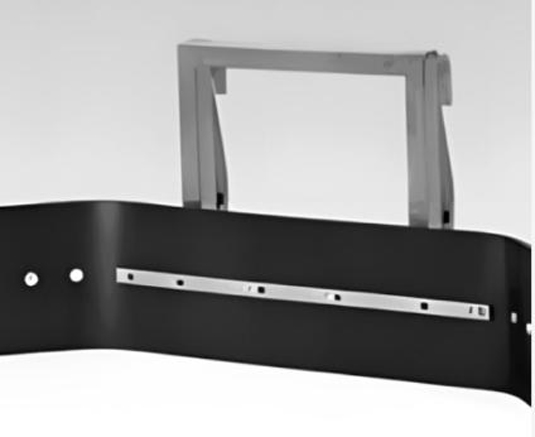

		1. Rubber Blade Main Application Scenarios: Cleaning slatted floors in livestock farms (e.g., manure, feed residues); stripping and cleaning oil-stained asphalt and concrete surfaces (e.g., workshop, parking lot floors). Core Functions: Removes residual debris from slatted floors; strips oil stains and contaminants from ground surfaces.
		Parameter	Value Range
		Width	1200 mm - 1500 mm
		Weight	85 kg - 160 kg

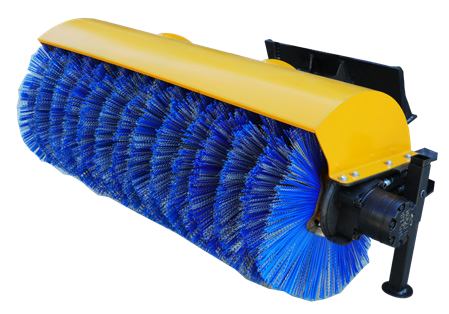

2. Sweeper Main Application Scenarios: Cleaning ground debris (e.g., dust, scraps, fallen leaves) in warehouses, farm walkways, and construction sites; can be quickly deployed during loading breaks. Core Functions: Effective cleaning performance; supports connection via pallet tines (standard) or bucket (optional); easy tool attachment for rapid switching.
Parameter	Value Range
Width	1250 mm - 1550 mm
Weight	150 kg-180kg

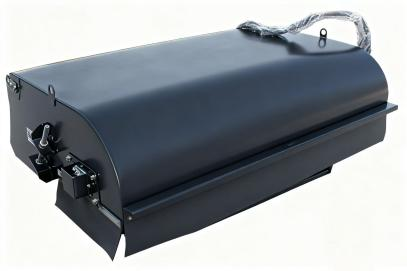

		3.Sweeping Machine Main Application Scenarios: Suitable for cleaning open areas such as yards, factory roads, cycle paths, and parking lots, meeting daily debris removal requirements. Core Functions: - Scene Compatibility: Designed for open-area cleaning, efficiently sweeping various scattered debris; - Standard Practical Parts: Equipped with a built-in debris collection tray to gather swept materials.
		Parameter	Value Range
		Width	1250 mm - 1550 mm
		Weight	190 kg-220 kg

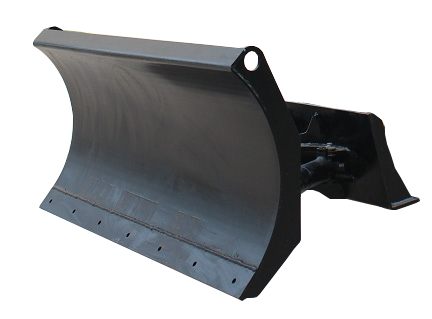

4. Snow Blade Main Application Scenarios: Snow removal on roads, courtyards, and factory premises, suitable for outdoor winter snow clearing. Core Functions: Equipped with a hydraulic swivel device; roller level compensation (with height indicator) and stepless adjustment of wheels/skids for precise snow clearing; elastic edge protection to avoid damaging curbs and buildings.
Parameter	Value Range
Width	1300 mm - 1550 mm
Road-clearing Width at 30°	1115 mm - 1320 mm
Weight	167 kg - 183 kg

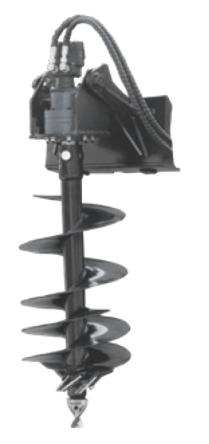

		5. Earth Borer Main Application Scenarios: Ground drilling for fence post installation, tree planting, and sign fixing, suitable for agricultural, municipal, and gardening applications. Core Functions: Multiple auger sizes available to meet diverse drilling requirements.
		Parameter	Value Range
		Length	1240 mm
		Drill Diameter	∅152 mm-∅305 mm
		Weight	173 kg - 197 kg

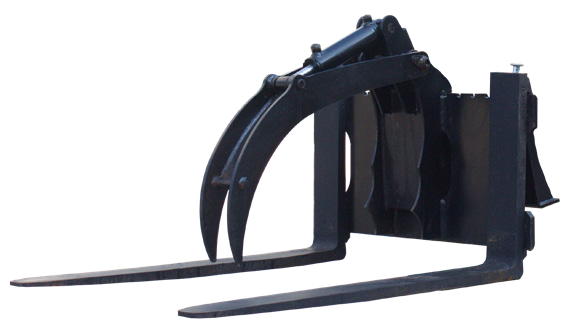

6.Logging Fork Main Application Scenarios: Suitable for clearing scattered branches and short log segments to organize work sites, and can also perform short-distance loading, unloading, and transportation of logs with a diameter of 100-300mm. Core Functions: Compatible with compact loaders, firmly clamps small and medium-sized logs and branches, effectively preventing material slippage during transportation and ensuring operational stability.
Parameter	Value Range
Dimension（LXWXH)	1323mmX804mmX828mm
Weight	172 kg
