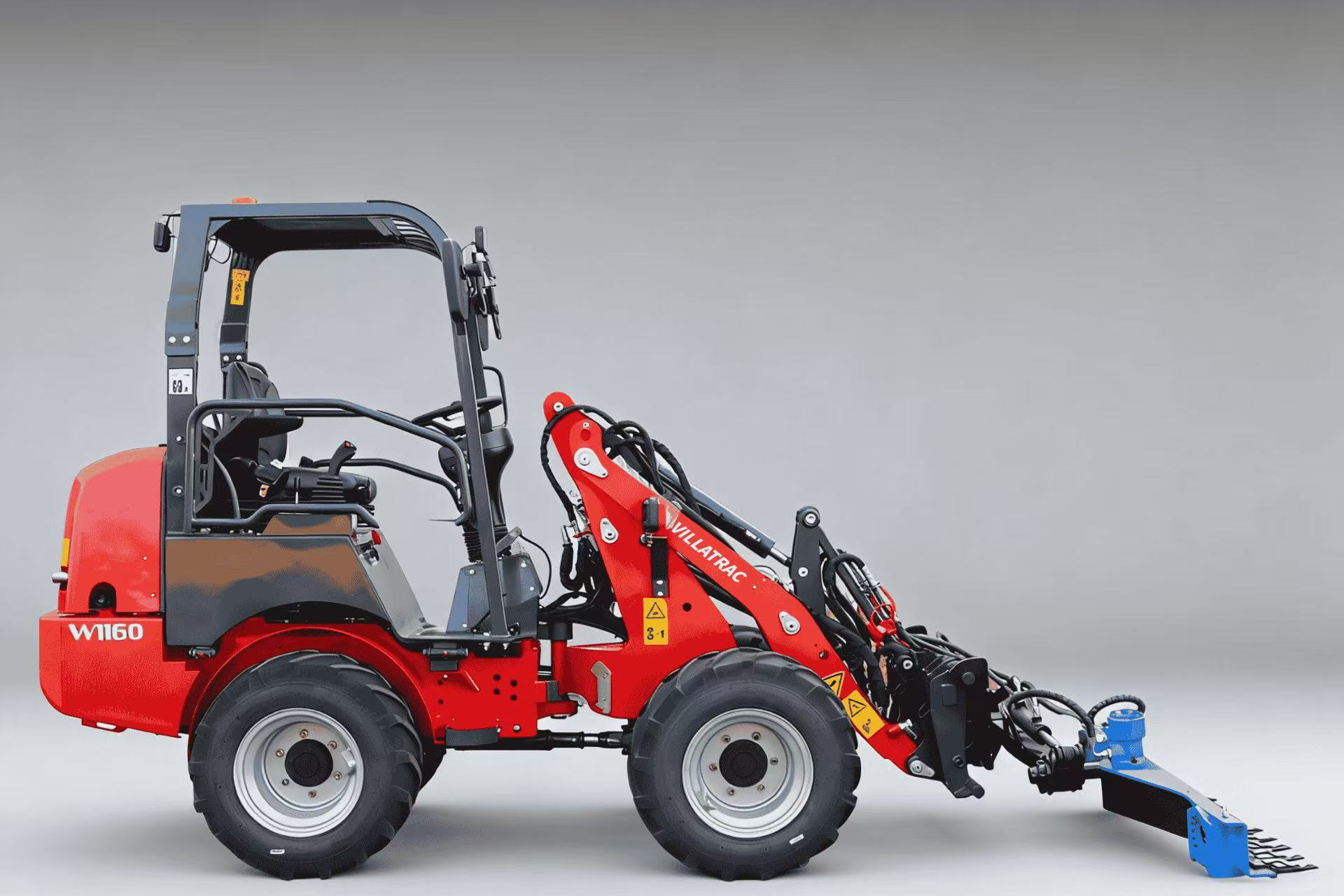

W1160
High Quality 4WD Wheel Loader
Rigid, space-efficient frame design
Strategically lowered center of gravity to maximize balance
Outstanding agility when navigating confined areas
Dependable, energy-smart operation for consistent performance
- Overview
- Technical data
- Configurations
Product Introduction
Designed specifically for challenging and complex operating environments.The W1160 features the globally renowned Rexroth hydraulic system and hydrostatic transmission, delivering steady, high-strength performance along with accurate, responsive control.Whether for heavy debris removal, forestry operations, or material hauling, it effortlessly tackles difficult tasks—even under the most extreme working conditions.
Product Specifications
Engine Rated Power (kw/HP)：18.4kW/2800rpm
Operating Weight (kg):1850 kg
Tipping Load with Bucket--Machine Straight (kg):850 kg
Bucket Pivot Point :520
Applications

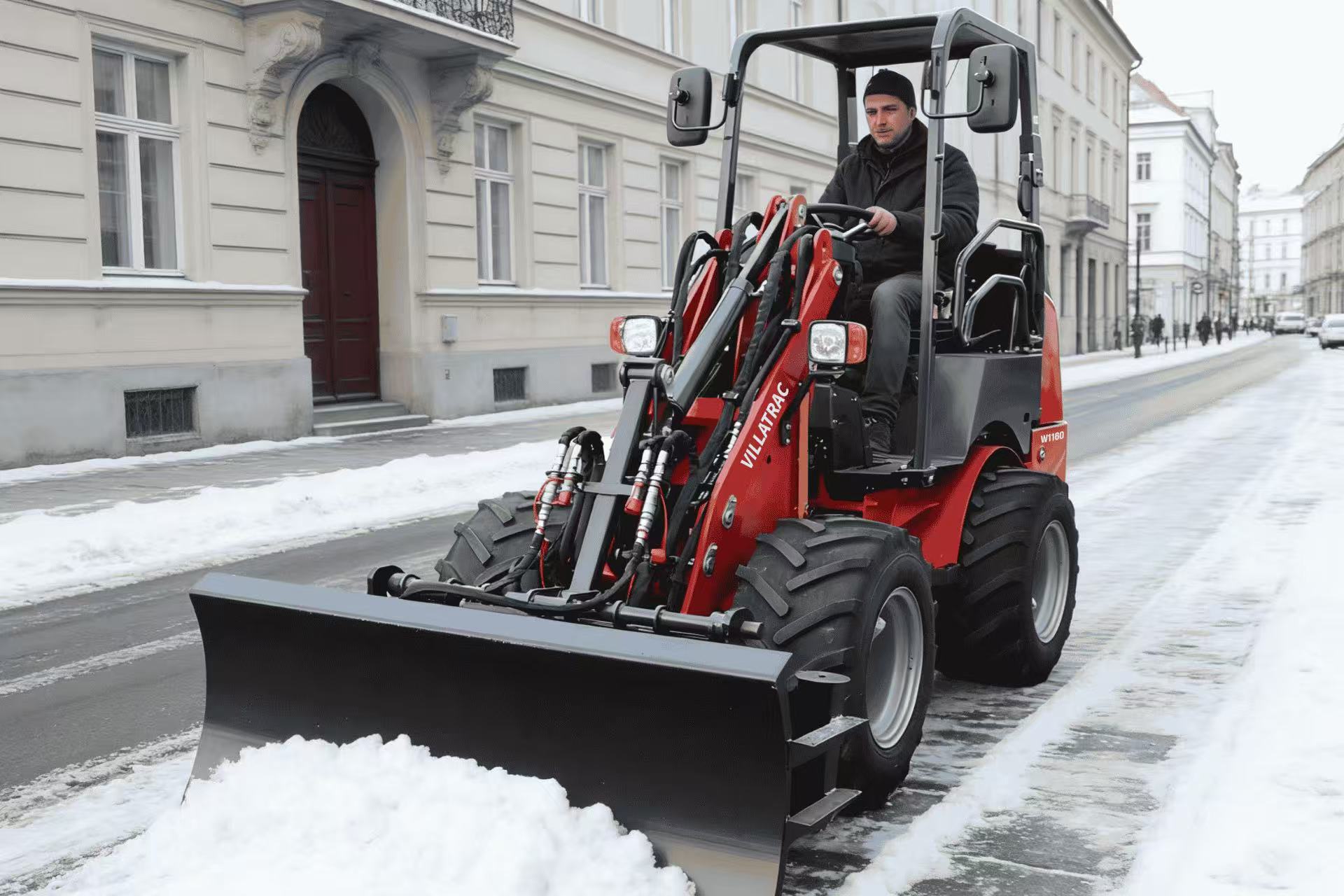

Winter Road Loaders for European Snow Pushing This loader performs excellently in snow clearing on European streets and residential roads.It features stable running and strong pushing capacity, quickly removing snow to keep traffic smooth.Adaptable to cold climates, it offers high efficiency and greatly eases the pressure of municipal winter maintenance. |
|

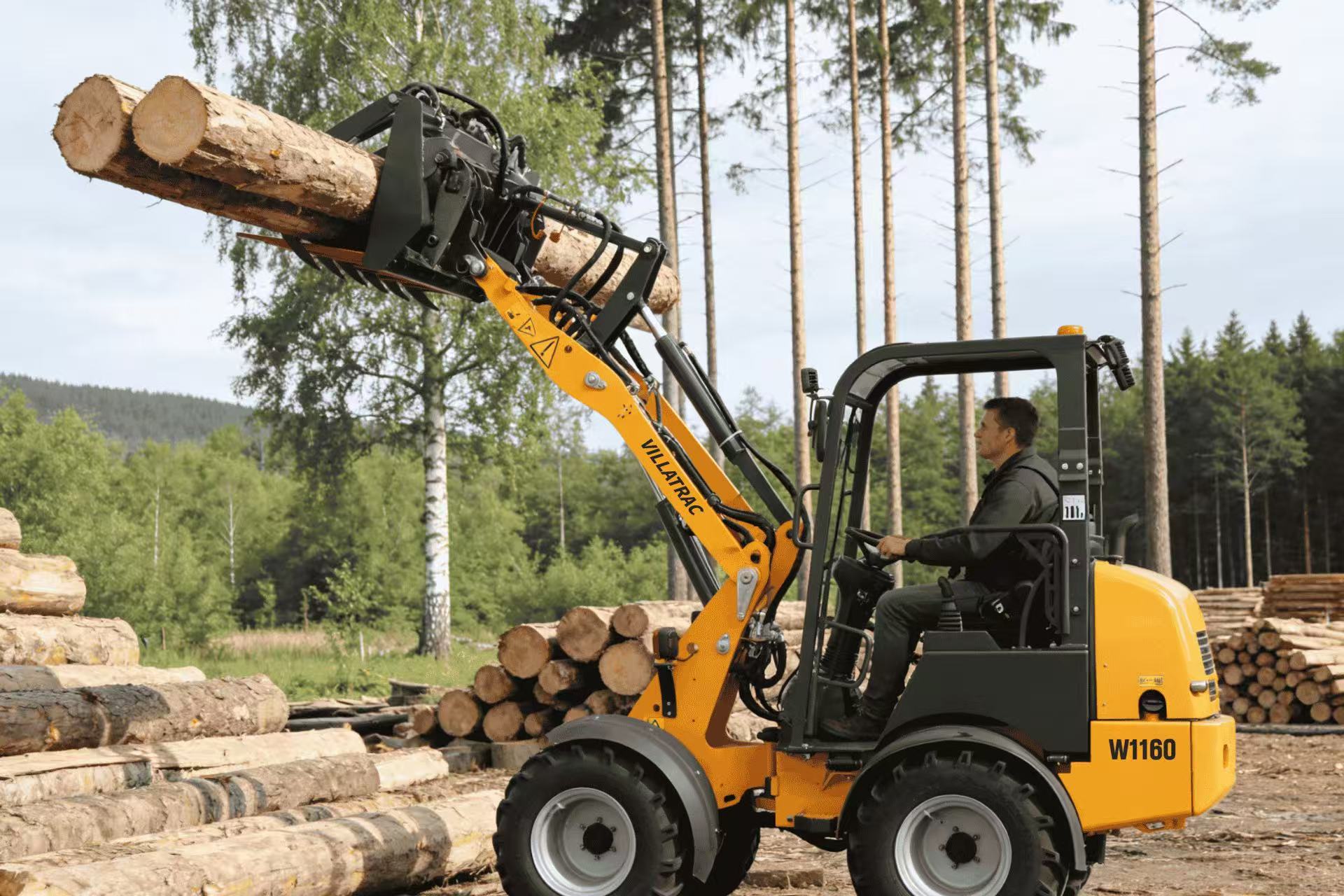

Timber Grapple Loaders for European Logging Sites Designed for European logging yards, these loaders come with log grapple attachments to securely grip and transport timber. Stable and powerful, they handle heavy logs efficiently on rough forest terrain. Easy to operate, they boost wood handling productivity while ensuring safe daily operation. |
|
Technical Data for W1160 Compact Loader | |
Engine | |
Brand/Model | Perkins 403J-11 or Kubota D1105 |
Type: | 3 Cylinders, Water Cooling |
Power Output | 18.4kW/2800rpm |
Displacement | 1.13 L |
Emissios Standard： | Euro Stage V |
Drive System | |
Type of Drive | Hydrostatic |
Gear Shift | Electric, Continuously Variable Transmissioin (CVT) |
Travel Speed | 0-20 km/h |
Electrical System | |
Operating Voltage | 12 V |
Battery Capacity | 60 Ah |
Alternator Rating | 40 A |
Hydraulic System | |
Max.Drive Hydraulics Work Pressure | 300 bar |
Max. Drive Hydraulics Discharge Volume | 84 l/min |
Max. Work Hydraulics Work Pressure | 180 bar |
Max. Work Hydraulics Discharge Volume | 32 l/min |
Boom Lifting Time | 3.1 s |
Automatic Levelling Function | yes |
Weight | |
Operating Weight | 1850 kg |
Tipping Load with Bucket--Machine Straight: | 850 kg |
Tipping Load with Bucket--Machine Pivoted: | 550 kg |
Bucket Capacity | 0.28 m3 |
Max.Lifting Force | 1100 kg |
Refilling Capacity | |
Fuel Tank (L) | 26 L |
Hydulic Oil Tank (L) | 40 L |
Engine Oil (L) | 4 L |
Coolant (L) | 12 L |
Brake System | |
Operating Brake | Transmission Drum Brake |
Parking Brake | Operating and Parking Brake in the Drive Train |
Tyre Size | 31x15.5-15 |
Machine Dimension (mm) | |
Overall Length with Bucket | 3895 |
Overall Length without Bucket | 3065 |
Bucket Pivot Point to the Centre of Axle | 520 |
Wheel Base | 1522 |
Rear Overhang | 950 |
Height to the Roof of Canopy | 2210 |
Seat Height | 1200 |
Working Range (mm) | |
Overall Working Height | 3180 |
Max. Lifting Height | 2740 |
Load-Over Height | 2385 |
Dumping Height | 1900 |
Digging Depth | 120 |
Overall Width | 1300 |
Wheel Track | 910 |
Ground Clearance | 221 |
Max. Turning Radius | 2435 |
Outter Turning Radius | 2220 |
Inner Turning Radius | 880 |
Articulation Angle | 51° |
Roll Back Angle at Max. Lifting Height | 52° |
Dumping Angle | 35° |
| 1.Engine: KUBOTA D1105 (Euro 5), Optional: Perkins |
| 2.Hydraulic System: German Rexroth pump, Gerotor motor, domestic valves; 1 pump + 2 motors, Inching function |
| 3.Boom Function: Floating function (optional) |
| 4.Control System: Electronic control levers with integrated forward/reverse buttons 5.(High/Low speed optional) |
| 6.Brake Inching Function (optional) |
| 7.Seat Sensor (optional) |
| 8.Lights: Turn signals, LED work lights |
| 9.EU-standard Hydraulic Quick Coupler,Quick change, customization supported |
| 10.Tires: 31.5*15-15.5 |
| 11.Canopy: EPS,detachable, foldable, and closable. |
| 1. Stone Bucket Main Application Scenarios Well suited for collecting large stones in farmlands, construction sites and garden landscaping, especially for isolating stones from fine materials such as earth and sand. Core Functions High-Efficiency Stone Recovery: Collects large stones accurately to complete on-site cleaning operations. Screening and Segregation: The built-in screening assembly allows fine substances to drop off automatically, achieving efficient stone separation. Superior Operational Visibility: Gives operators a full unobstructed sightline while handling stones, boosting overall work precision. | ||
Parameter | Value Range | ||
Width | 1090mm | ||
Capacity | 0.22M3 | ||
Weight | 112kg | ||
2. Fork and Grab Main Application Scenarios Well-suited for cleaning open-air livestock enclosures, managing both round and square hay bales, and handling loose materials like fresh clippings and organic refuse. Core Functions The fork assembly is driven by a single hydraulic cylinder, with five 600mm tines that firmly hold and steadily convey a range of materials. |
| ||
Parameter | Value Range | ||
Width | 860mm-930mm | ||
Length of Tines | 600mm-800mm | ||
Weight | 155kg--185kg | ||
| 3. Pallet Fork Main Application Scenarios Designed for moving a wide variety of pallet-borne cargo, such as boxed merchandise and large bulk bag materials. Core Functions Provides exceptional working visibility, is fitted with two hooks, and permits fully adjustable fork positioning. | ||
Parameter | Value Range | ||
Length | 1000mm | ||
Max.Load Capacity | 2000kg | ||
Weight | 160 kg - 210 kg | ||
4. Fold-down Pallet Fork Main Application Scenarios When its prongs are folded, it enables space-saving and compact road transport, and excels at handling various types of palletized goods with excellent performance. Core Functions Featuring foldable fork prongs, it offers unobstructed and clear visibility of the load, is equipped with two attachment hooks, and allows flexible adjustment of fork positions. |
| ||
Parameter | Value Range | ||
Length | 1000 mm | ||
Max.Load Capacity | 2000 kg | ||
Weight | 190 kg | ||
| 5. Load Hooks Main Application Scenarios Concentrates on the safe hoisting and precise positioning of heavy-duty loads, covering a range of metal parts as well as all kinds of equipment accessories. Core Functions Guarantees the safe lifting of heavy items; the rotating hook with a locking device can spin freely under load to achieve precise placement, and it comes with three independent lifting points to enable flexible and multi-purpose application. | ||
Parameter | Value Range | ||
Working Length | 1000 mm | ||
Load Capacity | 1.10 t | ||
