W1280M

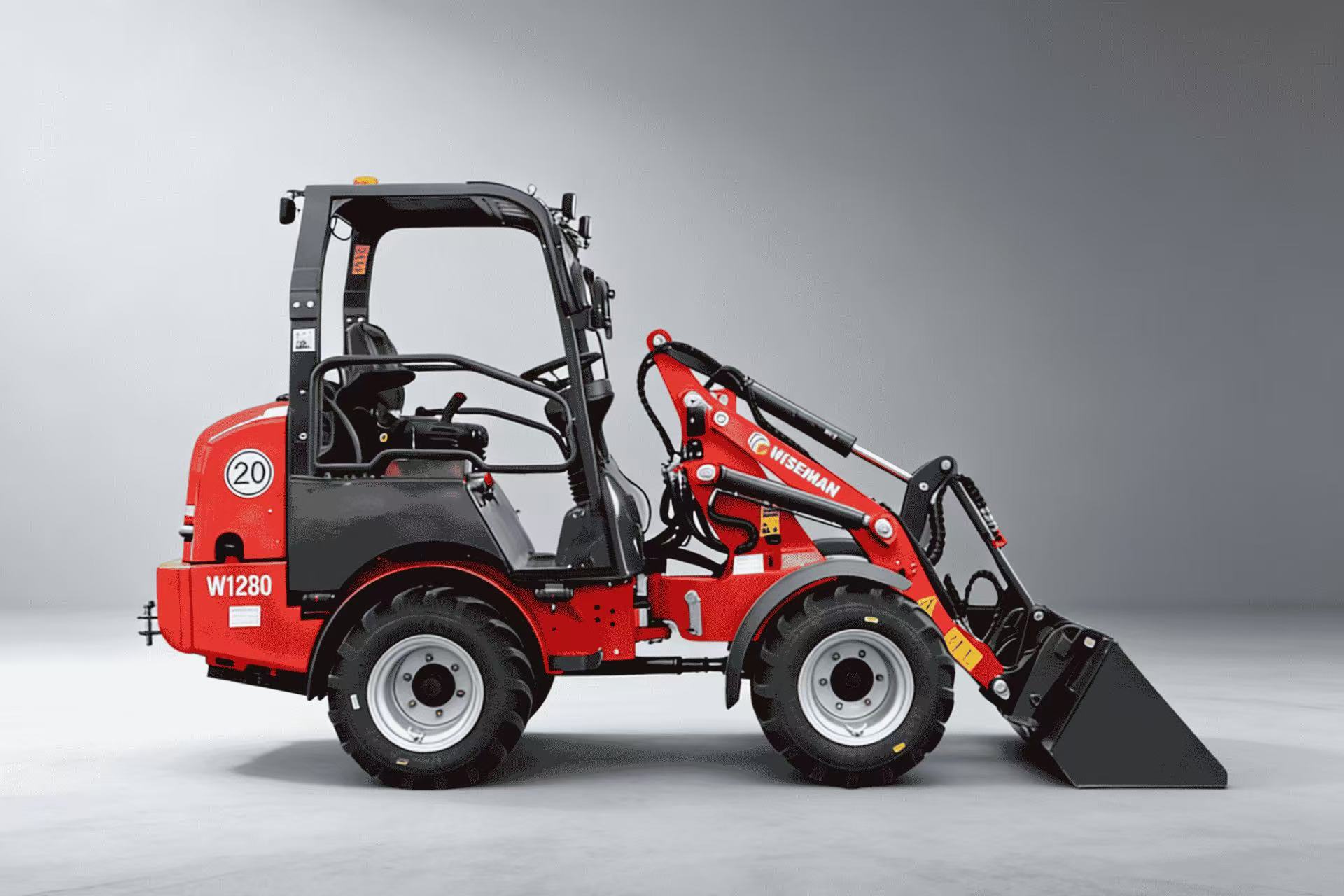

Superior Compact Articulated Loader
Miniaturized compact layout
Stable low center of gravity
Agile short turning radius
Consistently strong performance
- Overview
- Technical data
- Configurations
Product Introduction
The W1280 delivers greater versatility for diverse operations. When equipped with a bucket, it provides a tipping load ranging from 1,160 kg to 1,690 kg, flexibly supporting tasks involving heavier materials. Additionally, the W1280 boasts a longer boom that enables a maximum lifting height of 2,862 mm. This makes the W1280 an optimal solution that unites high load capacity and extended lifting height.
Product Specifications
Engine Rated Power (kw/HP)：18.4/25
Operating Weight (kg):2380-2550
Tipping Load with Bucket--Machine Straight (kg):1160-1690
Bucket Pivot Point :980-1440
Applications
Compact Loaders for Vegetable Transport in European Greenhouses Compact loaders are widely used in European greenhouses for safe and efficient vegetable transportation. Their small and flexible body allows smooth movement in narrow aisles without harming plants or crops. They help carry harvested vegetables quickly from growing areas to packing or storage zones, greatly improving work efficiency and reducing manual labor for greenhouse growers. |
|
Loaders for Grain Handling on European Farmland Loaders are widely used in European farmland for efficient grain transportation during harvest season. They safely carry sacks of grain, bulk crops and storage containers, with stable performance and strong loading capacity. Compact and flexible, they work well on farmland and narrow paths, greatly improving harvest efficiency and reducing labor for farmers. |
|
W1280 Technical Data | |
Engine | |
Brand/Model | Kubota D1703 or D1505 |
Type: | 3 Cylinders or 4 Cylinders, Water Cooling |
Power Output (kw/HP) | 18.4/25 |
Emissios Standard | Euro V/ Tier 4 Final |
Driving System | |
Type of Drive | Hydrostatic |
Drive | Universal Joint Shaft |
Travel Speed ( km/h) | 0-15 |
Electrical System | |
Operating Voltage （V) | 12 |
Battery Capacity (Ah) | 60 |
Alternator Rating (Ah) | 40 |
Hydraulic System | |
Max.Drive Hydraulics Work Pressure (bar) | 320 |
Max. Drive Hydraulics Discharge Volume (l/min) | 72 |
Max. Work Hydraulics Work Pressure | 25Mpa |
Max. Work Hydraulics Discharge Volume (l/min) | 32 |
Weight | |
Operating Weight (kg) | 2380-2550 |
Tipping Load with Bucket--Machine Straight, | 1160-1690 |
Tipping Load with Bucket--Machine Pivoted, | 980-1440 |
Tipping Load with Pallet Fork--Machine Straight, | 890-1260 |
Tipping Load with Pallet Fork--Machine Pivoted, | 740-1080 |
Bucket Capacity (m3) | 0.28 |
Brake System | |
Operating Brake | Transmission Drum Brake |
Parking Brake | Operating and Parking Brake in the Drive Train |
Tyre Size (standard) | 31*15.5-15 |
| 1.Engine: KUBOTA D1105 (Euro 5), Optional: Perkins |
| 2.Hydraulic System: German Rexroth pump, Gerotor motor, domestic valves; 1 pump + 2 motors, Inching function |
| 3.Boom Function: Floating function (optional) |
| 4.Control System: Electronic control levers with integrated forward/reverse buttons 5.(High/Low speed optional) |
| 6.Brake Inching Function (optional) |
| 7.Seat Sensor (optional) |
| 8.Lights: Turn signals, LED work lights |
| 9.EU-standard Hydraulic Quick Coupler,Quick change, customization supported |
 | 10.Tires: 31.5*15-15.5 |
| 11.Canopy: EPS,detachable, foldable, and closable. |
| 1. Rubber Blade Main Application Scenarios: Cleaning slatted floors in livestock facilities by removing manure and wasted feed; stripping and cleaning oil‑contaminated asphalt and concrete surfaces such as workshop floors and parking areas. Core Functions: Effectively clears residues and debris from slatted floors; strips away oil stains and other contaminants from various ground surfaces. | ||
Parameter | Value Range | ||
Width | 1200 mm - 1500 mm | ||
Weight | 85 kg - 160 kg | ||
2. Sweeper Main Application Scenarios: Clearing ground debris such as dust, waste materials, and fallen leaves in warehouses, farm passages, and job sites; allows fast deployment between loading operations. Core Functions: Delivers excellent cleaning performance; compatible with pallet fork (standard) or bucket (optional) mounting; enables easy attachment and quick tool change. |
| ||
Parameter | Value Range | ||
Width | 1250 mm - 1550 mm | ||
Weight | 150 kg-180kg | ||
| 3.Sweeping Machine Main Application Scenarios: Ideal for cleaning open spaces including courtyards, factory roads, bicycle lanes and parking areas, satisfying daily ground debris cleaning needs. Core Functions: Excellent Adaptability: Specially designed for open-area cleaning, effectively removing various loose debris and waste. Practical Standard Design: Equipped with an integrated collection box to gather and contain swept materials. | ||
Parameter | Value Range | ||
Width | 1250 mm - 1550 mm | ||
Weight | 190 kg-220 kg | ||
4. Snow Blade Main Application Scenarios: Perfect for snow clearing on roads, courtyards and factory premises, ideal for winter outdoor snow removal operations. Core Functions: Features a hydraulic rotating mechanism; roller level compensation with height display, plus infinitely adjustable wheels or skids for accurate snow clearing; elastic protective blade to prevent damage to curbs and structures. |
| ||
Parameter | Value Range | ||
Width | 1300 mm - 1550 mm | ||
Road-clearing Width at 30° | 1115 mm - 1320 mm | ||
Weight | 167 kg - 183 kg | ||
| 5. Earth Borer Main Application Scenarios: Drilling operations for installing fence posts, planting trees, and setting up signs, widely used in agricultural, municipal, and landscaping fields. Core Functions: A variety of auger sizes are available to satisfy different drilling requirements. | ||
Parameter | Value Range | ||
Length | 1240 mm | ||
Drill Diameter | ∅152 mm-∅305 mm | ||
Weight | 173 kg - 197 kg | ||
6.Logging Fork Main Application Scenarios: Designed for clearing loose branches and short logs to organize work areas, while also handling short‑distance loading, unloading and transport of logs with a diameter of 100–300 mm. Core Functions: Works with compact loaders, securely grips small and medium‑sized logs and branches, effectively reduces material slippage during movement, and ensures stable operation. |
| ||
Parameter | Value Range | ||
Dimension（LXWXH) | 1323mmX804mmX828mm | ||
Weight | 172 kg | ||
