W1280

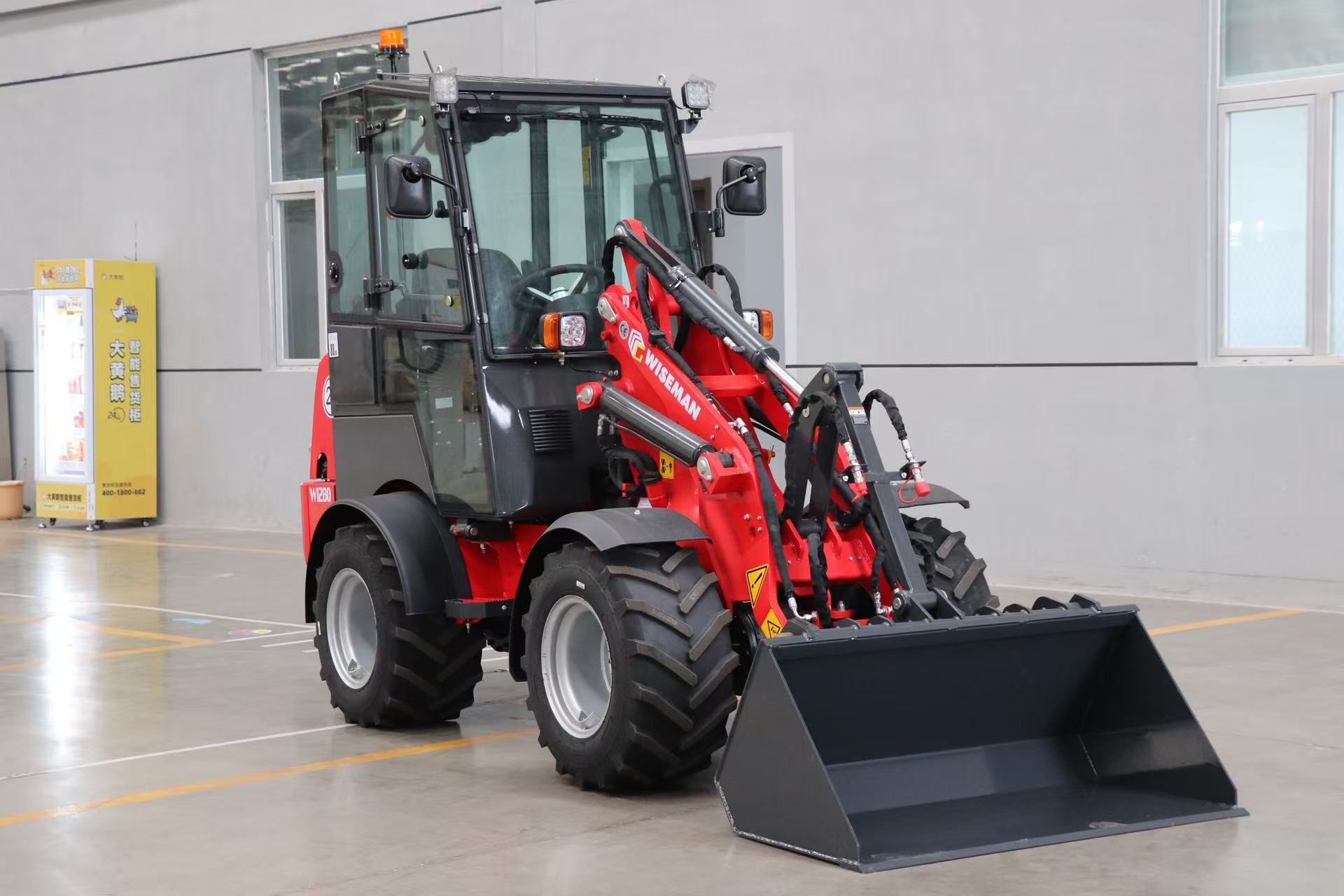

Agricultural Wheel Loader
Streamlined build
Lowered center of gravity
Tight turning circle
High-impact working capability
- Overview
- Technical data
- Configurations
Your Ultimate Partner in Landscaping & Property Maintenance
Whether you’re shaping a city park, trimming overgrown hedges, or maintaining a sprawling estate, the Wiseman W1160 Compact Loader delivers the power, precision, and versatility to transform outdoor spaces with ease.
Pair it with a hedge trimmer, as shown, and tackle overgrown foliage with clean, precise cuts that elevate any landscape’s appearance. Swap attachments to use it as a loader, sweeper, or mower—this machine adapts to your needs, making it ideal for landscapers, municipal teams, and property managers alike.
Product Specifications
Engine Rated Power (kw/HP)：18.4/25
Operating Weight (kg):2380-2550
Tipping Load with Bucket--Machine Straight (kg):1160-1690
Bucket Pivot Point :980-1440
Applications

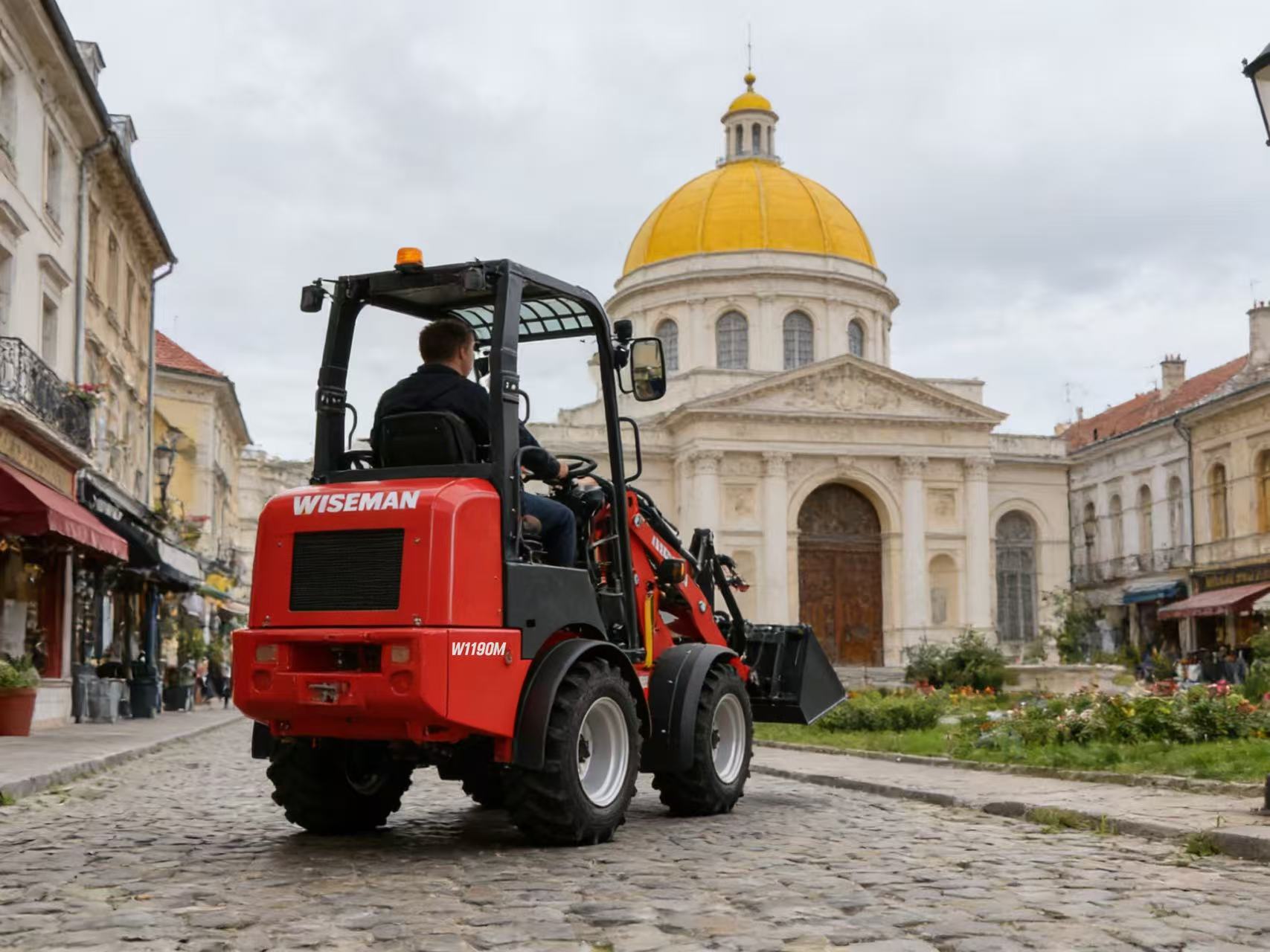

Compact Wheel Loader: Municipal Construction ApplicationsVersatile, maneuverable and high-performance – ideal for all urban municipal construction and maintenance work. |
|

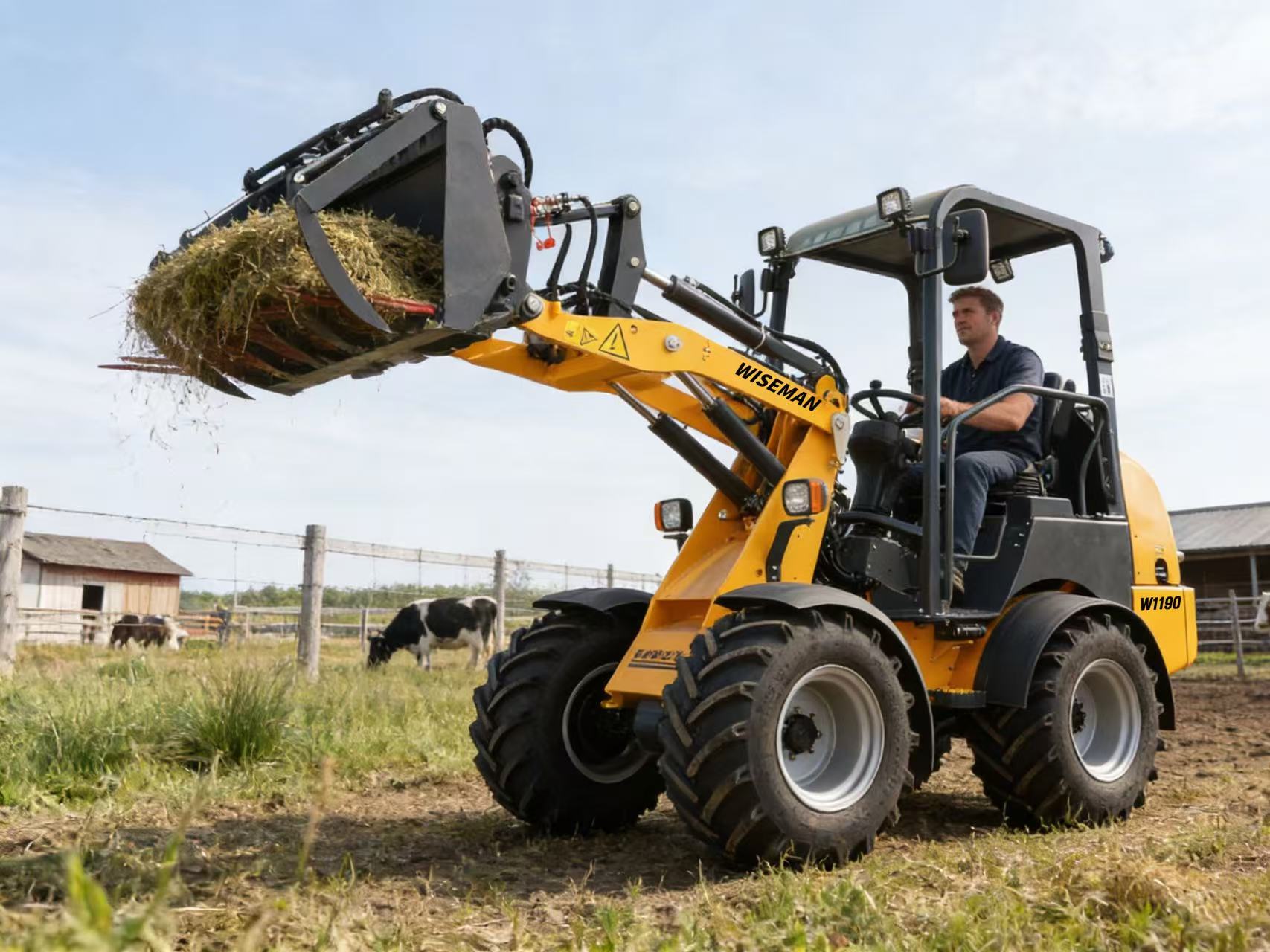

Compact Wheel Loader for Ranch Feed LoadingManeuverable in ranch barns & feeding zones, efficiently scoops and hauls all types of livestock feed for daily feeding routines. |
|
W1280 Technical Data | |
Engine | |
Brand/Model | Kubota D1703 or D1505 |
Type: | 3 Cylinders or 4 Cylinders, Water Cooling |
Power Output (kw/HP) | 18.4/25 |
Emissios Standard | Euro V/ Tier 4 Final |
Driving System | |
Type of Drive | Hydrostatic |
Drive | Universal Joint Shaft |
Travel Speed ( km/h) | 0-15 |
Electrical System | |
Operating Voltage （V) | 12 |
Battery Capacity (Ah) | 60 |
Alternator Rating (Ah) | 40 |
Hydraulic System | |
Max.Drive Hydraulics Work Pressure (bar) | 320 |
Max. Drive Hydraulics Discharge Volume (l/min) | 72 |
Max. Work Hydraulics Work Pressure | 25Mpa |
Max. Work Hydraulics Discharge Volume (l/min) | 32 |
Weight | |
Operating Weight (kg) | 2380-2550 |
Tipping Load with Bucket--Machine Straight, | 1160-1690 |
Tipping Load with Bucket--Machine Pivoted, | 980-1440 |
Tipping Load with Pallet Fork--Machine Straight, | 890-1260 |
Tipping Load with Pallet Fork--Machine Pivoted, | 740-1080 |
Bucket Capacity (m3) | 0.28 |
Brake System | |
Operating Brake | Transmission Drum Brake |
Parking Brake | Operating and Parking Brake in the Drive Train |
Tyre Size (standard) | 31*15.5-15 |
| 1.Engine: KUBOTA D1105 (Euro 5), Optional: Perkins |
| 2.Hydraulic System: German Rexroth pump, Gerotor motor, domestic valves; 1 pump + 2 motors, Inching function |
| 3.Boom Function: Floating function (optional) |
| 4.Control System: Electronic control levers with integrated forward/reverse buttons 5.(High/Low speed optional) |
| 6.Brake Inching Function (optional) |
| 7.Seat Sensor (optional) |
| 8.Lights: Turn signals, LED work lights |
| 9.EU-standard Hydraulic Quick Coupler,Quick change, customization supported |
| 10.Tires: 31.5*15-15.5 |
| 11.Canopy: EPS,detachable, foldable, and closable. |
| 1. Stone Bucket Main Application Scenarios: Suitable for picking up large stones in fields, construction sites, gardens, etc., particularly for separating stones from loose fine materials (e.g., soil, sand). Core Functions: - Efficient Stone Retrieval: Accurately clamps large stones to meet on-site stone cleaning demands; - Screening & Separation: Integrated sieving function allows loose fine materials to drop directly to the ground, achieving automatic separation of stones and fine particles; - Clear Observation: Enables operators to easily view loaded stones, enhancing operational precision. | ||
Parameter | Value Range | ||
Width | 1090mm | ||
Capacity | 0.22M3 | ||
Weight | 112kg | ||
2. Fork and Grab
Core Functions: Fork-style top structure with one hydraulic cylinder; 5 tines in total (600mm length) for material grabbing and transportation. |
| ||
Parameter | Value Range | ||
Width | 860mm-930mm | ||
Length of Tines | 600mm-800mm | ||
Weight | 155kg--185kg | ||
| 3. Pallet Fork
Core Functions: Unobstructed view of loaded materials; equipped with 2 hooks and adjustable tine spacing. | ||
Parameter | Value Range | ||
Length | 1000mm | ||
Max.Load Capacity | 2000kg | ||
Weight | 160 kg - 210 kg | ||
9. Fold-down Pallet Fork
Core Functions: Tines can be folded; clear visibility of loaded materials; 2 hooks included; adjustable tine spacing. |
| ||
Parameter | Value Range | ||
Length | 1000 mm | ||
Max.Load Capacity | 2000 kg | ||
Weight | 190 kg | ||
| 10. Load Hooks
Core Functions: Facilitates safe hoisting of heavy items; swivel hook with fastener can rotate under load (aiding precise positioning); 3 distinct lifting points provided. | ||
Parameter | Value Range | ||
Working Length | 1000 mm | ||
Load Capacity | 1.10 t | ||
