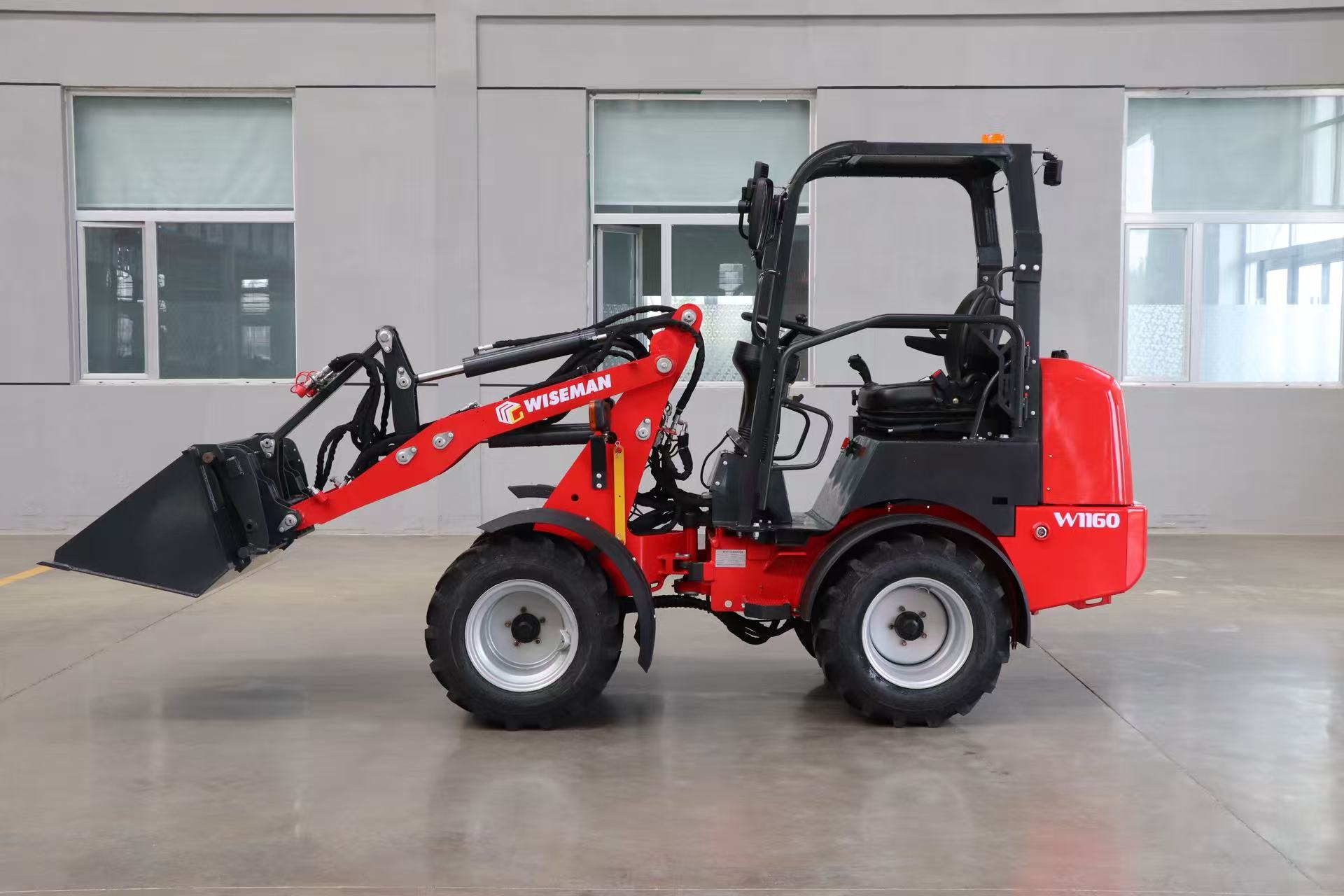

Light Small Loader

Streamlined build

Lowered center of gravity

Tight turning circle

High-impact working capability

Contact Now E-Mail Telephone WhatsApp

Overview
Technical data
Configurations
Attachments

Your All-in-One Landscaping & Maintenance Solution

Whether you’re trimming overgrown hedges, clearing pathways, or tackling a full-scale groundskeeping project, our compact loader is engineered to deliver unmatched performance and versatility for every outdoor task.

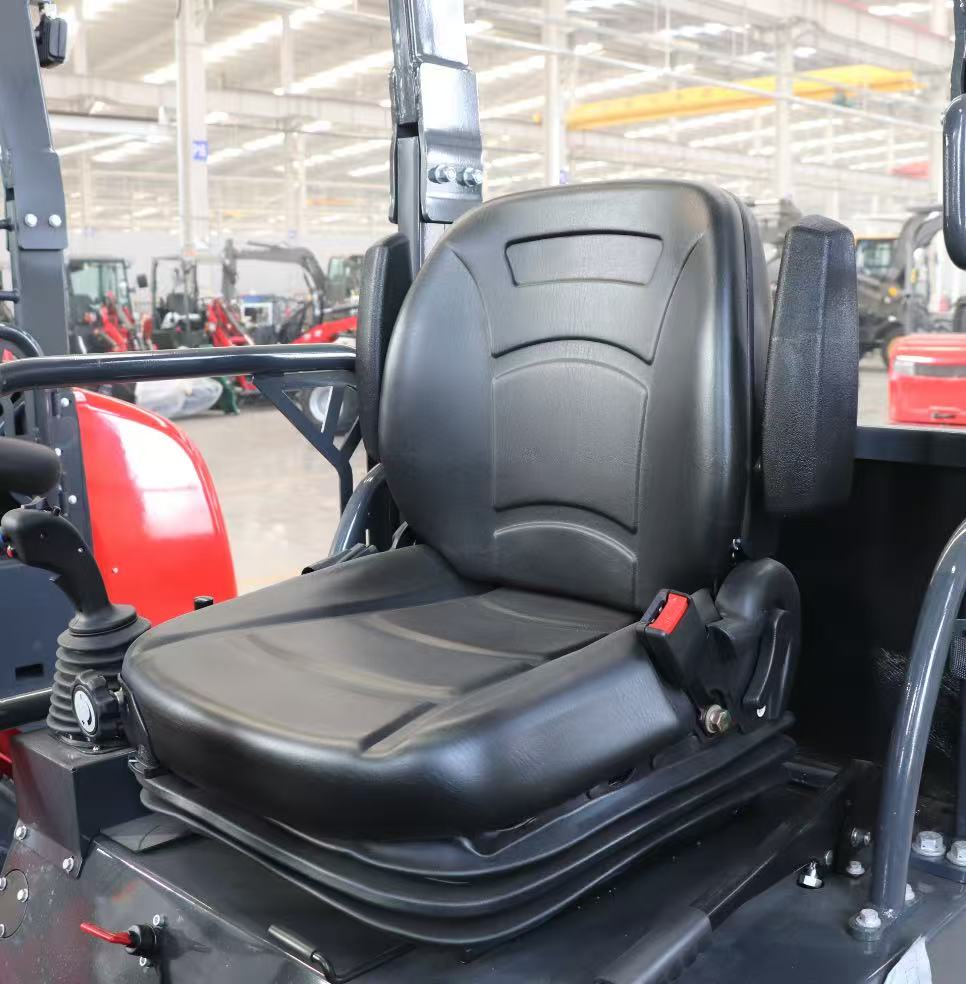

Its ergonomic operator cabin prioritizes comfort with adjustable seating and intuitive controls, reducing fatigue during long workdays, while the robust, high-traction tires provide stability on uneven terrain. From municipal park upkeep to commercial landscaping, this loader transforms how you maintain outdoor spaces—turning hours of manual labor into efficient, productive work.

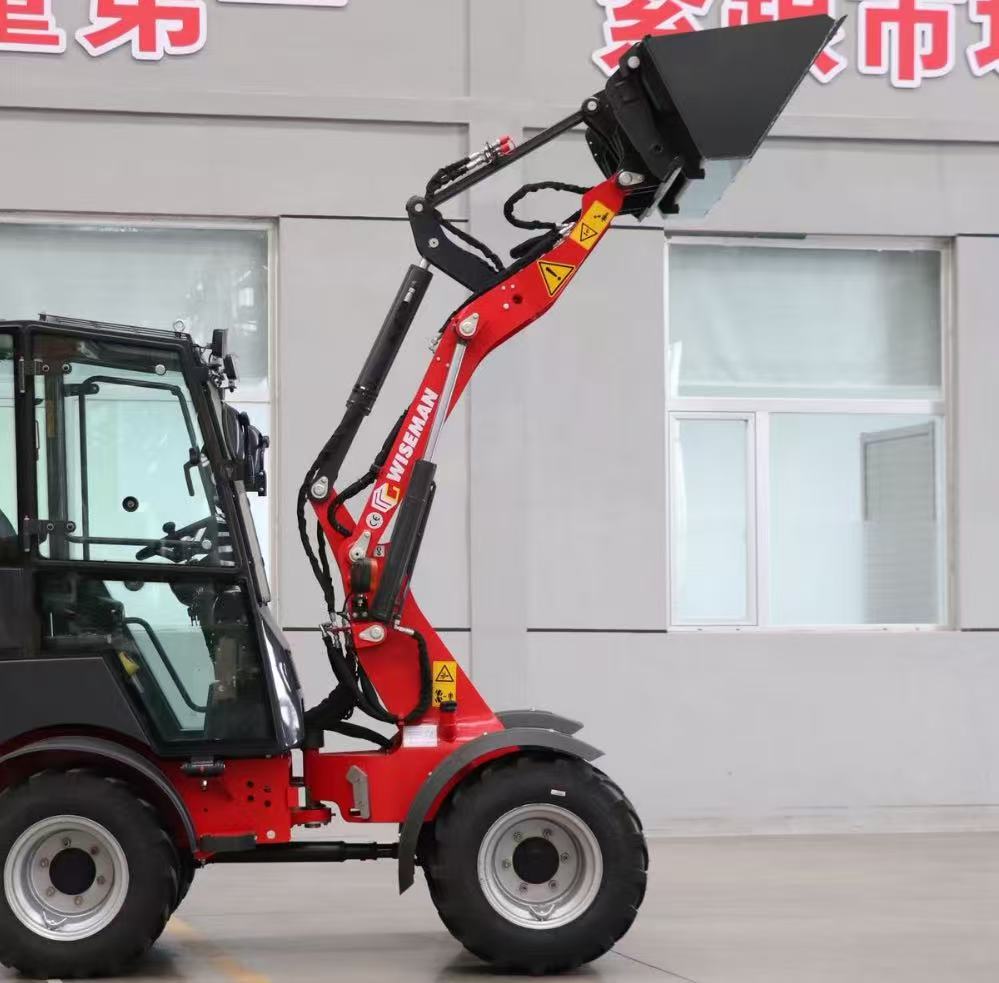

EU Stage V Compact Wheel Loader

Product Specifications

Engine Rated Power (kw/HP)：18.4kW/2800rpm

Operating Weight (kg):1850 kg

Tipping Load with Bucket--Machine Straight (kg):850 kg

Bucket Pivot Point :520

Learn More

Applications

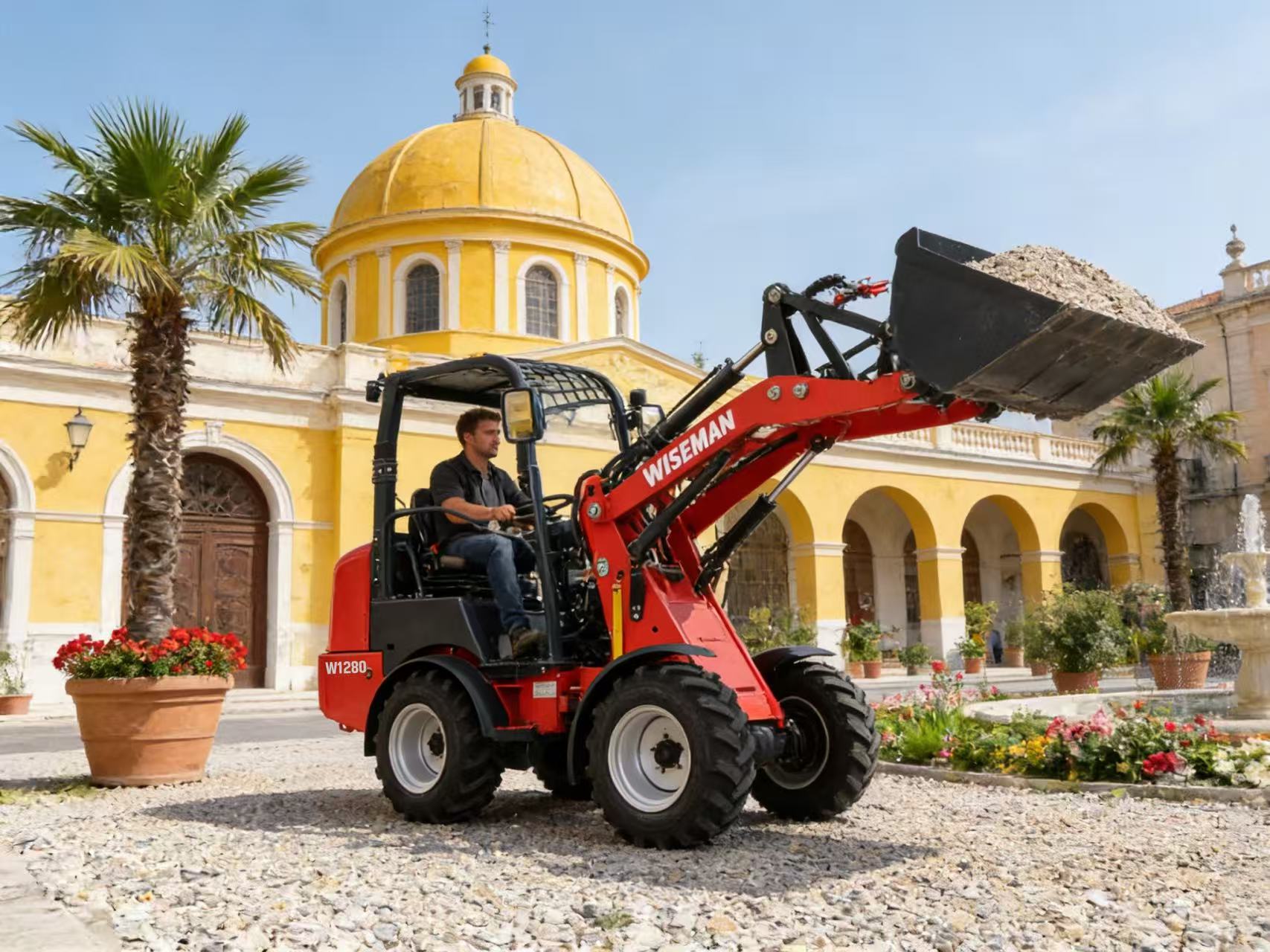

Compact Wheel Loader for Municipal Construction

Agile for urban job sites, efficient for all municipal construction and road maintenance tasks in tight city spaces.

EU Stage V Compact Wheel Loader

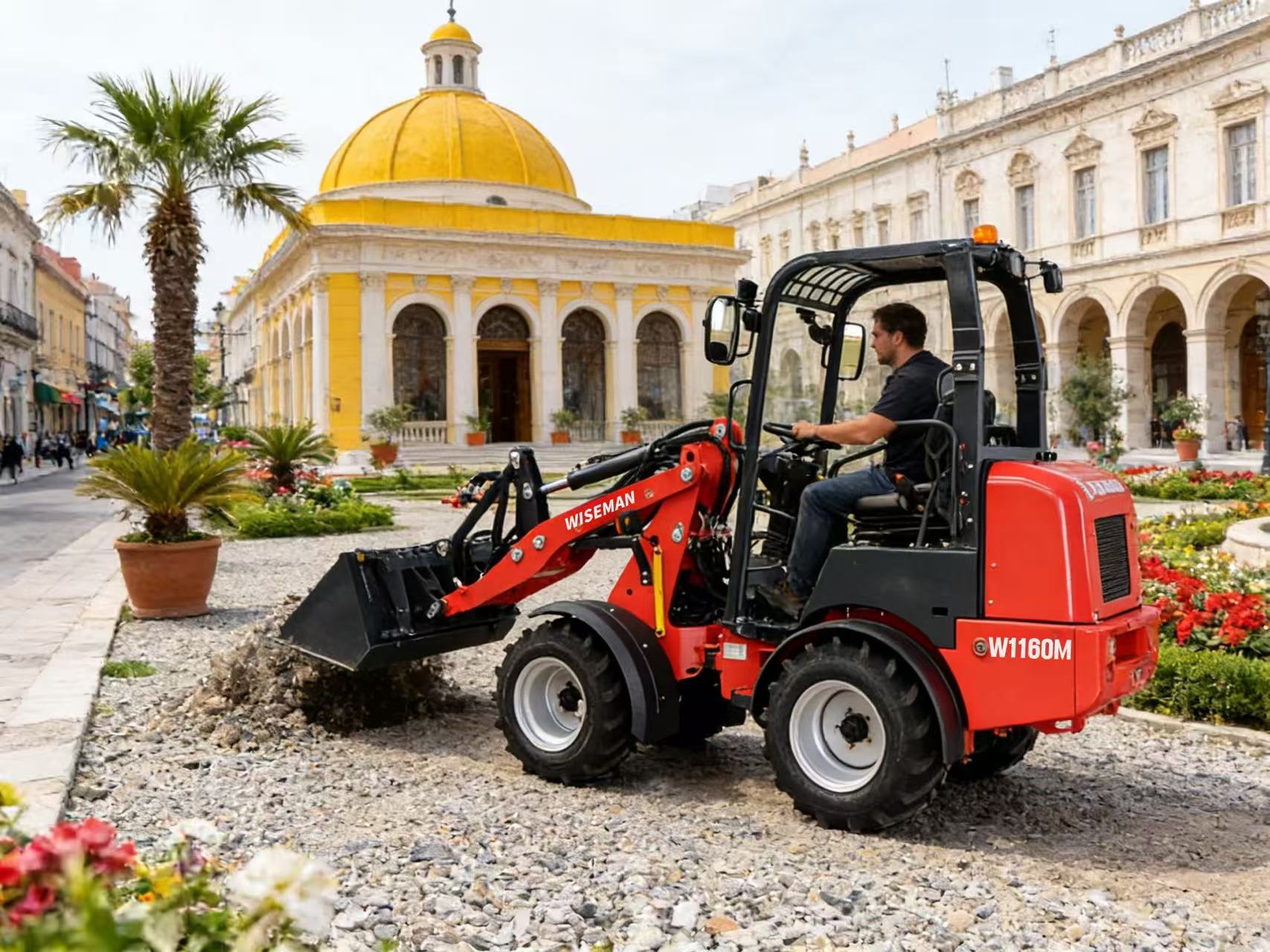

Municipal Construction Operations – Compact Wheel Loader

This compact wheel loader is a reliable workhorse for municipal projects. It navigates narrow urban construction zones with ease, handling site grading, material hauling, road repair and construction debris clearing to boost municipal work efficiency.

EU Stage V Compact Wheel Loader

Technical Data for W1160M Compact Loader
Engine
Brand/Model	Perkins 403J-11 or Kubota D1105
Type:	3 Cylinders, Water Cooling
Power Output	18.4kW/2800rpm
Displacement	1.13 L
Emissios Standard：	Euro Stage V
Drive System
Type of Drive	Hydrostatic
Gear Shift	Electric, Continuously Variable Transmissioin (CVT)
Travel Speed	0-20 km/h
Electrical System
Operating Voltage	12 V
Battery Capacity	60 Ah
Alternator Rating	40 A
Hydraulic System
Max.Drive Hydraulics Work Pressure	300 bar
Max. Drive Hydraulics Discharge Volume	84 l/min
Max. Work Hydraulics Work Pressure	180 bar
Max. Work Hydraulics Discharge Volume	32 l/min
Boom Lifting Time	3.1 s
Automatic Levelling Function	yes
Weight
Operating Weight	1850 kg
Tipping Load with Bucket--Machine Straight:	850 kg
Tipping Load with Bucket--Machine Pivoted:	550 kg
Bucket Capacity	0.28 m3
Max.Lifting Force	1100 kg
Refilling Capacity
Fuel Tank (L)	26 L
Hydulic Oil Tank (L)	40 L
Engine Oil (L)	4 L
Coolant (L)	12 L
Brake System
Operating Brake	Transmission Drum Brake
Parking Brake	Operating and Parking Brake in the Drive Train

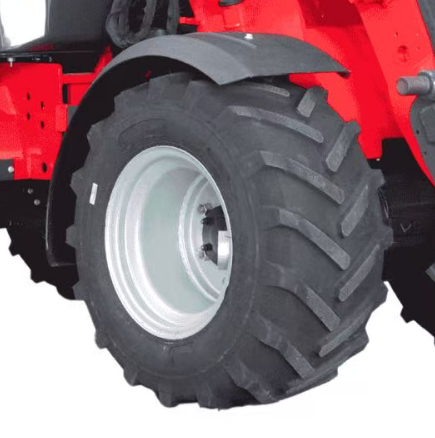

Tyre Size	31x15.5-15
Machine Dimension (mm)
Overall Length with Bucket	3895
Overall Length without Bucket	3065
Bucket Pivot Point to the Centre of Axle	520
Wheel Base	1522
Rear Overhang	950
Height to the Roof of Canopy	2210
Seat Height	1200
Working Range (mm)
Overall Working Height	3180
Max. Lifting Height	2740
Load-Over Height	2385
Dumping Height	1900
Digging Depth	120
Overall Width	1300
Wheel Track	910
Ground Clearance	221
Max. Turning Radius	2435
Outter Turning Radius	2220
Inner Turning Radius	880
Articulation Angle	51°
Roll Back Angle at Max. Lifting Height	52°
Dumping Angle	35°

	1.Engine: KUBOTA D1105 (Euro 5), Optional: Perkins

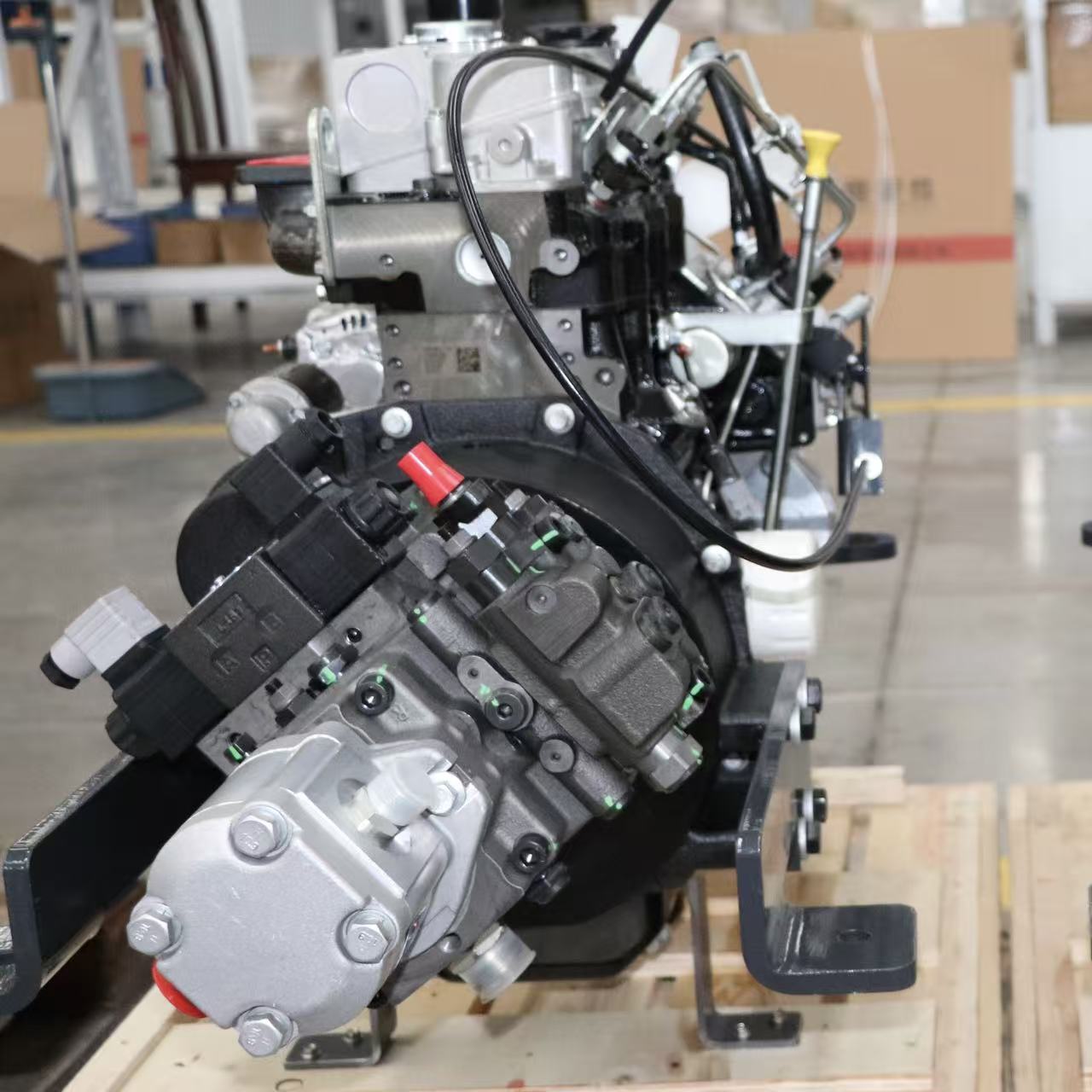

	2.Hydraulic System: German Rexroth pump, Gerotor motor, domestic valves; 1 pump + 2 motors, Inching function
	3.Boom Function: Floating function (optional)

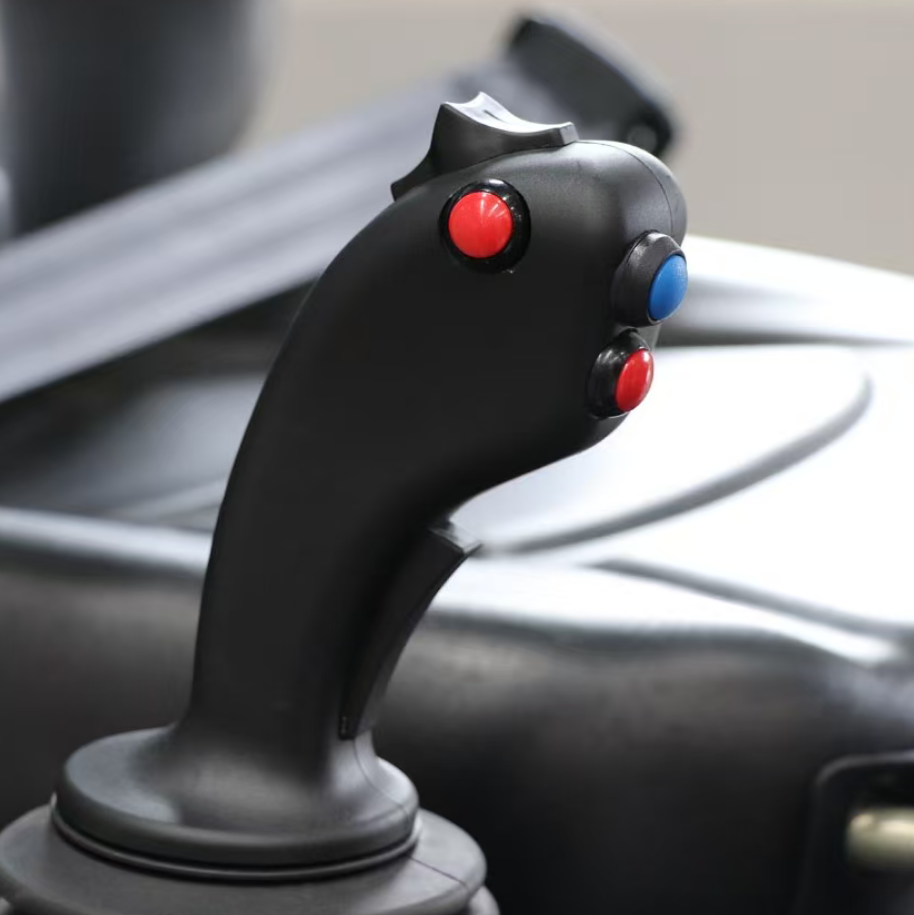

	4.Control System: Electronic control levers with integrated forward/reverse buttons 5.(High/Low speed optional)

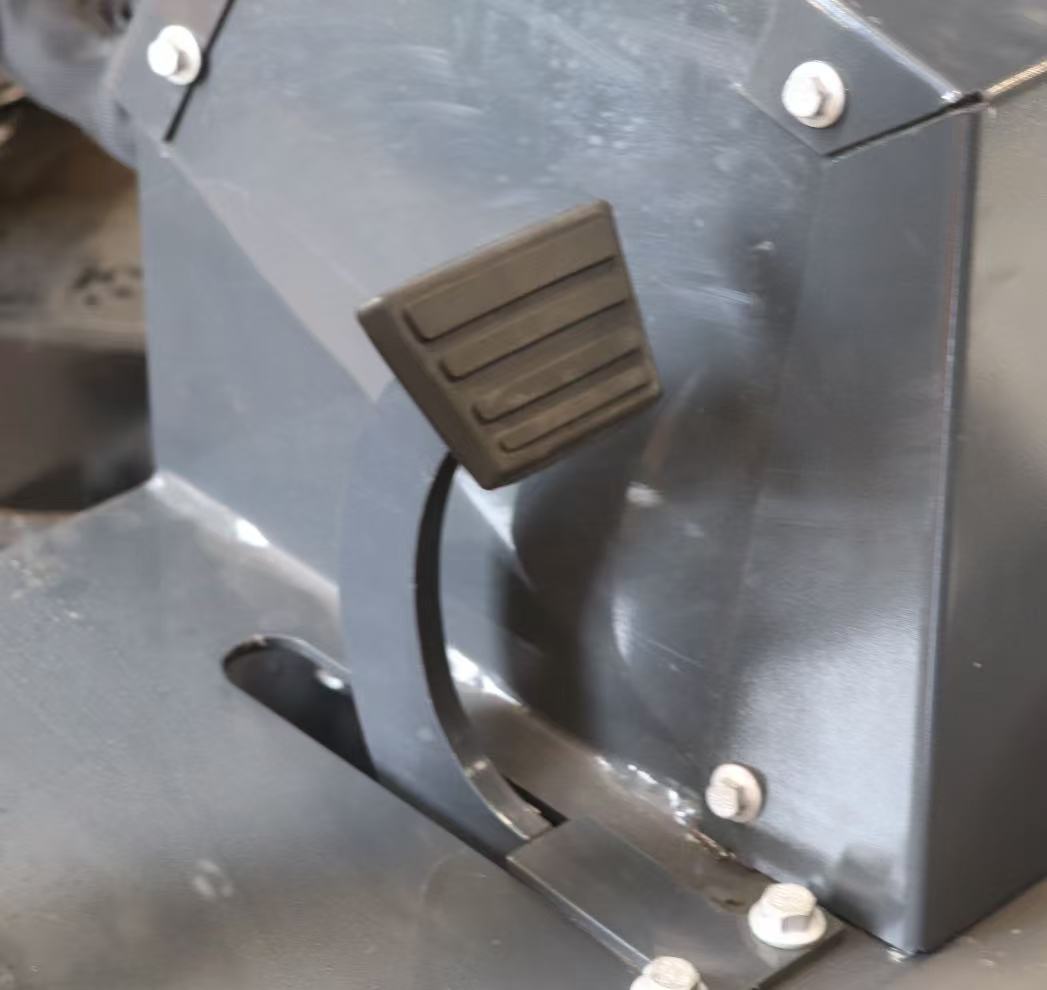

	6.Brake Inching Function (optional)
	7.Seat Sensor (optional)

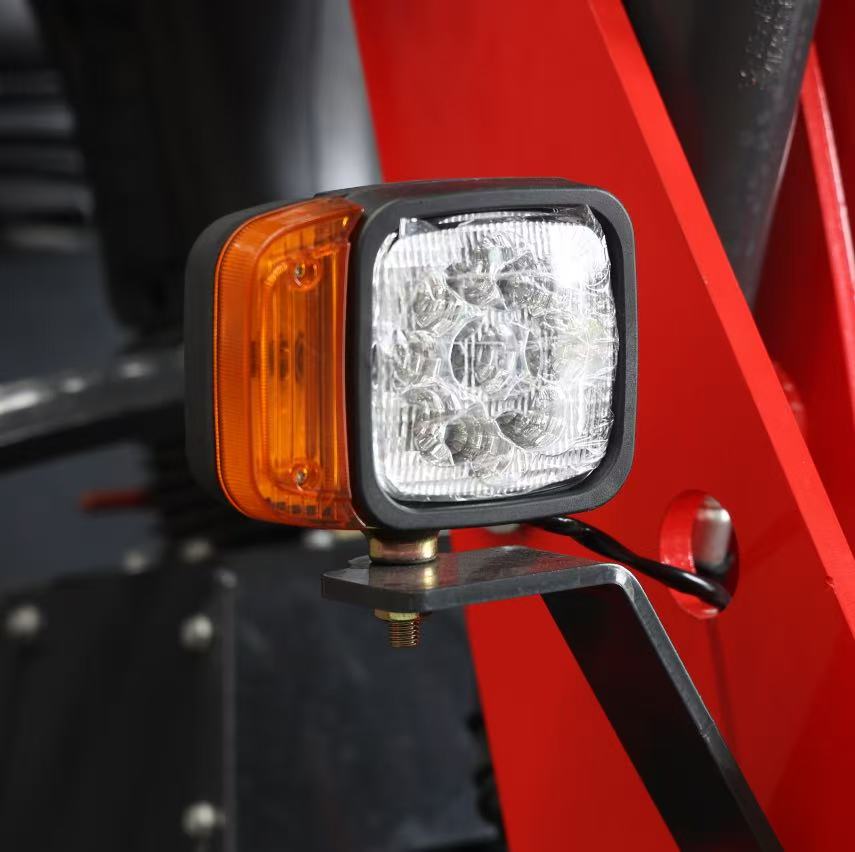

	8.Lights: Turn signals, LED work lights
	9.EU-standard Hydraulic Quick Coupler,Quick change, customization supported
	10.Tires: 31.5*15-15.5
	11.Canopy: EPS,detachable, foldable, and closable.

1. Feed Blade Main Application Scenarios: Pushing feed mixtures (e.g., silage, concentrate mixes) on feeding platforms in livestock farms. Core Functions: Hydraulic-powered for large-angle plate adjustment; left/right rotation to adjust pushing direction.
Parameter	Value Range
Width	1800 mm - 2200 mm
Max. Adjustable Angle	70°
Weight	225 kg
		2. Bale Fork Main Application Scenarios: Transporting and stacking round/square bales (hay bales, straw bales), compatible with pallet fork frames. Core Functions: Can be mounted on pallet fork frames; equipped with 2 tapered tines for bale grabbing and transportation.
		Parameter	Value Range
		Width	1130 mm
		Weight	65 kg
3. Round Bale Tong Main Application Scenarios: Transporting and stacking film-wrapped round bales. Core Functions: Grips bales without causing damage, preserving bale integrity.
Parameter	Value Range
Width	1400mm
Weight	158 kg
		4. Fence Mower Main Application Scenarios: Thoroughly trims weeds and shrubs around fence posts, suitable for fence maintenance in farms, pastures, and municipal green areas. Core Functions: Clean trimming around fence posts; eliminates manual trimming work; hydraulically adjustable from transport to working position via the operator’s cab.
		Parameter	Value Range
		Weight	220 kg

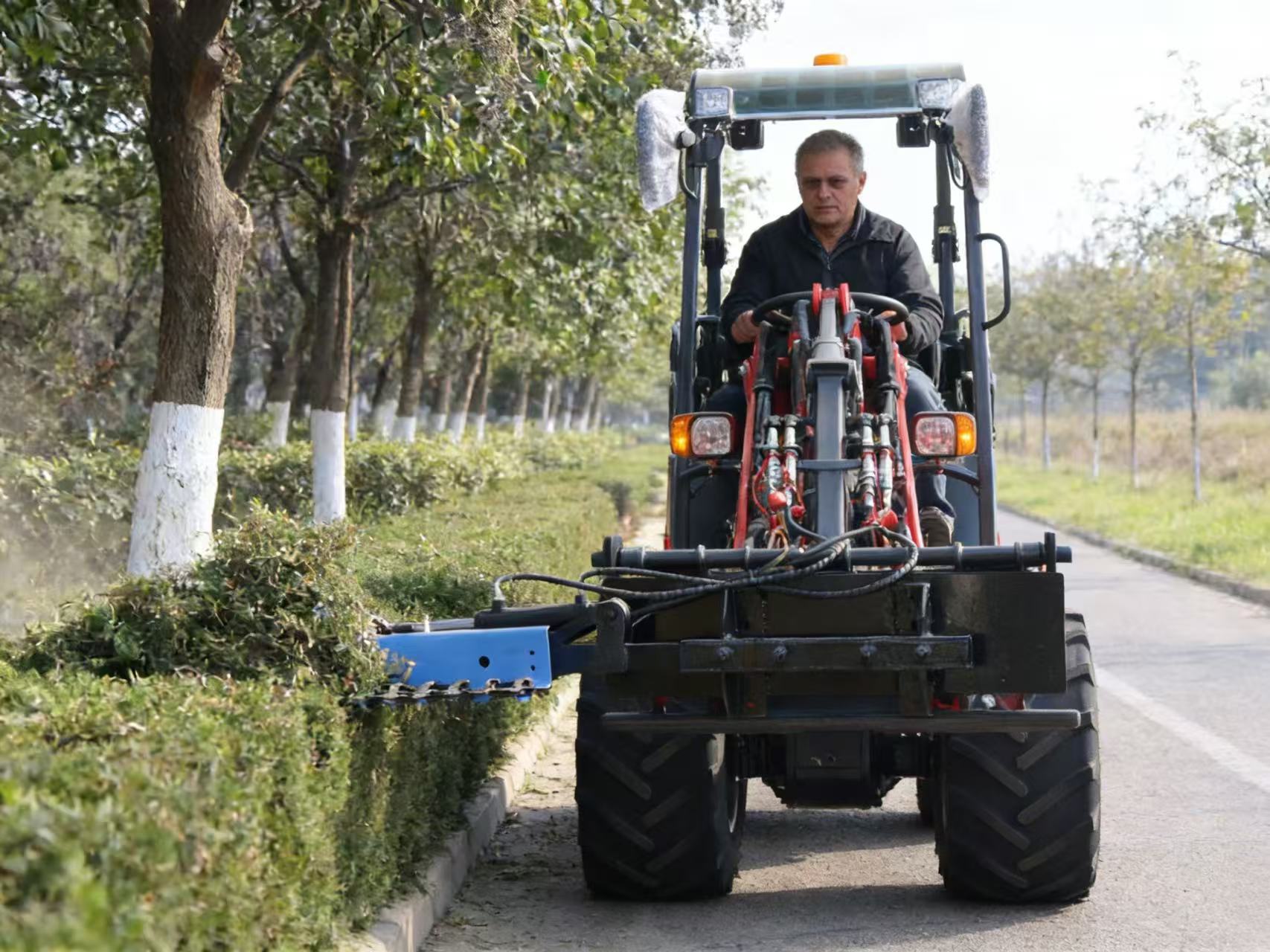

5. Double-blade Mowing Unit Main Application Scenarios: Side trimming of hedges and multi-position cutting tasks, suitable for hedge shaping in garden upkeep and municipal greening. Core Functions: Supports cutting or mowing in three different positions; enables side mowing of hedges.
Parameter	Value Range
Width	1500 mm
Weight	200 kg
