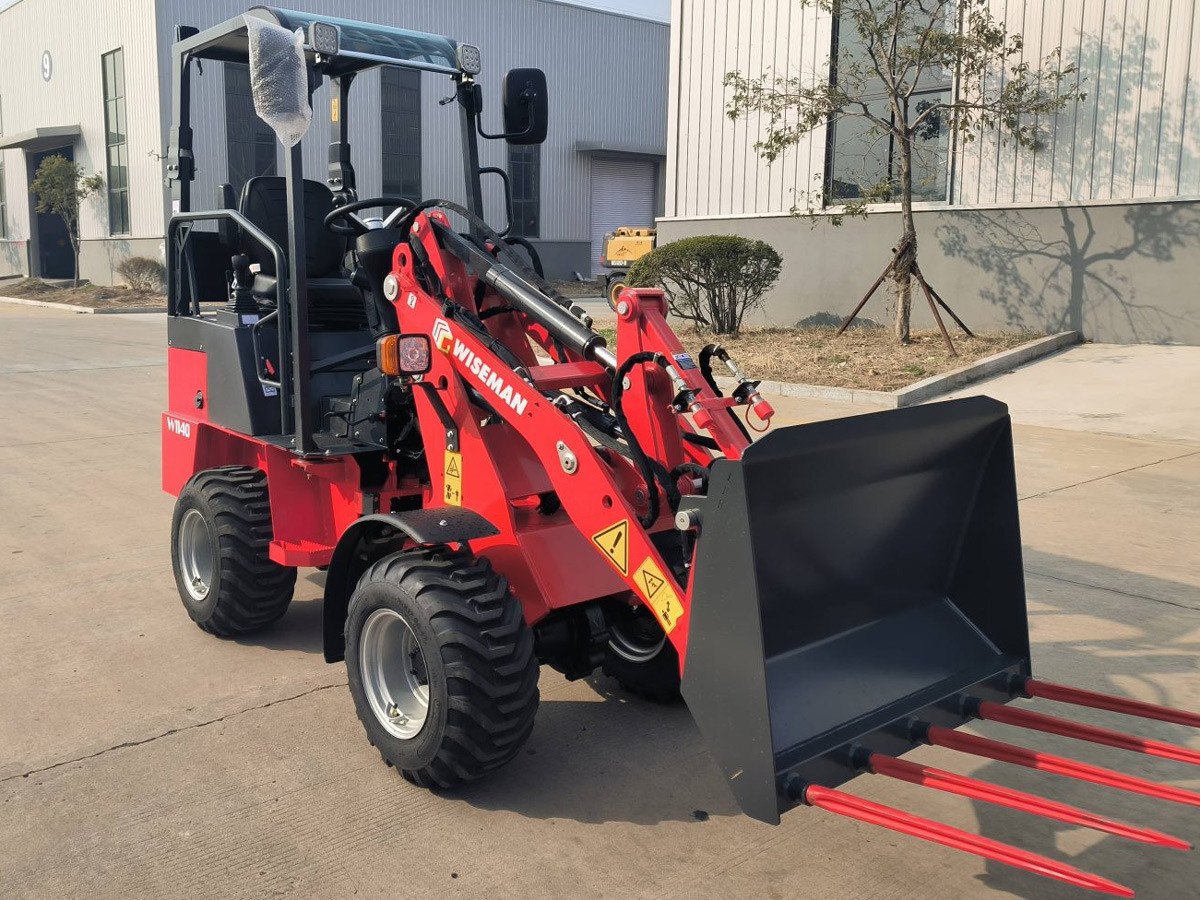

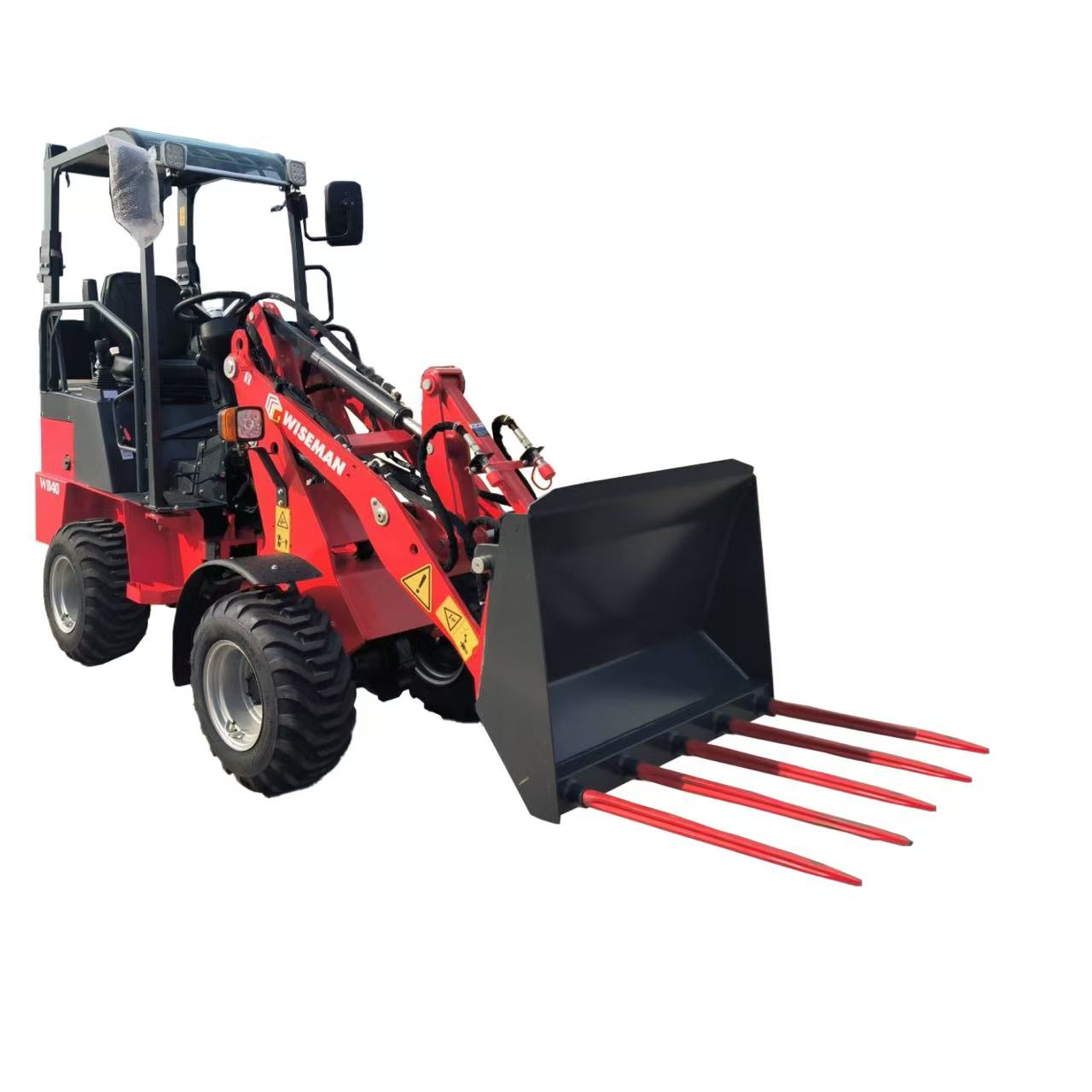

W1140
Compact Wheel Loader for Sale
Compact design
Low center of gravity
Small turning radius
Powerful performance
- Overview
- Technical data
- Configurations
Product Introduction
Equipped with Substrate Mixer Attachment, the Small Agricultural Loader for Florida Greenhouses achieves zero emission, making it suitable for Florida's environmentally conscious greenhouses. It uniformly mixes substrate, fertilizer and water, ensuring optimal growing conditions for seedlings. The mixer's high efficiency reduces preparation time, and the loader's compact size fits narrow greenhouse spaces. This combination improves substrate quality and promotes seedling growth.
Product Specifications
Engine Rated Power (kw/HP)：18.4/25
Operating Weight (kg):1720
Tipping Load with Bucket--Machine Straight (kg):650
Bucket Pivot Point :520
Applications

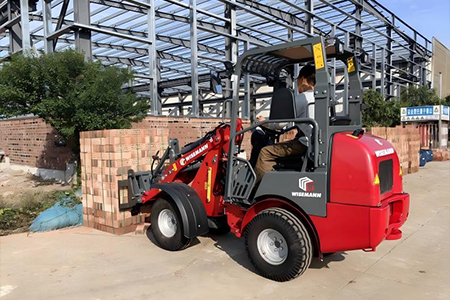

1、Loading works Sawmills often have limited storage space for finished products, meaning trucks typically need to be loaded from just one side. Wiseman telescopic loaders make this effortless, as their arms can extend to the back row of the loading zone. |
|

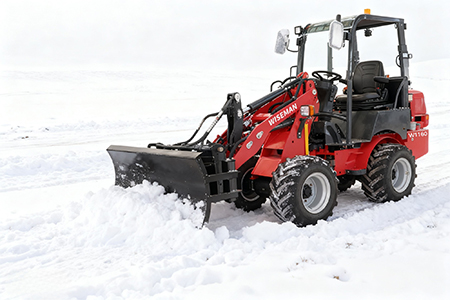

2、Winter service Depending on the specific model, Compact loaders can be outfitted with various snow blades and rear spreaders. This delivers valuable assistance for your winter maintenance work, helping clear snow and ice from the site, access roads, and service roads effectively. |
|
Technical Data for W1140 Compact Loader | |
Engine | |
Brand/Model | Perkins 403J-11 or Kubota D1105 |
Type: | 3 Cylinders, Water Cooling |
Power Output | 18.4kW(25HP)/2800rpm |
Displacement | 1.13 L |
Emissios Standard： | Euro Stage V |
Drive System | |
Type of Drive | Hydrostatic |
Gear Shift | Electric, Continuously Variable Transmissioin (CVT) |
Travel Speed | 0-12 km/h |
Electrical System | |
Operating Voltage | 12V |
Battery Capacity | 60Ah |
Alternator Rating | 40Ah |
Hydraulic System | |
Max.Drive Hydraulics Work Pressure | 25Mpa |
Max. Drive Hydraulics Discharge Volume | 91 L/min |
Max. Work Hydraulics Work Pressure | 180 bar |
Max. Work Hydraulics Discharge Volume | 32 l/min |
Boom Lifting Time | 3.1s |
Automatic Levelling Function | yes |
Weight | |
Operating Weight | 1720 kg |
Tipping Load with Bucket--Machine Straight: | 650 kg |
Tipping Load with Bucket--Machine Pivoted: | 450 kg |
Bucket Capacity | 0.23 m3 |
Max.Lifting Force | 650 kg |
Refilling Capacity | |
Fuel Tank | 26L |
Hydulic Oil Tank | 40L |
Brake System | |
Operating Brake | Transmission Drum Brake |
Parking Brake | Operating and Parking Brake in the Drive Train |
Tyre Size | 26x12-12AS |
Machine Dimension (mm) | |
Overall Length with Bucket | 3640 |
Overall Length without Bucket | 2700 |
Bucket Pivot Point to the Centre of Axle | 520 |
Wheel Base | 1328 |
Rear Overhang | 770 |
Height to the Top of Canopy | 2110 |
Seat Height | 1100 |
Working Range (mm) | |
Overall Working Height | 3080 |
Max. Lifting Height | 2640 |
Load-Over Height | 2285 |
Dumping Height | 2030 |
Digging Depth | 120 |
Overall Width | 1300 |
Wheel Track | 910 |
Ground Clearance | 180 |
Max. Turning Radius | 2235 |
Outter Turning Radius | 2020 |
Inner Turning Radius | 860 |
Articulation Angle | 51° |
Roll Back Angle at Max. Lifting Height | 52° |
Dumping Angle | 35° |
| 1.Engine: KUBOTA D1105 (Euro 5), Optional: Perkins |
| 2.Hydraulic System: German Rexroth pump, Gerotor motor, domestic valves; 1 pump + 2 motors, Inching function |
| 3.Boom Function: Floating function (optional) |
| 4.Control System: Electronic control levers with integrated forward/reverse buttons 5.(High/Low speed optional) |
| 6.Brake Inching Function (optional) |
| 7.Seat Sensor (optional) |
| 8.Lights: Turn signals, LED work lights |
| 9.EU-standard Hydraulic Quick Coupler |
| 10.Tires: 26×12-12 |
| 11.Canopy: EPS |

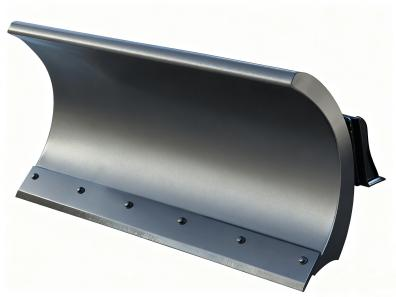

1. Feed Blade
Core Functions: Hydraulically driven for large-angle adjustment of the plate; left/right pivoting to change pushing direction. |
| ||
Parameter | Value Range | ||
Width | 1800 mm - 2200 mm | ||
Max. Adjustable Angle | 70° | ||
Weight | 225 kg | ||

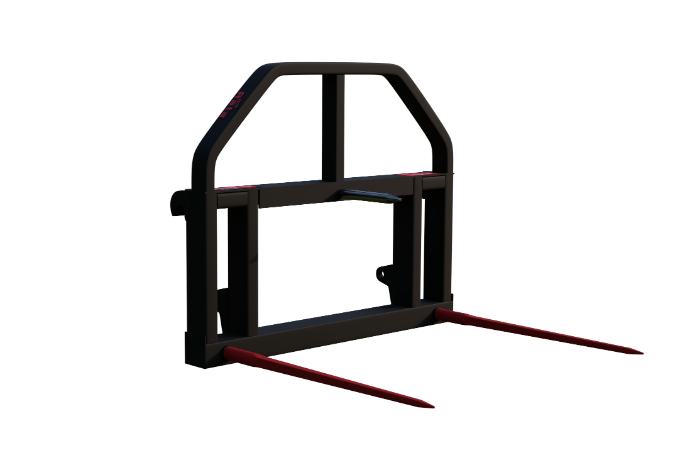

| 2. Bale Fork
Core Functions: Mountable on pallet fork frames; equipped with 2 tapered tines for bale grabbing and transportation. | ||
Parameter | Value Range | ||
Width | 1130 mm | ||
Weight | 65 kg | ||

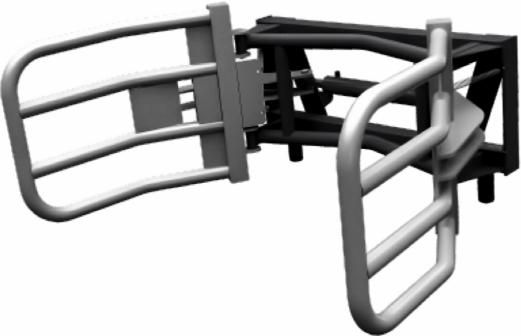

3. Round Bale Tong
Core Functions: Grips bales without causing damage, ensuring bale integrity is maintained. |
| ||
Parameter | Value Range | ||
Width | 1400mm | ||
Weight | 158 kg | ||

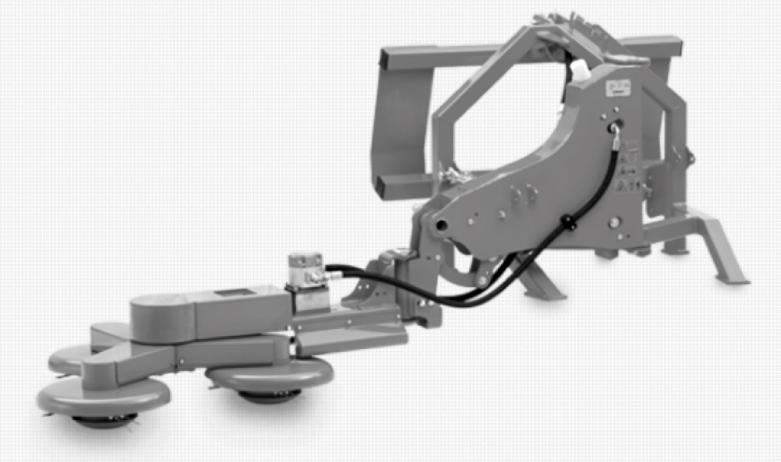

| 4. Fence Mower
Core Functions: Clean trimming around fence posts; eliminates manual trimming; hydraulically adjustable from transport to working position via the driver’s cab. | ||
Parameter | Value Range | ||
Weight | 220 kg | ||
5. Double-blade Mowing Unit
Core Functions: Can cut or mow in three different positions; supports side mowing of hedges. |
| ||
Parameter | Value Range | ||
Width | 1500 mm | ||
Weight | 200 kg | ||
