Best Electric Compact Wheel Loader

Compact design

Low center of gravity

Small turning radius

Powerful performance

Contact Now E-Mail Telephone WhatsApp

Overview
Technical data
Configurations
Attachments

Product Introduction

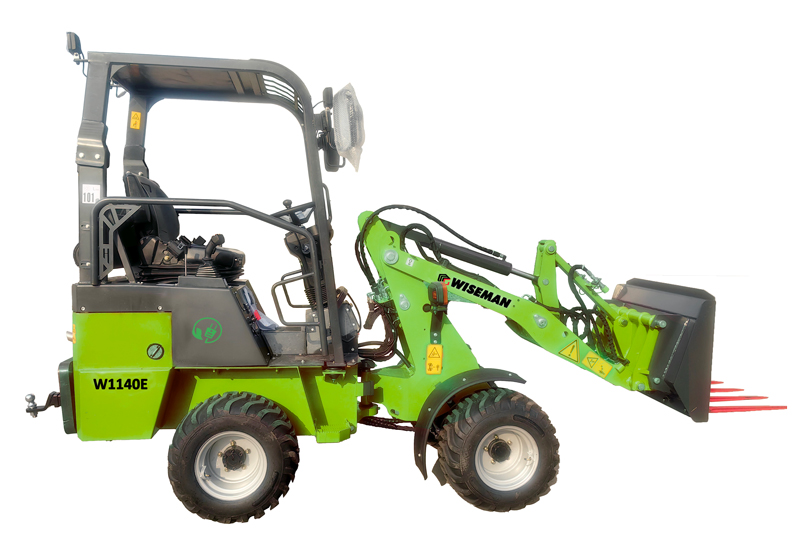

As the zero-emission upgrade of the W1140 series, the W1140E electric loader is powered by core 72V/200Ah Lead-Acid battery technology—achieving dual breakthroughs in silent operation and eco-friendliness. With no exhaust emissions or noise pollution, it’s perfectly suited for environment-sensitive scenarios like indoor logistics or green zones. Electric Compact Wheel Loader

Product Specifications

Battery Voltage (V) : 51.2

Operating Weight (kg): 1950

Tipping Load with Bucket--Machine Straight (kg): 800

Bucket Pivot Point: 520 mm

Learn More

Applications

1、Mucking out the barn Barn mucking is a routine chore, and compact loaders serve as highly effective helpers for the job. Their strong pushing force makes them especially suited for handling manure and bedding materials. Ideal attachments for this task include a crocodile grab, a grab bucket, and a dung fork.
2、Compiling piles In a sawmill, moving and organizing delivered tree trunks—often stacked by length in the storage yard—is part of the daily routine. A machine designed for this task must offer exceptional stability, a high payload capacity, and an extended telescopic arm reach to handle the logs safely and efficiently.
3、Loading works Sawmills often have limited space for storing finished products, which means trucks usually need to be loaded from one side. Wiseman telescopic loaders make this process simple, as their extendable arms can easily reach the back row of the loading area.
4、Winter service Depending on the model, compact loaders can be equipped with a variety of snow blades and rear spreaders. These attachments provide valuable support for winter maintenance, enabling efficient removal of snow and ice from worksites, access roads, and service roads.

Technical Data for W1140E Electric Compact Loader
Battery Type	Lead Acid
Battery Voltage	51.2 V
Total Power of Electric Motor	412 Ah
Battery Charging Time	6 hour
Bucket Capacity	0.23 m3
Max.Lifting Weight	950 kg
Max. Travel Speed	0-15 km/h
Max.Dumping Angle	35°
Bucket Width (Overall Width)	1300 mm
Wheel Track	910 mm
Tyre Size	31x15.5-15
Min. Ground Clearance	180 mm
Net Weight	1650 kg
Overall Length with Bucket	3640 mm
Overall Length without Bucket	2700 mm
Bucket Pivot Point to the Centre of Axle	520 mm
Wheel Base	1328 mm
Rear Overhang	770 mm
Height to the Roof of Canopy	2110 mm
Seat Height	1100 mm
Overall Working Height	3080 mm
Max. Lifting Height	2640 mm
Load-Over Height	2285 mm
Dumping Height	2030 mm
Overall Width	1300 mm
Max. Turning Radius	2235 mm
Outter Turning Radius	2020 mm
Inner Turning Radius	860 mm
Articulation Angle	51°
Roll Back Angle at Max. Lifting Height	52°
Dumping Angle	35°

	1.Engine: KUBOTA D1105 (Euro 5), Optional: Perkins
	2.Hydraulic System: German Rexroth pump, Gerotor motor, domestic valves; 1 pump + 2 motors, Inching function
	3.Boom Function: Floating function (optional)
	4.Control System: Electronic control levers with integrated forward/reverse buttons 5.(High/Low speed optional)
	6.Brake Inching Function (optional)
	7.Seat Sensor (optional)
	8.Lights: Turn signals, LED work lights
	9.EU-standard Hydraulic Quick Coupler
	10.Tires: 26×12-12
	11.Canopy: EPS

1. Lightweight Bucket Square Main Application Scenarios: Ideal for shoveling and transporting light materials including sawdust, hay, plastic granules, and similar bulk materials. Core Functions: Features a top edge parallel to the bucket bottom for smoother, more precise operation; extended bottom and heightened side walls enhance overall loading capacity; equipped with a low-wear scraper edge for longer service life.
Parameter	Value Range
Width	870mm-1050mm
Capacity	0.28M³-0.54M³
Weight	110kg-150kg
		2. Grab Bucket With Removable Side Parts Main Application Scenarios：Grabbing and transporting of loose materials such as silage, manure, wood chips, and green waste. Core Functions：High gripping force provided by two cylinders; side parts of the bucket are detachable; equipped with low-wear scraper edge.
		Parameter	Value Range
		Width	1150mm-1550mm
		Capacity	0.23M³-0.36M³
		Weight	280kg--320kg
3. Pallet Fork Main Application Scenarios: Used for transporting a wide range of palletized goods, including boxed and bagged materials. Core Functions: Provides an unobstructed view of the load; features two hooks for secure handling and adjustable tine spacing to accommodate different pallet sizes.
Parameter	Value Range
Width	1150mm-1550mm
Max.Load Capacity	2000kg
Weight	160 kg - 210 kg
		4. Round Bale Tong Main Application Scenarios: Designed for the transportation and stacking of film-wrapped round bales. Core Functions: Securely grips bales without causing damage, maintaining the integrity of the wrapping and the bale itself.
		Parameter	Value Range
		Width	1400mm
		Weight	158 kg
5. Snow Blade Main Application Scenarios: Ideal for snow removal on roads, courtyards, and factory grounds, providing reliable outdoor snow clearing during winter. Core Functions: Features a hydraulic swiveling mechanism for flexible operation; roller-level compensation with height indicator and stepless wheel/skid adjustment for precise clearing; equipped with an elastic edge protector to prevent damage to curbs and surrounding structures.
Parameter	Value Range
Width	1300 mm - 1550 mm
Road-clearing Width at 30°	1115 mm - 1320 mm
Weight	167 kg - 183 kg
