Efficient Compact Articulated Loader

Tightly packaged layout

Low-slung center of gravity

Tight-radius turning capacity

Strong operational efficiency

Contact Now E-Mail Telephone WhatsApp

Overview
Technical data
Configurations
Attachments

Product Introduction

Our Compact Loader for Vineyard withGrape Harvesting Attachment is specially designed for vineyards in the Mediterranean region. The 4WD system ensures stable operation on undulating vineyard terrain, and the harvesting attachment's gentle clamping design avoids damaging grape clusters. It features low ground pressure tires to protect the vine roots, and the compact body easily navigates between narrow vine rows. Compliant with EU standards, this combination improves grape harvesting efficiency by 40%, reducing manual labor costs for vineyard owners.

Compact Wheel Loader With Quick Attach

Product Specifications

Engine Rated Power (kw/HP)：18.4/25

Operating Weight (kg):2380-2550

Tipping Load with Bucket--Machine Straight (kg):1160-1690

Bucket Pivot Point :980-1440

Learn More

Applications

Compact Wheel Loader for Farm Weeding

Agile for farm fields, efficient for quick and easy weeding work across farmland.

Compact Wheel Loader With Quick Attach

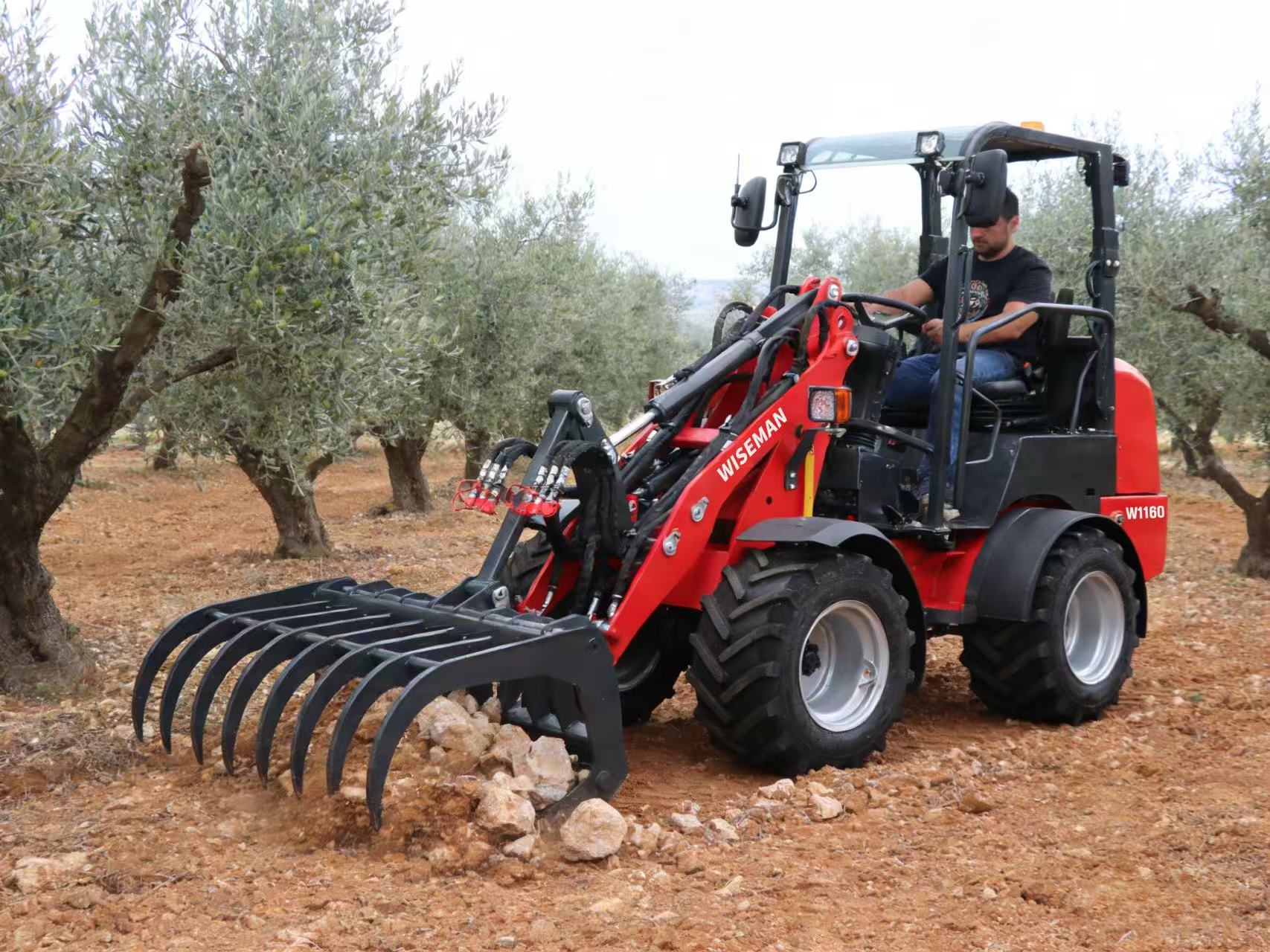

Compact Wheel Loader for Stone Removal in Orchards

Agile in narrow orchard rows, stone-clearing attachment fitted, tree-safe operation, streamlining orchard land preparation efficiently.

Compact Wheel Loader With Quick Attach

W1280 Technical Data
Engine
Brand/Model	Kubota D1703 or D1505
Type:	3 Cylinders or 4 Cylinders, Water Cooling
Power Output (kw/HP)	18.4/25
Emissios Standard	Euro V/ Tier 4 Final
Driving System
Type of Drive	Hydrostatic
Drive	Universal Joint Shaft
Travel Speed ( km/h)	0-15
Electrical System
Operating Voltage （V)	12
Battery Capacity (Ah)	60
Alternator Rating (Ah)	40
Hydraulic System
Max.Drive Hydraulics Work Pressure (bar)	320
Max. Drive Hydraulics Discharge Volume (l/min)	72
Max. Work Hydraulics Work Pressure	25Mpa
Max. Work Hydraulics Discharge Volume (l/min)	32
Weight
Operating Weight (kg)	2380-2550
Tipping Load with Bucket--Machine Straight, Loading Frame Horizontal (kg)	1160-1690
Tipping Load with Bucket--Machine Pivoted, Loading Frame Horizontal (kg)	980-1440
Tipping Load with Pallet Fork--Machine Straight, Loading Frame Horizontal (kg)	890-1260
Tipping Load with Pallet Fork--Machine Pivoted, Loading Frame Horizontal (kg)	740-1080
Bucket Capacity (m³)	0.28
Brake System
Operating Brake	Transmission Drum Brake
Parking Brake	Operating and Parking Brake in the Drive Train
Tyre Size (standard)	31*15.5-15

	1.Engine: KUBOTA D1105 (Euro 5), Optional: Perkins
	2.Hydraulic System: German Rexroth pump, Gerotor motor, domestic valves; 1 pump + 2 motors, Inching function
	3.Boom Function: Floating function (optional)
	4.Control System: Electronic control levers with integrated forward/reverse buttons 5.(High/Low speed optional)
	6.Brake Inching Function (optional)
	7.Seat Sensor (optional)
	8.Lights: Turn signals, LED work lights
	9.EU-standard Hydraulic Quick Coupler,Quick change, customization supported
	10.Tires: 31.5*15-15.5
	11.Canopy: EPS,detachable, foldable, and closable.

1. Lightweight Bucket Square Main Application Scenarios: Shoveling and hauling lightweight materials such as sawdust, hay, and plastic pellets. Core Functions: The bucket’s top rim is parallel to the base for hassle-free operation; extended bottom and elevated sidewalls increase material handling capacity; fitted with a low-abrasion scraper edge.
Parameter	Value Range
Width	870mm-1050mm
Capacity	0.28M3-0.54M3
Weight	110kg-150kg
		2.Lightweight Bucket Round Main Application Scenarios: Shoveling and transporting large quantities of lightweight materials like silage, straw, and wood chips, ideal for applications requiring reduced material spillage. Core Functions: Reinforced construction designed specifically for lightweight materials; top rim aligns with the base for easy maneuvering; extended base and reinforced curved sidewalls enhance capacity, with overflow prevention to minimize spillage; the low-abrasion scraper edge can be replaced when needed.
		Parameter	Value Range
		Width	870mm-1050mm
		Capacity	0.28M3-0.54M3
		Weight	110kg-150kg
3. Earth Bucket Main Application Scenarios: Grabbing and moving loose materials including silage, manure, wood chips, and green refuse. Core Functions: Two cylinders deliver high clamping force; side sections of the bucket are detachable; equipped with a low-abrasion scraper edge.
Parameter	Value Range
Width	920mm-1150mm
Capacity	0.20M3-0.32M3
Weight	135kg--175kg
		4. Grab Bucket With Removable Side Parts Main Application Scenarios: Grabbing and moving loose materials such as silage, manure, wood chips, and green refuse. Core Functions: Strong clamping force provided by two cylinders; side panels of the bucket are removable; comes with a low-abrasion scraper edge.
		Parameter	Value Range
		Width	1150mm-1550mm
		Capacity	0.23M3-0.36M3
		Weight	280kg--320kg
5. Multi-purpose Bucket Main Application Scenarios: Multi-scenario operations including site cleaning and material relocation, enabling shoveling, loading, and grabbing (e.g., large stones, underbrush). Core Functions: Adaptable to multi-scenario tasks (shoveling, loading, grabbing); openable for emptying to boost dumping height; fitted with a low-abrasion scraper edge and teeth.
Parameter	Value Range
Width	1150mm-1550mm
Capacity	0.23M3-0.36M3
Weight	280kg--320kg
