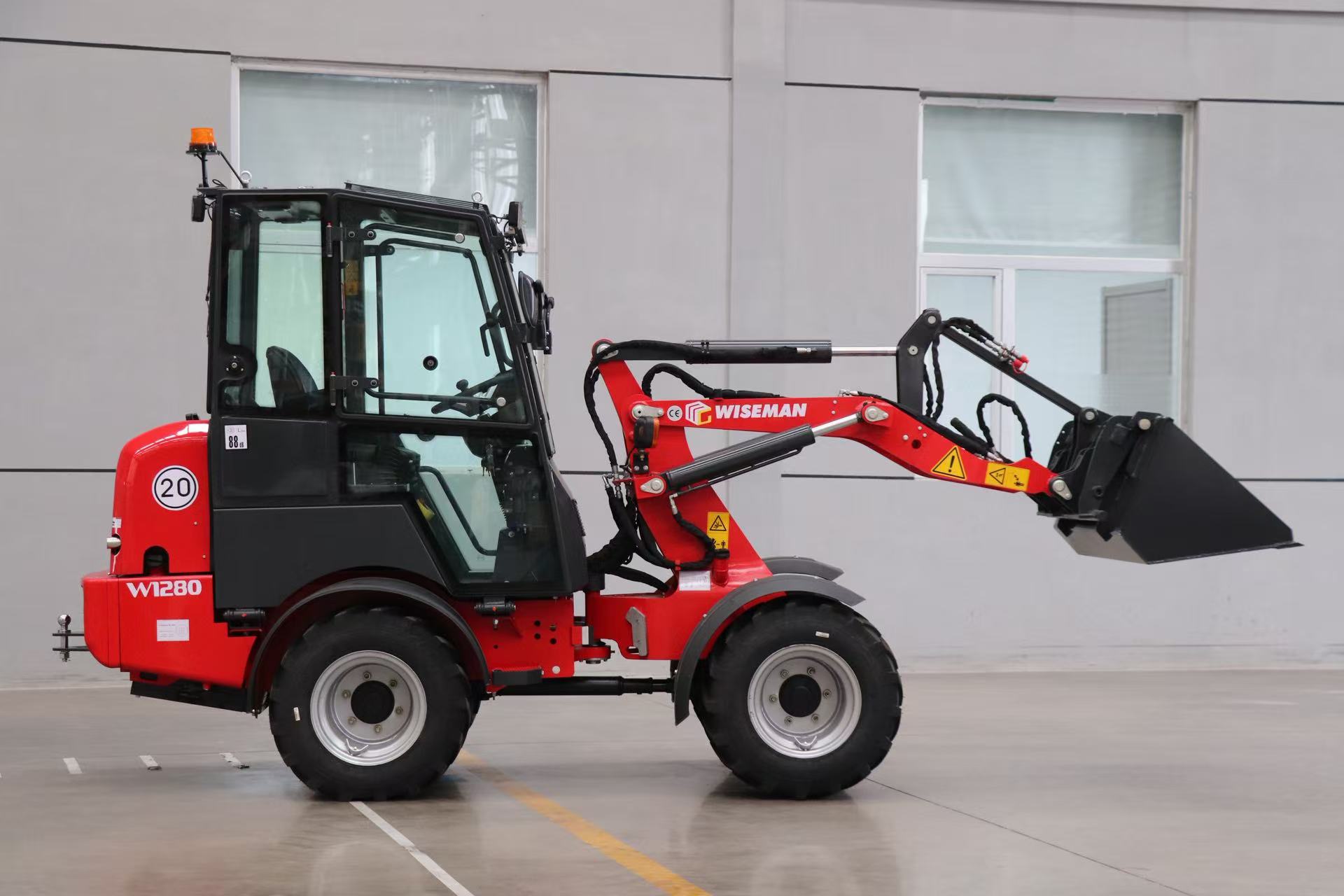

W1280
Affordable Small Agricultural Loader
Space-efficient compact framework
Low gravity center for enhanced stability
Tight turning radius for confined-area operation
Consistent high-performance output
- Overview
- Technical data
- Configurations

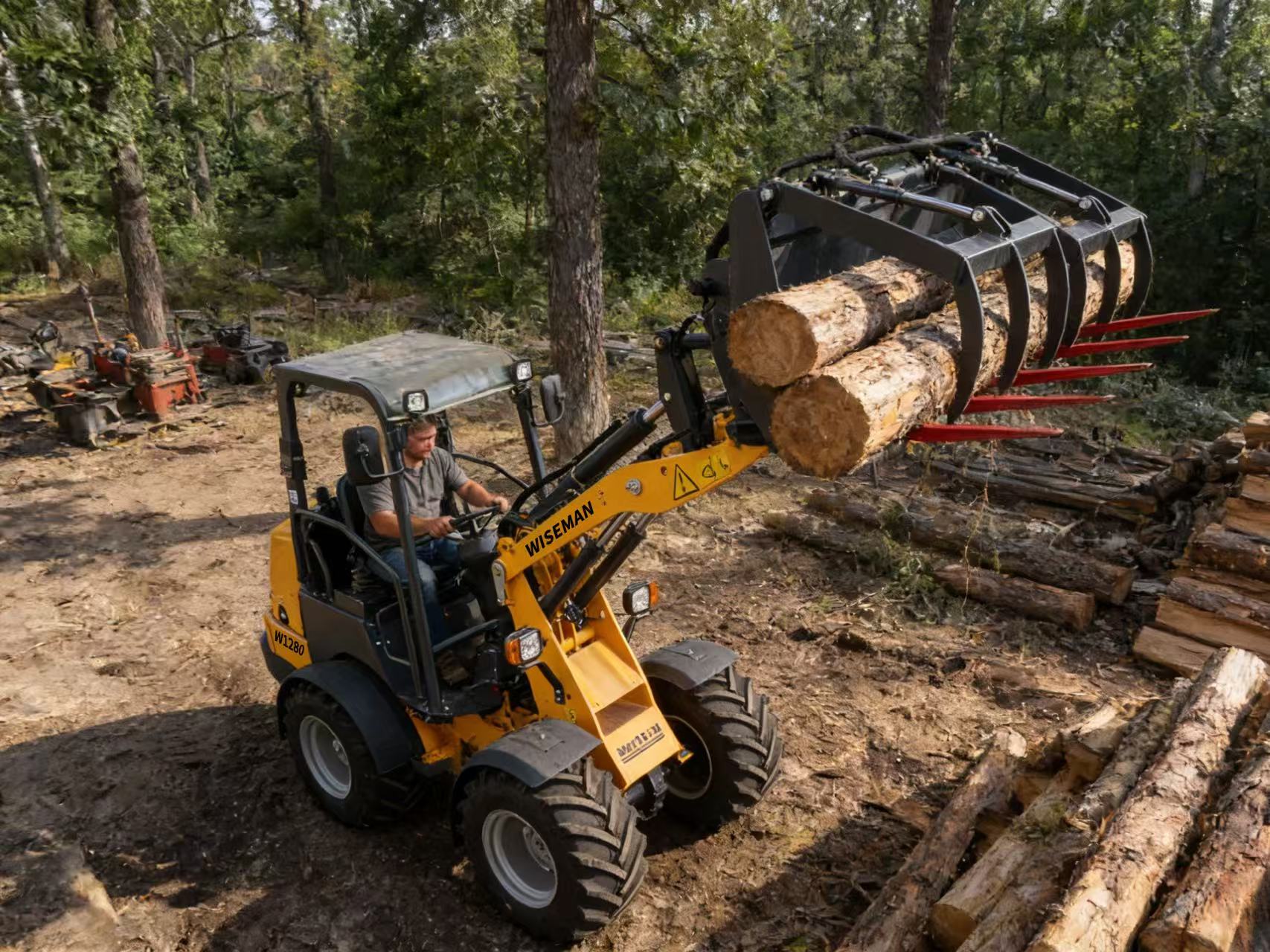

Your Forestry Workhorse
When it comes to heavy-duty forestry tasks like log handling, the Wiseman W1280 Compact Wheel Loader stands out as the ultimate solution for your worksite.
For forestry professionals who demand reliability and performance, the Wiseman W1280 isn’t just a piece of equipment—it’s a game-changer for your productivity.
Product Specifications
Engine Rated Power (kw/HP)：18.4/25
Operating Weight (kg):2380-2550
Tipping Load with Bucket--Machine Straight (kg):1160-1690
Bucket Pivot Point :980-1440
Applications

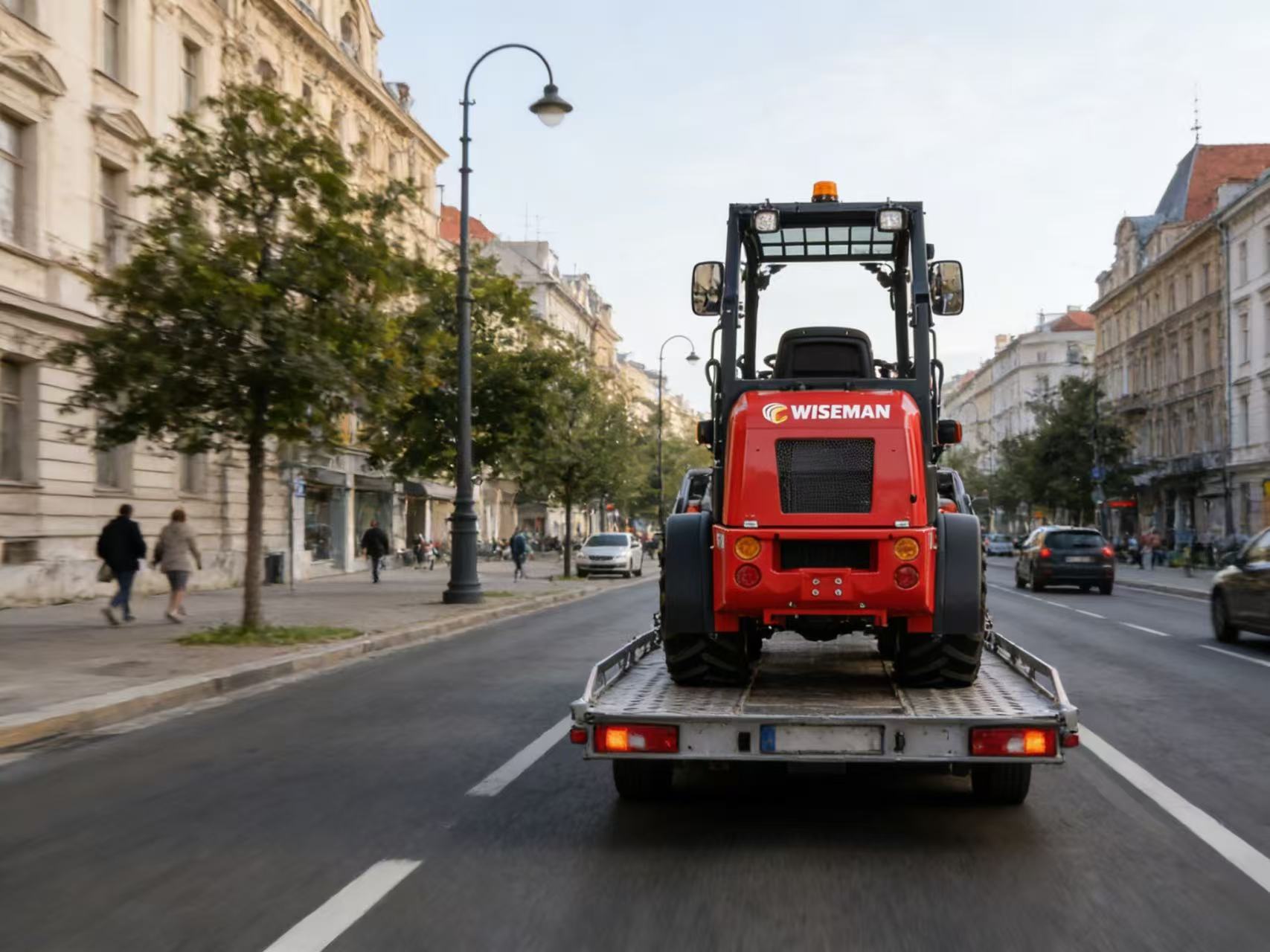

Easy Transport: A Key Highlight of Compact Wheel LoadersBoasting an optimized compact size, this wheel loader can be effortlessly loaded onto standard freight trucks or small trailers without the need for large transport equipment. It cuts down transport costs and saves relocation time for cross-site operation and project deployment. |
|

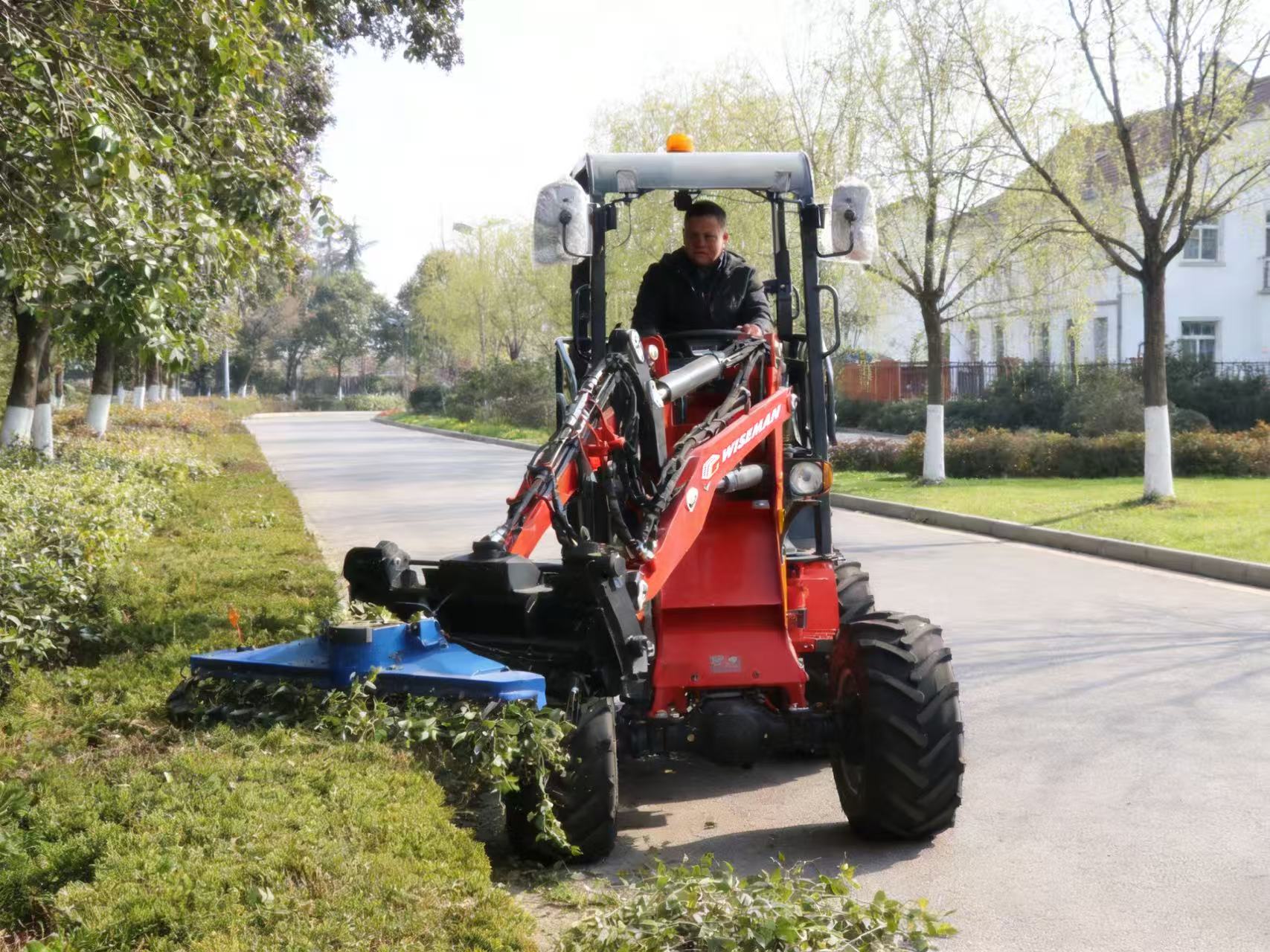

Compact Wheel Loader for Grass & Shrub Trimming in LandscapingAttachment-ready for garden care, nimble in green spaces, efficiently trims lawn grass and ornamental shrubs for neat landscape maintenance. |
|
W1280 Technical Data | |
Engine | |
Brand/Model | Kubota D1703 or D1505 |
Type: | 3 Cylinders or 4 Cylinders, Water Cooling |
Power Output (kw/HP) | 18.4/25 |
Emissios Standard | Euro V/ Tier 4 Final |
Driving System | |
Type of Drive | Hydrostatic |
Drive | Universal Joint Shaft |
Travel Speed ( km/h) | 0-15 |
Electrical System | |
Operating Voltage （V) | 12 |
Battery Capacity (Ah) | 60 |
Alternator Rating (Ah) | 40 |
Hydraulic System | |
Max.Drive Hydraulics Work Pressure (bar) | 320 |
Max. Drive Hydraulics Discharge Volume (l/min) | 72 |
Max. Work Hydraulics Work Pressure | 25Mpa |
Max. Work Hydraulics Discharge Volume (l/min) | 32 |
Weight | |
Operating Weight (kg) | 2380-2550 |
Tipping Load with Bucket--Machine Straight, | 1160-1690 |
Tipping Load with Bucket--Machine Pivoted, | 980-1440 |
Tipping Load with Pallet Fork--Machine Straight, | 890-1260 |
Tipping Load with Pallet Fork--Machine Pivoted, | 740-1080 |
Bucket Capacity (m3) | 0.28 |
Brake System | |
Operating Brake | Transmission Drum Brake |
Parking Brake | Operating and Parking Brake in the Drive Train |
Tyre Size (standard) | 31*15.5-15 |
| 1.Engine: KUBOTA D1105 (Euro 5), Optional: Perkins |
| 2.Hydraulic System: German Rexroth pump, Gerotor motor, domestic valves; 1 pump + 2 motors, Inching function |
| 3.Boom Function: Floating function (optional) |
| 4.Control System: Electronic control levers with integrated forward/reverse buttons 5.(High/Low speed optional) |
| 6.Brake Inching Function (optional) |
| 7.Seat Sensor (optional) |
| 8.Lights: Turn signals, LED work lights |
| 9.EU-standard Hydraulic Quick Coupler,Quick change, customization supported |
| 10.Tires: 31.5*15-15.5 |
| 11.Canopy: EPS,detachable, foldable, and closable. |
1. Feed Blade Main Application Scenarios: Applicable to the pushing of feeding mixtures (including silage and concentrate blends) on feeding tables in livestock breeding projects, meeting standardized feed distribution requirements. Core Functions: Adopts hydraulic drive to realize large-angle adjustment of the blade; supports left and right pivoting to adjust the pushing direction, ensuring uniform feed coverage. |
| ||
Parameter | Value Range | ||
Width | 1800 mm - 2200 mm | ||
Max. Adjustable Angle | 70° | ||
Weight | 225 kg | ||
| 2. Bale Fork Main Application Scenarios: Applicable to the transportation and stacking of round and square bales (hay bales, straw bales), and adaptable to standard pallet fork frame installations, meeting agricultural equipment operation requirements. Core Functions: Supports mounting on pallet fork frames; is equipped with two tapered tines to realize the functions of bale grabbing and stable transportation. | ||
Parameter | Value Range | ||
Width | 1130 mm | ||
Weight | 65 kg | ||
3. Round Bale Tong Main Application Scenarios: Applicable to the transportation and stacking of film-wrapped round bales, meeting the technical requirements of agricultural forage storage and distribution projects. Core Functions: Realizes non-destructive grabbing of round bales; ensures the integrity of wrapped round bales to comply with standardized forage handling specifications. |
| ||
Parameter | Value Range | ||
Width | 1400mm | ||
Weight | 158 kg | ||
| 4. Fence Mower Main Application Scenarios: Applicable to the comprehensive trimming of weeds and shrubs around fence posts, meeting the fence maintenance requirements of agricultural farms, grazing pastures, and municipal green belt projects. Core Functions: Ensures a cleanly trimmed zone around fence posts; does not require manual trimming work; realizes hydraulic adjustment between transport and working positions via operation in the driver’s cab. | ||
Parameter | Value Range | ||
Weight | 220 kg | ||
5. Double-blade Mowing Unit Main Application Scenarios: Applicable to the side trimming of hedges and multi-position cutting operations, meeting the technical requirements of garden maintenance and municipal greening landscape shaping projects. Core Functions: Capable of cutting or mowing in three different positions; supports side trimming of hedges to ensure compliance with landscape shaping standards. |
| ||
Parameter | Value Range | ||
Width | 1500 mm | ||
Weight | 200 kg | ||
