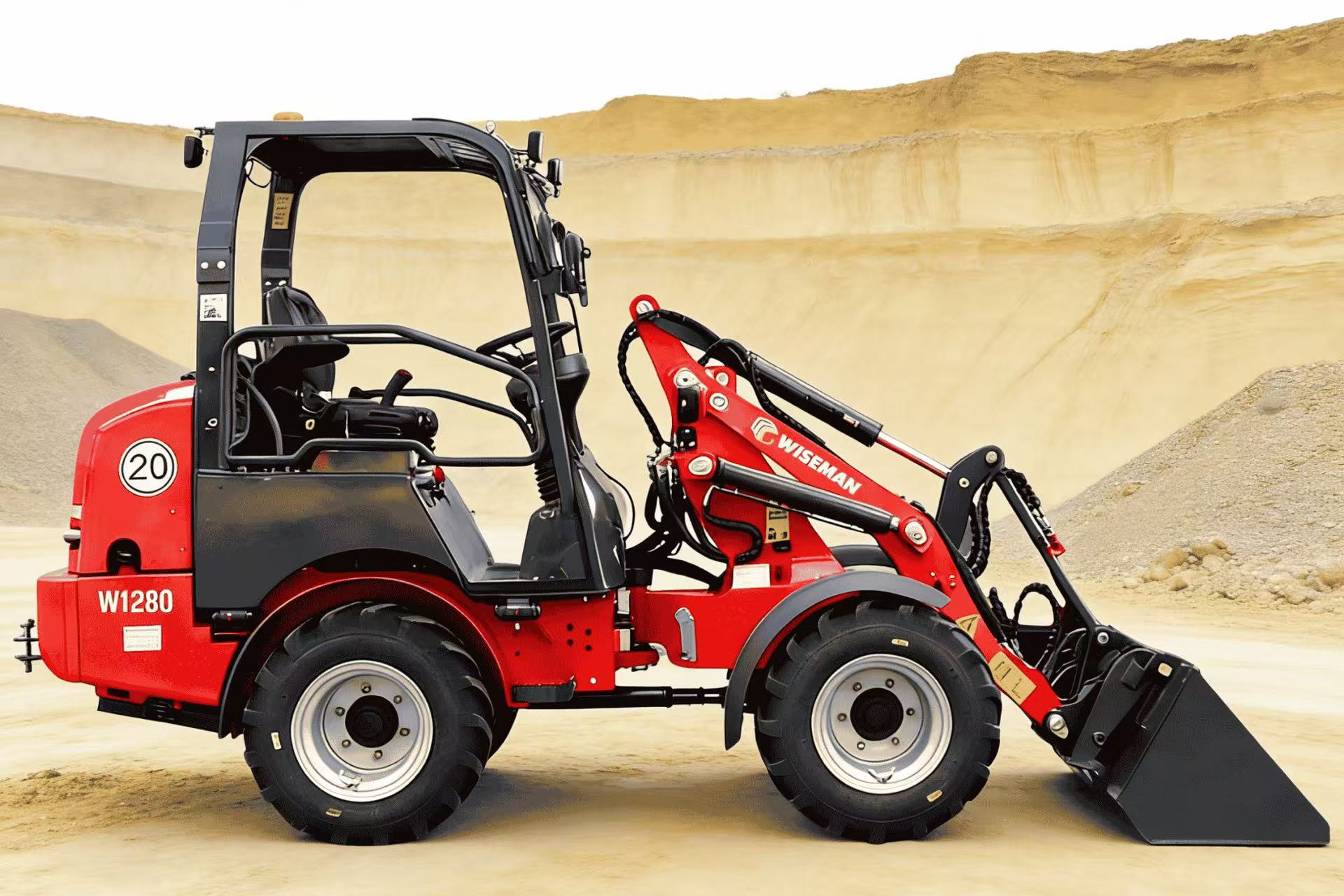

W1280
Reliable Compact Articulated Loader
Space-saving compact construction for excellent operating efficiency
Outstanding stability thanks to its low center of gravity
Great agility with a tight turning radius
Consistent high performance and durable operation
- Overview
- Technical data
- Configurations
Product Introduction
The W1280 excels in flexibility across multiple job scenarios.When fitted with a bucket, it provides a tipping load capacity ranging from 1,160 kg to 1,690 kg, easily managing heavy‑duty material handling tasks.It also features an extended boom that achieves a maximum lift height of 2,862 mm.By merging high load capacity and impressive reach, the W1280 represents a robust, all‑around solution for diverse operations.
Product Specifications
Engine Rated Power (kw/HP)：18.4/25
Operating Weight (kg):2380-2550
Tipping Load with Bucket--Machine Straight (kg):1160-1690
Bucket Pivot Point :980-1440
Applications
Grain Handling Loaders for European Farmland Operations Loaders are essential equipment for grain handling on European farmland, especially during the busy harvest season. They efficiently transport bulk grain and packaged sacks between fields, drying yards and storage facilities. With strong load-bearing capacity and flexible mobility, they adapt well to different farmland terrains, reducing manual labor and ensuring timely grain handling for European farmers. |
|

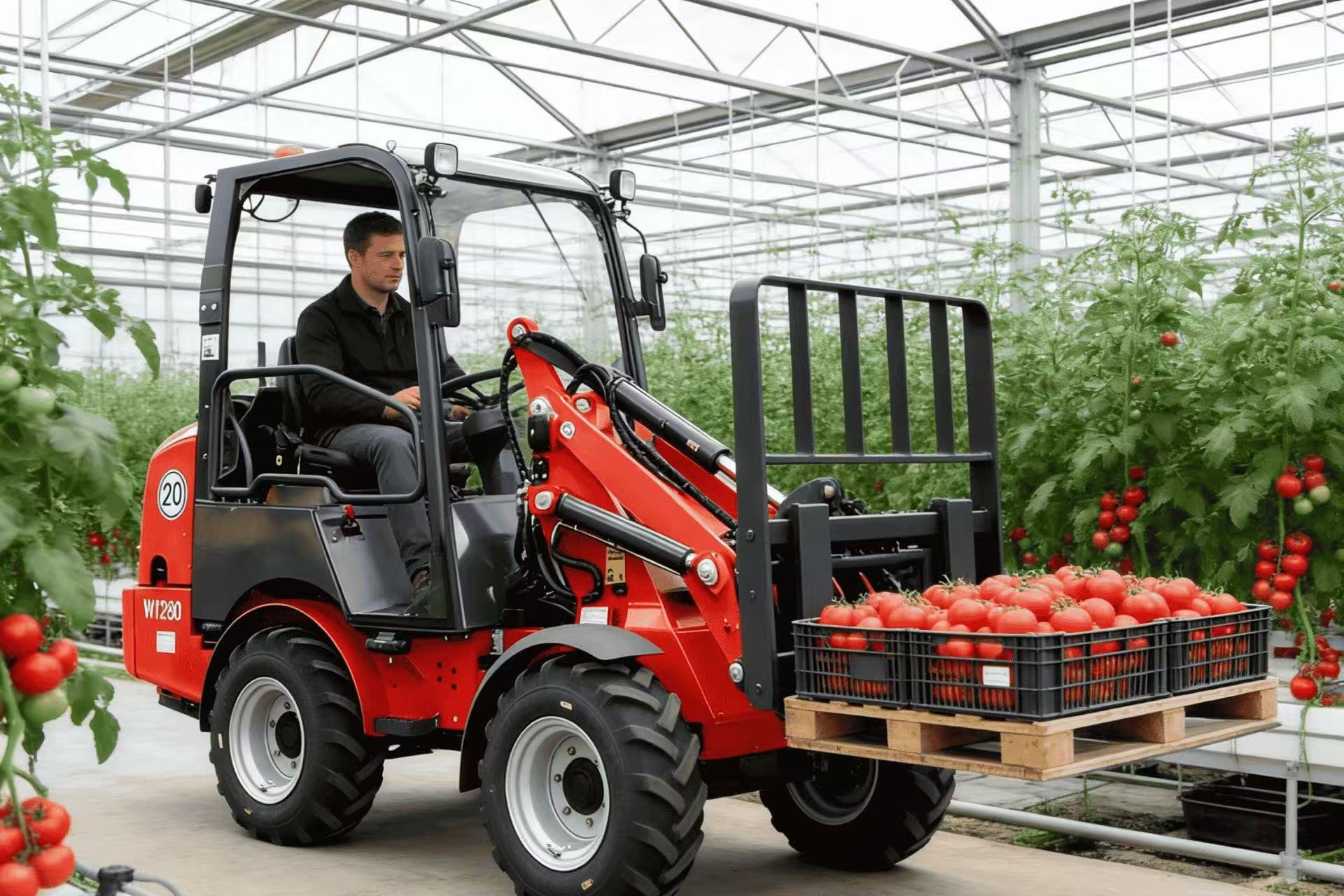

Loaders for Vegetable Transport in European Greenhouse Horticulture Loaders play a key role in transporting vegetables in European greenhouses. They are compact enough to move through narrow aisles, safely carrying fresh vegetables without damaging crops. Simple to operate and efficient, they help greenhouse workers save time and reduce manual labor. |
|
W1280 Technical Data | |
Engine | |
Brand/Model | Kubota D1703 or D1505 |
Type: | 3 Cylinders or 4 Cylinders, Water Cooling |
Power Output (kw/HP) | 18.4/25 |
Emissios Standard | Euro V/ Tier 4 Final |
Driving System | |
Type of Drive | Hydrostatic |
Drive | Universal Joint Shaft |
Travel Speed ( km/h) | 0-15 |
Electrical System | |
Operating Voltage （V) | 12 |
Battery Capacity (Ah) | 60 |
Alternator Rating (Ah) | 40 |
Hydraulic System | |
Max.Drive Hydraulics Work Pressure (bar) | 320 |
Max. Drive Hydraulics Discharge Volume (l/min) | 72 |
Max. Work Hydraulics Work Pressure | 25Mpa |
Max. Work Hydraulics Discharge Volume (l/min) | 32 |
Weight | |
Operating Weight (kg) | 2380-2550 |
Tipping Load with Bucket--Machine Straight, | 1160-1690 |
Tipping Load with Bucket--Machine Pivoted, | 980-1440 |
Tipping Load with Pallet Fork--Machine Straight, | 890-1260 |
Tipping Load with Pallet Fork--Machine Pivoted, | 740-1080 |
Bucket Capacity (m3) | 0.28 |
Brake System | |
Operating Brake | Transmission Drum Brake |
Parking Brake | Operating and Parking Brake in the Drive Train |
Tyre Size (standard) | 31*15.5-15 |
| 1.Engine: KUBOTA D1105 (Euro 5), Optional: Perkins |
| 2.Hydraulic System: German Rexroth pump, Gerotor motor, domestic valves; 1 pump + 2 motors, Inching function |
| 3.Boom Function: Floating function (optional) |
| 4.Control System: Electronic control levers with integrated forward/reverse buttons 5.(High/Low speed optional) |
| 6.Brake Inching Function (optional) |
| 7.Seat Sensor (optional) |
| 8.Lights: Turn signals, LED work lights |
| 9.EU-standard Hydraulic Quick Coupler,Quick change, customization supported |
 | 10.Tires: 31.5*15-15.5 |
| 11.Canopy: EPS,detachable, foldable, and closable. |
| 1. Rubber Blade Main Application Scenarios Designed to clean slatted floors in livestock barns by clearing manure and wasted feed, while also removing oil contamination from asphalt and concrete surfaces in workshops, parking areas and other facilities. Core Functions Reliably eliminates buildup and debris from slatted floors; deeply cleans oil stains and other pollutants from a wide range of floor surfaces. | ||
Parameter | Value Range | ||
Width | 1200 mm - 1500 mm | ||
Weight | 85 kg - 160 kg | ||
2. Sweeper Main Application Scenarios Ideal for sweeping dust, debris and fallen leaves in warehouses, farm roads and construction sites, and can be rapidly deployed between loading tasks. Core Functions Ensures excellent cleaning performance; works with standard pallet forks or optional buckets; enables simple installation and quick tool replacement. |
| ||
Parameter | Value Range | ||
Width | 1250 mm - 1550 mm | ||
Weight | 150 kg-180kg | ||
| 3.Sweeping Machine Main Application Scenarios Perfect for maintaining open areas including courtyards, factory roads, bike paths and parking lots, fulfilling daily ground cleaning and debris management requirements. Core Functions Strong Versatility: Specially constructed for open-space cleaning, efficiently clearing diverse loose waste and debris. Practical Standard Feature: Built with an integrated collection box to gather and contain swept materials. | ||
Parameter | Value Range | ||
Width | 1250 mm - 1550 mm | ||
Weight | 190 kg-220 kg | ||
4. Snow Blade Main Application Scenarios Created for snow clearance on roads, courtyards and industrial sites, perfectly suited for all outdoor winter snow‑removal operations. Core Functions Integrated with hydraulic rotation function; equipped with roller leveling compensation and height indicator, together with infinitely adjustable wheels or skids for precise snow clearing; flexible protective blade avoids damage to curbs and adjacent buildings. |
| ||
Parameter | Value Range | ||
Width | 1300 mm - 1550 mm | ||
Road-clearing Width at 30° | 1115 mm - 1320 mm | ||
Weight | 167 kg - 183 kg | ||
| 5. Earth Borer Main Application Scenarios Suited for earth drilling work such as setting fence posts, planting trees, and installing signs, widely applied in agriculture, municipal maintenance and landscaping. Core Functions Provides multiple drill specifications to adapt to different drilling tasks. | ||
Parameter | Value Range | ||
Length | 1240 mm | ||
Drill Diameter | ∅152 mm-∅305 mm | ||
Weight | 173 kg - 197 kg | ||
6.Logging Fork Main Application Scenarios Built for collecting scattered branches and small logs to organize job sites, while also performing short‑distance hauling, loading and unloading of logs with a diameter of 100–300 mm. Core Functions Works with compact loaders, firmly grasps medium and small‑sized logs and branches, effectively prevents slipping during transport, and ensures stable and dependable operation. |
| ||
Parameter | Value Range | ||
Dimension（LXWXH) | 1323mmX804mmX828mm | ||
Weight | 172 kg | ||
