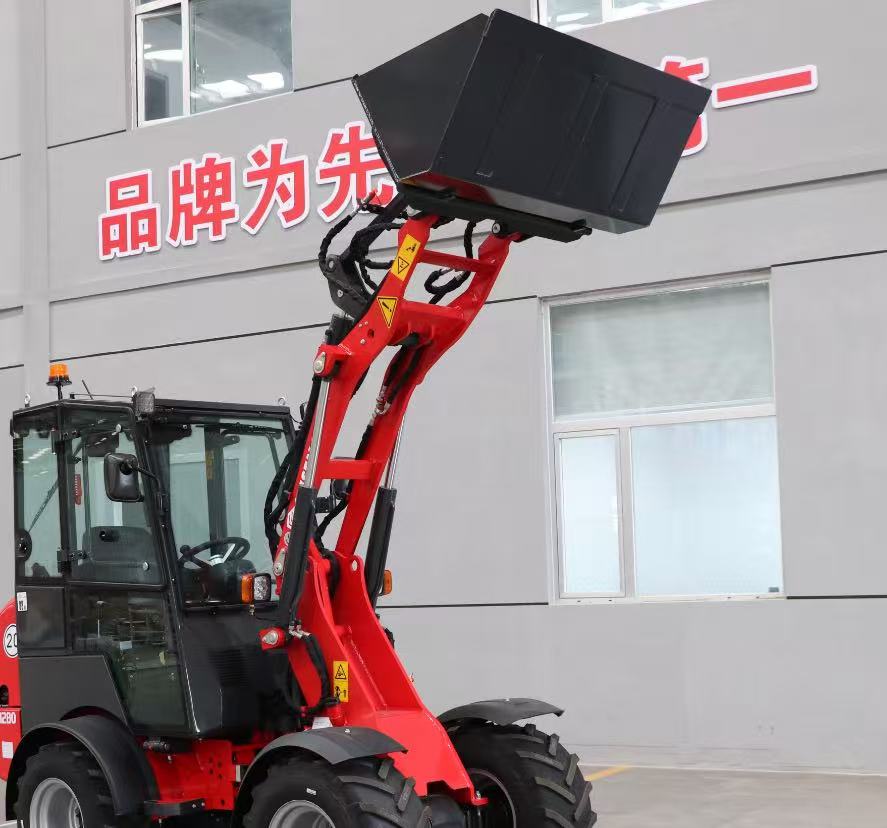

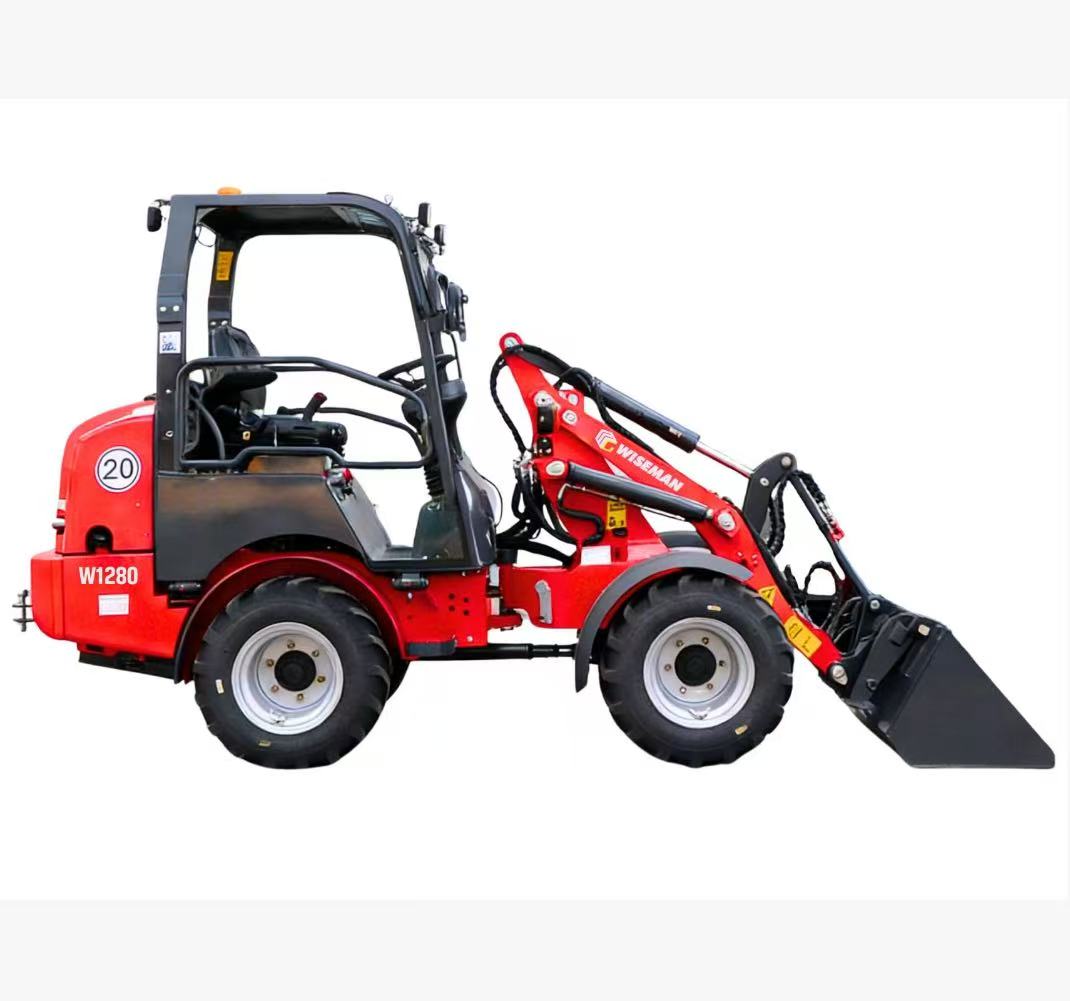

W1280C
Small Loader
Easy-to-store compact construction
Low-mounted gravity center
Small turning circle for agile navigation
Reliable high-impact on-site performance
- Overview
- Technical data
- Configurations
Your Farm’s Hardworking Partner
When it comes to farm tasks like hay bale handling, feed transport, or yard cleanup, the Wiseman W1280C compact loader stands out as the ultimate workhorse.

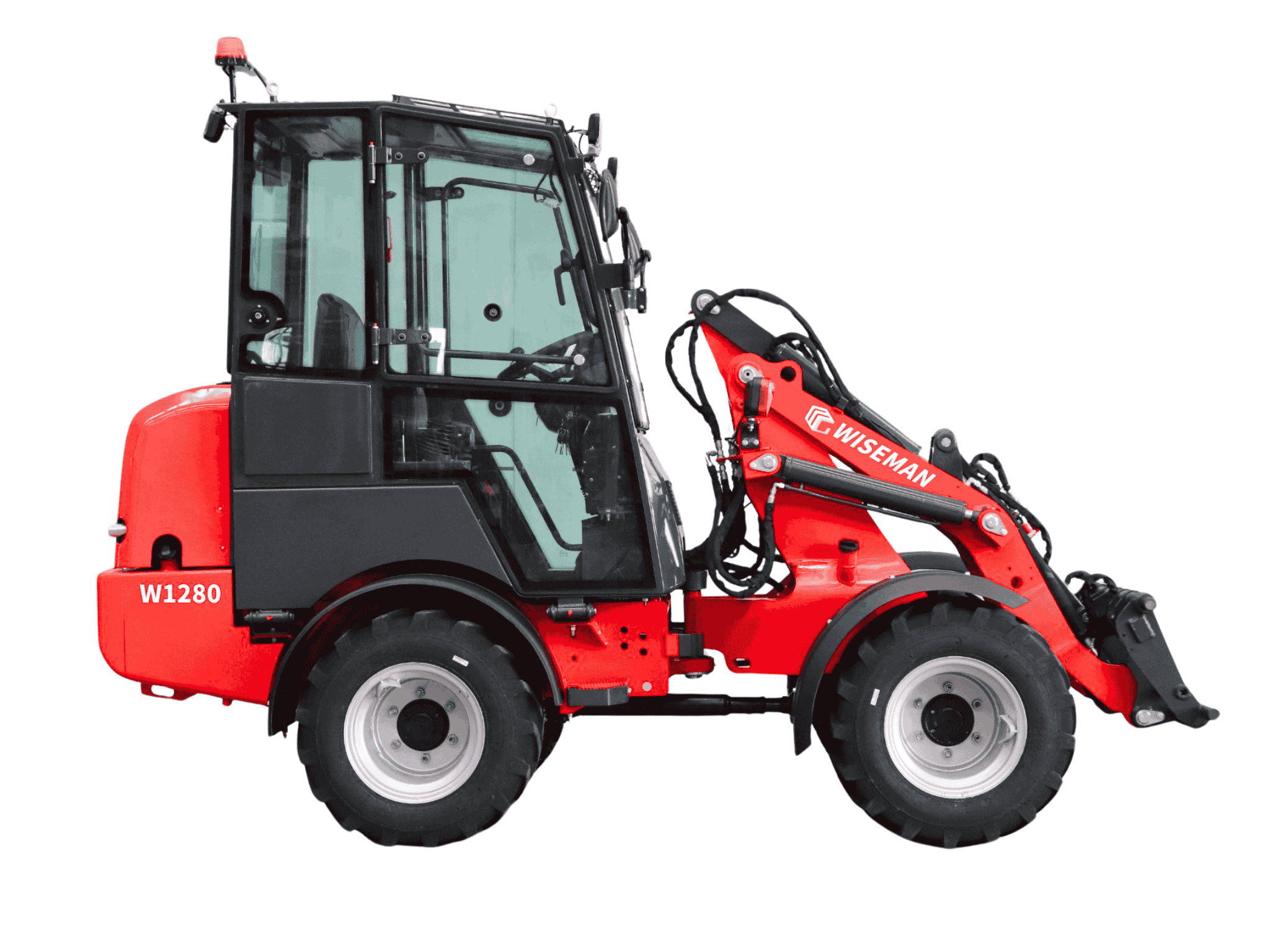

Built for agility and power, this red compact loader navigates tight farm spaces with ease, while its robust hydraulic system and quick-attach implements let you switch between hay grapples, buckets, and forks in seconds. The enclosed cab ensures comfort during long workdays, and its durable construction handles the tough demands of daily farm operations effortlessly.
Product Specifications
Engine Rated Power (kw/HP)：18.4/25
Operating Weight (kg):2380-2550
Tipping Load with Bucket--Machine Straight (kg):1160-1690
Bucket Pivot Point :980-1440
Applications

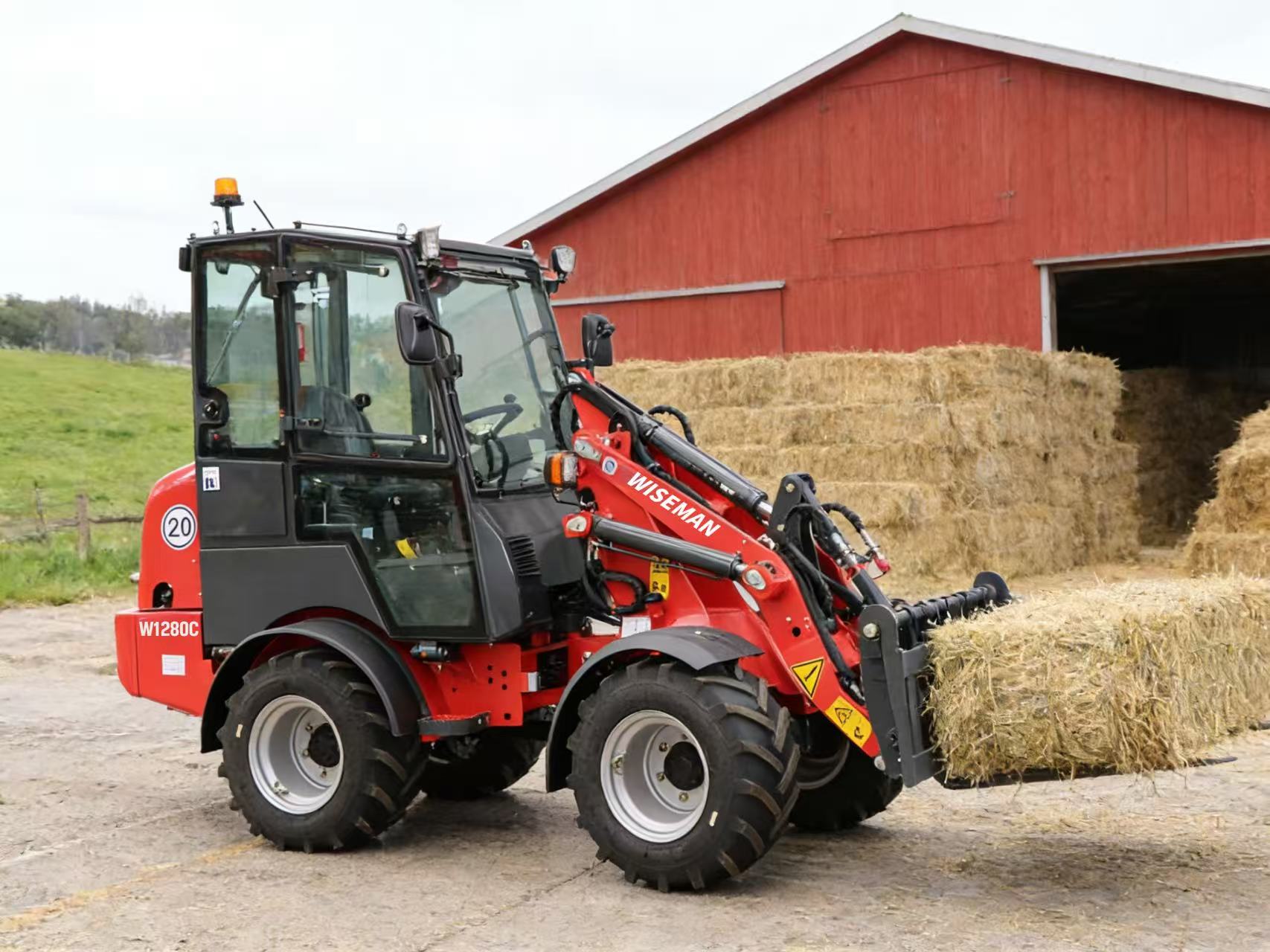

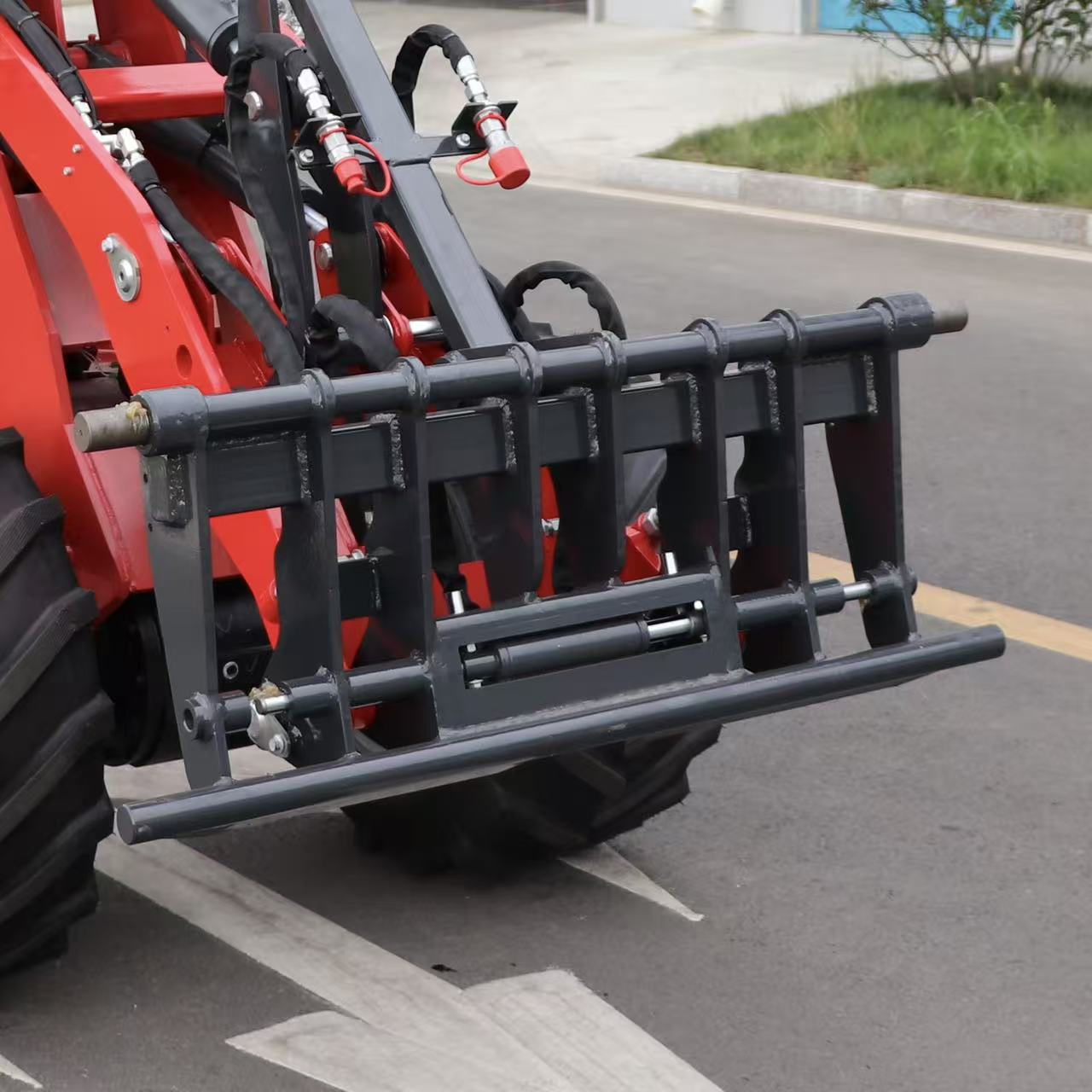

Compact Wheel Loader for Hay Bale Transport on FarmsNimble in farm fields and narrow lanes, bale-grab equipped, securely hauls hay bales damage-free to streamline farm forage transport and storage. |
|

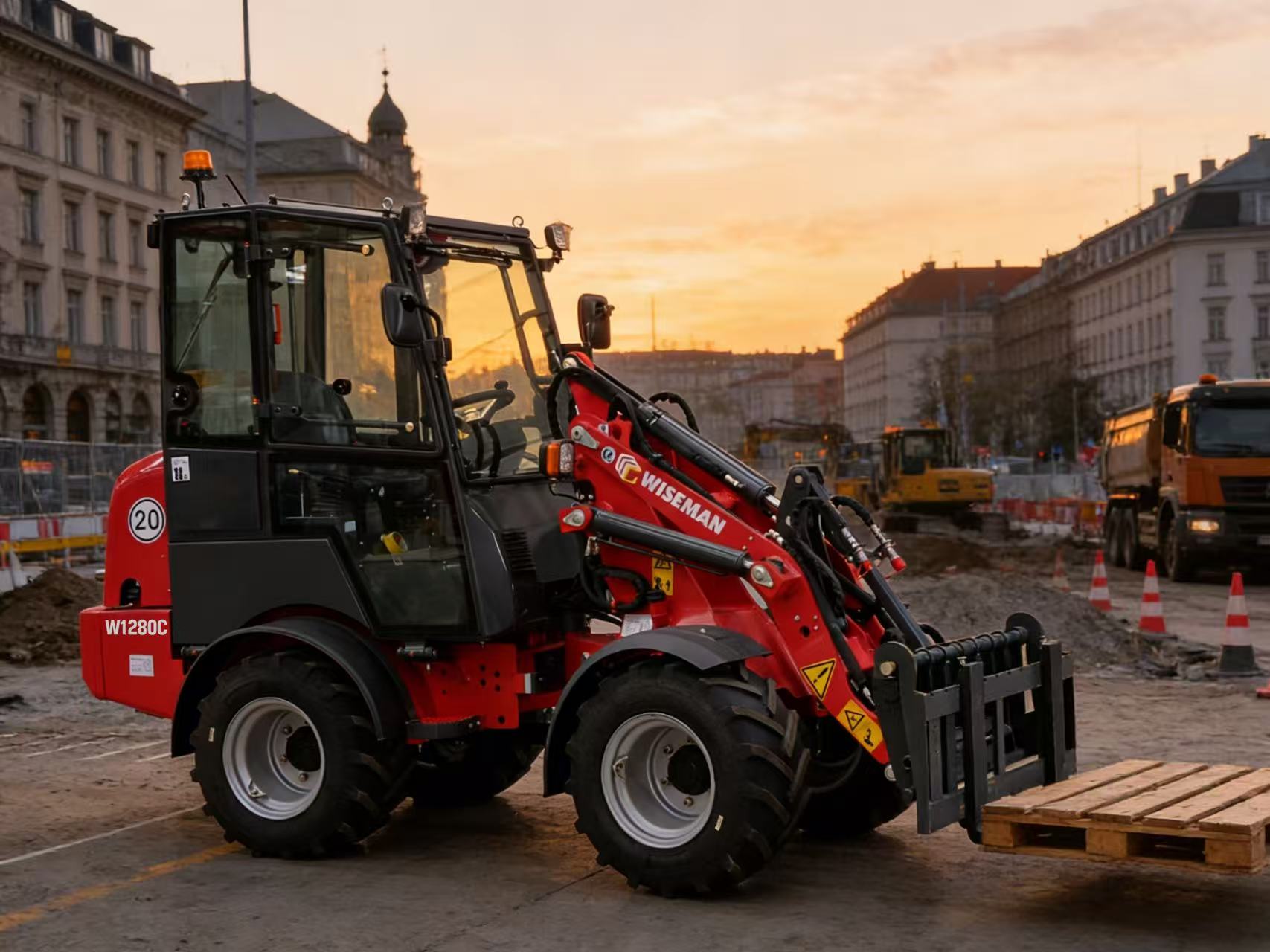

Compact Wheel Loader: Municipal Pallet Transport & HandlingFork-adaptable, city-agile, damage-free for all municipal palletized material haulage work |
|
W1280C Technical Data | |
Engine | |
Brand/Model | Kubota D1703 or D1505 |
Type: | 3 Cylinders or 4 Cylinders, Water Cooling |
Power Output (kw/HP) | 18.4/25 |
Emissios Standard | Euro V/ Tier 4 Final |
Driving System | |
Type of Drive | Hydrostatic |
Drive | Universal Joint Shaft |
Travel Speed ( km/h) | 0-15 |
Electrical System | |
Operating Voltage （V) | 12 |
Battery Capacity (Ah) | 60 |
Alternator Rating (Ah) | 40 |
Hydraulic System | |
Max.Drive Hydraulics Work Pressure (bar) | 320 |
Max. Drive Hydraulics Discharge Volume (l/min) | 72 |
Max. Work Hydraulics Work Pressure | 25Mpa |
Max. Work Hydraulics Discharge Volume (l/min) | 32 |
Weight | |
Operating Weight (kg) | 2380-2550 |
Tipping Load with Bucket--Machine Straight, | 1160-1690 |
Tipping Load with Bucket--Machine Pivoted, | 980-1440 |
Tipping Load with Pallet Fork--Machine Straight, | 890-1260 |
Tipping Load with Pallet Fork--Machine Pivoted, | 740-1080 |
Bucket Capacity (m3) | 0.28 |
Brake System | |
Operating Brake | Transmission Drum Brake |
Parking Brake | Operating and Parking Brake in the Drive Train |

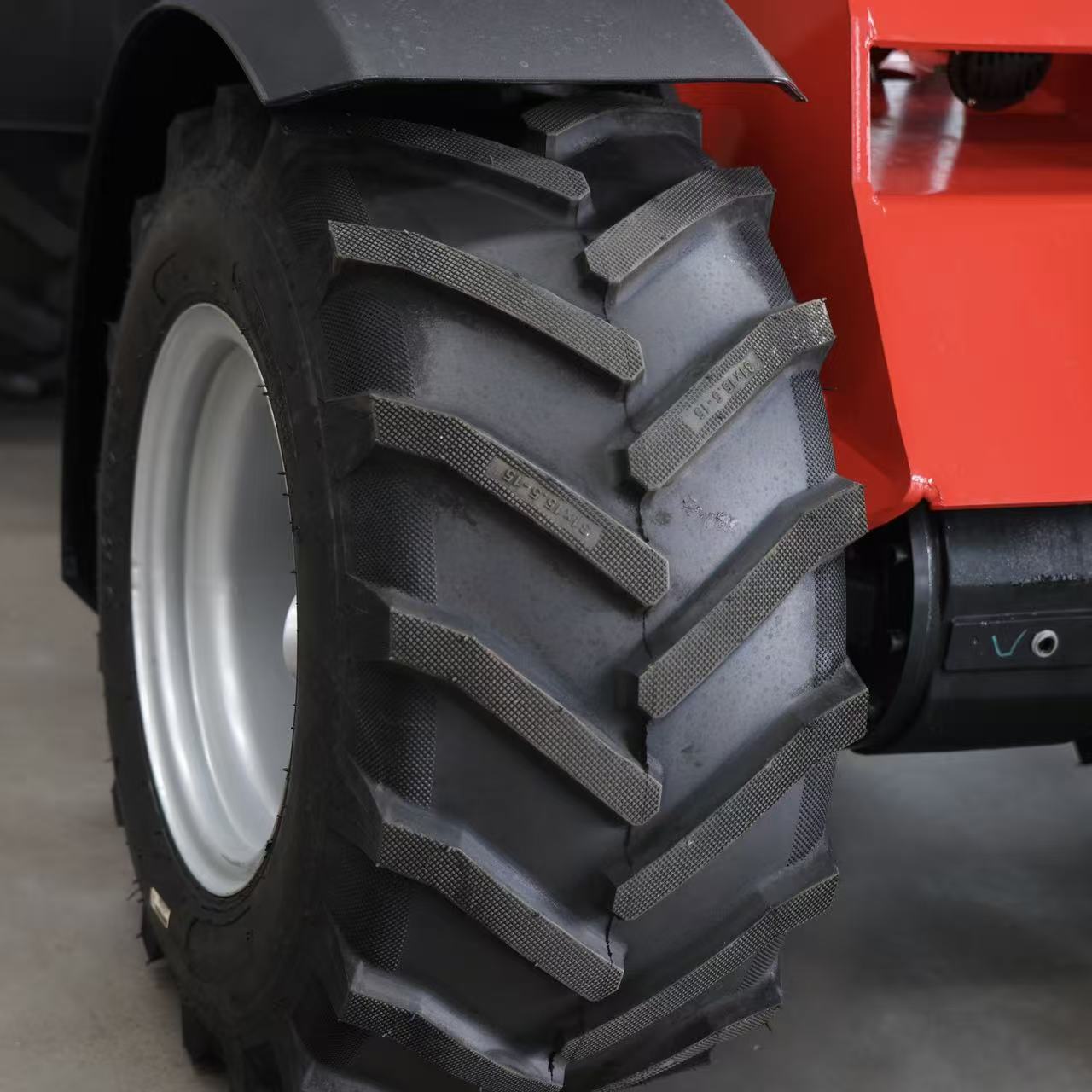

Tyre Size (standard) | 31*15.5-15 |

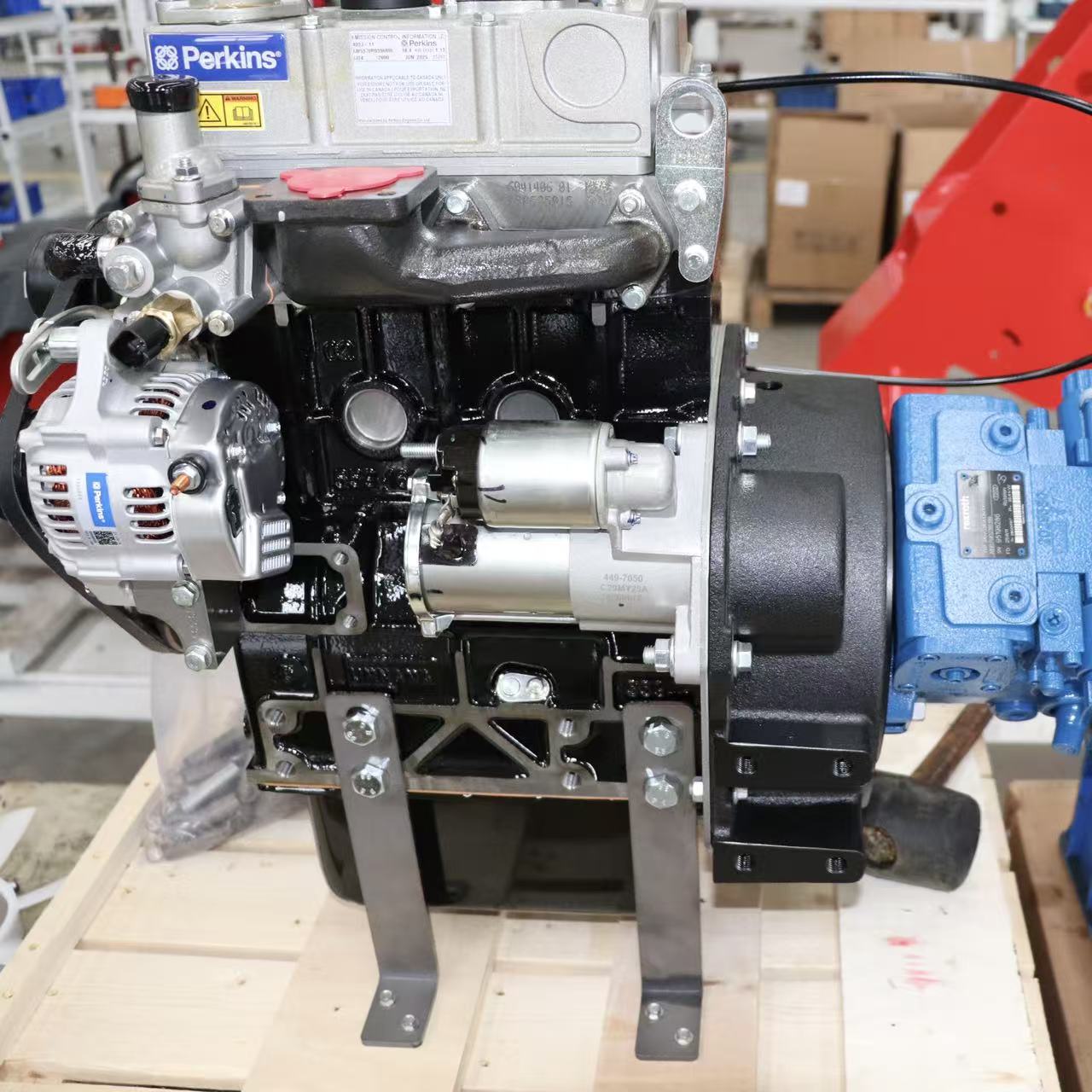

| 1.Engine: KUBOTA D1105 (Euro 5), Optional: Perkins |

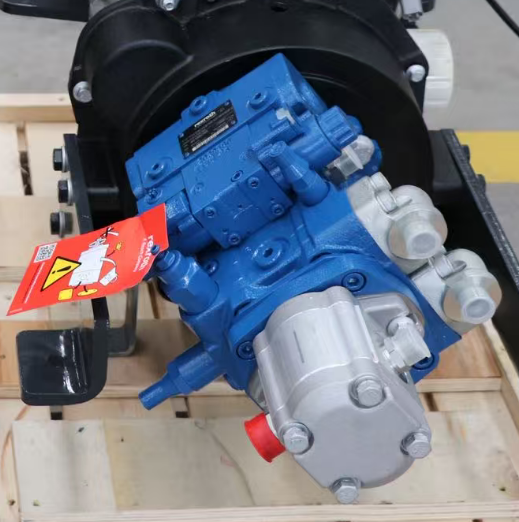

| 2.Hydraulic System: German Rexroth pump, Gerotor motor, domestic valves; 1 pump + 2 motors, Inching function |
| 3.Boom Function: Floating function (optional) |

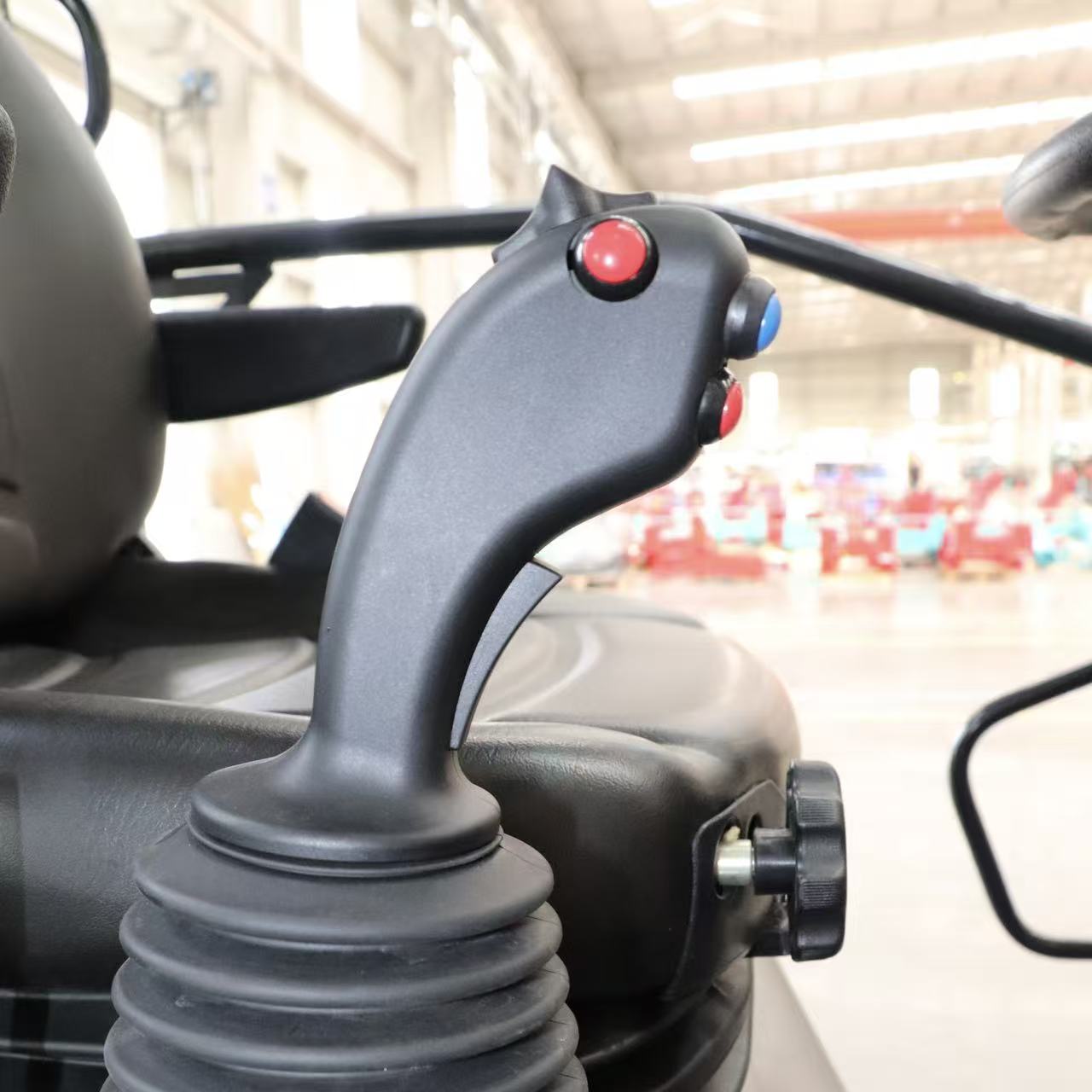

| 4.Control System: Electronic control levers with integrated forward/reverse buttons 5.(High/Low speed optional) |

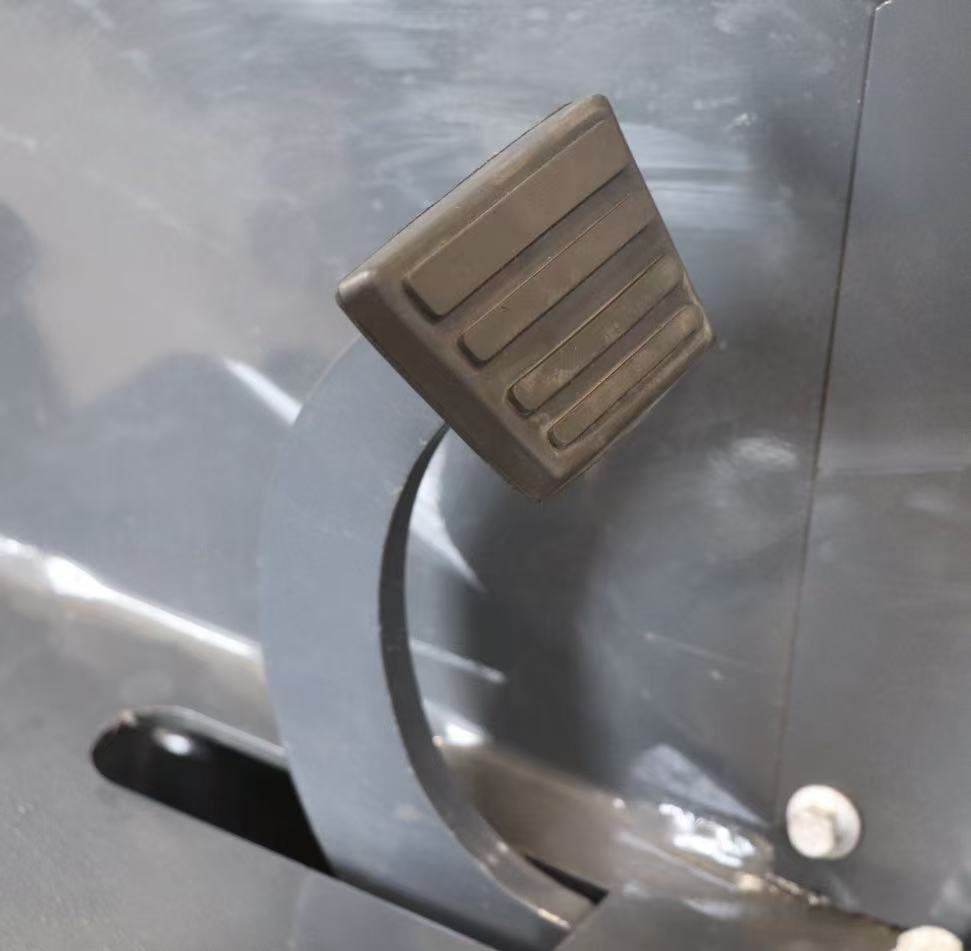

| 6.Brake Inching Function (optional) |

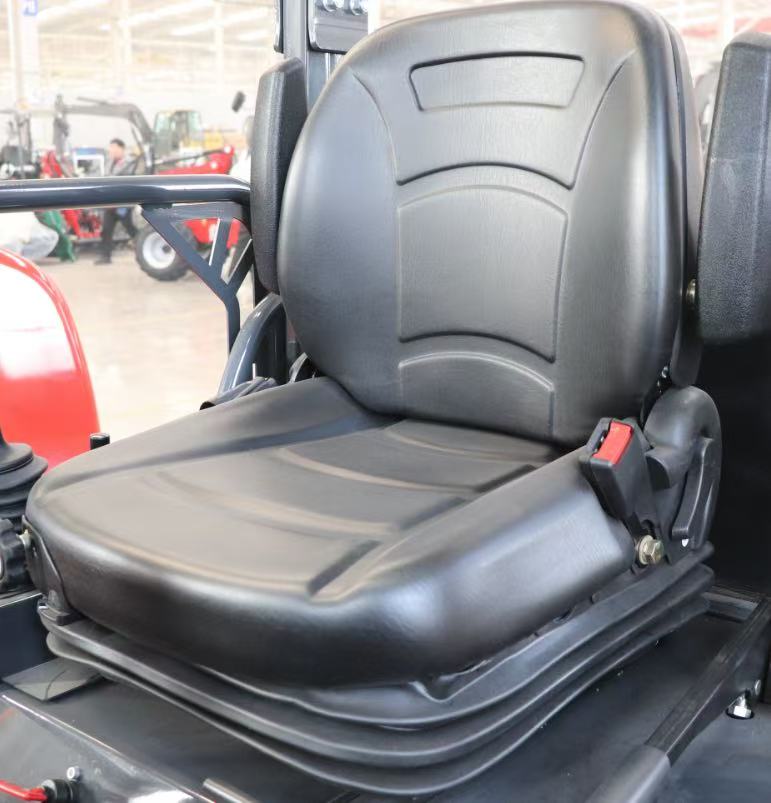

| 7.Seat Sensor (optional) |

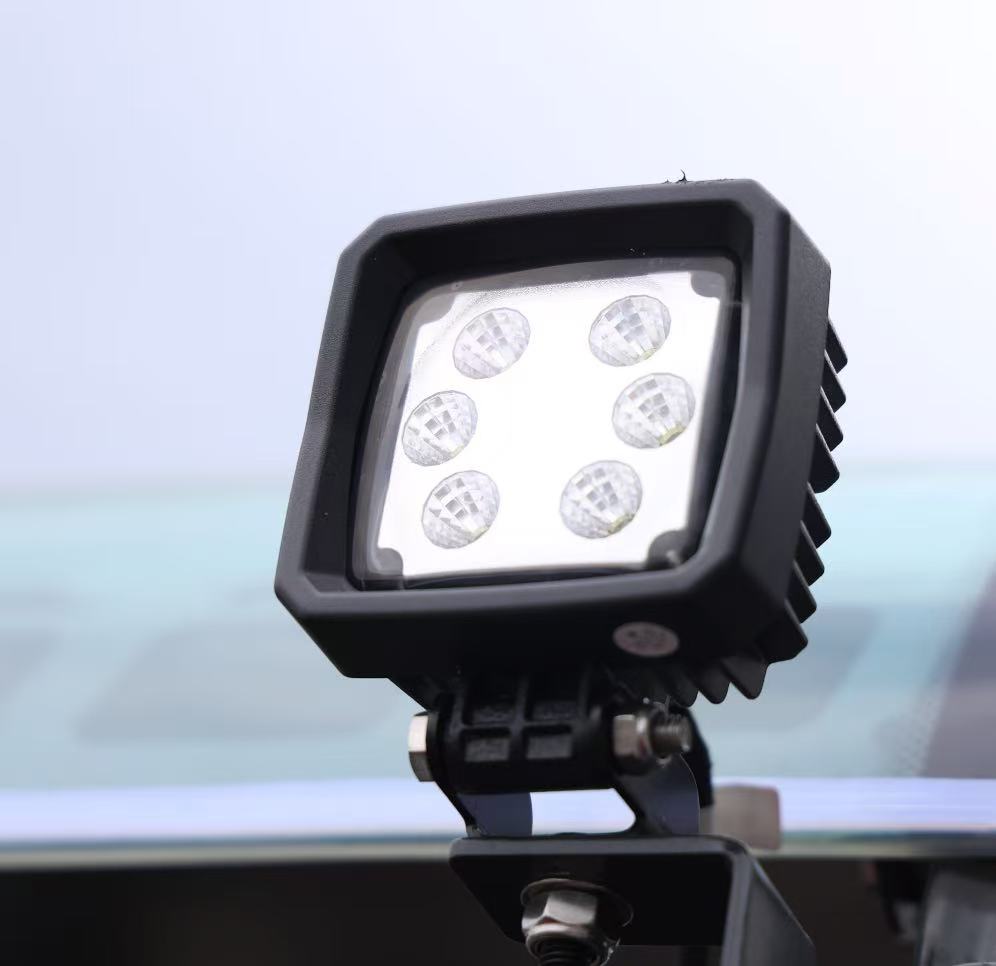

| 8.Lights: Turn signals, LED work lights |
| 9.EU-standard Hydraulic Quick Coupler,Quick change, customization supported |
| 10.Tires: 31.5*15-15.5 |
| 11.Canopy: EPS,detachable, foldable, and closable. |

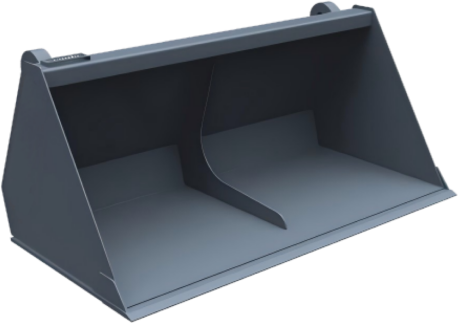

1. Lightweight Bucket Square Main Application Scenarios: Designed to optimize the handling of heterogeneous lightweight materials (sawdust, hay, plastic granules) in low-load, high-frequency operational scenarios, aligning with the efficiency requirements of modern light-industry workflows. Core Functions: Incorporates a parallel top-bottom rim design to reduce operational resistance and improve usability; extended bottom dimensions and elevated sidewalls increase material volumetric capacity; integrates a low-abrasion scraper edge to enhance the bucket’s lifecycle cost efficiency. |
| ||
Parameter | Value Range | ||
Width | 870mm-1050mm | ||
Capacity | 0.28M3-0.54M3 | ||
Weight | 110kg-150kg | ||
| 2.Lightweight Bucket Round Main Application Scenarios: Engineered for the efficient shoveling and transportation of bulk lightweight materials such as silage, straw, and wood chips, with targeted applicability to operational contexts where material leakage reduction is a core performance criterion. Core Functions: Incorporates a reinforced design paradigm dedicated to lightweight material handling; maintains a parallel geometric relationship between the top rim and bucket base to facilitate ergonomic operation; extended bottom dimensions and reinforced curved side structures augment load capacity, with integrated overflow protection systems mitigating material spillage; the low-wear scraper edge is designed for replaceability to optimize lifecycle cost efficiency. | ||
Parameter | Value Range | ||
Width | 870mm-1050mm | ||
Capacity | 0.28M3-0.54M3 | ||
Weight | 110kg-150kg | ||
3. Earth Bucket Main Application Scenarios: Designed for the efficient grasping and transportation of heterogeneous loose materials including silage, manure, wood chips, and green waste in agricultural and municipal greening workflows. Core Functions: Leverages dual-cylinder actuation to deliver superior gripping capacity for secure load retention; features modular detachable side structures for operational flexibility; integrates a low-abrasion scraper edge to optimize material recovery efficiency and reduce wear-related downtime. |
| ||
Parameter | Value Range | ||
Width | 920mm-1150mm | ||
Capacity | 0.20M3-0.32M3 | ||
Weight | 135kg--175kg | ||

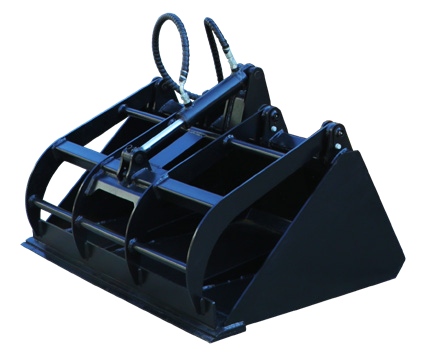

| 4. Grab Bucket With Removable Side Parts Main Application Scenarios: Designed for the efficient grasping and transportation of heterogeneous loose materials including silage, manure, wood chips, and green waste, aligning with the operational demands of modern agricultural and municipal greening workflows. Core Functions: Dual-cylinder actuation delivers superior gripping capacity to ensure load integrity during transit; modular detachable side modules enable customized configurations for diverse task requirements; integrates a low-wear scraper edge to enhance the bucket’s service lifecycle. | ||
Parameter | Value Range | ||
Width | 1150mm-1550mm | ||
Capacity | 0.23M3-0.36M3 | ||
Weight | 280kg--320kg | ||

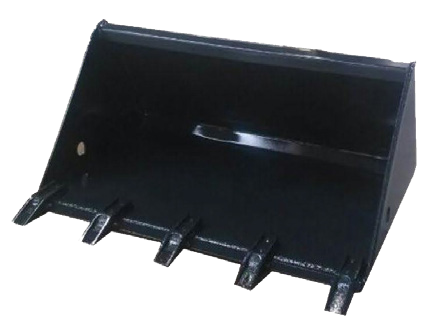

5. Multi-purpose Bucket Main Application Scenarios: Designed to address heterogeneous operational demands including worksite remediation and material transfer, enabling tri-functional operations of shoveling, loading, and gripping for objects ranging from large rock masses to undergrowth vegetation. Core Functions: Exhibits tri-modal operational capability for shoveling, loading, and gripping; adopts an openable emptying mechanism to augment discharge height; integrates a low-abrasion scraper edge to optimize service life; is configured with bucket teeth to enhance load engagement efficiency. |
| ||
Parameter | Value Range | ||
Width | 1150mm-1550mm | ||
Capacity | 0.23M3-0.36M3 | ||
Weight | 280kg--320kg | ||
